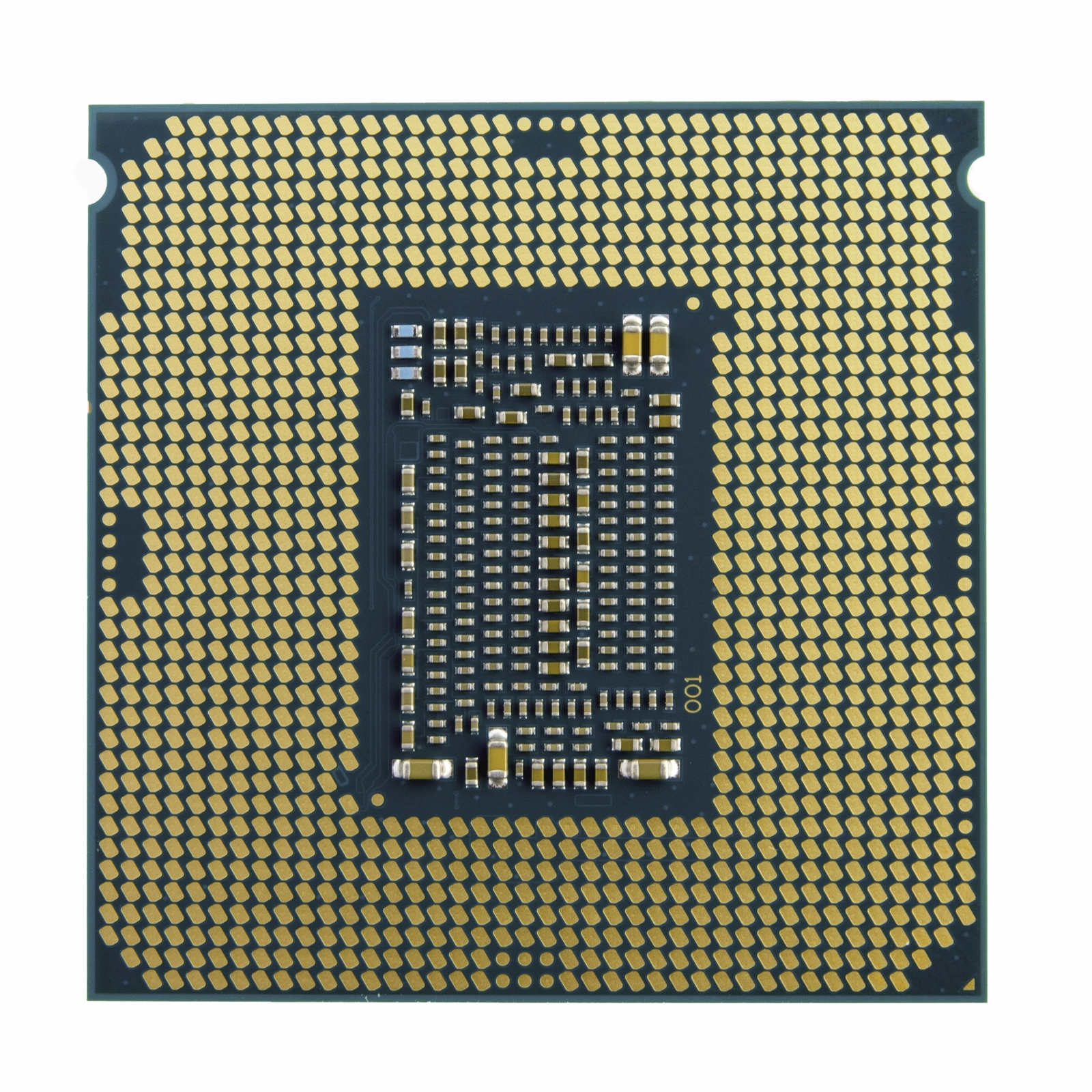

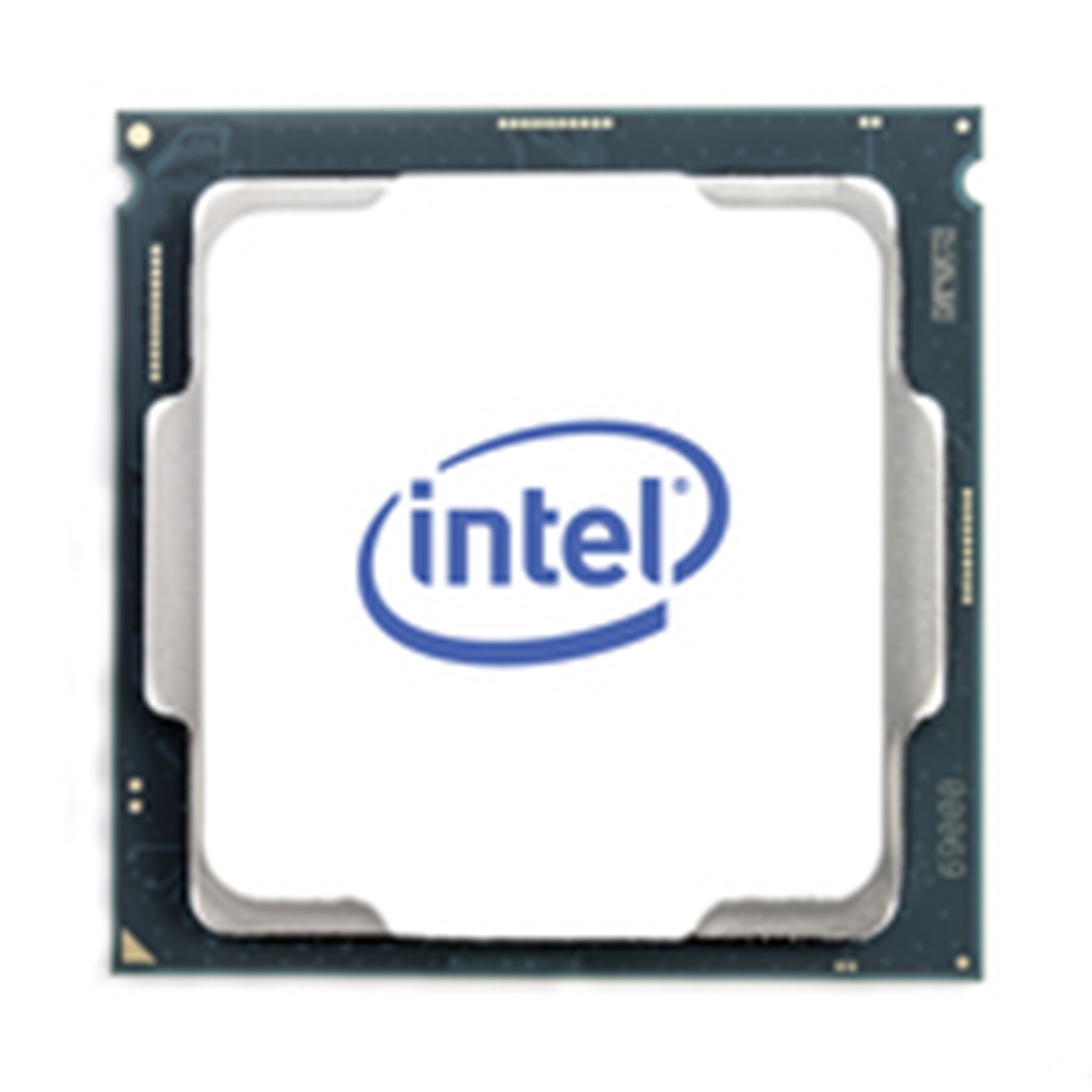

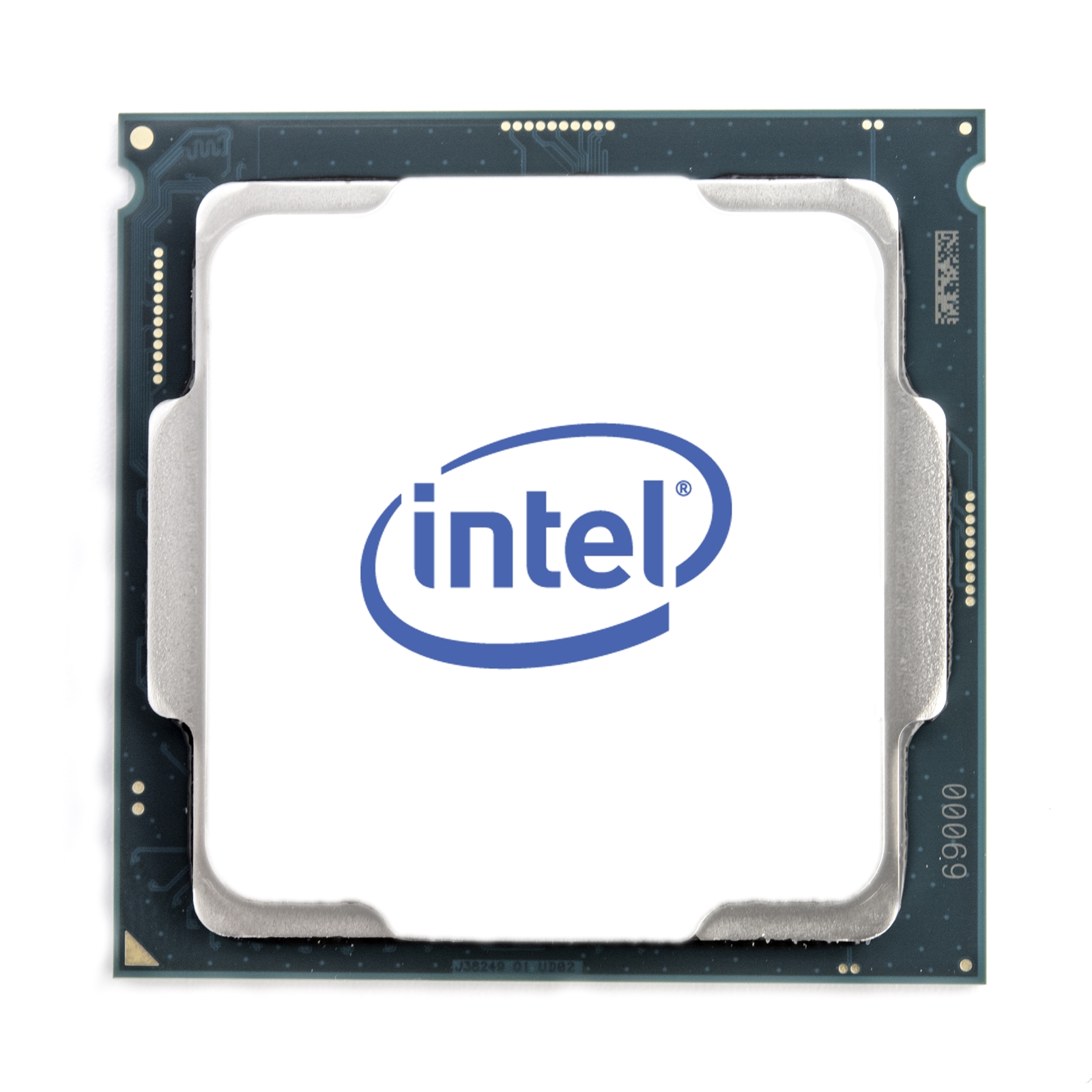

DELL Intel Xeon Silver 4310 2.1GHz 12 Core

DELL Logo here

Manufacturer Part Code: 338-CBXK

Order Code: PRDEL-338CBXK

Category: Dell Server Processors

Intel Xeon Silver 4310 - 2.1 GHz - 12-core - 24 threads - 18 MB cache - for PowerEdge R450 R650xs R750 R750xs

The Intel Xeon® Silver 4310 2.1GHz Twelve Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.

Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Silver 4310 2.1GHz Twelve Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Supported instruction sets
SSE4.2,AVX,AVX 2.0,AVX-512
PCI Express slots version
4.0
Execute Disable Bit
Y
Scalability
2S
Embedded options available
Y
Maximum number of PCI Express lanes
64
Market segment
Server
Harmonized System (HS) code
8542310001
Export Control Classification Number (ECCN)
5A992CN3
Commodity Classification Automated Tracking System (CCATS)
G178966
On-board graphics card model
Not available
Discrete graphics card model
Not available
On-board graphics card
N
Discrete graphics card
N
ECC
Y
Memory channels
Octa-channel
Maximum internal memory supported by processor
6144 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2667 MHz
Tcase
82 °C
Maximum internal memory
6000 GB
Package type
Retail box
Processor model
4310
Processor manufacturer
Intel
Processor lithography
10 nm
Processor family
Intel Xeon Silver
Box
N
Processor socket
FCLGA4189
Processor cores
12
System bus rate
10.4 GT/s
Processor threads
24
Processor operating modes
64-bit
Processor boost frequency
3.3 GHz
Component for
Server/workstation
Processor cache
18 MB
Thermal Design Power (TDP)
120 W
Processor codename
Ice Lake
Processor ARK ID
215277
Cooler included
N
Processor base frequency
2.1 GHz
Processor generation
3rd Generation Intel® Xeon® Scalable
Intel® Hyper Threading Technology (Intel® HT Technology)
Y
Intel® Turbo Boost Technology
2.0
Intel® AES New Instructions (Intel® AES-NI)
Y
Intel Trusted Execution Technology
Y
Intel VT-x with Extended Page Tables (EPT)
Y
Intel 64
Y
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Software Guard Extensions (Intel SGX)
Y
Intel Virtualization Technology (VT-x)
Y
Intel® Speed Shift Technology
Y
AVX-512 Fused Multiply-Add (FMA) units
2
Intel® Resource Director Technology (Intel® RDT)
Y
Mode-based Execute Control (MBE)
Y
Intel® Deep Learning Boost (Intel® DL Boost)
Y
Intel® Volume Management Device (VMD)
Y
Intel® Optane? DC Persistent Memory Supported
N
Intel® Total Memory Encryption
Y
Intel® Transactional Synchronization Extensions
Y
Intel® Crypto Acceleration
Y
Intel® Platform Firmware Resilience Support
Y
Maximum Enclave Size Support for Intel® SGX
8 GB
Supported memory types
DDR4-SDRAM
Status
Launched
Launch date
Q2''21
Memory speed (max)
2667 MHz
Number of UPI links
2
Processor package size
77.5 x 56.5 mm
