Dell Server Processors | DELL Intel Xeon Silver 4309Y 2.8GHz 8 Core | 338-CBXY | ServersPlus
DELL 338-CBXY | serversplus.comDELL 338-CBXY | serversplus.comDELL 338-CBXY | serversplus.com

Illustration purposes only

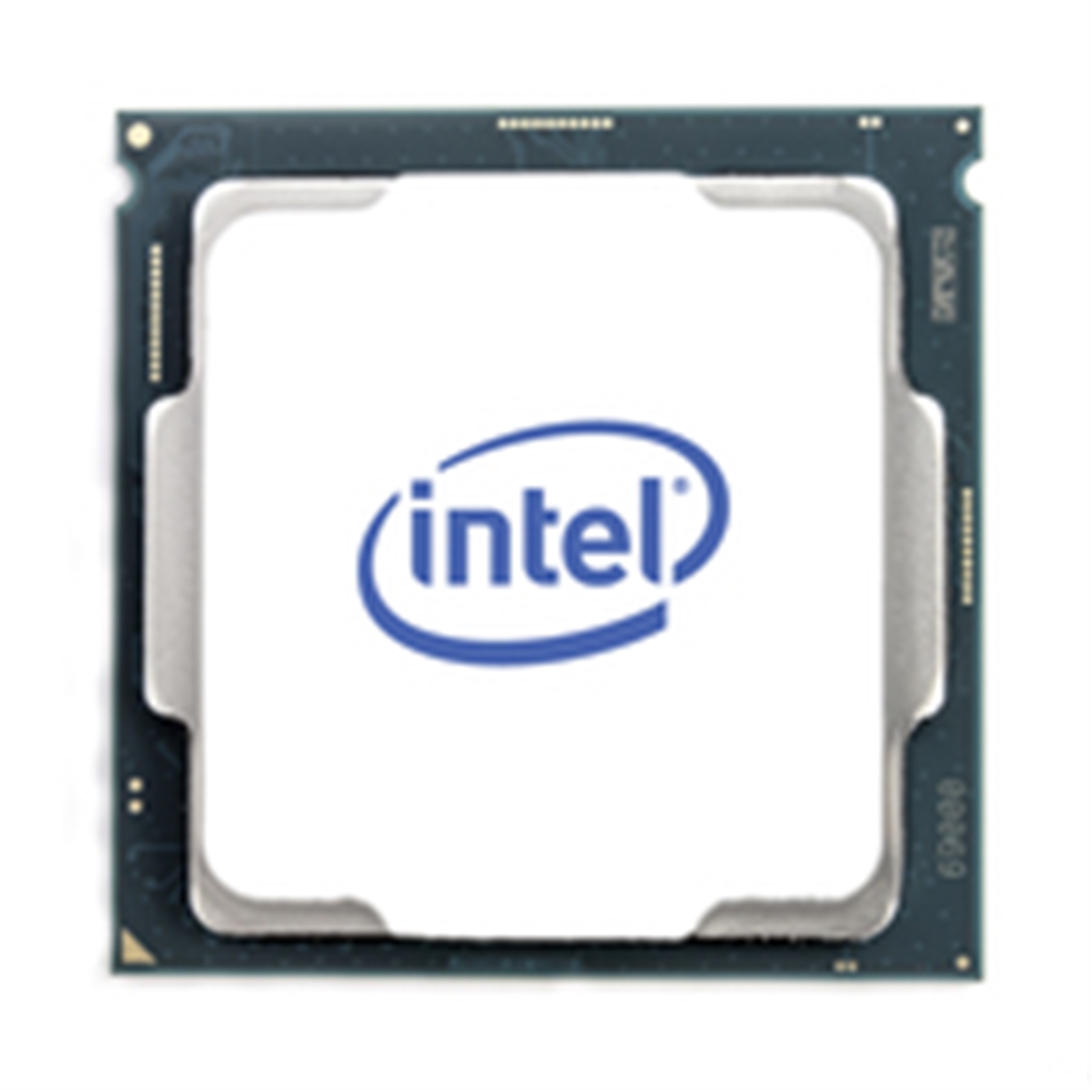

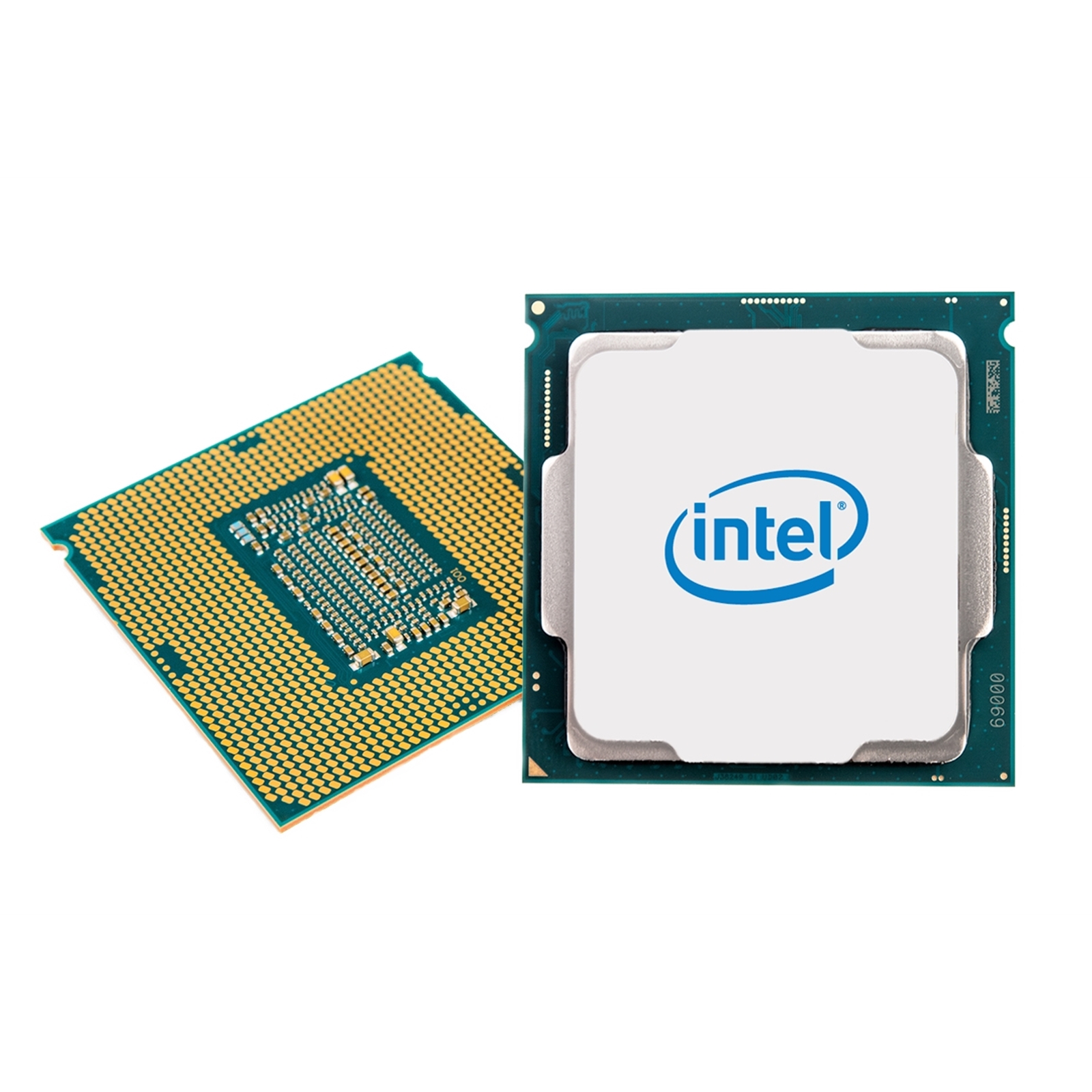

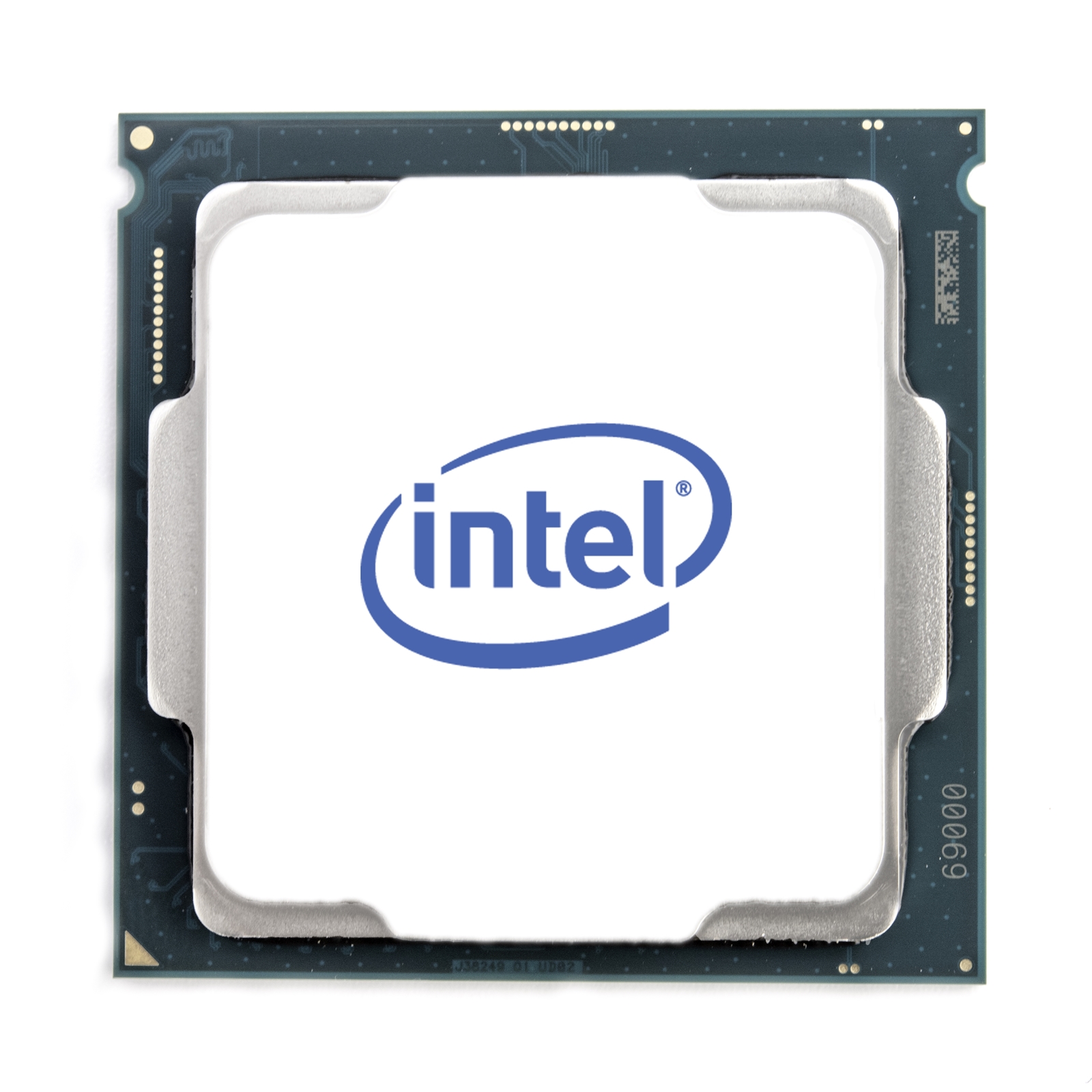

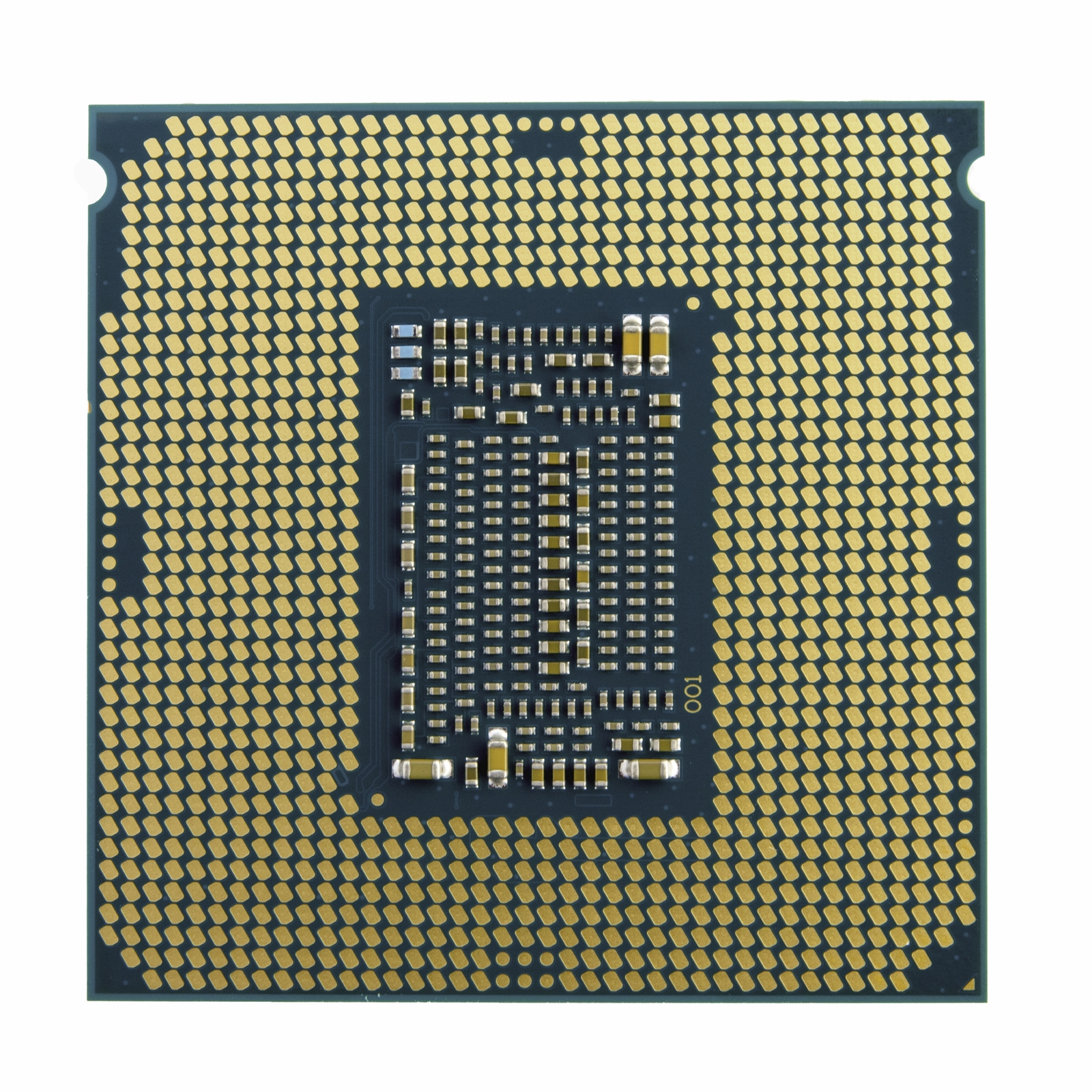

DELL Intel Xeon Silver 4309Y 2.8GHz 8 Core

DELL Logo here

Manufacturer Part Code: 338-CBXY

Order Code: PRDEL-338CBXY

Category: Dell Server Processors

Intel Xeon Silver 4309Y - 2.8 GHz - 8-core - 16 threads - 12 MB cache - for PowerEdge R450 R650xs R750 R750xs

The Intel Xeon® Silver 4309Y 2.8GHz Eight Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.

Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Silver 4309Y 2.8GHz Eight Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Supported instruction sets
SSE4.2, AVX, AVX 2.0, AVX-512
PCI Express slots version
4.0
Execute Disable Bit
Y
Scalability
2S
Embedded options available
N
Maximum number of PCI Express lanes
64
Market segment
Server
Harmonized System (HS) code
85423119
Export Control Classification Number (ECCN)
5A992CN3
Commodity Classification Automated Tracking System (CCATS)
G178966
On-board graphics card model
Not available
Discrete graphics card model
Not available
On-board graphics card
N
Discrete graphics card
N
Harmonized System (HS) code
85423119
ECC
Y
Memory channels
Octa-channel
Maximum internal memory supported by processor
6.14 TB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2667 MHz
Tcase
76 °C
Maximum internal memory
6 TB
Package type
Retail box
Processor model
4309Y
Processor manufacturer
Intel
Processor lithography
10 nm
Processor family
Intel Xeon Silver
Box
N
Processor socket
LGA 4189
Processor cores
8
System bus rate
10.4 GT/s
Processor threads
16
Processor operating modes
64-bit
Processor boost frequency
3.6 GHz
Component for
Server/workstation
Processor cache
12 MB
Thermal Design Power (TDP)
105 W
Processor codename
Ice Lake
Processor ARK ID
215275
Cooler included
N
Processor base frequency
2.8 GHz
Processor generation
3rd Generation Intel® Xeon® Scalable
Intel® Hyper Threading Technology (Intel® HT Technology)
Y
Intel® Turbo Boost Technology
2.0
Intel® AES New Instructions (Intel® AES-NI)
Y
Intel Trusted Execution Technology
Y
Intel VT-x with Extended Page Tables (EPT)
Y
Intel 64
Y
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Software Guard Extensions (Intel SGX)
Y
Intel Virtualization Technology (VT-x)
Y
Intel® Speed Shift Technology
Y
AVX-512 Fused Multiply-Add (FMA) units
2
Intel® Resource Director Technology (Intel® RDT)
Y
Mode-based Execute Control (MBE)
Y
Intel® Deep Learning Boost (Intel® DL Boost)
Y
Intel® Speed Select technology - Performance Profile (Intel® SST-PP)
Y
Intel® Volume Management Device (VMD)
Y
Intel® Optane? DC Persistent Memory Supported
N
Intel® Total Memory Encryption
Y
Intel® Transactional Synchronization Extensions
Y
Intel® Crypto Acceleration
Y
Intel® Platform Firmware Resilience Support
Y
Maximum Enclave Size Support for Intel® SGX
8 GB
Supported memory types
DDR4-SDRAM
Status
Launched
Launch date
Q2''21
Memory speed (max)
2667 MHz
Number of UPI links
2
Processor package size
77.5 x 56.5 mm
