Adaptec RAID Controllers | ADAPTEC 8405E | 2293901-R | ServersPlus
ADAPTEC 2293901-R | serversplus.com

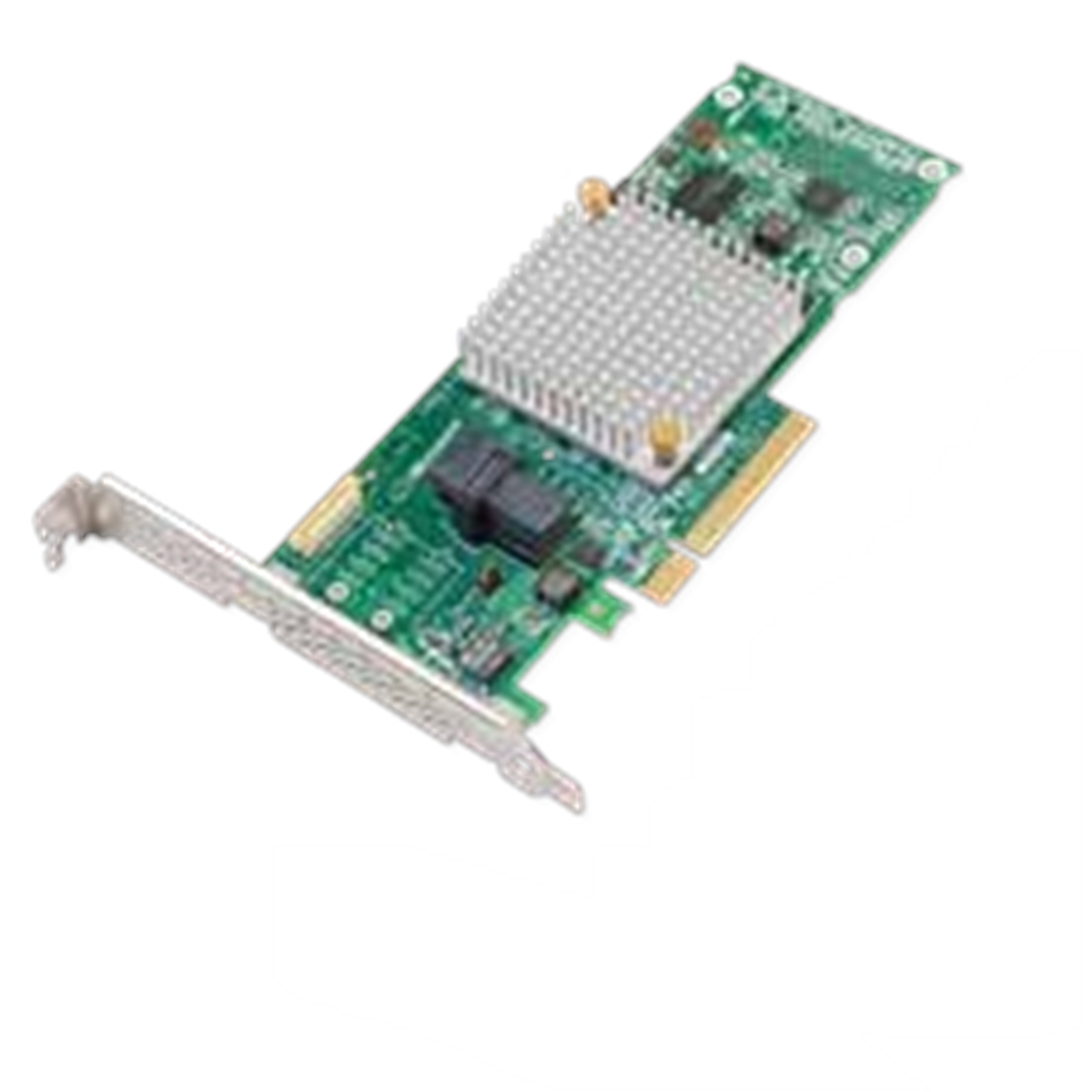

Illustration purposes only

ADAPTEC 8405E

ADAPTEC Logo here

Manufacturer Part Code: 2293901-R

Order Code: COADA-2293901R

Category: Adaptec RAID Controllers

ASR-8405E V2 SINGLE 12GB/S PCIE

Data center, IT, and general consumer server environments have a broad range of requirements—from basic connectivity to extreme data storage capacities. The Series 8E entry-level 12 Gbps PCIe Gen3 SAS/SATA RAID adapters deliver the robustness of hardware RAID in an entry-level solution. They offer performance acceleration through built-in cache and are optimized for platforms where a Series 8 adapter would not fi t due to price, form factor, or host connectivity. The 8805E, with eight internal SAS/SATA ports, is ideal for applications that require more bandwidth. Both models fi t the requirements of industrial PC workstations or entry-level servers. The 8405E and the 8805E support a maximum of four and eight devices respectively, as neither support expanders.

Maximum Performance for Entry-Level RAID Adapters
Series 8E RAID adapters can also be coupled with 12 Gbps SSDs, providing maximum read/write bandwidth and IOPS for the most performance-hungry applications. The 512 MB DDR3 (1600 MHz) built-in cache (recommended for read and write-through caching) provides maximum acceleration.

Advanced Data Protection and Ease of Use
Adaptec RAID Code (ARC) delivers maximum reliability with RAID levels 0, 1, 1E, 5, 6, 10, 50 and 60. ARC also offers RAID Level Migration (the ability to easily migrate RAID levels), Online Capacity Expansion (expand capacity without powering down the server), and Copyback Hot Spare (when a failed drive has been replaced, data is automatically copied from the hot spare back to the restored drive).

Microsemi's Adaptec RAID Code (ARC) delivers maximum reliability with an industry-leading feature set, including all of the RAID levels the industry has come to expect, plus unique features like fl exible confi guration modes for the adapter, hybrid RAID, and optimized disk utilization (ODU) where no available space is wasted. Microsemi's Adaptec maxView provides an HTML5 web interface that can be used in standard desktops and mobile browsers for all storage confi guration and management needs..

Features

- 12 Gbps throughput at each port
- 4- and 8-port low-profi le MD2 with support for a maximum of 4 and 8 devices respectively
- Mixed mode RAID adapter and HBA functionality
- 12 Gbps and 6 Gbps compatibility with HDD or SSD SAS/SATA devices
- 12 Gbps throughput per SAS port using mini-SAS HD connectors
- Microsemi's 12 Gbps RAID-on-Chip (ROC), x8 PCIe Gen3 interface with 12 Gbps SAS ports to enable a new generation of performance
- 512 MB DDR3 (1600 MHz) cache
- Up to 500K IOPS


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Certification
CE, FCC, UL, C-tick, VCCI, KCC, CNS, RoHS
Data transfer rate
12 Gbit/s
Mean time between failures (MTBF)
2000000 h
Internal memory
512 MB
Internal memory type
DDR3
Memory clock speed
1600 MHz
Operating temperature range (T-T)
0 - 55 °C
Other operating systems supported
FreeBSD,Solaris 10,Solaris 11,Solaris 8,Solaris 9
Internal memory
512 MB
Certification
CE, FCC, UL, C-tick, VCCI, KCC, CNS, RoHS
Internal memory type
DDR3
Mean time between failures (MTBF)
2000000 h
RAID levels
0,1,10
Data transfer rate
12 Gbit/s
Memory clock speed
1600 MHz
Number of devices supported
4
S.M.A.R.T support
Y
SSD support
Y
RAID Level Migration
Y
Host interface
PCI Express x8
PCI Express slots version
3.0
Internal mini-SAS ports
1
Supported storage drive interfaces
SAS, Serial ATA
Windows operating systems supported
Y
Linux operating systems supported
Y
Other operating systems supported
FreeBSD,Solaris 10,Solaris 11,Solaris 8,Solaris 9
RAID levels
0,1,10
Number of devices supported
4
S.M.A.R.T support
Y
SSD support
Y
RAID Level Migration
Y
Height
64 mm
Width
167 mm
