Broadcom RAID Controllers | Broadcom MegaRAID SAS 9361-4i | 05-25420-10 | ServersPlus

Illustration purposes only

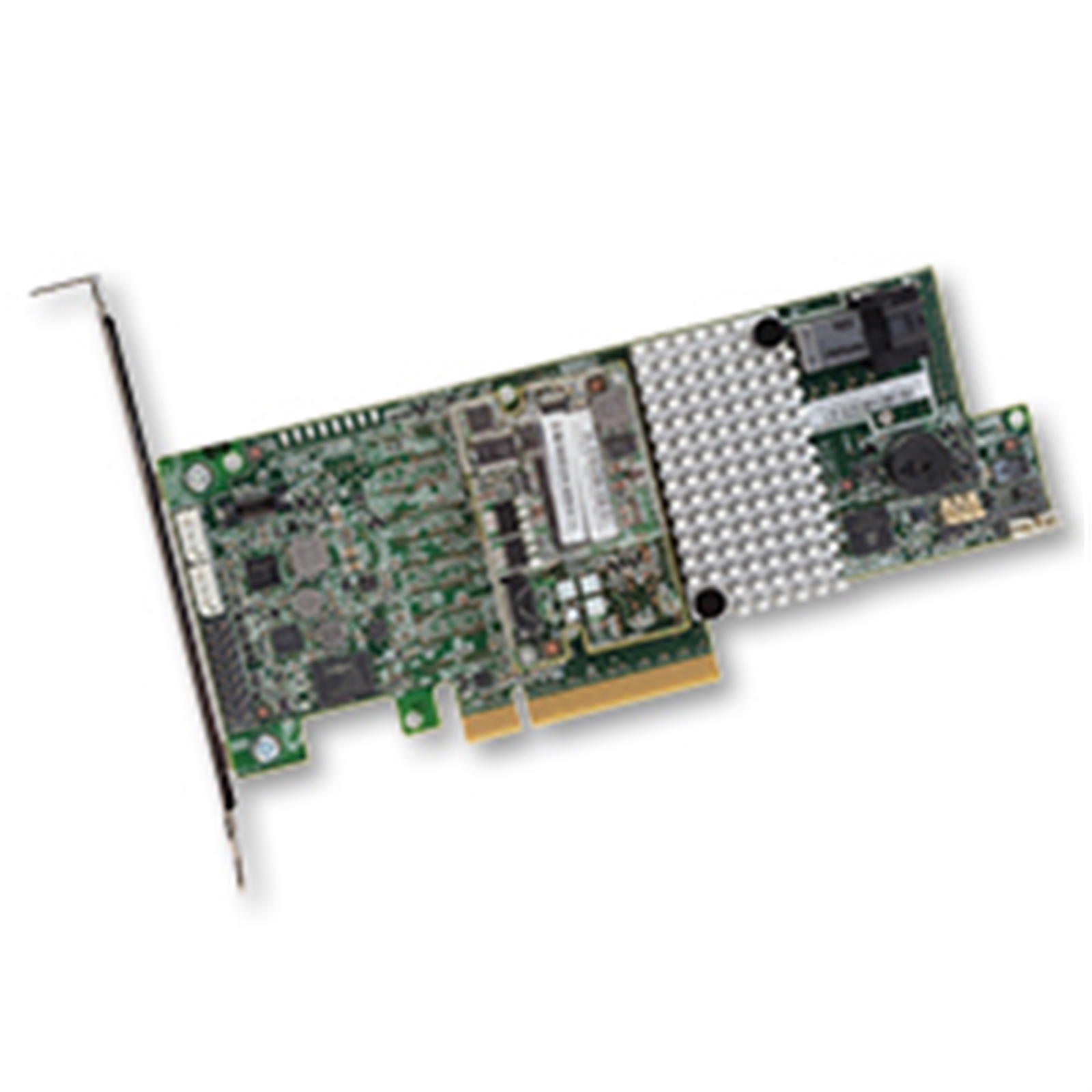

Broadcom MegaRAID SAS 9361-4i

Broadcom Logo here

Manufacturer Part Code: 05-25420-10

Order Code: COBRO-052542010

Category: Broadcom RAID Controllers

LSI MegaRAID SAS 9361-4i - Storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s low profile - 1.2 GBps - RAID 0 1 5 6 10 50 60 - PCIe 3.0 x8

Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today's applications and end users demand. The MegaRAID SAS 9361-4i 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

- Connect up to 128 SATA or SAS drives with four internal 12Gb/s SATA and SAS ports
- Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with optional CacheVault® flash cache protection


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Data transfer rate
12 Gbit/s
Mean time between failures (MTBF)
1343187 h
Voltage
3.3, 12 V
Voltage
3.3, 12
Harmonized System (HS) code
84733080
Internal memory
1024 MB
Internal memory type
DDR3
Memory clock speed
1866 MHz
Internal memory
1024 MB
Internal memory type
DDR3
Mean time between failures (MTBF)
1343187 h
Internal memory
1024 MB
RAID levels
0, 1, 5, 6, 10, 50, 60
Data transfer rate
12 Gbit/s
Compatible products
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
Internal memory type
DDR3
Mean time between failures (MTBF)
1343187 h
Memory clock speed
1866 MHz
Number of devices supported
128
RAID levels
0, 1, 5, 6, 10, 50, 60
Data transfer rate
12 Gbit/s
S.M.A.R.T. support
Yes
SSD support
Yes
RAID Level Migration
Yes
Online Capacity Expansion
Yes
Compatible products
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC;\nBSMI; C-tick
Memory clock speed
1866 MHz
Number of devices supported
128
S.M.A.R.T support
Y
SSD support
Y
RAID Level Migration
Y
Online Capacity Expansion
Y
Host interface
PCI Express x8
PCI Express slots version
3.0
Host interface
PCI Express x8
Internal SAS ports
4
Supported storage drive interfaces
SAS, Serial ATA
PCI Express slots version
3.0
Internal SAS ports
4
Supported storage drive interfaces
SAS, Serial ATA
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Windows operating systems supported
Y
Linux operating systems supported
Y
RAID levels
0, 1, 5, 6, 10, 50, 60
Number of devices supported
128
S.M.A.R.T support
Y
SSD support
Y
RAID Level Migration
Y
Online Capacity Expansion
Y
Width
176.6 mm
Depth
64.4 mm
Width
176.6 mm
Depth
64.4 mm
