Broadcom RAID Controllers | Broadcom MegaRAID SAS 9341-4i | 05-26105-00 | ServersPlus

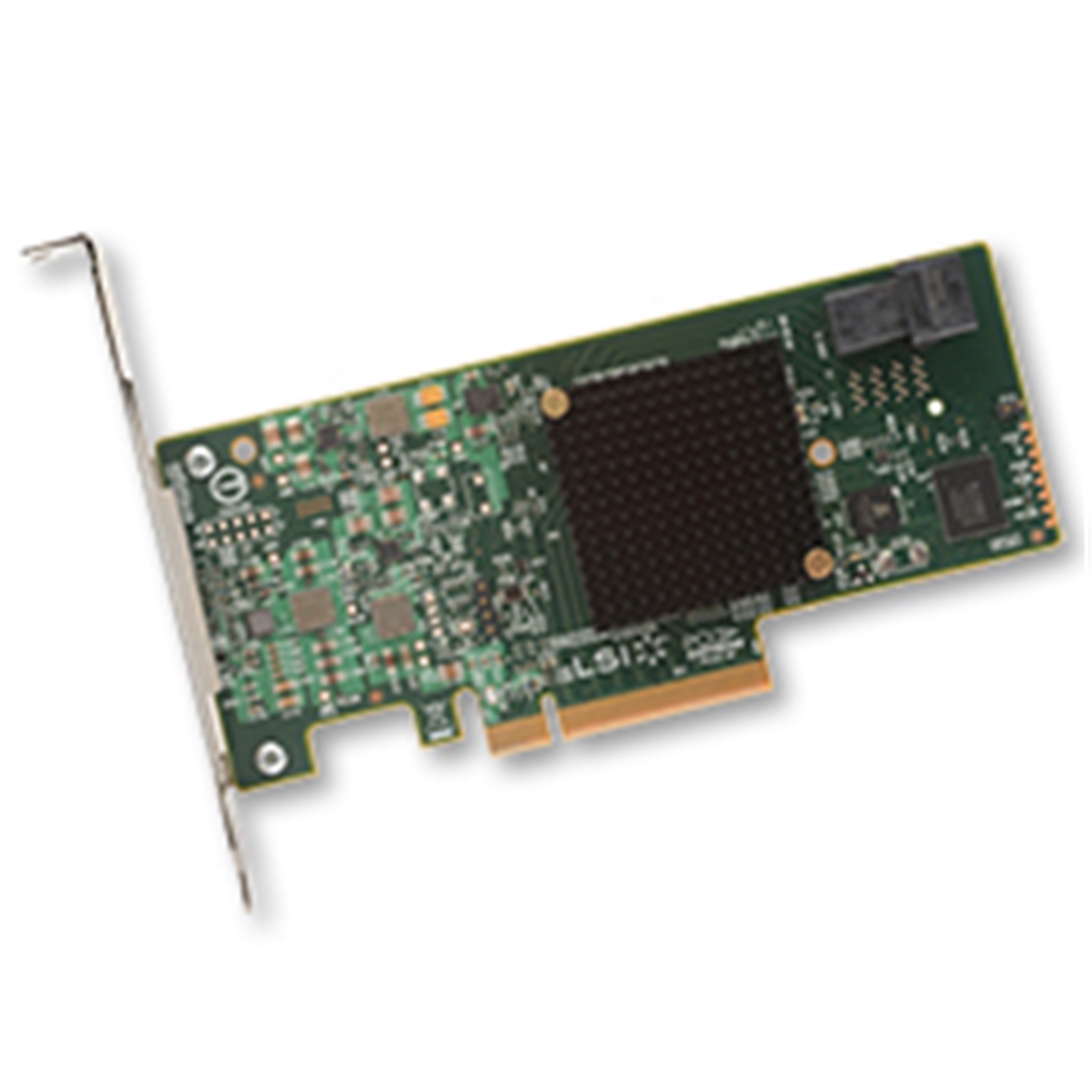

Illustration purposes only

Broadcom MegaRAID SAS 9341-4i

Broadcom Logo here

Manufacturer Part Code: 05-26105-00

Order Code: COBRO-052610500

Category: Broadcom RAID Controllers

LSI MegaRAID SAS 9341-4i - Storage controller (RAID) - 4 Channel - SATA 6Gb/s / SAS 12Gb/s low profile - 1.2 GBps - RAID 0 1 5 10 50 JBOD - PCIe 3.0 x8

Email, file, SharePoint, and similar critical apps must scale easily over time while remaining both highly protected and easily manageable. That's where the MegaRAID® SAS 9341-4i 12Gb/s controller card can add real value. Designed for small and medium businesses (SMBs) with tower and rack-mounted and servers, it provides the headroom required for future growth at an affordable price point.

- Connect up to 64 SATA or SAS drives in non-RAID (JBOD) mode or 32 drives in RAID mode with four internal 12Gb/s SATA and SAS ports
- Support high-bandwidth applications with PCIe® 3.0 connectivity
- Fit into 1U/2U rack-mounted servers and compact servers with low-profile form factor
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 10 and 50


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Voltage
3.3, 12 V
Harmonized System (HS) code
84733080
Operating relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-45 - 105 °C
Operating temperature (T-T)
0 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Certification
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
Mean time between failures (MTBF)
2800000 h
RAID levels
0, 1, 5, 10, 50
Data transfer rate
12 Gbit/s
Number of devices supported
64
S.M.A.R.T. support
Yes
SSD support
Yes
RAID Level Migration
Yes
Online Capacity Expansion
Yes
Host interface
PCI Express x8
PCI Express slots version
3.0
Internal SAS ports
4
Supported storage drive interfaces
SAS, Serial ATA
Windows operating systems supported
Yes
Linux operating systems supported
Yes
