Broadcom RAID Controllers | Broadcom  MegaRAID 9440-8i - Storage controller (RAID) - 8 Channel | 05-50008-02 | ServersPlus

Illustration purposes only

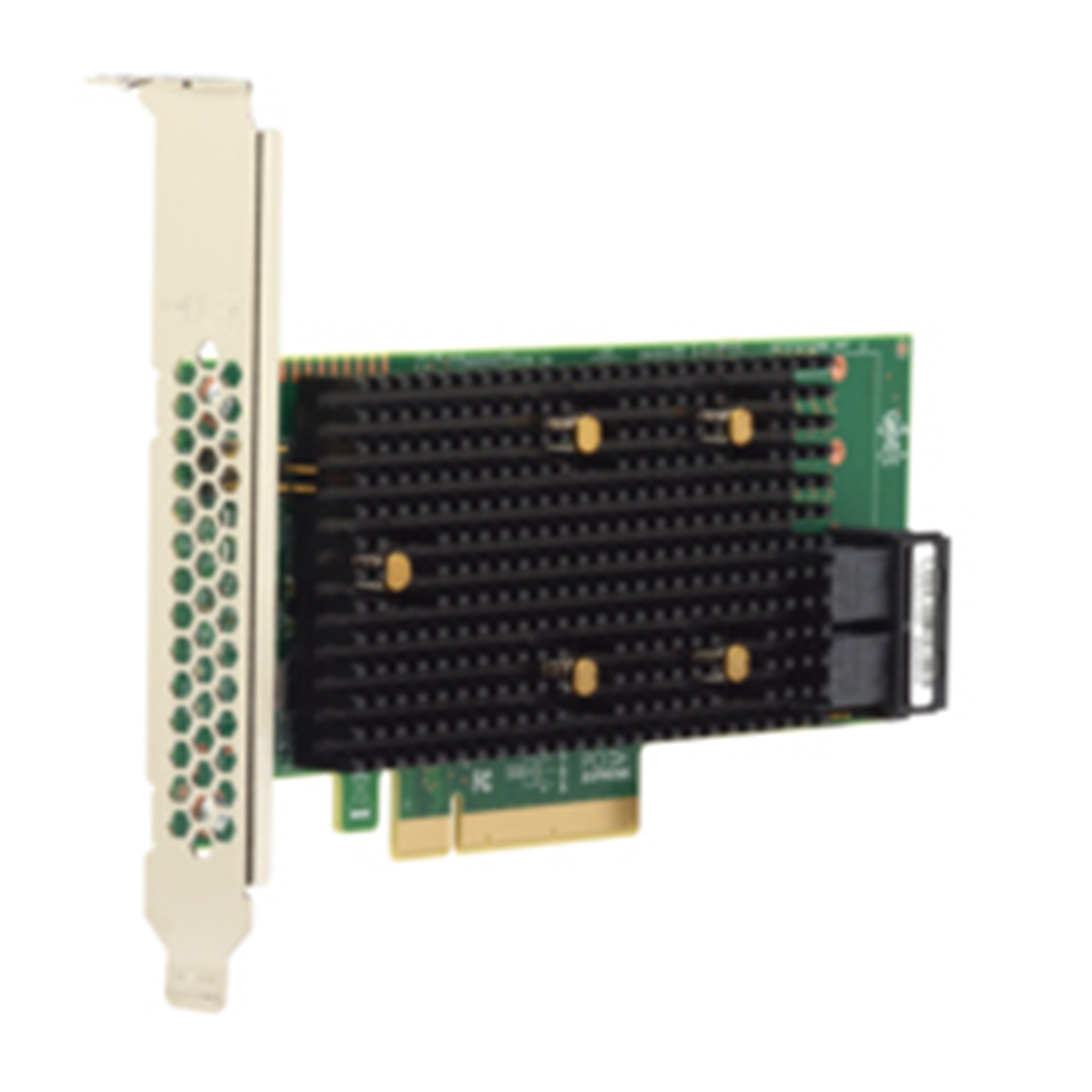

Broadcom MegaRAID 9440-8i - Storage controller (RAID) - 8 Channel

Broadcom Logo here

Manufacturer Part Code: 05-50008-02

Order Code: COBRO-055000802

Category: Broadcom RAID Controllers

MegaRAID 9440-8i - Storage controller (RAID) - 8 Channel - SATA / SAS 12Gb/s low profile - 1200 MBps - RAID 0 1 5 6 10 50 60 - PCIe 3.1 x8

Small and medium businesses (SMBs) deploying entry-level server platforms and workstations need affordable, reliable storage solutions. The MegaRAID 9440-8i Tri-Mode Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of non-business crticial applications.

Broadcom's Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility.

- Connect up to 63 SAS/SATA devices or 24 NVMe devices per controller
- Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Support critical, high-bandwidth applications with PCIe® 3.1 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Certification
AS/NZS CISPR 22, ICES -003, Class B, EN55022/EN55024, VCCI V-3, RRA no 2013-24 & 25, RoHS, EN/IEC/UL 60950, CNS 13438, USA (FCC 47 CFR part 15 Subpart B, class B, WEEE
Data transfer rate
12 Gbit/s
Mean time between failures (MTBF)
3000000 h
Voltage
3.3, 12 V
Voltage
3.3, 12
Harmonized System (HS) code
84733080
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-45 - 105 °C
Operating temperature (T-T)
10 - 55 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-45 - 105 °C
Operating temperature range (T-T)
10 - 55 °C
Storage relative humidity (H-H)
5 - 95%
Ports quantity
8
Connector(s)
2 x Mini-SAS HD x4 SFF-8643
Ports quantity
8
Connector(s)
2 x Mini-SAS HD x4 SFF-8643
Certification
AS/NZS CISPR 22, ICES -003, Class B, EN55022/EN55024, VCCI V-3, RRA no 2013-24 & 25, RoHS, EN/IEC/UL 60950, CNS 13438, USA (FCC 47 CFR part 15 Subpart B, class B, WEEE
Mean time between failures (MTBF)
3000000 h
Form factor
Low Profile MD2 Card
RAID levels
0, 1, 5, 6, 10, 50, 60
Data transfer rate
12 Gbit/s
Certification
AS/NZS CISPR 22, ICES -003, Class B, EN55022/EN55024, VCCI V-3, RRA no 2013-24 & 25, RoHS, EN/IEC/UL 60950, CNS 13438, USA (FCC 47 CFR part 15 Subpart B, class B, WEEE
Mean time between failures (MTBF)
3000000 h
Number of devices supported
63
RAID levels
0, 1, 5, 6, 10, 50, 60
Data transfer rate
12 Gbit/s
S.M.A.R.T. support
Y
SSD support
Y
RAID Level Migration
Y
Online Capacity Expansion
Y
Number of devices supported
63
S.M.A.R.T support
Y
SSD support
Y
RAID Level Migration
Y
Online Capacity Expansion
Y
Host interface
PCI Express x8
PCI Express slots version
3.1
Internal mini-SAS ports
2
Host interface
PCI Express x8
Supported storage drive interfaces
SAS, Serial ATA
PCI Express slots version
3.1
Supported storage drive interfaces
SAS, Serial ATA
Windows operating systems supported
Y
Windows operating systems supported
Y
Ports quantity
8
RAID levels
0, 1, 5, 6, 10, 50, 60
Connector(s)
2 x Mini-SAS HD x4 SFF-8643
Number of devices supported
63
S.M.A.R.T support
Y
SSD support
Y
RAID Level Migration
Y
Online Capacity Expansion
Y
Width
155.7 mm
Depth
68.9 mm
Width
155.7 mm
Depth
68.9 mm
