Broadcom RAID Controllers | Broadcom MegaRAID 9480-8i8e | 05-50031-00 | ServersPlus

Illustration purposes only

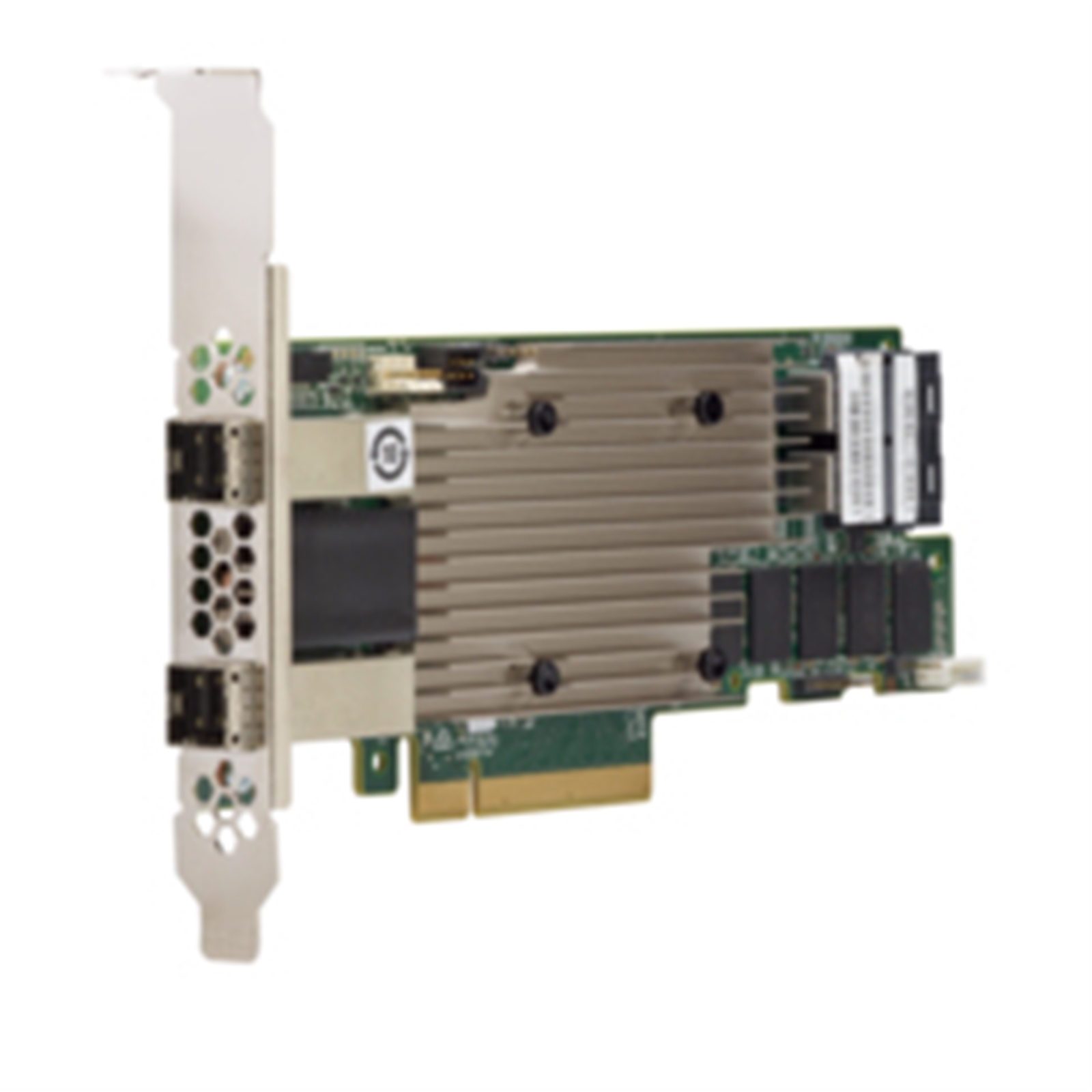

Broadcom MegaRAID 9480-8i8e

Name: Broadcom MegaRAID 9560-16i
Brand: Broadcom
Price: 755.76 GBP
Availability: InStock

Manufacturer Part Code: 05-50031-00

Order Code: COBRO-055003100

Category: Broadcom RAID Controllers

Broadcom MegaRAID 9480-8i8e - Storage controller (RAID) - 16 Channel - SATA 6Gb/s / SAS 12Gb/s / PCIe - low profile - RAID 0 1 5 6 10 50 JBOD 60 - PCIe 3.1 x8

£629.80 ex.VAT

£755.76 inc. VAT

IN STOCK

£629.80 ex.VAT

£755.76 inc. VAT

IN STOCK

Direct attached, high-connectivity applications require increased bandwidth, increased IOPS performance and advanced data protection. The MegaRAID 9480-8i8e Tri-Mode internal/external Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering internal connectivity and external scalability, proven flexibility, performance and RAID data protection for a range of server storage applications.

Broadcom's Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility.

Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

ENERGY MANAGEMENT

Power consumption (typical)

17.71 W

Voltage

3.3, 12 V

LOGISTICS DATA

Harmonized System (HS) code

84733080

OPERATIONAL CONDITIONS

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-45 - 105 °C

Operating temperature (T-T)

10 - 55 °C

Storage relative humidity (H-H)

5 - 95%

OTHER FEATURES

Ports quantity

Connector(s)

2 x Mini-SAS HD SFF8644, 2 x Mini-SAS HD x4 SFF-8643

PERFORMANCE

Internal memory

2096 MB

Certification

AS/NZS CISPR 22, ICES -003, Class B, EN55022/EN55024, VCCI V-3, RRA no 2013-24 & 25, RoHS, EN/IEC/UL 60950, CNS 13438, USA (FCC 47 CFR part 15 Subpart B, class B, WEEE

Internal memory type

DDR4

Mean time between failures (MTBF)

3000000 h

Chipset

SAS3516

RAID levels

0, 1, 5, 6, 10, 50, 60

Data transfer rate

12 Gbit/s

Number of devices supported

255
