Broadcom RAID Controllers | Broadcom MegaRAID 9670W-16i 16-Channel SATA/SAS RAID Controller | 05-50113-00 | ServersPlus
Broadcom 05-50113-00 | serversplus.com

Illustration purposes only

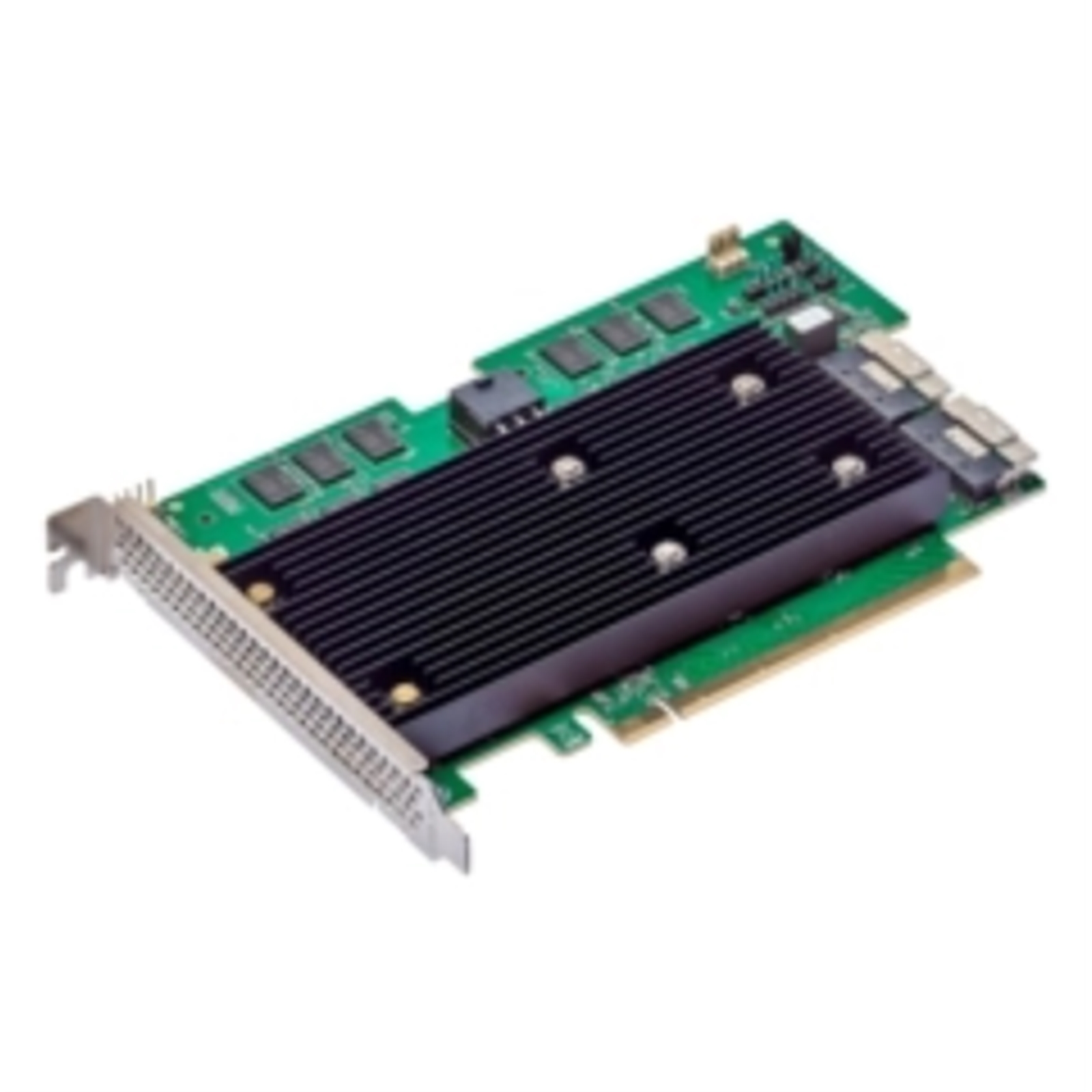

Broadcom MegaRAID 9670W-16i 16-Channel SATA/SAS RAID Controller

Broadcom Logo here

Manufacturer Part Code: 05-50113-00

Order Code: COBRO-055011300

Category: Broadcom RAID Controllers

MegaRAID 9670W-16i - Storage controller (RAID) - 16 Channel - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - RAID RAID 0 1 5 6 10 50 60 - PCIe 4.0 x16

The MegaRAID 9600 series is the third generation of Broadcom's industry leading Tri-Mode x8 and x16 NVMe/SAS/SATA storage adapters. Designed to deliver the best possible performance for NVMe SSD-based storage systems, the 9600 family delivers 2x the bandwidth, over 4x the IOPs, 25x reduction in write latency, and 60x increase in performance during rebuilds over the previous generation.

The MegaRAID 9670W-16i based on the SAS4116W RAID-on-Chip (RoC) delivers more than 4x increase in RAID5 Random Write Ops and twice the bandwidth over the previous generation. The 9670W-16i's advanced thermal solution enables these major performance enhancements without increasing airflow requirements when compared to previous generation adapters. Users can incorporate the 9670W-16i into existing platforms to enable breakthrough SSD performance without burdening the system with additional cooling and airflow requirements.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Power consumption (typical)
25 W
Operating relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 55 °C
Other operating systems supported
VMware vSphere ESXi
Certification
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)
Mean time between failures (MTBF)
3000000 h
Form factor
MD2
RAID levels
0, 1, 5, 6, 10, 50, 60
Data transfer rate
6 Gbit/s
Channels quantity
16 channels
Number of devices supported
240
S.M.A.R.T. support
Yes
SSD support
Yes
Host interface
PCI Express x16
PCI Express slots version
4.0
Internal SAS ports
2
Supported storage drive interfaces
SAS, Serial ATA
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Server operating systems supported
SUSE Linux Enterprise Server
Sustainability certificates
RoHS, WEEE
Compliance certificates
RoHS, WEEE
Width
155.6 mm
Depth
111.1 mm
