Fujitsu Raid Controllers | FUJITSU PRAID CP400I Storage Controller | S26361-F3842-L501 | ServersPlus

Illustration purposes only

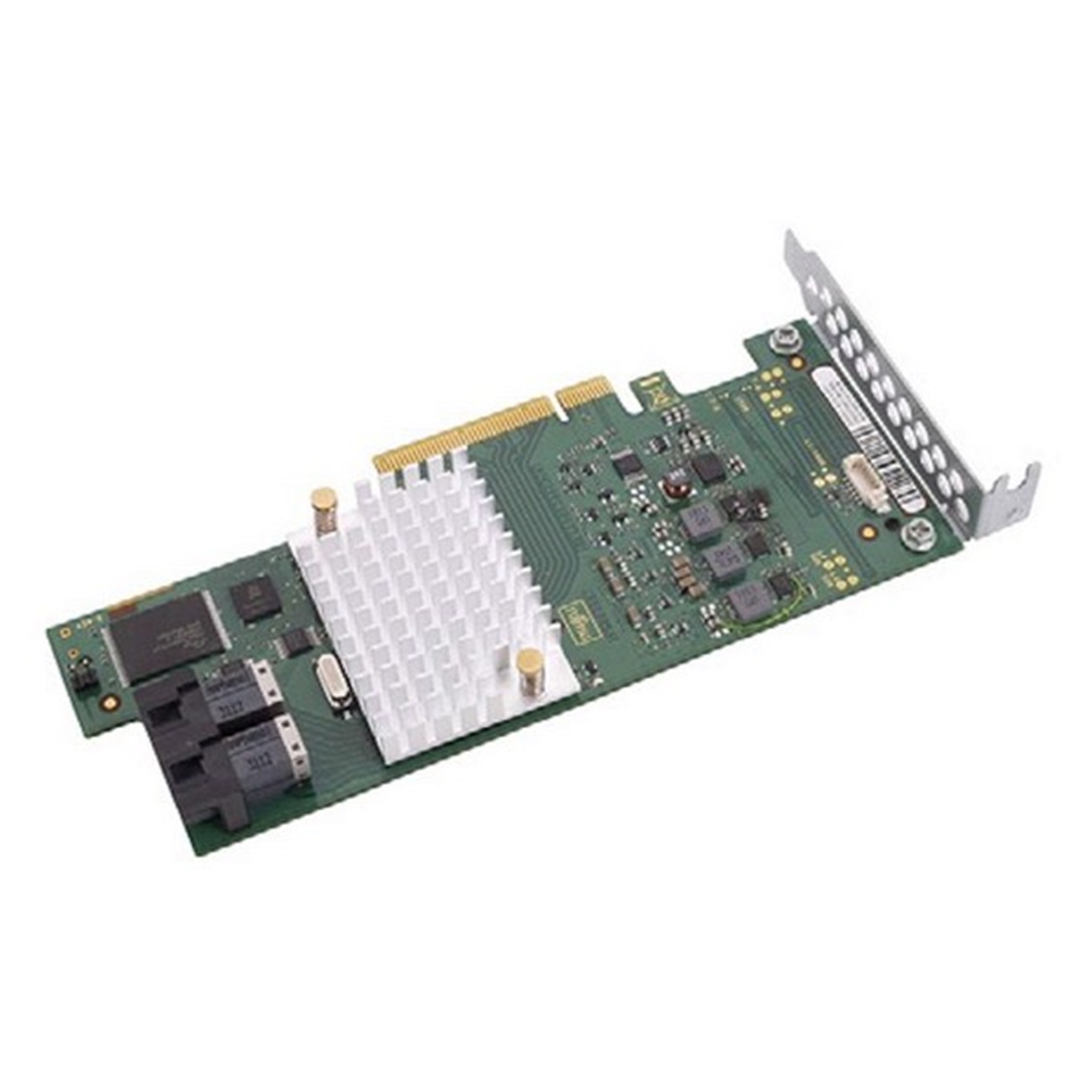

FUJITSU PRAID CP400I Storage Controller

FUJITSU Logo here

Manufacturer Part Code: S26361-F3842-L501

Order Code: COFUJ-S26361F384

Category: Fujitsu Raid Controllers

PRAID CP400i FH/LP - RAID Levels 0, 1, 1E, 10, 5, 50 for internal SAS/SATA HDD and SSD

The PSAS CP400i, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS3008 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.

- 12Gb/s data transfer rate per port;
- 12Gb/s SAS connectivity eases integration and broadens application by supporting legacy speeds and the SATA protocol;
- Two x4 internal SFF8643 (Mini-SAS HD) connectors;
- Doubles the performance of previous generation SATA+SAS HBAs;
- LSI SAS3008 IO Controller's Fusion-MPT™ 2.0 architecture can achieve more than 1,000,000 I/Os per second;
- Environmentally friendly due to low-power consumption;
- MD2 low profile form-factor design;
- MD2 form factor ideal for 1U and 2U server.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Data transfer rate
12 Gbit/s
Storage temperature (T-T)
-45 - 105 °C
Operating temperature range (T-T)
0 - 55 °C
PCI Card form factor
full-height (low-profile)
RAID levels
0,1
Data transfer rate
12 Gbit/s
Host interface
PCI Express x8
Supported hard disk drive interfaces
SAS, SATA
PCI Express slots version
3.0
PCI Card form factor
full-height (low-profile)
Internal mini-SAS ports
2
Internal SAS ports
8
Supported storage drive interfaces
SAS, Serial ATA
RAID levels
0,1
