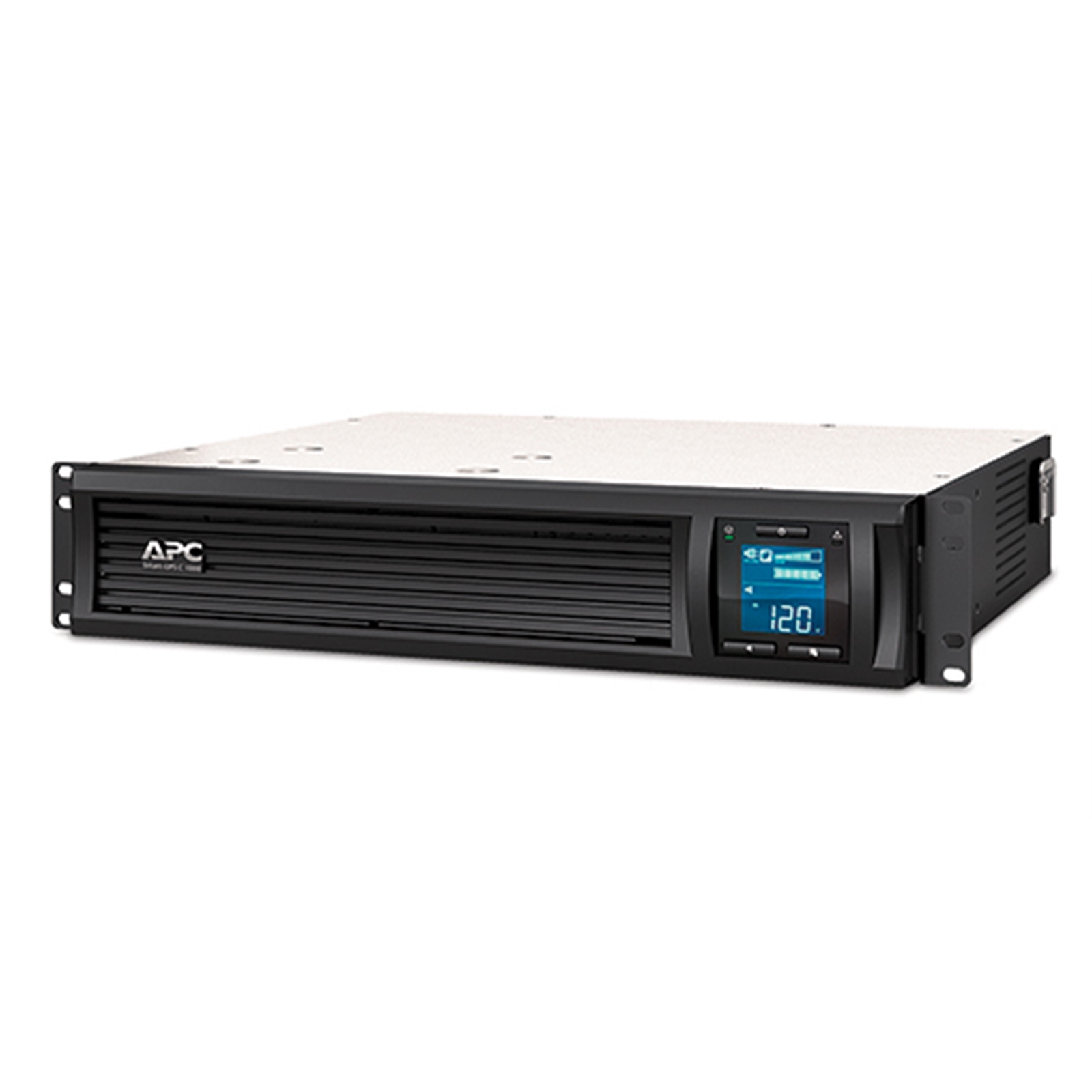

APC Smart-UPS C 1000VA 2U Rack mountable LCD 230V SMC1000I-2U

APC Logo here

Manufacturer Part Code: SMC1000I-2U

Order Code: PSAPC-SMC1000I2U

Category: APC Rack UPS

APC Smart-UPS C 1000VA 2U Rack mountable LCD 230V

APC Smart-UPS,600 Watts /1000 VA,Input 120V /Output 120V, Interface Port USB, Rack Height 2 U

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, USB cable


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Replacement battery cartridge
APCRBC124
Battery technology
Sealed Lead Acid (VRLA)
Hot-swap battery
Y
Battery recharge time
3 h
Typical backup time at half load
16 min
Typical backup time at full load
6 min
Replacement battery cartridge
APCRBC124
Cold start
Y
Automatic battery test
Y
Battery capacity
170 VAh
Battery life (max)
6 year(s)
Hot-swap battery
Y
Cold start
Y
Automatic battery test
Y
Battery capacity
170 VAh
Battery life (max)
6 year(s)
Certification
REACH, C-tick, CE, GOST, UL 1778, VDE
Energy Star certified
Y
RoHS compliance
Y
Colour of product
Black
Certification
REACH, C-tick, CE, GOST, UL 1778, VDE
Form factor
Rackmount
Display
LCD
Product colour
Black
Certification
REACH, C-tick, CE, GOST, UL 1778, VDE
Rack mounting
2U
Form factor
Rackmount
Rack capacity
2U
Energy Star certified
Y
Cable length
2.44 m
LED indicators
APCRBC124
Colour of product
Black
Display type
LCD
Rack capacity
2U
RoHS compliance
Y
Display
LCD
Power supply input frequency
50/60 Hz
Output power capacity (VA)
1000 VA
Surge energy rating
459 J
Input frequency
50/60 Hz
Efficiency
97.4%
Output power
600 W
Input operation voltage (max)
287 V
Input operation voltage (min)
180 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Output frequency regulation
57 - 63 Hz
Audible alarm(s)
Y
Output power capacity
1 kVA
Surge energy rating
459 J
Noise level
42 dB
Input frequency
50/60 Hz
Audible alarm(s)
Y
Output power capacity
1000 VA
Surge energy rating
459 J
Noise level
42 dB
Output power
600 W
Input operation voltage (max)
287 V
Input operation voltage (min)
180 V
Waveform
Sine
Output frequency regulation
57 - 63 Hz
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Input frequency
50/60 Hz
Hold time (max)
2 ms
Efficiency
97.4%
Output power
600 W
Input operation voltage (max)
287 V
Input operation voltage (min)
180 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Waveform
Sine
Output frequency regulation
57 - 63 Hz
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (max)
2 ms
LED indicators
APCRBC124
Audible alarms
Y
Products per pallet
16 pc(s)
Quantity per pallet
16 pc(s)
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-15 - 45 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 15000 m
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Nominal output voltage
230 V
Nominal input voltage
230 V
Package dimensions (WxDxH)
546 x 584 x 241 mm
Quantity per pallet
16 pc(s)
Nominal output voltage
230 V
Nominal input voltage
230 V
Cables included
USB cable
Quick installation guide
Y
Software CD
Y
Rack mount kit
Y
Resource CD
Yes
Package weight
22.3 kg
Cables included
USB cable
Package dimensions (WxDxH)
546 x 584 x 241 mm
Quantity per pallet
16 pc(s)
Package weight
22.3 kg
Package depth
584 mm
Package height
241 mm
Package width
546 mm
Quick installation guide
Y
Cables included
USB cable
Software CD
Y
Rack mount kit
Y
Package depth
584 mm
Package height
241 mm
Package width
546 mm
Quick installation guide
Y
Software CD
Y
Rack mount kit
Y
Resource CD
Yes
LED indicators
APCRBC124
Audible alarms
Y
Noise level
42 dB
Hold time
2 ms
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (max)
2 ms
AC outlets quantity
4 AC outlet(s)
Number of output IEC jumpers
2
Cable length
2.44 m
Power plug
C14 coupler
AC outlet types
C13 coupler
USB 2.0 ports quantity
1
AC outlets quantity
4 AC outlet(s)
USB port
Y
Number of output IEC jumpers
2
Power plug
C14 coupler
AC outlet types
C13 coupler
USB port
Y
Noise level
42 dB
Rack mounting
2U
Form factor
Rackmount
Energy Star certified
Y
Input connections
IEC-320 C14
Sustainability certificates
RoHS
Sustainability certificates
RoHS
Weight
20.5 kg
Package weight
22.3 kg
Height
89 mm
Weight
20.5 kg
Width
432 mm
Depth
406 mm
Package weight
22.3 kg
Package depth
584 mm
Package height
241 mm
Package width
546 mm
Height
89 mm
Width
432 mm
Depth
406 mm
Packaging depth
584 mm
Packaging height
241 mm
Packaging width
546 mm
