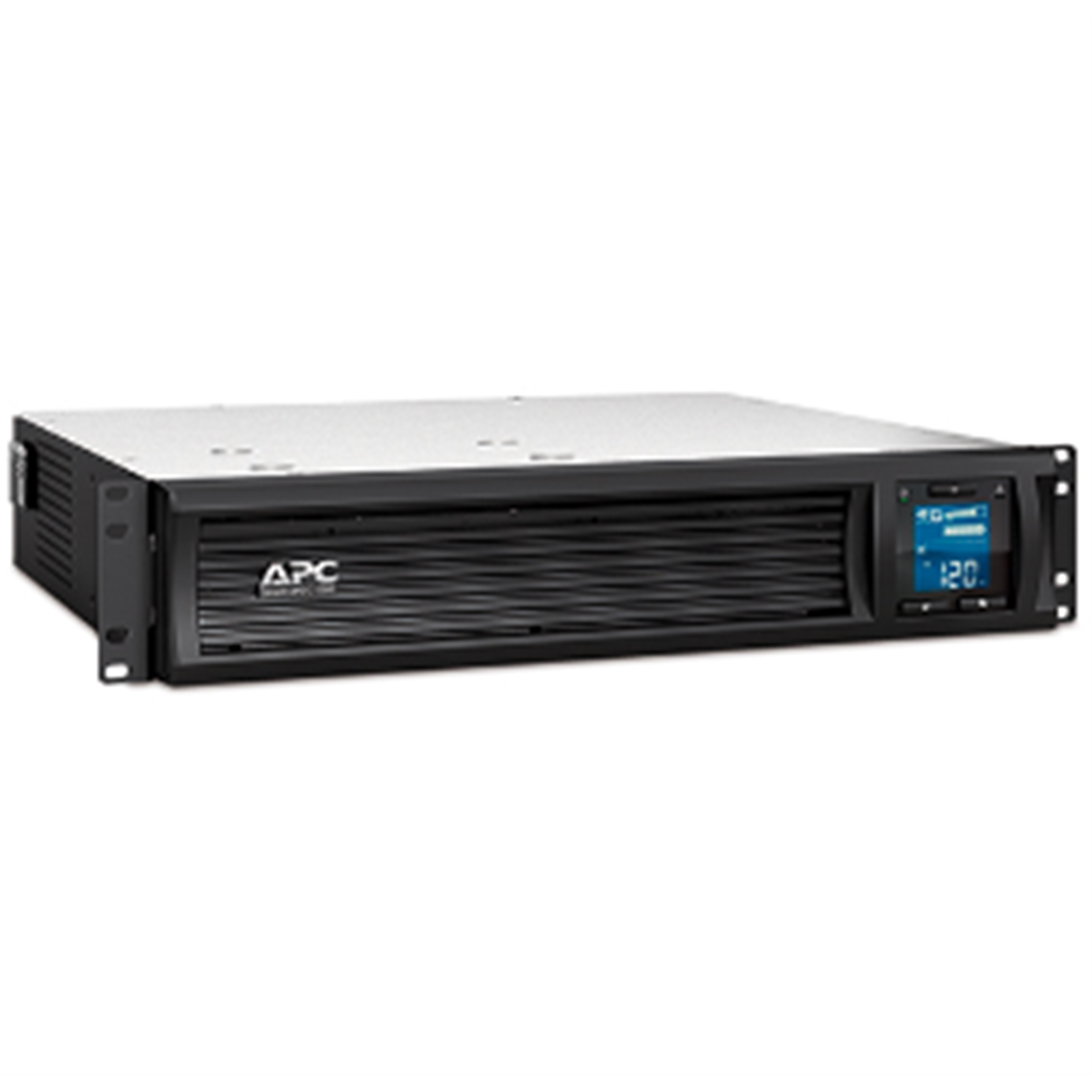

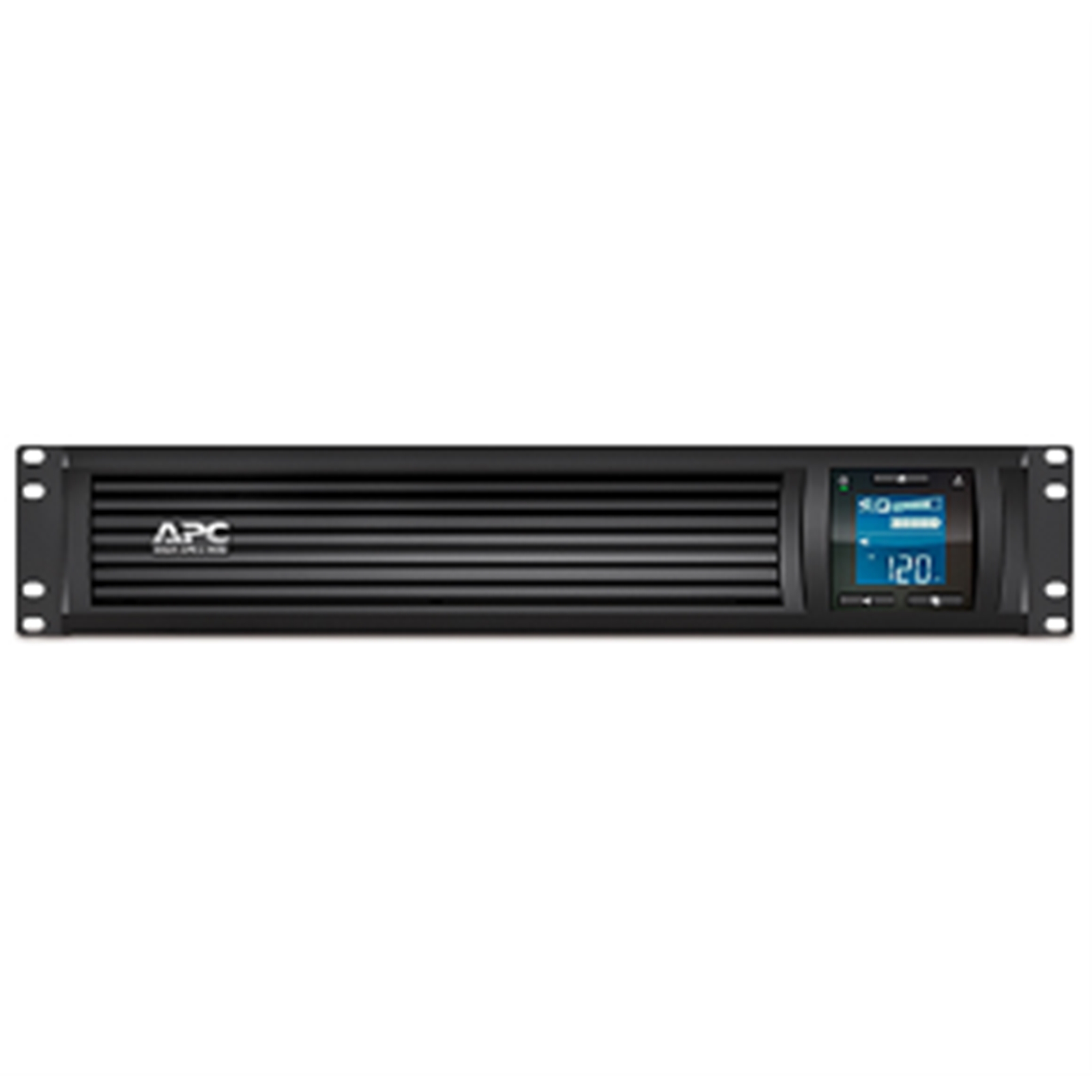

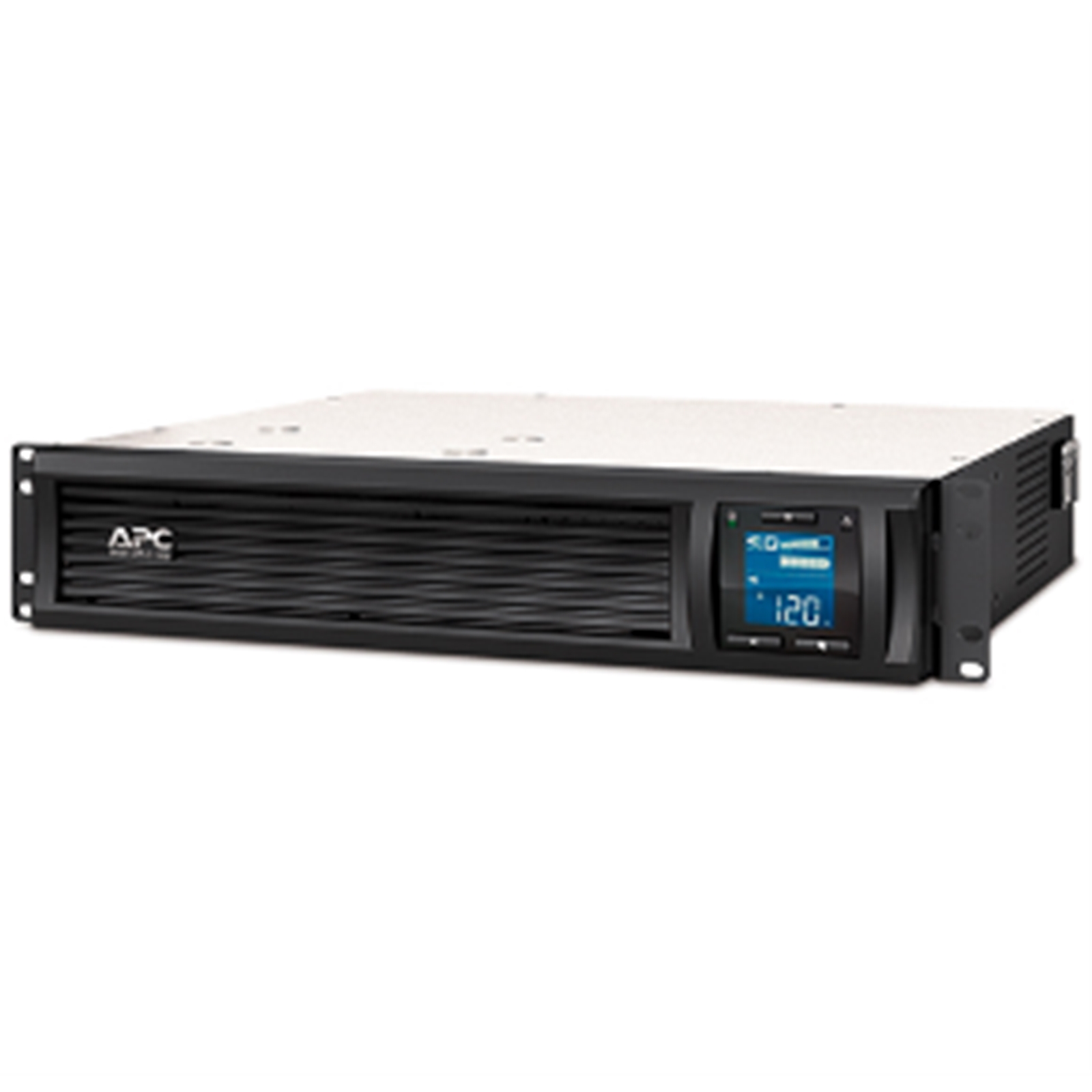

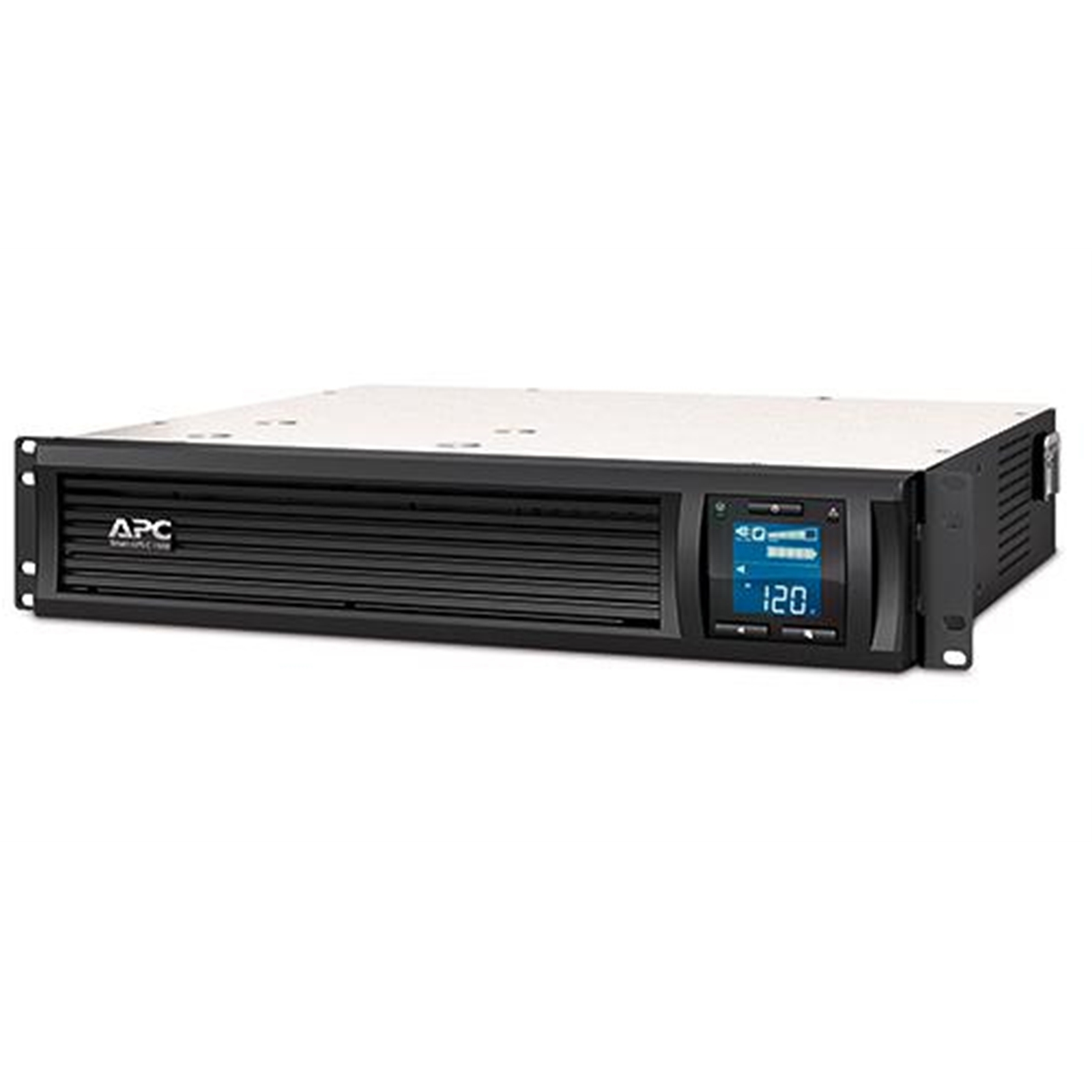

APC SMC1500VA 2U

APC Logo here

Manufacturer Part Code: SMC1500I-2U

Order Code: PSAPC-SMC1500I2U

Category: APC Rack UPS

SMART-UPS C 1500VA 2U RM LCD

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.

High online efficiency
Reduces utlility costs, generates less heat.

Cold-start capable
Provides temporary battery power when the utility power is out.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Network manageable
Provides remote power management of the UPS over the network.

Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

LED status indicators
Quickly understand unit and power status with visual indicators.

Serial Connectivity
Provides management of the UPS via a serial port.

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Disconnected battery notification
Warns when a battery is not available to provide backup power.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

Resettable circuit breakers
Enables a quick recovery from overload events.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
18.7 min
Typical backup time at full load
6.8 min
Battery technology
Sealed Lead Acid (VRLA)
Hot-swap battery
Y
Battery type
APCRBC132
Number of batteries supported
1
Battery recharge time
3 h
Typical backup time at half load
18.7 min
Typical backup time at full load
6.8 min
Replacement battery cartridge
APCRBC132
Cold start
Y
Automatic battery test
Y
Battery capacity
260 VAh
Battery life (max)
6 year(s)
Hot-swap battery
Y
Cold start
Y
Automatic battery test
Y
Battery replacement alarms
Audible
Battery capacity
260 VAh
Battery life (max)
6 year(s)
Certification
CSA, NOM, UL 1778, REACH
Energy Star certified
Y
RoHS compliance
Y
Colour of product
Black
Cooling type
Active
Certification
CSA, NOM, UL 1778, REACH
Form factor
Rackmount
LED indicators
Y
Display
LCD
Product colour
Black
Certification
CSA, NOM, UL 1778, REACH
Rack mounting
2U
Form factor
Rackmount
Rack capacity
2U
Energy Star certified
Y
Cable length
2.44 m
LED indicators
Y
Colour of product
Black
Display type
LCD
Rack capacity
2U
Cooling type
Active
RoHS compliance
Y
Display
LCD
Power supply input frequency
50/60 Hz
Output power capacity (VA)
1500 VA
Surge energy rating
459 J
Input frequency
50/60 Hz
Efficiency
98%
Output power
900 W
Output voltage THD
5%
Input operation voltage (max)
300 V
Input operation voltage (min)
170 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Output frequency regulation
57 - 63 Hz
Audible alarm(s)
Y
Surge energy rating
459 J
Noise level
46 dB
Input frequency
50/60 Hz
Audible alarm(s)
Y
Output power capacity
1500 VA
Surge energy rating
459 J
Noise level
46 dB
Input operation voltage (max)
300 V
Input operation voltage (min)
170 V
Waveform
Sine
Output frequency regulation
57 - 63 Hz
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Input frequency
50/60 Hz
Hold time (max)
2 ms
Efficiency
98%
Output power
900 W
Output voltage Total Harmonic Distortion (THD)
5%
Input operation voltage (max)
300 V
Input operation voltage (min)
170 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Waveform
Sine
Output frequency regulation
57 - 63 Hz
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (max)
2 ms
LED indicators
Y
Audible alarms
Y
Products per pallet
16 pc(s)
Quantity per pallet
16 pc(s)
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-15 - 45 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 15000 m
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Package dimensions (WxDxH)
594 x 603 x 251 mm
Quantity per pallet
16 pc(s)
Battery type
APCRBC132
Fan
Yes
Cables included
USB cable
Quick installation guide
Y
Software CD
Y
Rack mount kit
Y
Resource CD
Yes
Package weight
31.9 kg
Cables included
USB cable
Package dimensions (WxDxH)
594 x 603 x 251 mm
Quantity per pallet
16 pc(s)
Package weight
31.9 kg
Package depth
603 mm
Package height
251 mm
Package width
594 mm
Quick installation guide
Y
Cables included
USB cable
Software CD
Y
Rack mount kit
Y
Package depth
603 mm
Package height
251 mm
Package width
594 mm
Quick installation guide
Y
Software CD
Y
Rack mount kit
Y
Resource CD
Yes
LED indicators
Y
Audible alarms
Y
Noise level
46 dB
Hold time
2 ms
Cooling type
Active
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (max)
2 ms

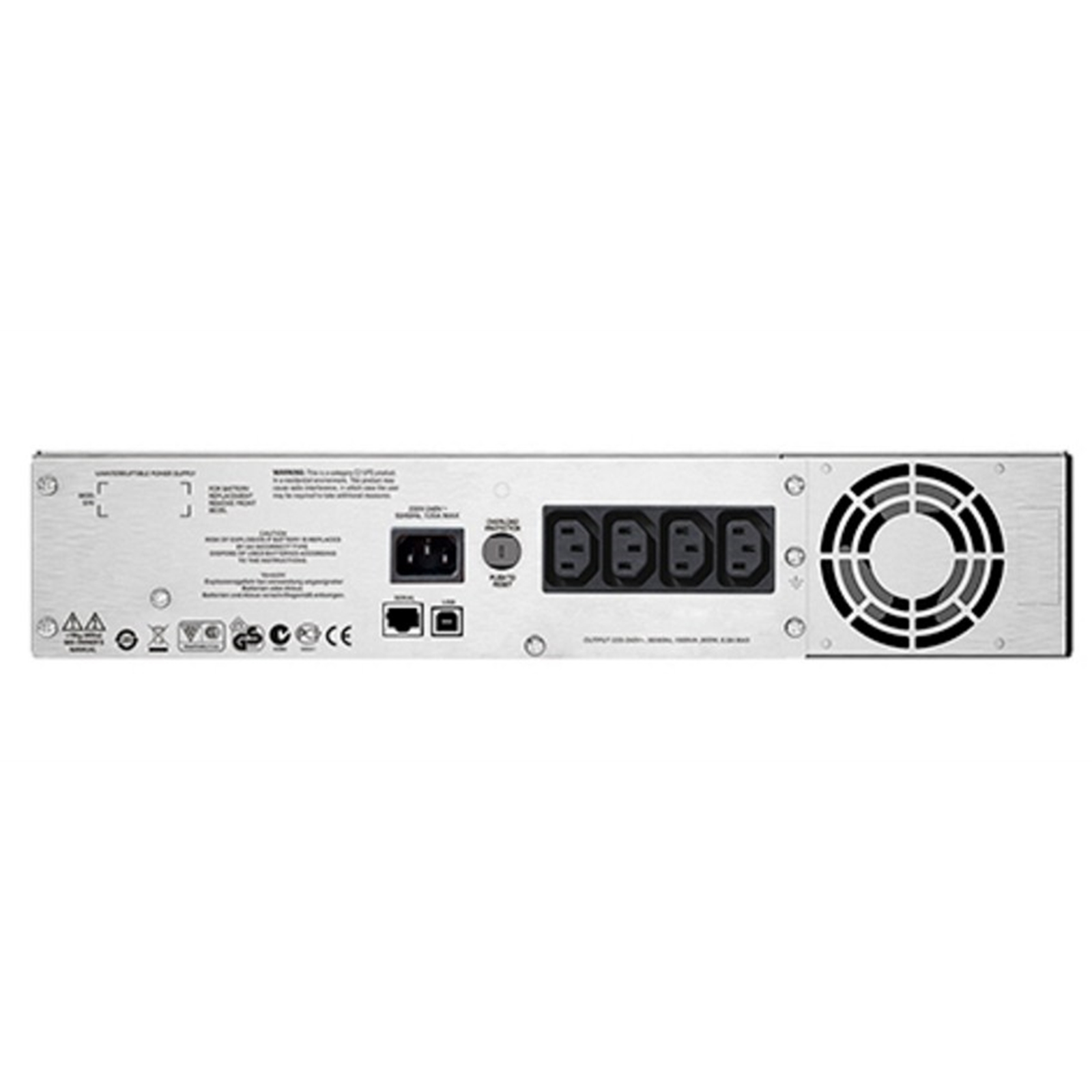

AC outlets quantity
4 AC outlet(s)
Number of output IEC jumpers
2
Cable length
2.44 m
Serial ports quantity
1
Power plug
C14 coupler
AC outlet types
C13 coupler
USB 2.0 ports quantity
1
AC outlets quantity
4 AC outlet(s)
USB port
Y
Number of output IEC jumpers
2
Power plug
C14 coupler
AC outlet types
C13 coupler
USB port
Y
Noise level
46 dB
Rack mounting
2U
Form factor
Rackmount
Energy Star certified
Y
Input connections
IEC-320 C14
Sustainability certificates
RoHS, ENERGY STAR
Sustainability certificates
RoHS, ENERGY STAR
Weight
28.6 kg
Package weight
31.9 kg
Height
89 mm
Weight
28.6 kg
Width
432 mm
Depth
457 mm
Package weight
31.9 kg
Package depth
603 mm
Package height
251 mm
Package width
594 mm
Height
89 mm
Width
432 mm
Depth
457 mm
Packaging depth
603 mm
Packaging height
251 mm
Packaging width
594 mm
