APC Rack UPS | APC Smart-UPS SMT1000RMI2U | SMT1000RMI2U | ServersPlus
APC SMT1000RMI2U | serversplus.comAPC SMT1000RMI2U | serversplus.comAPC SMT1000RMI2U | serversplus.com

Illustration purposes only

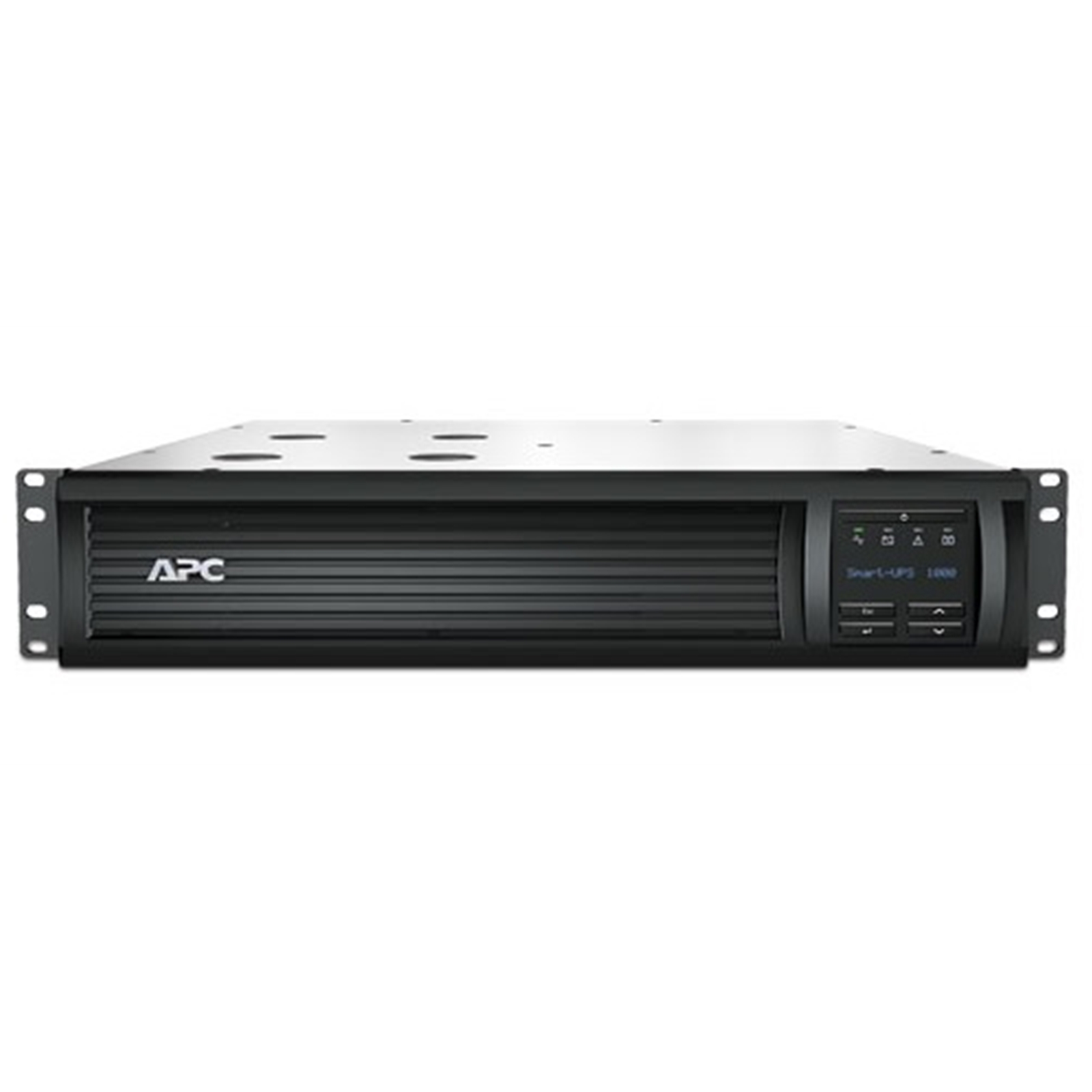

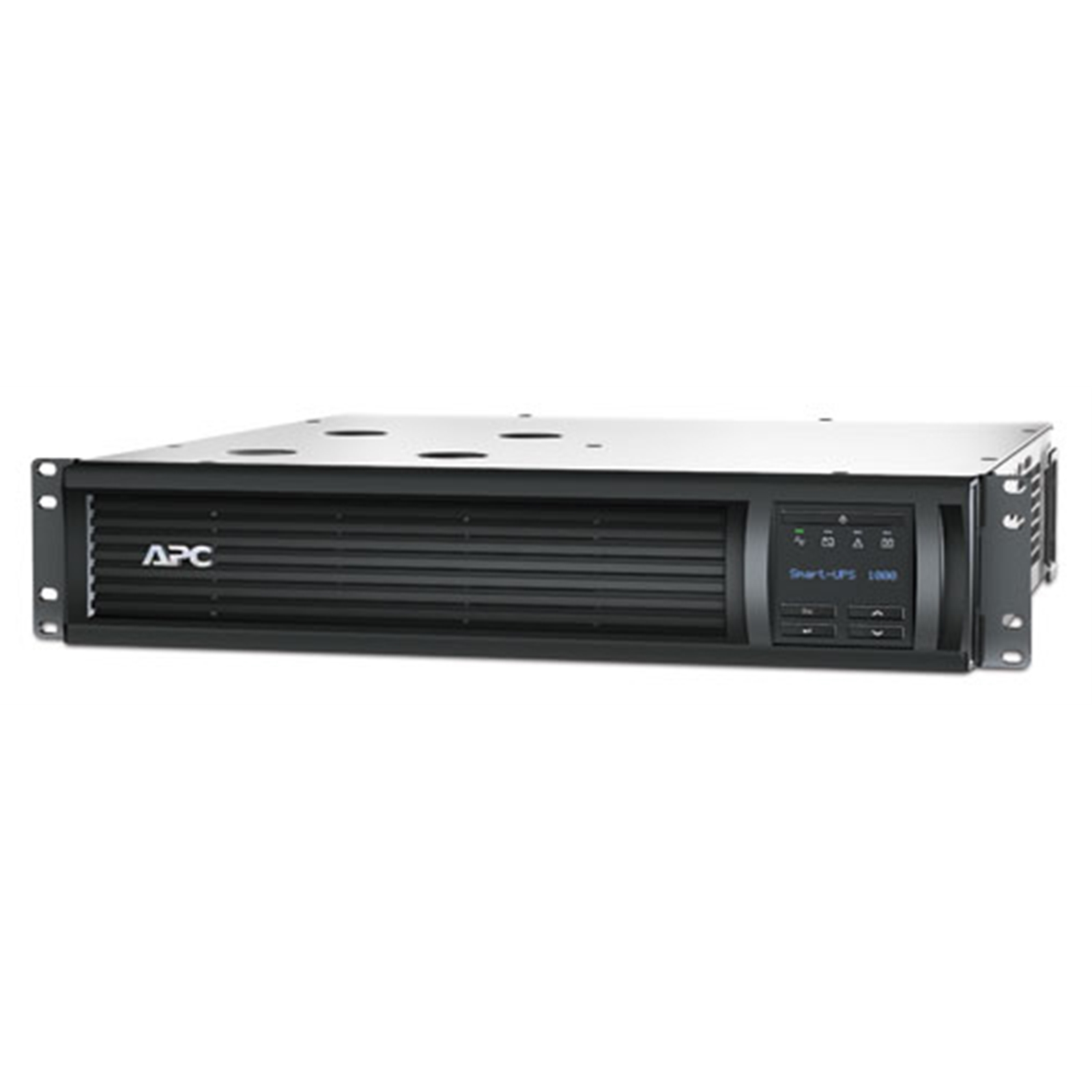

APC Smart-UPS SMT1000RMI2U

APC Logo here

Manufacturer Part Code: SMT1000RMI2U

Order Code: PSAPC-SMT1000RMI

Category: APC Rack UPS

SMT1000RMI2U

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Audible alarms
Provide notification of changing flywheel conditions

InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.

SmartSlot
Customize UPS capabilities with management cards.

Cold-start capable
Provides temporary battery power when the utility power is out.

Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.

Resettable circuit breakers
Enables a quick recovery from overload events.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Audible alarms
Provides notification of changing utility power and UPS conditions.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Serial Connectivity
Provides management of the UPS via a serial port.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Network manageable
Provides remote management of the UPS over the network.

Adjustable voltage sensitivity
Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.

Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
31.3 min
Typical backup time at full load
8.7 min
Replacement battery cartridge
APCRBC132
Hot-swap battery
Y
Cold start
Y
Automatic battery test
Y
Battery capacity
336 VAh
Battery life (max)
6 year(s)
Certification
CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
RoHS compliance
Y
Colour of product
Black
Display
Rack mounting
2U
Form factor
Rackmount
Colour of product
Black
Rack capacity
2U
Display
Power supply input frequency
50/60
Emergency Power Off (EPO)
O
Output power capacity (VA)
1000 VA
Surge energy rating
459 J
Efficiency
98.2%
Output power
700 W
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
LED indicators
Y
Audible alarms
Y
Quantity per pallet
8 pc(s)
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Interface
RJ-45 Serial, SmartSlot, USB
Package dimensions (WxDxH)
594 x 603 x 251 mm
Quantity per pallet
8 pc(s)
Nominal output voltage
230

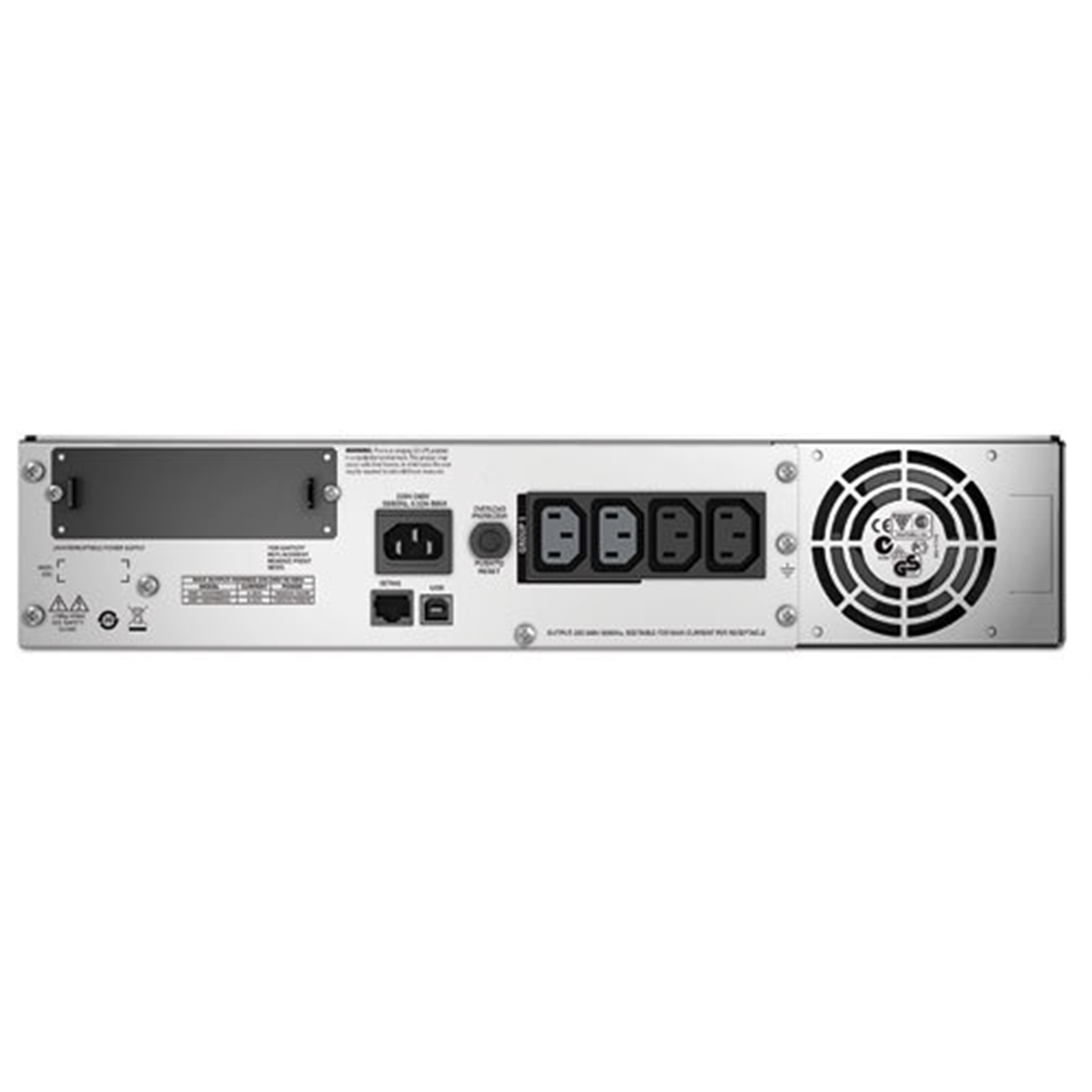

Output connections
4 x IEC 320 C13\n2 x IEC Jumpers
Nominal input voltage
230
Overload protection
Yes
Cables included
RS-232, USB cable
Quick installation guide
Y
Software CD
Y
Rack mount kit
Y
Resource CD
Yes
Package dimensions (WxDxH)
594 x 603 x 251 mm
Quantity per pallet
8 pc(s)
Package weight
31.4 kg
LED indicators
Y
Audible alarms
Y
Noise level
45 dB
Hold time
2 ms
Source data-sheet
ICEcat.biz
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (max)
2 ms
Serial interface type
RJ-45
Serial ports quantity
1
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports quantity
1
AC outlets quantity
4 AC outlet(s)
Number of output IEC jumpers
2
Power plug
C14 coupler
AC outlet types
C13 coupler
Serial interface
Y
USB port
Y
SmartSlot
Y
Noise level
45 dB
Rack mounting
2U
Form factor
Rackmount
Input connections
IEC-320 C14
Source data-sheet
ICEcat.biz
Weight
28.2 kg
Package weight
31.4 kg
Height
89 mm
Width
432 mm
Depth
457 mm
Packaging depth
603 mm
Packaging height
251 mm
Packaging width
594 mm
