APC Rack UPS | APC Smart-UPS 1000 Watts / 1500 VA,Input 230V / Output 230V SMT1500RMI2U | SMT1500RMI2U | ServersPlus
APC SMT1500RMI2U | serversplus.comAPC SMT1500RMI2U | serversplus.comAPC SMT1500RMI2U | serversplus.com

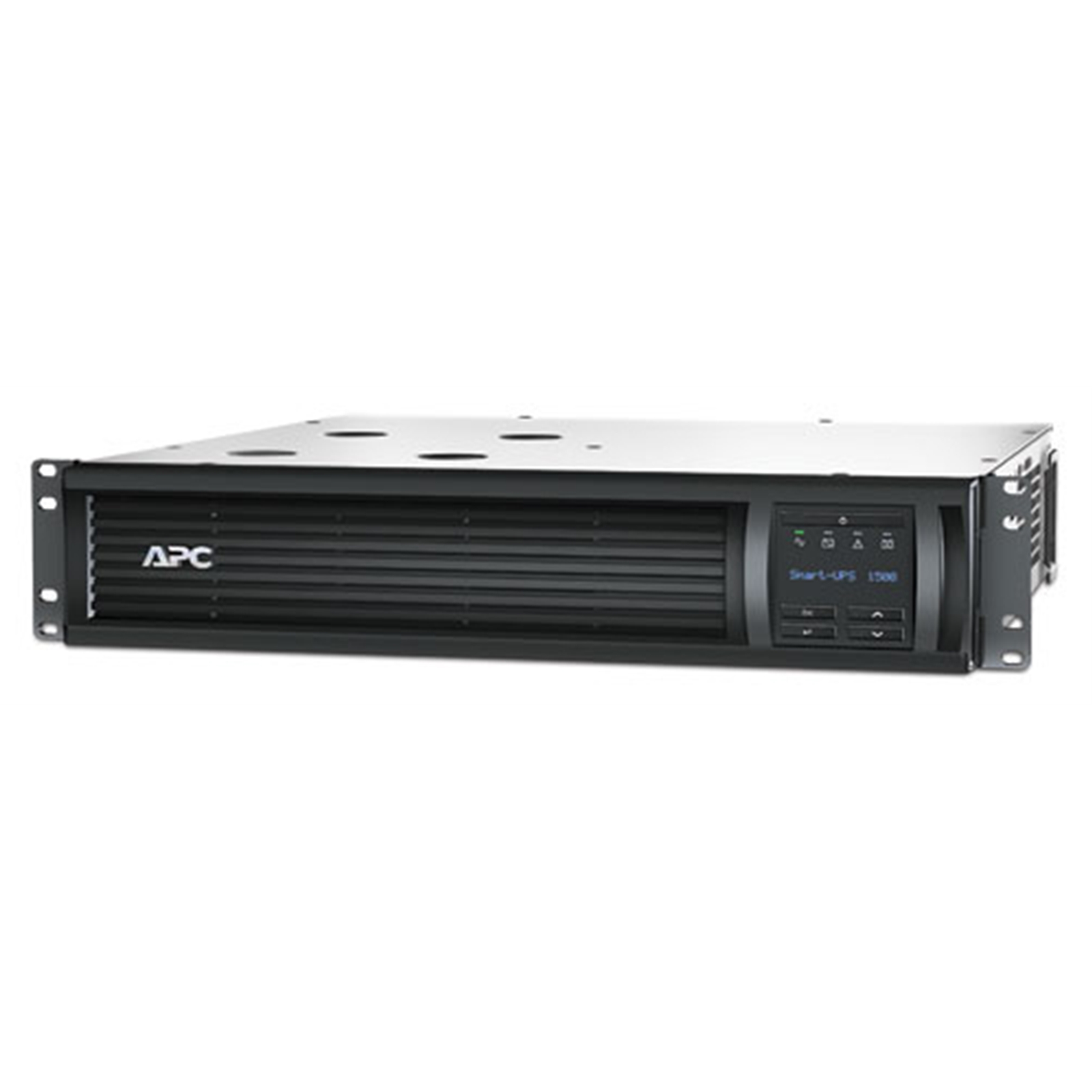

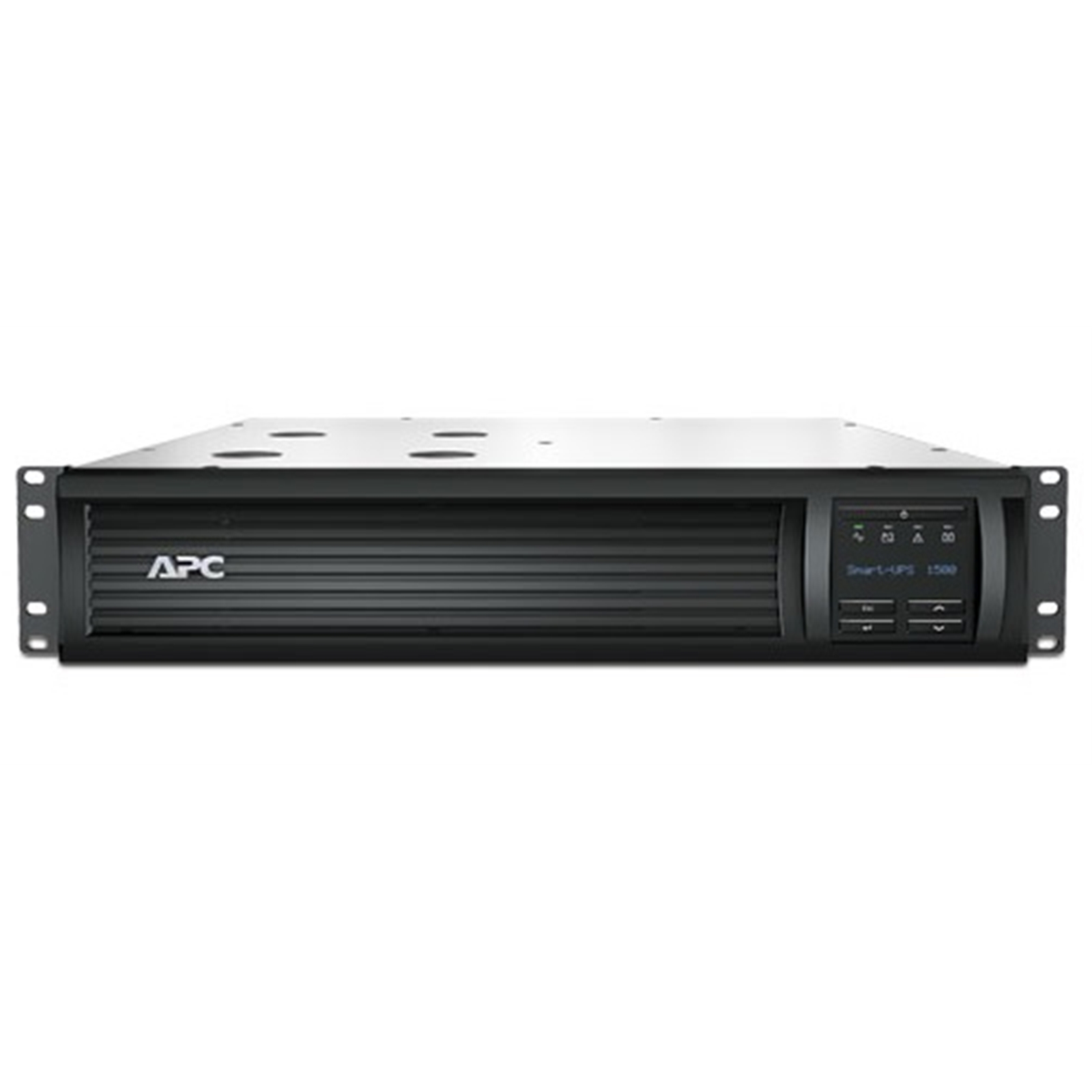

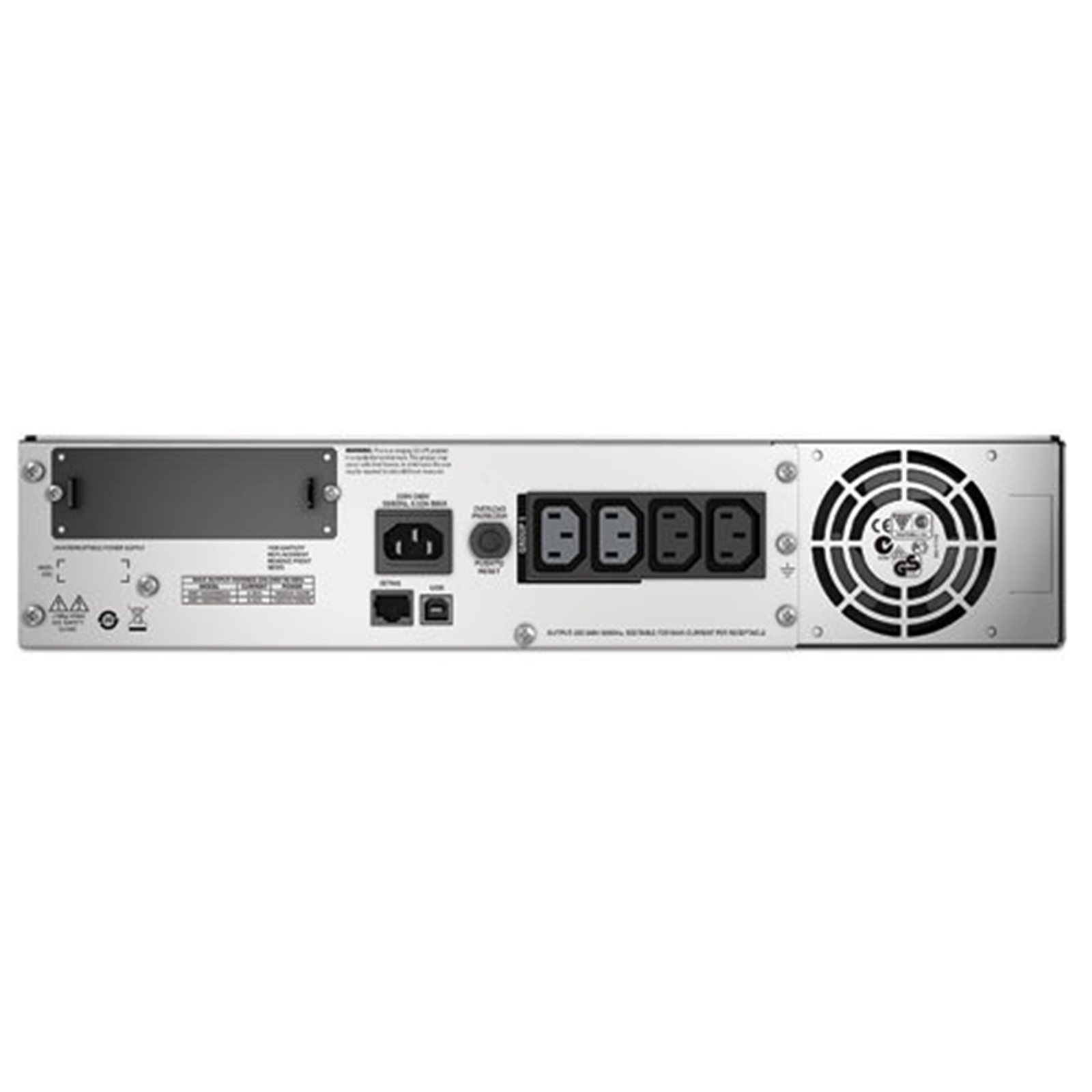

Illustration purposes only

APC Smart-UPS 1000 Watts / 1500 VA,Input 230V / Output 230V SMT1500RMI2U

APC Logo here

Manufacturer Part Code: SMT1500RMI2U

Order Code: PSAPC-SMT1500RMI

Category: APC Rack UPS

1000 Watts / 1500 VA,Input 230V / Output 230V, Interface Port RJ-45 Serial, SmartSlot, USB, Rack Height 2U

1000 Watts / 1500 VA,Input 230V / Output 230V, Interface Port RJ-45 Serial, SmartSlot, USB, Rack Height 2U


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
25.8 min
Typical backup time at full load
7.2 min
Battery technology
Sealed Lead Acid (VRLA)
Hot-swap battery
Y
Battery recharge time
3 h
Typical backup time at half load
25.8 min
Typical backup time at full load
7.2 min
Replacement battery cartridge
APCRBC133
Cold start
Y
Automatic battery test
Y
Battery capacity
432 VAh
Battery life (max)
6 year(s)
Hot-swap battery
Y
Cold start
Y
Automatic battery test
Y
Battery capacity
432 VAh
Battery life (max)
6 year(s)
Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, VDE, REACH, PEP, EOLI
Energy Star certified
Y
RoHS compliance
Y
Colour of product
Black
Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, VDE, REACH, PEP, EOLI
Form factor
Rackmount
LED indicators
Status
Display
Product colour
Black
Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, VDE, REACH, PEP, EOLI
Rack mounting
2U
Form factor
Rackmount
Rack capacity
2U
Energy Star certified
Y
LED indicators
status
Colour of product
Black
Rack capacity
2U
RoHS compliance
Y
Display
Power supply input frequency
50/60 Hz
Emergency Power Off (EPO)
O
Output power capacity (VA)
1500 VA
Surge energy rating
459 J
Input frequency
50/60 Hz
Efficiency
98.6%
Output power
1000 W
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Audible alarm(s)
Y
Emergency Power Off (EPO)
O
Output power capacity
1.5 kVA
Surge energy rating
459 J
Noise level
46 dB
Input frequency
50/60 Hz
Audible alarm(s)
Y
Emergency Power Off (EPO)
O
Output power capacity
1500 VA
Surge energy rating
459 J
Noise level
46 dB
Efficiency
98.6%
Output power
1000 W
Surge protection
Y
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Input frequency
50/60 Hz
Hold time (max)
2 ms
Efficiency
98.6%
Output power
1000 W
Surge protection
Y
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (max)
2 ms
LED indicators
status
Audible alarms
Y
Products per pallet
8 pc(s)
Quantity per pallet
8 pc(s)
Harmonized System (HS) code
85078000
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-15 - 45 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 15000 m
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Interface
RJ-45 Serial, SmartSlot, USB
Nominal output voltage
230 V
Nominal input voltage
230 V
Package dimensions (WxDxH)
594 x 603 x 251 mm
Quantity per pallet
8 pc(s)
Nominal output voltage
230 V
Output connections
4 x IEC 320 C13\n2 x IEC Jumpers
Input connection type
IEC-320 C14
Nominal input voltage
230 V
Overload protection
Yes
Cables included
RS-232, USB cable
Quick installation guide
Y
Software CD
Y
Rack mount kit
Y
Resource CD
Yes
Package weight
31.9 kg
Cables included
RS-232, USB cable
Package dimensions (WxDxH)
594 x 603 x 251 mm
Quantity per pallet
8 pc(s)
Package weight
31.9 kg
Package depth
603 mm
Package height
251 mm
Package width
594 mm
Quick installation guide
Y
Cables included
RS-232, USB cable
Software CD
Y
Rack mount kit
Y
Package depth
603 mm
Package height
251 mm
Package width
594 mm
Quick installation guide
Y
Software CD
Y
Rack mount kit
Y
Resource CD
Yes
LED indicators
status
Audible alarms
Y
Noise level
46 dB
Hold time
2 ms
Source data-sheet
ICEcat.biz
Surge protection
Y
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (max)
2 ms
Serial interface type
RJ-45
AC outlets quantity
4 AC outlet(s)
Number of output IEC jumpers
2
Serial interface type
RJ-45
Serial ports quantity
1
Power plug
C14 coupler
AC outlet types
C13 coupler
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports quantity
1
AC outlets quantity
4 AC outlet(s)
Serial interface
Y
USB port
Y
SmartSlot
Y
Number of output IEC jumpers
2
Power plug
C14 coupler
AC outlet types
C13 coupler
Serial interface
Y
USB port
Y
SmartSlot
Y
Noise level
46 dB
Rack mounting
2U
Form factor
Rackmount
Energy Star certified
Y
Harmonized System (HS) code
85078000
Input connections
IEC-320 C14
Sustainability certificates
RoHS, ENERGY STAR
Source data-sheet
ICEcat.biz
Surge protection
Y
Sustainability certificates
RoHS, ENERGY STAR
Weight
28.6 kg
Package weight
31.9 kg
Height
86 mm
Weight
28.6 kg
Width
432 mm
Depth
457 mm
Package weight
31.9 kg
Package depth
603 mm
Package height
251 mm
Package width
594 mm
Height
86 mm
Width
432 mm
Depth
457 mm
Packaging depth
603 mm
Packaging height
251 mm
Packaging width
594 mm
