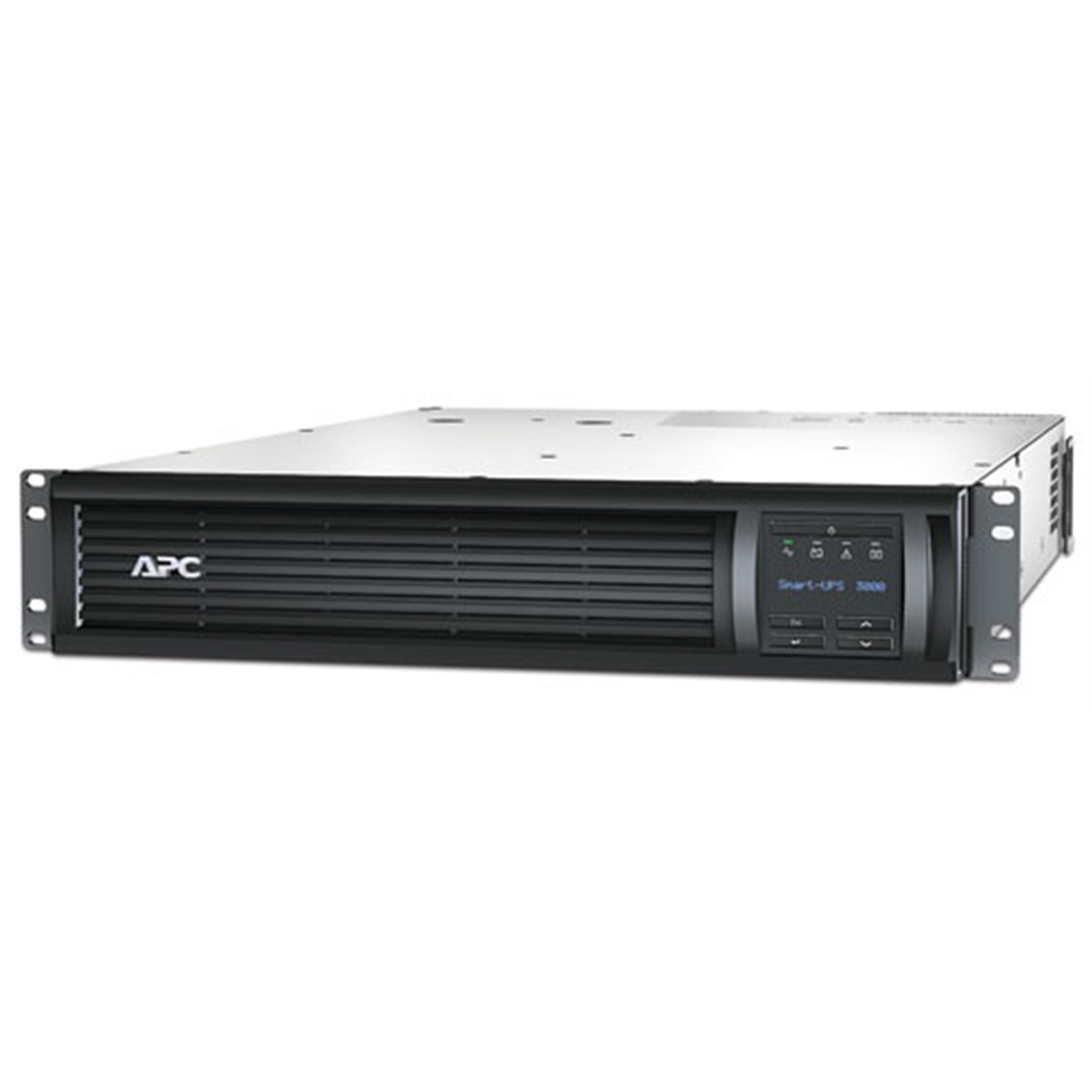

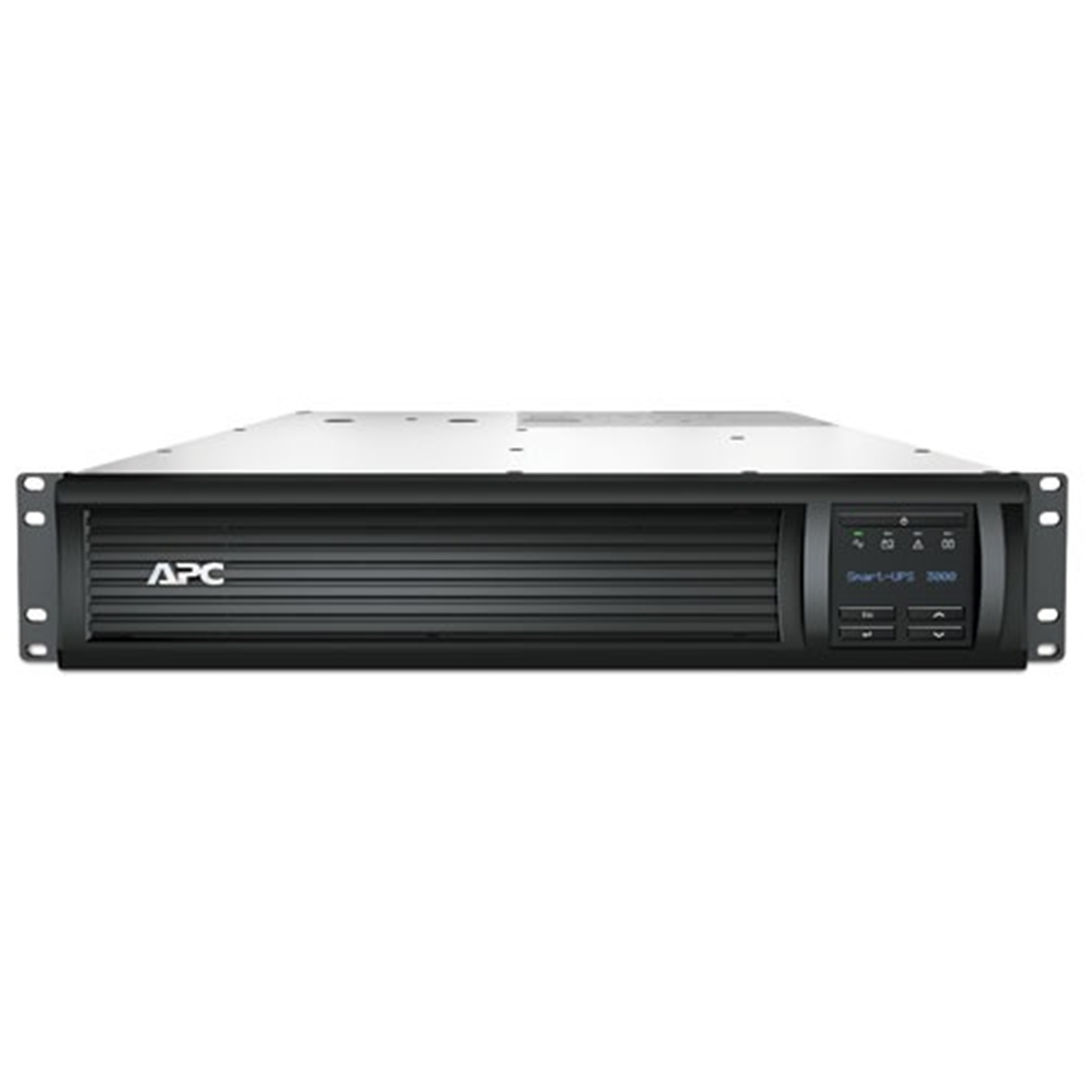

APC Smart-UPS 3000VA LCD RM 2U 230V SMT3000RMI2U

APC Logo here

Manufacturer Part Code: SMT3000RMI2U

Order Code: PSAPC-SMT3000RMI

Category: APC Rack UPS

APC Smart-UPS 3000VA LCD RM 2U 230V

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Energy meter
Provides actual kilowatt hours of usage for energy conscious users.

Outlet group control
Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).

Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).

Audible alarms
Provide notification of changing flywheel conditions

InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

Wide input voltage range
Designed for harsh electrical environments to save battery life.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

High online efficiency
Reduces utlility costs, generates less heat.

LED Indicators
Provide easy-to-read status of your utility power conditions, UPS and battery.

Cold-start capable
Provides temporary battery power when the utility power is out.

Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Audible alarms
Provides notification of changing utility power and UPS conditions.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Serial Connectivity
Provides management of the UPS via a serial port.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Network manageable
Provides remote management of the UPS over the network.

Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Adjustable voltage sensitivity
Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.

Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
11.5 min
Typical backup time at full load
3.2 min
Battery technology
Sealed Lead Acid (VRLA)
Hot-swap battery
Y
Battery recharge time
3 h
Typical backup time at half load
11.5 min
Typical backup time at full load
3.2 min
Replacement battery cartridge
RBC43
Cold start
Y
Automatic battery test
Y
Battery capacity
547 VAh
Battery life (max)
5 year(s)
Hot-swap battery
Y
Cold start
Y
Automatic battery test
Y
Battery capacity
547 VAh
Battery life (max)
5 year(s)
Certification
CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE, REACH, PEP, EOLI
Energy Star certified
Y
RoHS compliance
Y
Colour of product
Black
Certification
CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE, REACH, PEP, EOLI
Form factor
Rackmount
Cable length
2 m
LED indicators
Status
Product colour
Black
Certification
CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE, REACH, PEP, EOLI
Rack mounting
2U
Form factor
Rackmount
Rack capacity
2U
Energy Star certified
Y
Compatibility
2U
Cable length
2 m
LED indicators
status
Colour of product
Black
Rack capacity
2U
RoHS compliance
Y
Power supply input frequency
50/60 Hz
Output power capacity (VA)
3000 VA
Surge energy rating
320 J
Input frequency
50/60 Hz
Efficiency
99%
Output power
2700 W
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Audible alarm(s)
Y
Surge energy rating
320 J
Noise level
55 dB
Input frequency
50/60 Hz
Compatibility
2U
Audible alarm(s)
Y
Output power capacity
3000 VA
Surge energy rating
320 J
Noise level
55 dB
Efficiency
99%
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Input frequency
50/60 Hz
Hold time (min)
4 ms
Hold time (max)
8 ms
Efficiency
99%
Output power
2700 W
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (min)
4 ms
Hold time (max)
8 ms
LED indicators
status
Audible alarms
Y
Products per pallet
8 pc(s)
Quantity per pallet
8 pc(s)
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-15 - 45 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 15000 m
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Interface
USB
Nominal output voltage
230 V
Nominal input voltage
230 V
Package dimensions (WxDxH)
600 x 980 x 254 mm
Quantity per pallet
8 pc(s)
Compatibility
2U
Nominal output voltage
230 V
Output connections
8x IEC 320 C13\n1x IEC 320 C19\n1x IEC Jumpers
Output connections
8x IEC 320 C13\n1x IEC 320 C19\n3x IEC Jumpers
Output connections
IEC 320 C13\nIEC 320 C19\nIEC Jumpers
Input connection type
BS1363A, IEC-320 C20, CEE 7/EU1-16P
Nominal input voltage
230 V
Cables included
RS-232, USB cable
Quick installation guide
Y
Software CD
Y
Rack mount kit
Y
Resource CD
Yes
Package weight
51.7 kg
Cables included
RS-232, USB cable
Package dimensions (WxDxH)
600 x 980 x 254 mm
Quantity per pallet
8 pc(s)
Package weight
51.7 kg
Package depth
980 mm
Package height
254 mm
Package width
600 mm
Quick installation guide
Y
Cables included
RS-232, USB cable
Software CD
Y
Rack mount kit
Y
Package depth
980 mm
Package height
254 mm
Package width
600 mm
Quick installation guide
Y
Software CD
Y
Rack mount kit
Y
Resource CD
Yes
LED indicators
status
Audible alarms
Y
Noise level
55 dB
Hold time
8 ms
Source data-sheet
ICEcat.biz
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (min)
4 ms
Hold time (max)
8 ms
AC outlets quantity
9 AC outlet(s)
Number of output IEC jumpers
3
Cable length
2 m
Power plug
C20 coupler
AC outlet types
C13 coupler, C19 coupler
USB 2.0 ports quantity
1
AC outlets quantity
9 AC outlet(s)
USB port
Y
Number of output IEC jumpers
3
Power plug
C20 coupler
AC outlet types
C13 coupler, C19 coupler
USB port
Y
Noise level
55 dB
Rack mounting
2U
Form factor
Rackmount
Energy Star certified
Y
Input connections
BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Sustainability certificates
RoHS, ENERGY STAR
Source data-sheet
ICEcat.biz
Sustainability certificates
RoHS, ENERGY STAR
Weight
44.3 kg
Package weight
51.7 kg
Height
86 mm
Weight
44.3 kg
Width
480 mm
Depth
683 mm
Package weight
51.7 kg
Package depth
980 mm
Package height
254 mm
Package width
600 mm
Height
86 mm
Width
480 mm
Depth
683 mm
Packaging depth
980 mm
Packaging height
254 mm
Packaging width
600 mm
