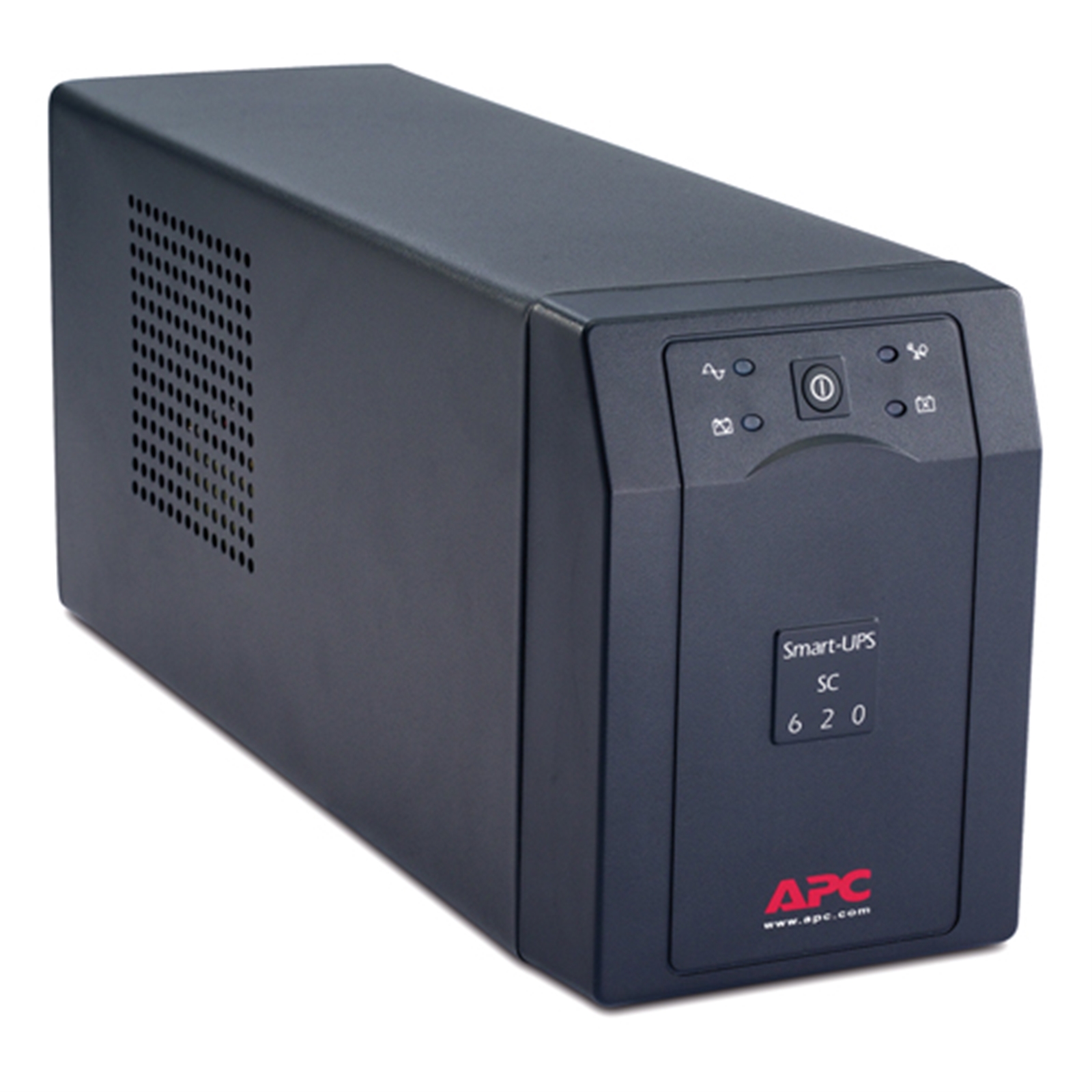

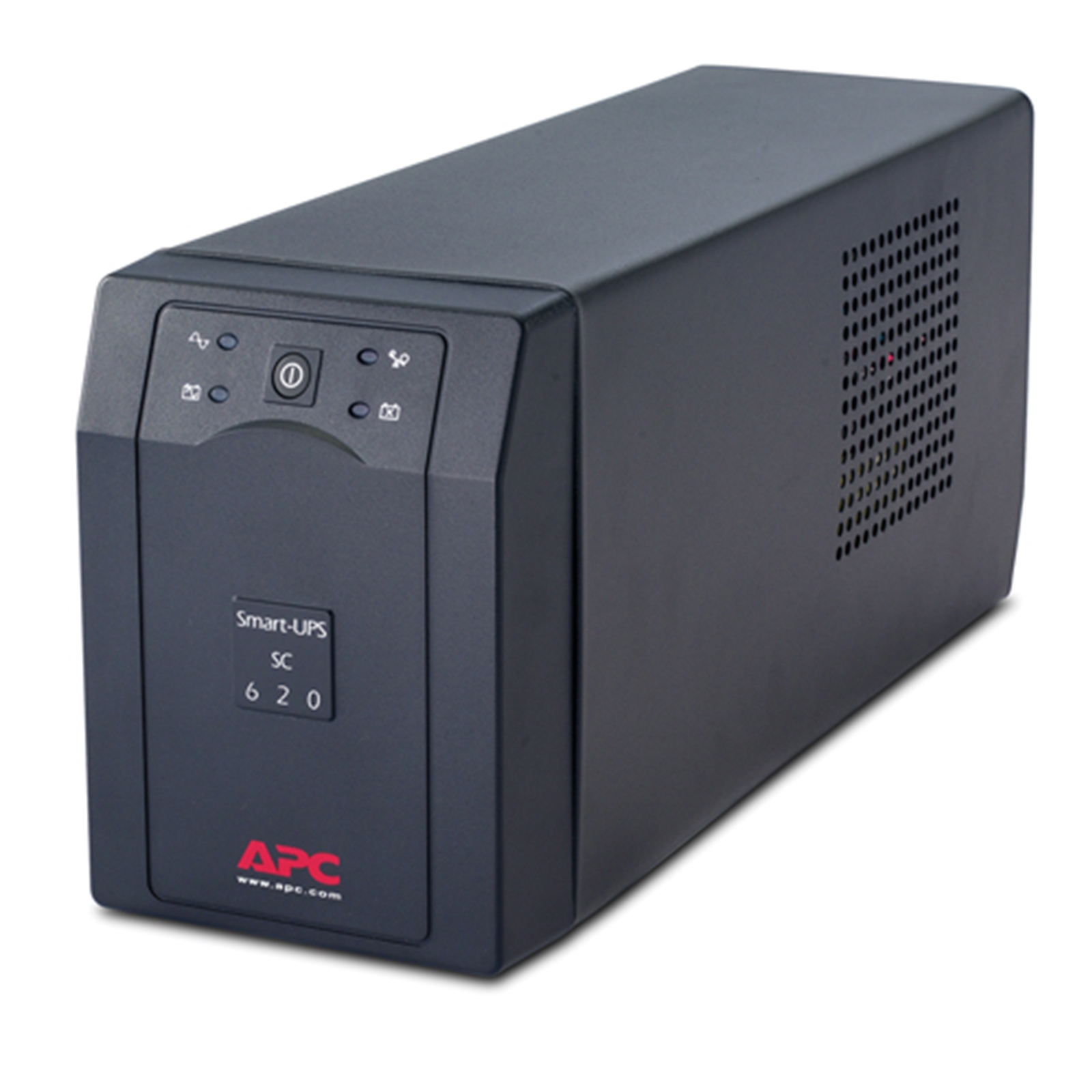

APC Smart UPS SC, 620 VA 390W Interface Port DB-9 RS-232 SC620I

APC Logo here

Manufacturer Part Code: SC620I

Order Code: PSAPC-136103

Category: APC Tower UPS

APC Smart-UPS SC, 620VA/390W, Input 230V/Output 230V, Interface Port DB-9 RS-232

APC Smart-UPS SC is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. Included PowerChute Business Edition management software allows you to configure safe system shutdowns and take advantage of advanced UPS management features like automated risk assessments and runtime capacity calculations. (All major operating systems supported). Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS, the Smart-UPS SC is the UPS to start your business with.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Battery recharge time
5.5 h
Typical backup time at half load
15.8 min
Typical backup time at full load
5.5 min
Replacement battery cartridge
RBC4
Automatic battery test
Y
Battery replacement alarms
LED
Battery capacity
132 VAh
Battery life (max)
5 year(s)
Certification
REACH, PEP, EOLI
RoHS compliance
Y
Colour of product
Grey
Form factor
Tower
Colour of product
Grey
Power supply input frequency
50/60 Hz
Emergency Power Off (EPO)
N
Output power capacity (VA)
620 VA
Surge energy rating
320 J
Efficiency
97.4%
Output power
390 W
LED indicators
Y
Audible alarms
Y
Quantity per pallet
12 pc(s)
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Interface
DB-9, RS-232
Dimensions (WxDxH)
119 x 368 x 168 mm
Package dimensions (WxDxH)
262 x 508 x 318 mm
Quantity per pallet
12 pc(s)
Nominal output voltage
230 V
Output connections
IEC 320 C13\nIEC 320 C13\nIEC Jumpers
Input connection type
IEC-320-C14 inlet
Nominal input voltage
230 V
Cables included
RS-232
Manual
Y
Software CD
Y
Resource CD
Yes
Package dimensions (WxDxH)
262 x 508 x 318 mm
Quantity per pallet
12 pc(s)
Package weight
13.2 kg
LED indicators
Y
Audible alarms
Y
Noise level
45 dB
Hold time
2 ms
Source data-sheet
ICEcat.biz
Surge protection
Y
Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Network
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (max)
2 ms
Audible alarm modes
Low battery alarm, Overload alarm
Serial interface type
RS-232
Serial ports quantity
1
AC outlets quantity
4 AC outlet(s)
Number of output IEC jumpers
2
Power plug
C14 coupler
AC outlet types
C13 coupler
Serial interface
Y
Noise level
45 dB
Form factor
Tower
Input connections
IEC-320-C14
Source data-sheet
ICEcat.biz
Surge protection
Y
Weight
12.3 kg
Package weight
13.2 kg
Height
168 mm
Width
119 mm
Depth
375 mm
Packaging depth
508 mm
Packaging height
318 mm
Packaging width
262 mm
