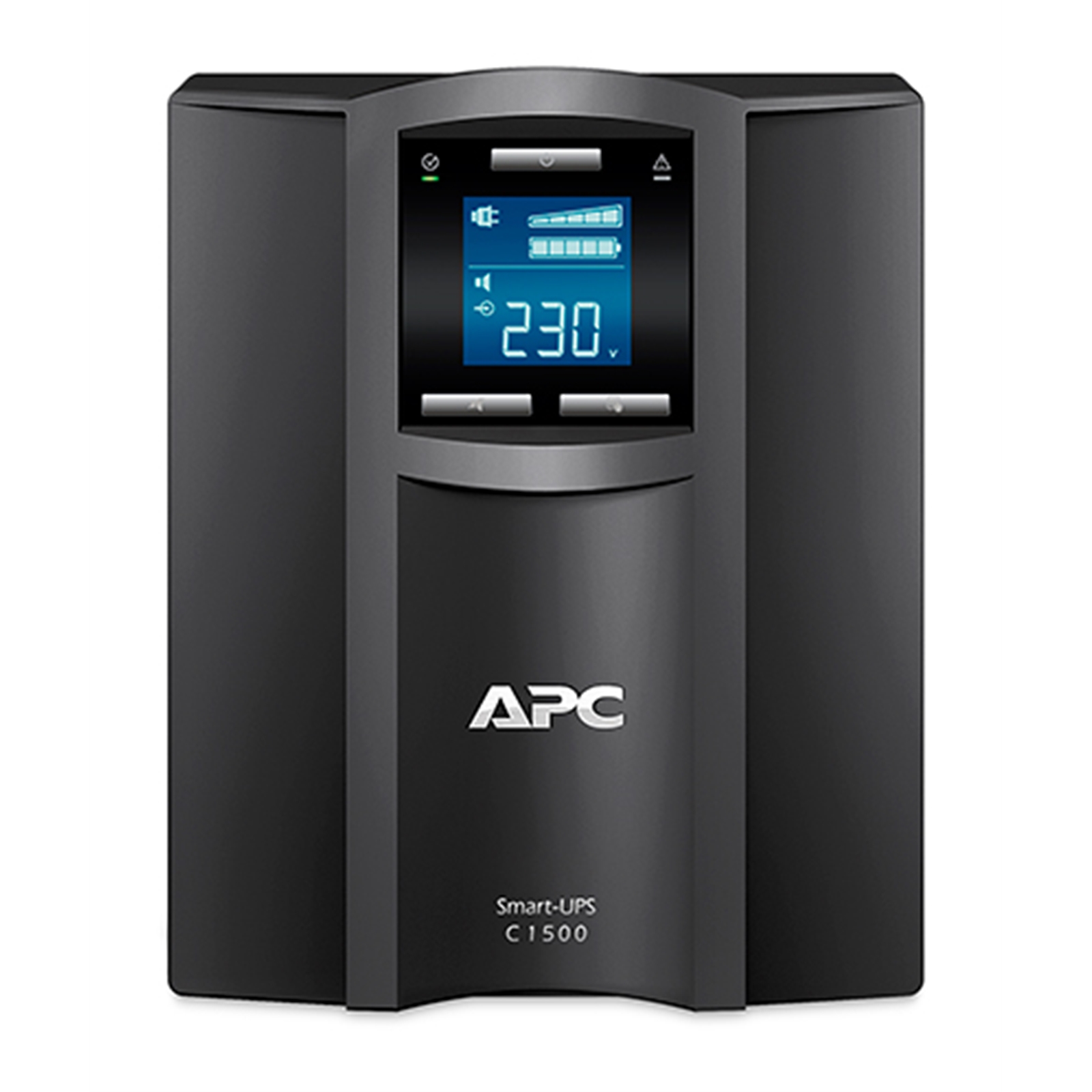

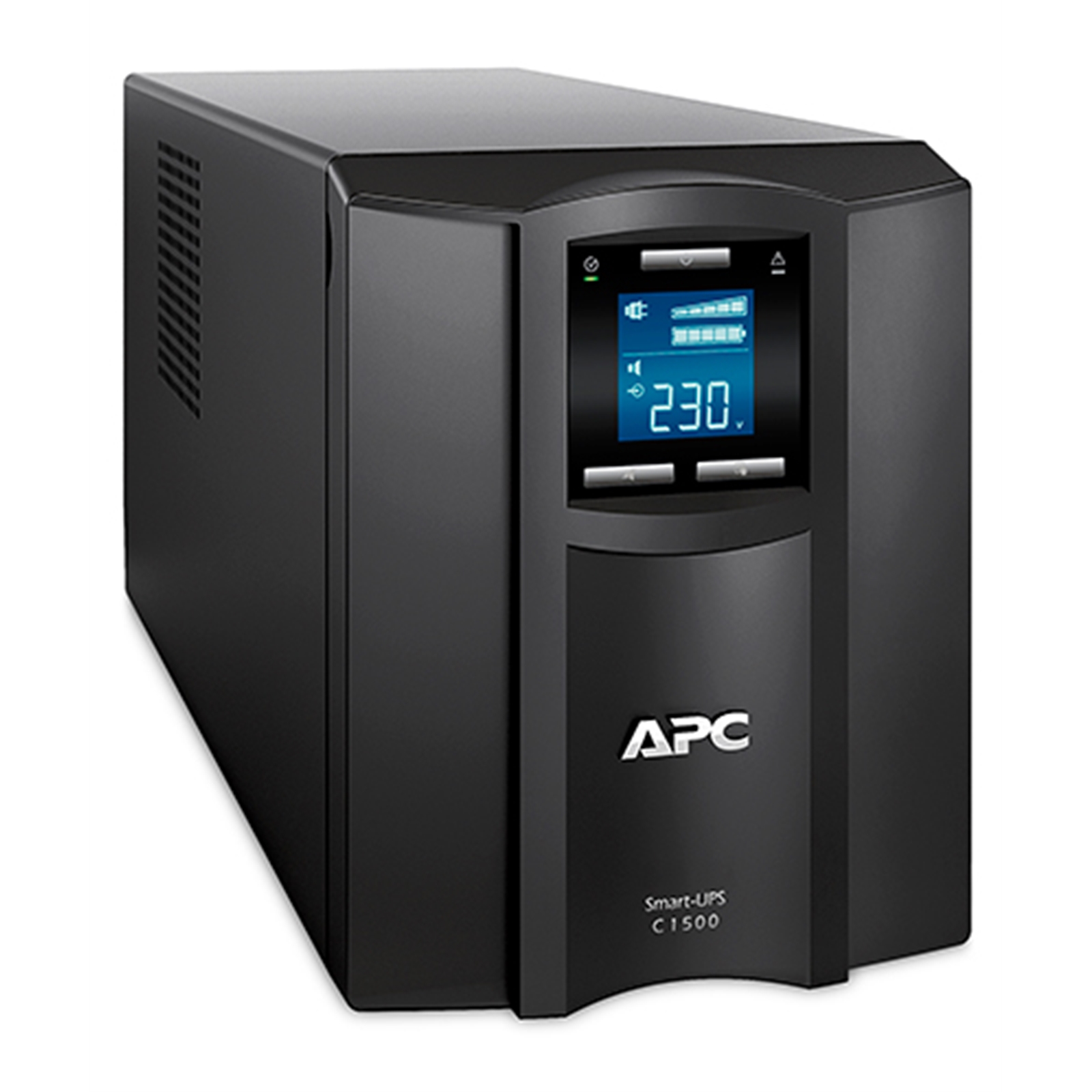

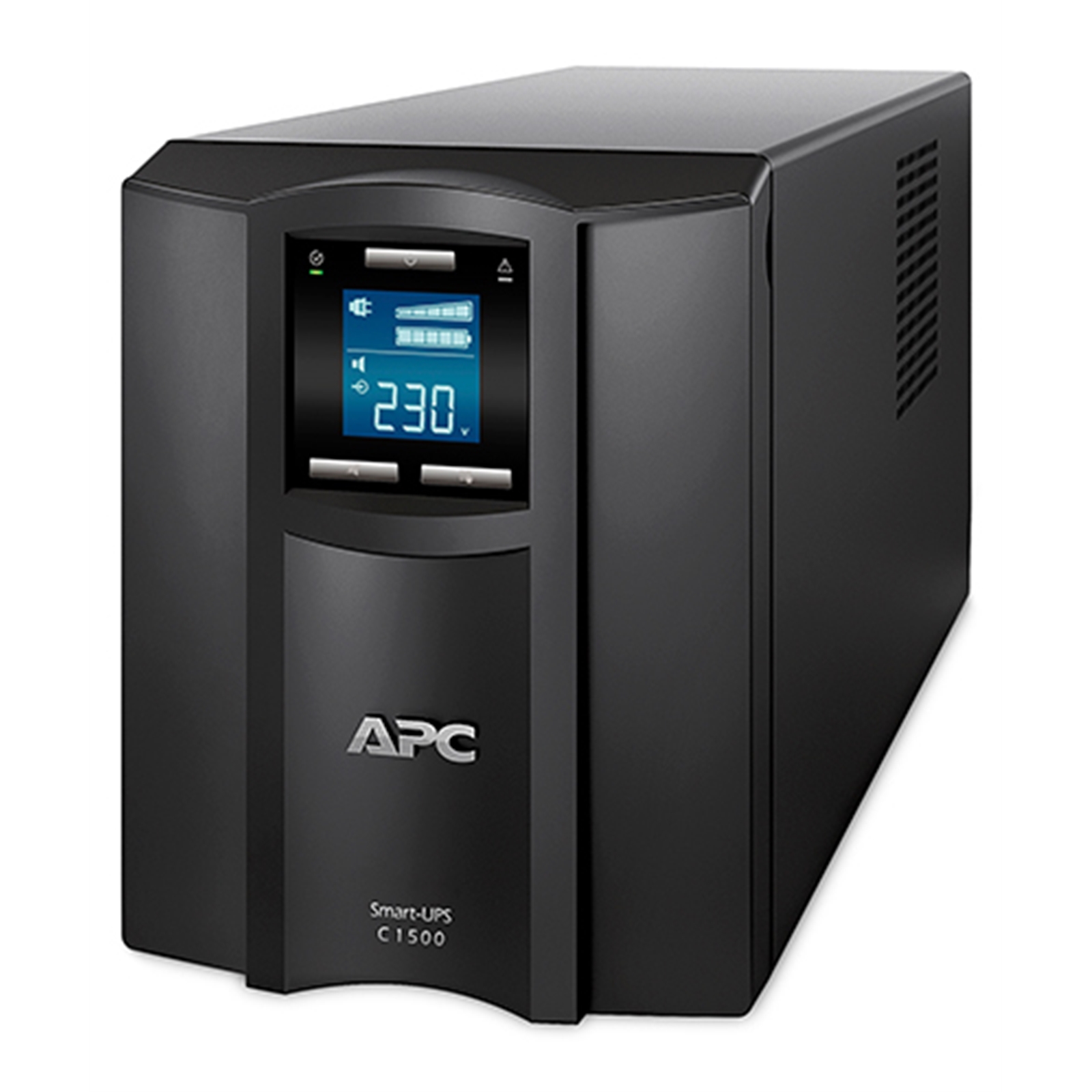

APC Smart UPS C 1500VA

APC Logo here

Manufacturer Part Code: SMC1500I

Order Code: PSAPC-SMC1500I

Category: APC Tower UPS

APC Smart-UPS C 1500VA LCD 230V

APC Smart-UPS,900 Watts /1500 VA,Input 230V /Output 230V, Interface Port USB

Includes: CD with software, Documentation CD, Smart UPS signalling RS-232 cable, USB cable


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
14.1 min
Typical backup time at full load
4.7 min
Battery technology
Sealed Lead Acid (VRLA)
Hot-swap battery
Y
Battery recharge time
3 h
Typical backup time at half load
14.1 min
Typical backup time at full load
4.7 min
Replacement battery cartridge
RBC6
Cold start
Y
Automatic battery test
Y
Battery capacity
220 VAh
Battery life (max)
5 year(s)
Hot-swap battery
Y
Cold start
Y
Automatic battery test
Y
Battery capacity
220 VAh
Battery life (max)
5 year(s)
Certification
C-tick, CE, CSA, GOST, UL 1778, VDE
Energy Star certified
Y
RoHS compliance
Y
Colour of product
Black
Certification
C-tick, CE, CSA, GOST, UL 1778, VDE
LED indicators
Status
Display
LCD
Product colour
Black
Certification
C-tick, CE, CSA, GOST, UL 1778, VDE
Form factor
Compact
Energy Star certified
Y
LED indicators
status
Colour of product
Black
Display type
LCD
RoHS compliance
Y
Display
LCD
Power supply input frequency
50/60 Hz
Output power capacity (VA)
1500 VA
Surge energy rating
459 J
Input frequency
50/60 Hz
Efficiency
98.5%
Output power
900 W
Output voltage THD
5%
Input operation voltage (max)
300 V
Input operation voltage (min)
170 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Audible alarm(s)
Y
Output power capacity
1.5 kVA
Surge energy rating
459 J
Noise level
45 dB
Input frequency
50/60 Hz
Audible alarm(s)
Y
Output power capacity
1500 VA
Surge energy rating
459 J
Noise level
45 dB
Efficiency
98.5%
Output power
900 W
Input operation voltage (max)
300 V
Input operation voltage (min)
170 V
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Input frequency
50/60 Hz
Efficiency
98.5%
Output power
900 W
Output voltage Total Harmonic Distortion (THD)
5%
Input operation voltage (max)
300 V
Input operation voltage (min)
170 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
LED indicators
status
Audible alarms
Y
Products per pallet
18 pc(s)
Quantity per pallet
18 pc(s)
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
85078000
Quantity per master carton
1 pc(s)
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-15 - 45 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 15000 m
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Nominal output voltage
230 V
Nominal input voltage
230 V
Package dimensions (WxDxH)
328 x 595 x 376 mm
Quantity per pallet
18 pc(s)
Nominal output voltage
230 V
Nominal input voltage
230 V
Cables included
USB cable
Quick installation guide
Y
Software CD
Y
Resource CD
Yes
Package weight
27.2 kg
Cables included
USB cable
Package dimensions (WxDxH)
328 x 595 x 376 mm
Quantity per pallet
18 pc(s)
Package weight
27.2 kg
Package depth
595 mm
Package height
376 mm
Package width
328 mm
Quick installation guide
Y
Cables included
USB cable
Software CD
Y
Package depth
595 mm
Package height
376 mm
Package width
328 mm
Quick installation guide
Y
Software CD
Y
Resource CD
Yes
LED indicators
status
Audible alarms
Y
Noise level
45 dB
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive

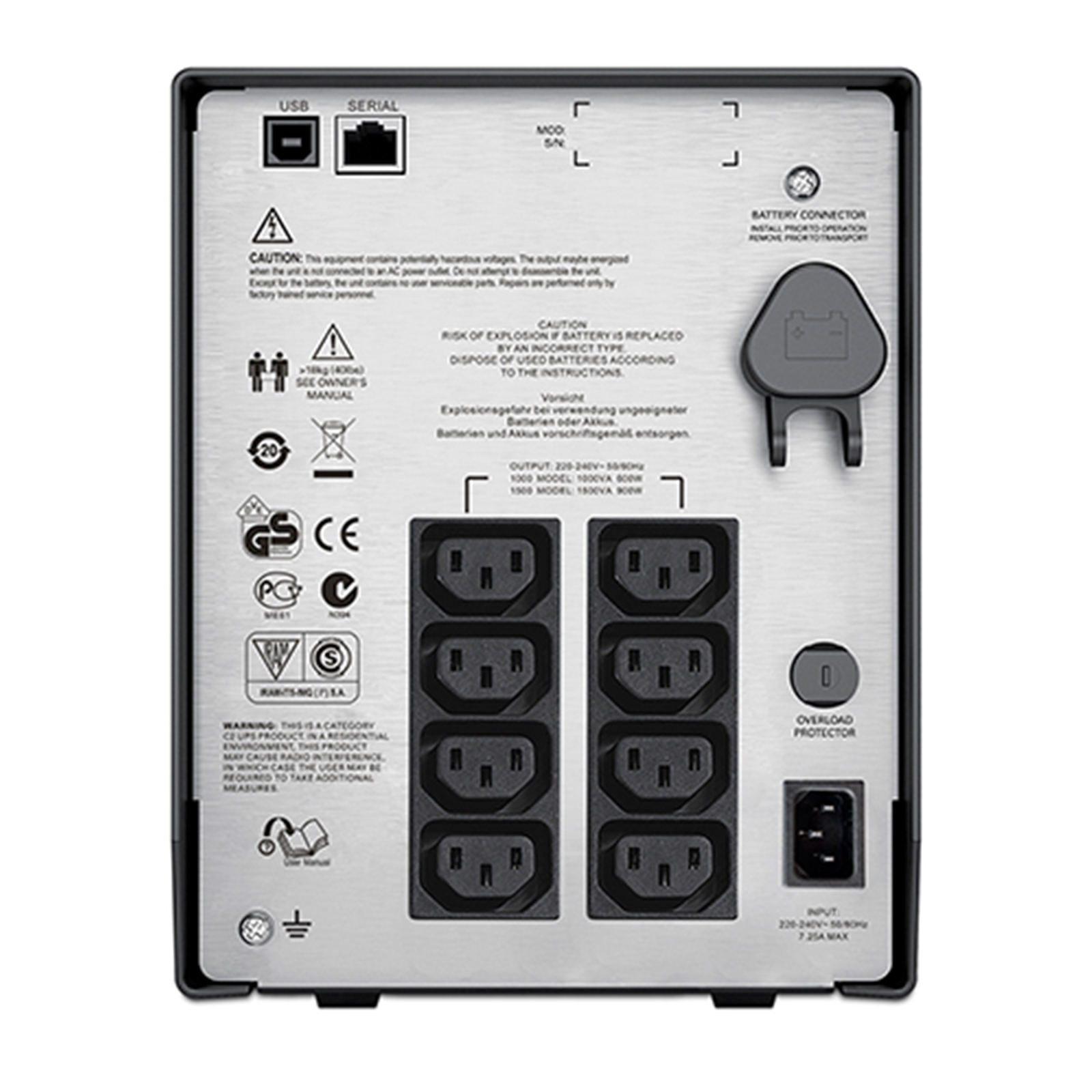

AC outlets quantity
8 AC outlet(s)
Number of output IEC jumpers
2
Serial ports quantity
1
Power plug
C14 coupler
AC outlet types
C13 coupler
USB 2.0 ports quantity
1
AC outlets quantity
8 AC outlet(s)
USB port
Y
Number of output IEC jumpers
2
Power plug
C14 coupler
AC outlet types
C13 coupler
USB port
Y
Noise level
45 dB
Form factor
Compact
Energy Star certified
Y
Harmonized System (HS) code
85078000
Input connections
IEC-320 C14
Sustainability certificates
RoHS, ENERGY STAR
Sustainability certificates
RoHS, ENERGY STAR
Weight
24.1 kg
Package weight
27.2 kg
Height
219 mm
Weight
24.1 kg
Width
171 mm
Depth
439 mm
Package weight
27.2 kg
Package depth
595 mm
Package height
376 mm
Package width
328 mm
Height
219 mm
Width
171 mm
Depth
439 mm
Packaging depth
595 mm
Packaging height
376 mm
Packaging width
328 mm
