APC Tower UPS | APC Smart UPS 3000VA LCD 230V SMT3000I | SMT3000I | ServersPlus
APC SMT3000I | serversplus.comAPC SMT3000I | serversplus.com

Illustration purposes only

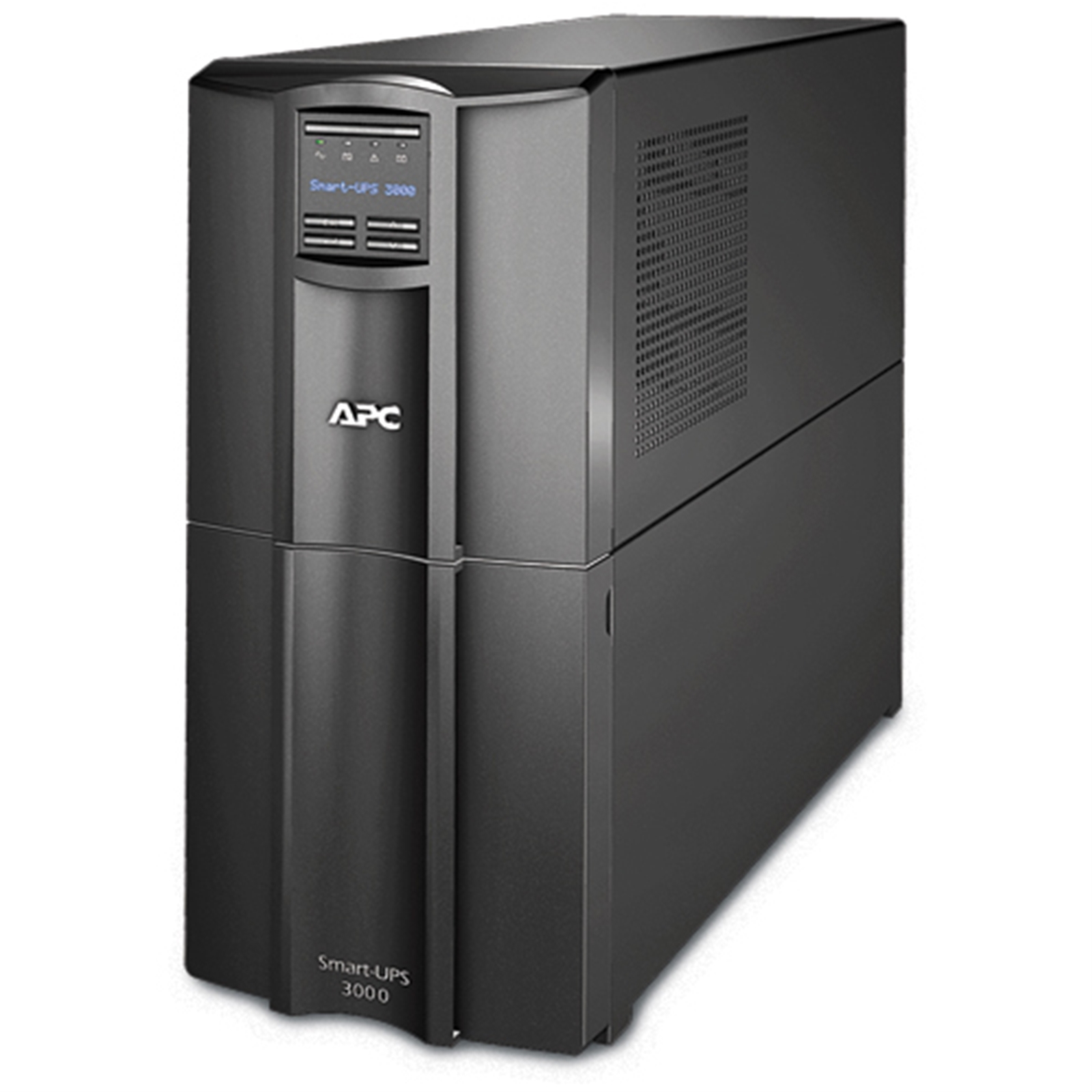

APC Smart UPS 3000VA LCD 230V SMT3000I

APC Logo here

Manufacturer Part Code: SMT3000I

Order Code: PSAPC-SMT3000I

Category: APC Tower UPS

Smart-UPS 3000VA LCD 230V

APC Smart-UPS, 2700 Watts / 3000 VA,Input 230V / Output 230V, Interface Port DB-9 RS-232, USB, SmartSlot

Includes: CD with software, Documentation CD, Smart UPS signalling RS-232 cable, USB cable


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
17.2 min
Typical backup time at full load
5.1 min
Replacement battery cartridge
RBC55
Hot-swap battery
Y
Cold start
Y
Automatic battery test
Y
Battery capacity
816 VAh
Battery life (max)
5 year(s)
Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
RoHS compliance
Y
Colour of product
Black
Display
LCD
Form factor
Tower
Colour of product
Black
Display
LCD
Power supply input frequency
50/60
Emergency Power Off (EPO)
Y
Output power capacity (VA)
3000 VA
Surge energy rating
365 J
Maximum current
16 A
Efficiency
98.1%
Output power
2700 W
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
LED indicators
status
Audible alarms
Y
Quantity per pallet
9 pc(s)
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Interface
SmartSlot
Dimensions (WxDxH)
435 x 197 x 544 mm
Package dimensions (WxDxH)
699 x 381 x 762 mm
Quantity per pallet
9 pc(s)
Mac compatibility
Yes
Nominal output voltage
230
Output voltage note
220/230/240

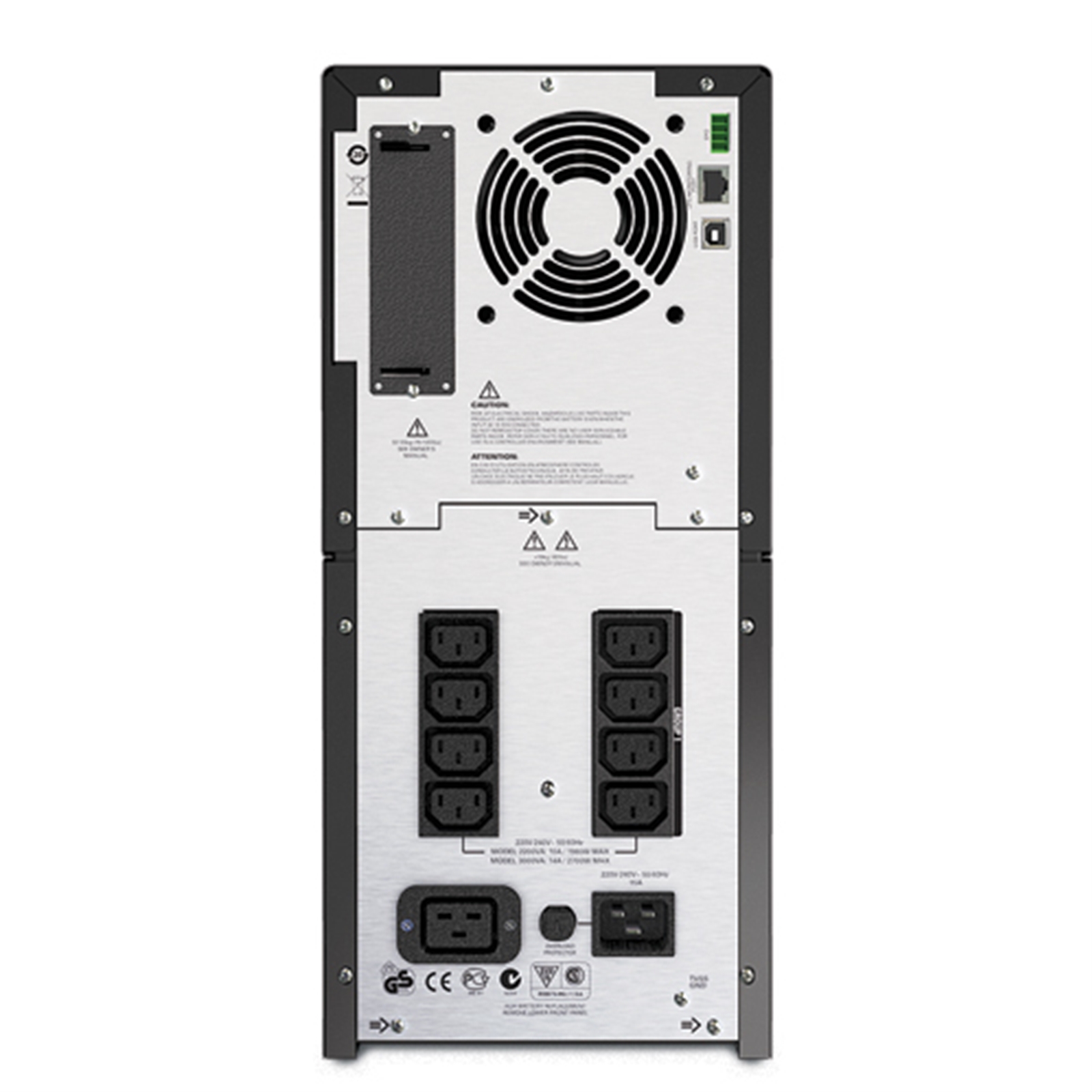

Output connections
8 x IEC 320 C13 \n1 x IEC 320 C19\n2 x IEC Jumpers
Input connection type
IEC-320 C20
Nominal input voltage
230
Cables included
RS-232, USB cable
Quick installation guide
Y
Software CD
Y
Resource CD
Yes
Package dimensions (WxDxH)
699 x 381 x 762 mm
Quantity per pallet
9 pc(s)
Package weight
63.7 kg
LED indicators
status
Audible alarms
Y
Noise level
53 dB
Hold time
2 ms
Source data-sheet
ICEcat.biz
Surge protection
Y
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (max)
2 ms
Cable length
1.83 m
Serial ports quantity
1
USB 2.0 ports quantity
1
AC outlets quantity
9 AC outlet(s)
Number of output IEC jumpers
2
AC outlet types
C13 coupler, C19 coupler
USB port
Y
SmartSlot
Y
Noise level
53 dB
Form factor
Tower
Input connections
IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Source data-sheet
ICEcat.biz
Surge protection
Y
Weight
52.5 kg
Package weight
63.7 kg
Height
435 mm
Width
197 mm
Depth
544 mm
Packaging depth
762 mm
Packaging height
699 mm
Packaging width
381 mm
