Illustration purposes only

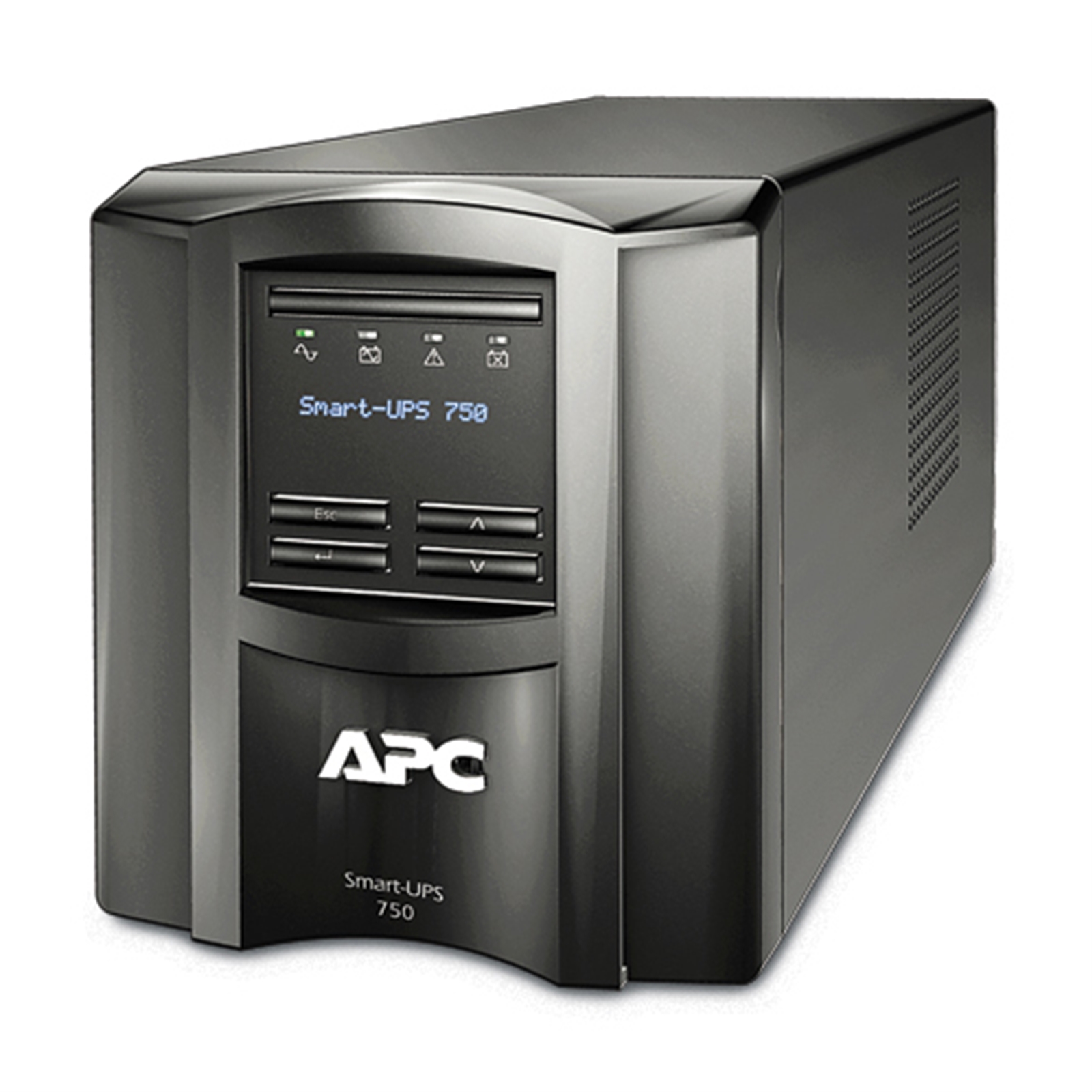

APC Smart UPS 750VA LCD 230V

APC Logo here

Manufacturer Part Code: SMT750I

Order Code: PSAPC-SMT750I

Category: APC Tower UPS

APC SMT750I Smart BACK Up UPS 750VA LCD 230V

APC Smart-UPS, 500 Watts / 750 VA,Input 230V / Output 230V, Interface Port DB-9 RS-232, Smart-Slot, USB

Includes: CD with software, Documentation CD, Smart UPS signalling RS-232 cable, USB cable


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Battery recharge time
3 h
Replacement battery cartridge
RBC48
Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Battery recharge time
3 h
Replacement battery cartridge
RBC48
Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH
RoHS compliance
Y
Colour of product
Black
Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH
Form factor
Mini Tower
Cable length
1.83 m
Display
LCD
Product colour
Black
Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH
Form factor
Mini Tower
Cable length
1.83 m
Colour of product
Black
Display type
LCD
RoHS compliance
Y
Display
LCD
Power supply input frequency
50/60
Output power capacity (VA)
0.75 kVA
Surge energy rating
540 J
Input frequency
50/60 Hz
Output power
500 W
Output voltage THD
5%
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
47 - 53, 57 - 63 Hz
Audible alarm(s)
Y
Output power capacity
0.75 kVA
Surge energy rating
540 J
Noise level
40 dB
Input frequency
50/60 Hz
Audible alarm(s)
Y
Output power capacity
0.75 kVA
Surge energy rating
540 J
Noise level
40 dB
Output power
500 W
Output voltage Total Harmonic Distortion (THD)
5%
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Waveform
Sine
Output frequency regulation
47 - 53, 57 - 63 Hz
UPS topology
Line-Interactive
Input frequency
50/60 Hz
Audible alarm modes
Low battery alarm
Output power
500 W
Output voltage Total Harmonic Distortion (THD)
5%
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Waveform
Sine
Output frequency regulation
47 - 53, 57 - 63 Hz
UPS topology
Line-Interactive
Audible alarm modes
Low battery alarm
Audible alarms
Y
Harmonized System (HS) code
85078000
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-15 - 45 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 15000 m
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Cables included
RS-232, USB cable
Software CD
Y
Resource CD
Y
Package weight
14.2 kg
Cables included
RS-232, USB cable
Package weight
14.2 kg
Package depth
499 mm
Package height
301 mm
Package width
278 mm
Cables included
RS-232, USB cable
Software CD
Y
Resource CD
Y
Package depth
499 mm
Package height
301 mm
Package width
278 mm
Software CD
Y
Resource CD
Y
Audible alarms
Y
Noise level
40 dB
Waveform
Sine
UPS topology
Line-Interactive
Audible alarm modes
Low battery alarm
AC outlets quantity
8 AC outlet(s)
Number of output IEC jumpers
2
Cable length
1.83 m
Power plug
C14 coupler
AC outlet types
C13 coupler, IEC Jumpers
AC outlets quantity
8 AC outlet(s)
USB port
Y
SmartSlot
Y
Number of output IEC jumpers
2
Power plug
C14 coupler
AC outlet types
C13 coupler, IEC Jumpers
USB port
Y
SmartSlot
Y
Noise level
40 dB
Form factor
Mini Tower
Harmonized System (HS) code
85078000
Sustainability certificates
Green Premium, RoHS
Sustainability certificates
RoHS
Sustainability certificates
RoHS
Weight
13.2 kg
Package weight
14.2 kg
Height
158 mm
Weight
13.2 kg
Width
138 mm
Depth
359 mm
Package weight
14.2 kg
Package depth
499 mm
Package height
301 mm
Package width
278 mm
Height
158 mm
Width
138 mm
Depth
359 mm
Packaging depth
499 mm
Packaging height
301 mm
Packaging width
278 mm
