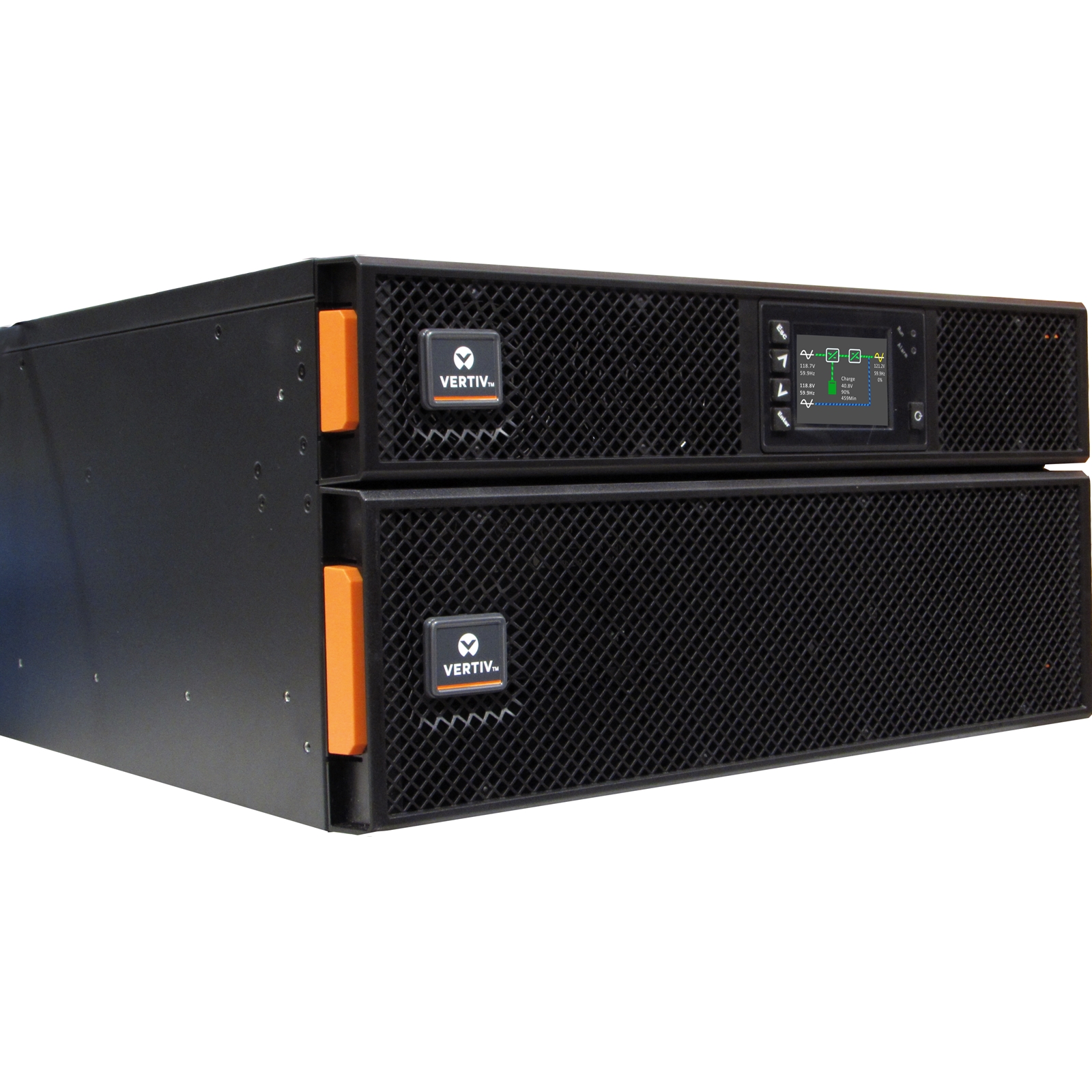

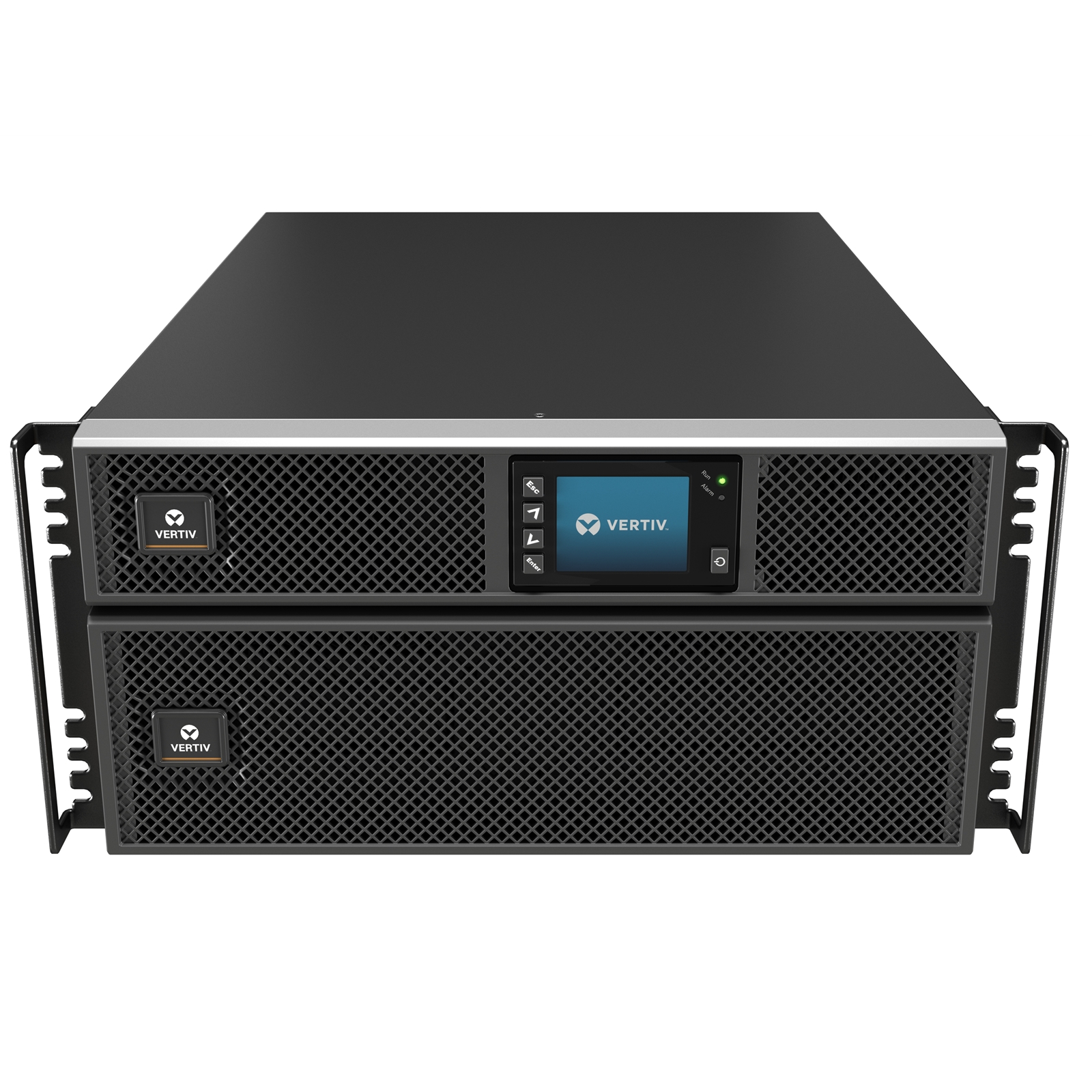

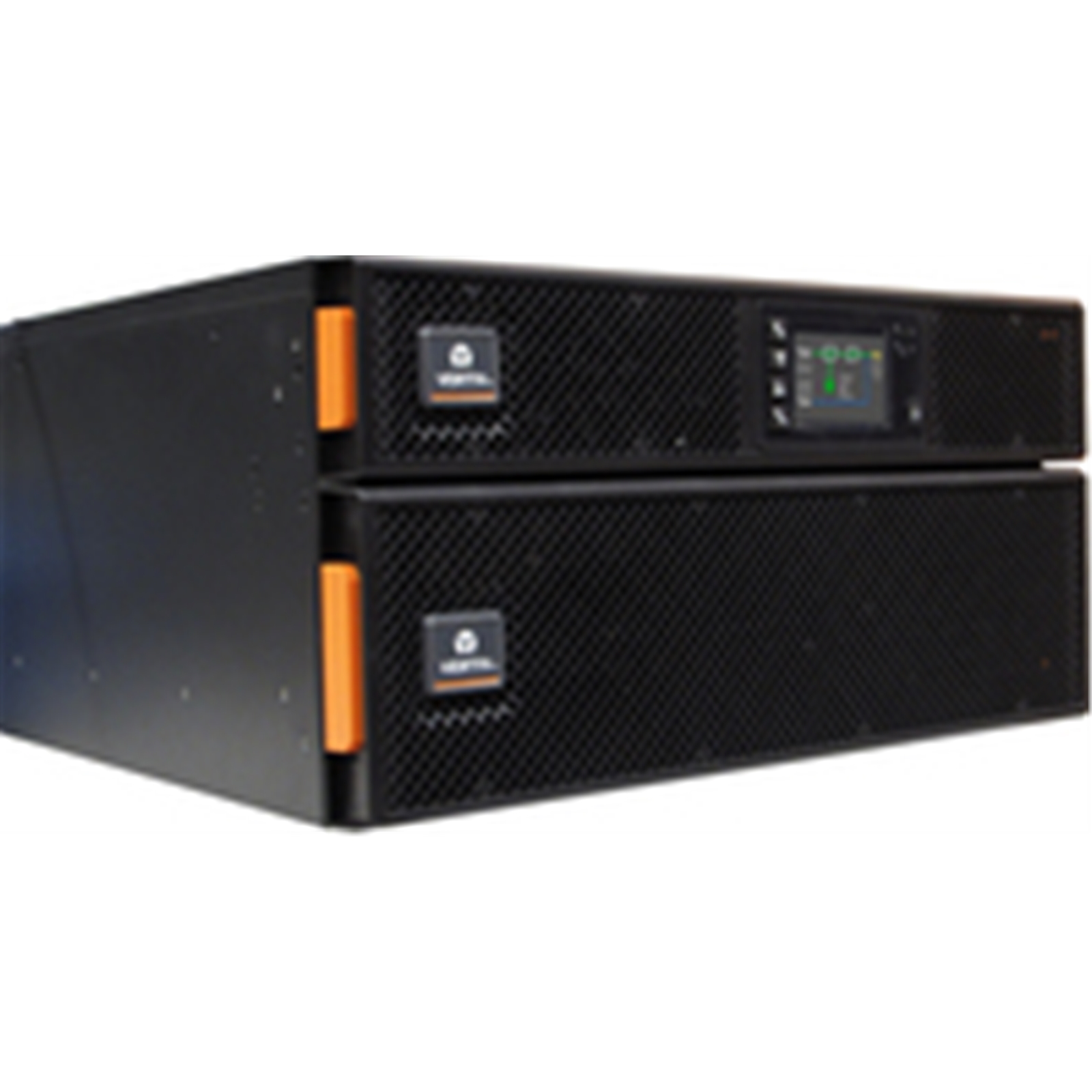

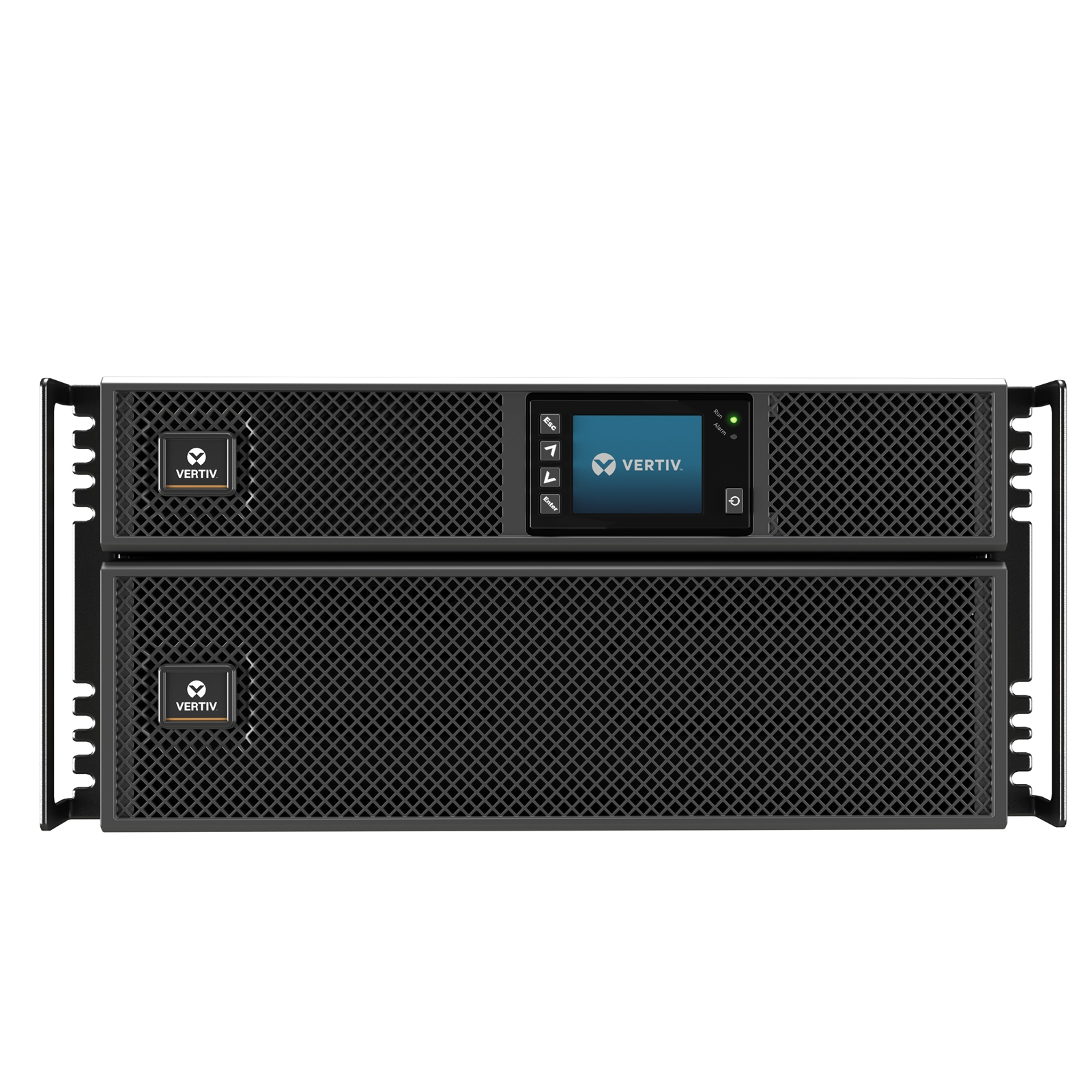

Vertiv GXT5 6000VA

Vertiv Logo here

Manufacturer Part Code: GXT5-6000IRT5UXLE

Order Code: PSEME-GXT56000IR

Category: Vertiv Rack UPS

GXT5 6000VA 230V UPS EU

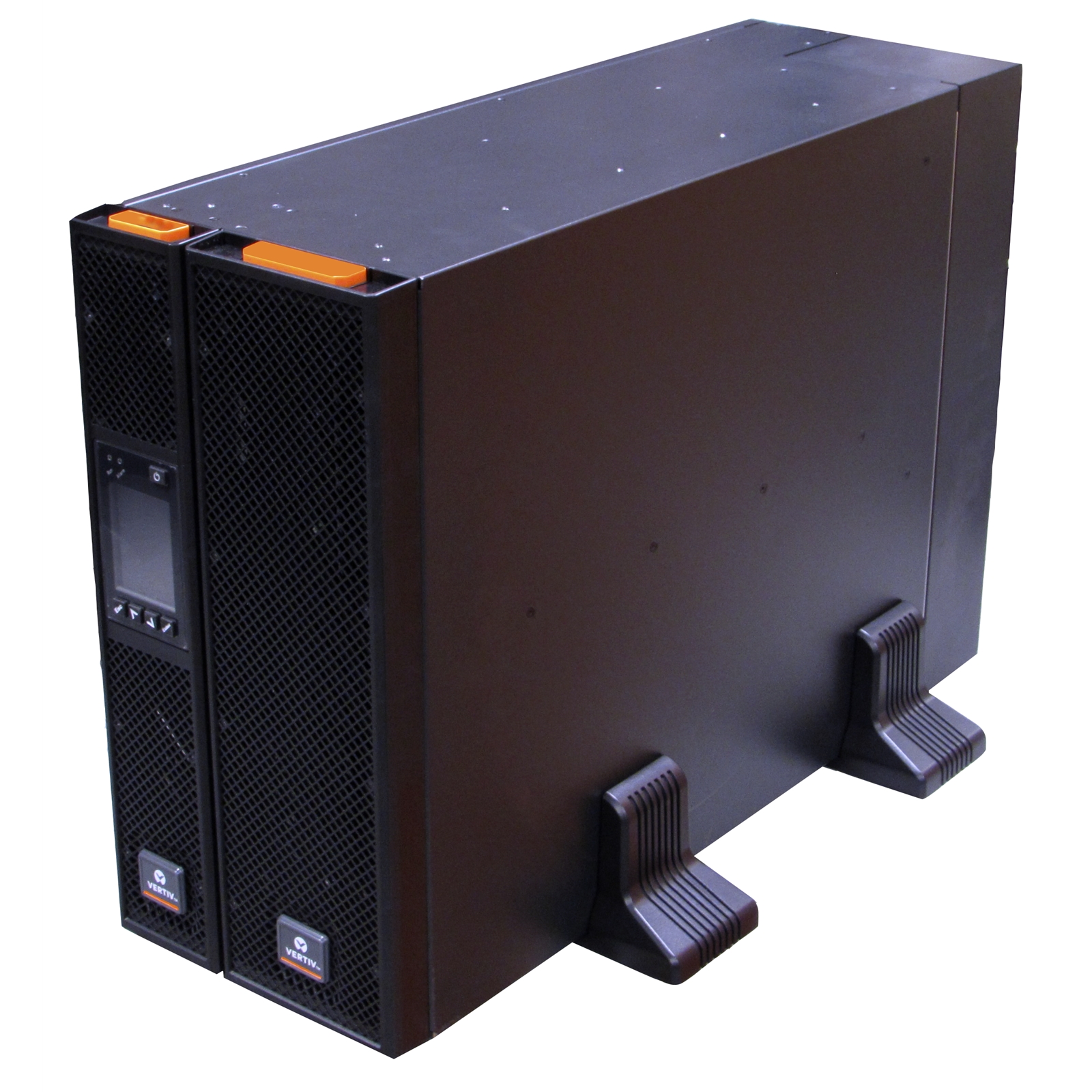

The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 6kVA/6kW online double conversion UPS offers continuous power conditioning in centralized and edge locations. With unity power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 230V in/ 230 out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery type
VRLA
Number of batteries supported
16
Typical backup time at half load
14.5 min
Typical backup time at full load
5.5 min
Hot-swap battery
Y
Battery voltage
12 V
Battery capacity
9 Ah
Battery recharge time(90%)
5 h
Certification
CE, EMI/EMC/C-Tick EMC, ESD
Safety
IEC62040-1:2008
Colour of product
Black
Cooling type
Active
Display
LCD
Certification
CE, EMI/EMC/C-Tick EMC, ESD
Safety
IEC62040-1:2008
Form factor
Rackmount/Tower
Colour of product
Black
Rack capacity
5U
Cooling type
Active
International Protection (IP) code
IP20
Display
LCD
Emergency Power Off (EPO)
Y
Output power capacity (VA)
6 kVA
Input frequency
50/60 Hz
Efficiency
94%
Output power
6000 W
Power factor
1
Input operation voltage (max)
288 V
Input operation voltage (min)
176 V
Output operation voltage (min)
230 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Input power factor
0.99
Output power factor
1
Output voltage regulation
3%
Audible alarm(s)
Y
Emergency Power Off (EPO)
Y
Output power capacity
6 kVA
Noise level
55 dB
Input frequency
50/60 Hz
Efficiency
94%
Output power
6000 W
Power protection features
Overload
Power factor
1
Input operation voltage (max)
288 V
Input operation voltage (min)
176 V
Output operation voltage (min)
230 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Number of input phases
1
Number of output phases
1
Input power factor
0.99
Output power factor
1
Waveform
Pure sine
Output voltage regulation
3%
UPS topology
Double-conversion (Online)
Overload capacity (1 minute)
150%
Efficiency (On-line mode)
94%
Overload capacity (5 minute)
125%
Single-phase input voltage supported
200,208,220,230,240 V
Audible alarms
Y
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 40 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Battery type
VRLA
Output voltage
230 V
Package weight
89 kg
Package depth
816 mm
Package height
520 mm
Package width
646 mm
Audible alarms
Y
Noise level
55 dB
Cooling type
Active
Power protection features
Overload
Number of input phases
1
Number of output phases
1
Waveform
Pure sine
UPS topology
Double-conversion (Online)

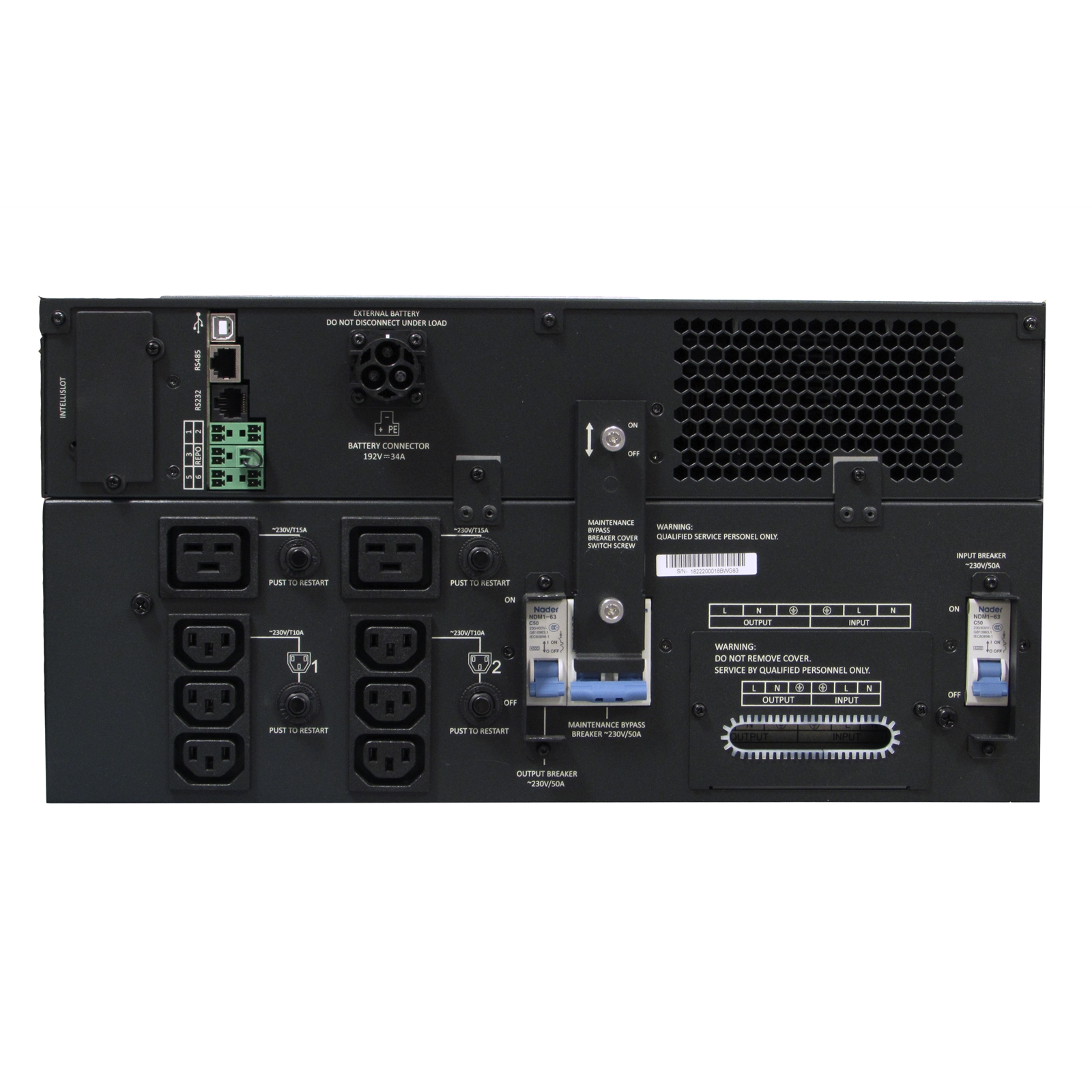

Serial ports quantity
1
AC outlets quantity
8 AC outlet(s)
RS-232 ports
1
Power plug
Terminal
AC outlet types
C13 coupler, C19 coupler, IEC 320, Terminal
USB port
Y
Noise level
55 dB
Form factor
Rackmount/Tower
Output voltage
230 V
Output frequency
50/60 Hz
Sustainability certificates
RoHS
Weight
70.8 kg
Package weight
89 kg
Height
217 mm
Width
430 mm
Depth
630 mm
Packaging depth
816 mm
Packaging height
520 mm
Packaging width
646 mm
