Vertiv Tower UPS | Vertiv Liebert PSP 500VA (300W) | PSP500MT3-230U | ServersPlus

Illustration purposes only

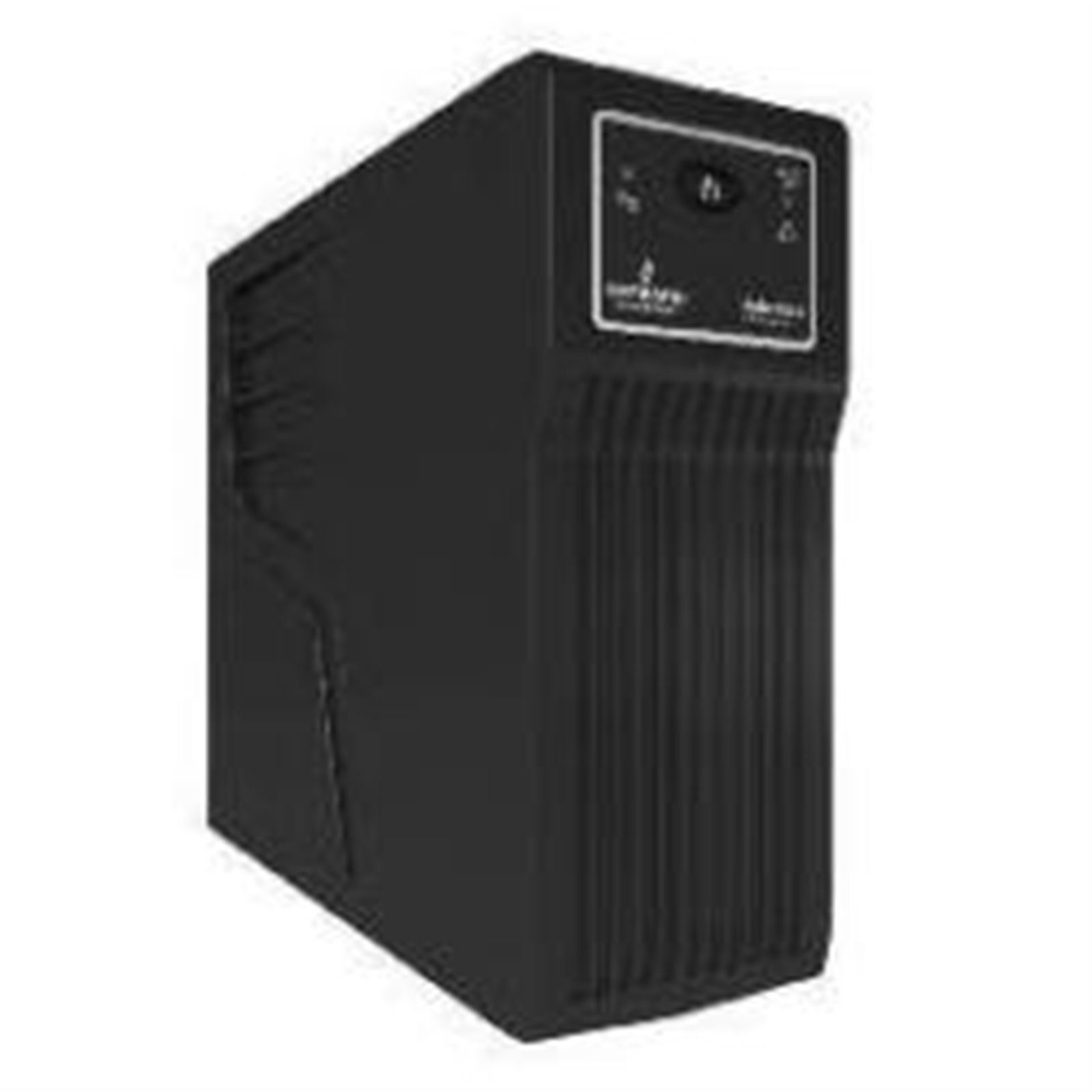

Vertiv Liebert PSP 500VA (300W)

Vertiv Logo here

Manufacturer Part Code: PSP500MT3-230U

Order Code: PSEME-PSP500MT32

Category: Vertiv Tower UPS

Emerson Liebert PSP 500VA 300W 230V

Liebert PSP is a full featured UPS that delivers cost-effective power protection in a compact package.
The UPS provides battery-backed outlets and a surge protectiononly outlet. The UPS battery offers four minutes of backup power at full load - ample time to shut down protected equipment if an outage occurs.
Shutdown software and a USB cable are also included, to allow
remote alerts and automated graceful shutdown of the connected
equipment.

Liebert PSP UPS Supports Your Sensitive Electronics With These Standard Features:
Flexibility:
- Three battery-backed UPS outlets, and one surge protection-only outlet differentiated by color.
- USB port, MultiLink Software shutdown software, and USB cable.
- User replaceable batteries.

Higher Availability:
- Up to four minutes of battery backup time at full load. Protects against lightning, spikes and surges.
- Full sequenced battery testing to ensure batteries are available when needed.
- Advance early warning of UPS shutdown.
- RJ-45 port for data line surge protection.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Battery recharge time
8 h
Typical backup time at half load
11 min
Battery voltage
12 V
Battery capacity
7 VAh
Certification
CE
Safety
IEC/EN/AS 62040-1-1
Form factor
Tower
Product colour
Black
Cooling type
Passive
International Protection (IP) code
IP20
Response time
6 ms
Output power capacity
0.5 kVA
Input frequency
50/60 Hz
Output power
300 W
Power factor
0.6
Input operation voltage (max)
287 V
Input operation voltage (min)
160 V
Output frequency
50/60 Hz
Number of input phases
1
Number of output phases
1
Waveform
Stepwise
UPS topology
Standby (Offline)
Harmonized System (HS) code
85078000
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-15 - 40 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
0 - 90%
Interface
IEC-320-C14
Dimensions (WxDxH)
87 x 215 x 251 mm
Battery type
VDC x Ah
Package weight
10.6 kg
Package depth
419 mm
Package height
251 mm
Package width
151 mm
Serial ports quantity
1
USB 2.0 ports quantity
1
AC outlets quantity
4 AC outlet(s)
Power plug
C14 coupler
AC outlet types
IEC 320, C13 coupler
USB port
Yes
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS
Weight
4.8 kg
Package weight
10.6 kg
Height
251 mm
Width
87 mm
Depth
215 mm
Package depth
419 mm
Package height
251 mm
Package width
151 mm

#
