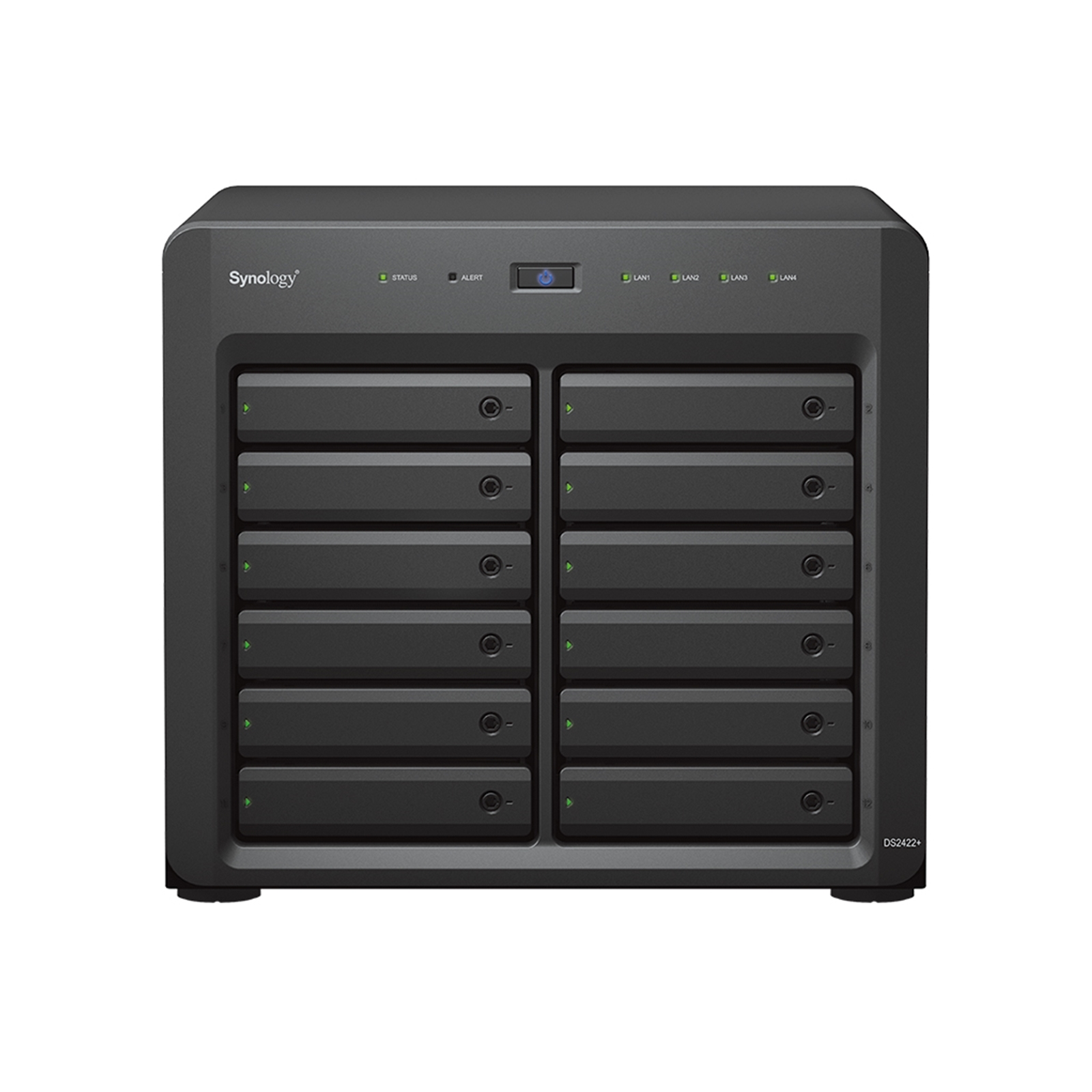

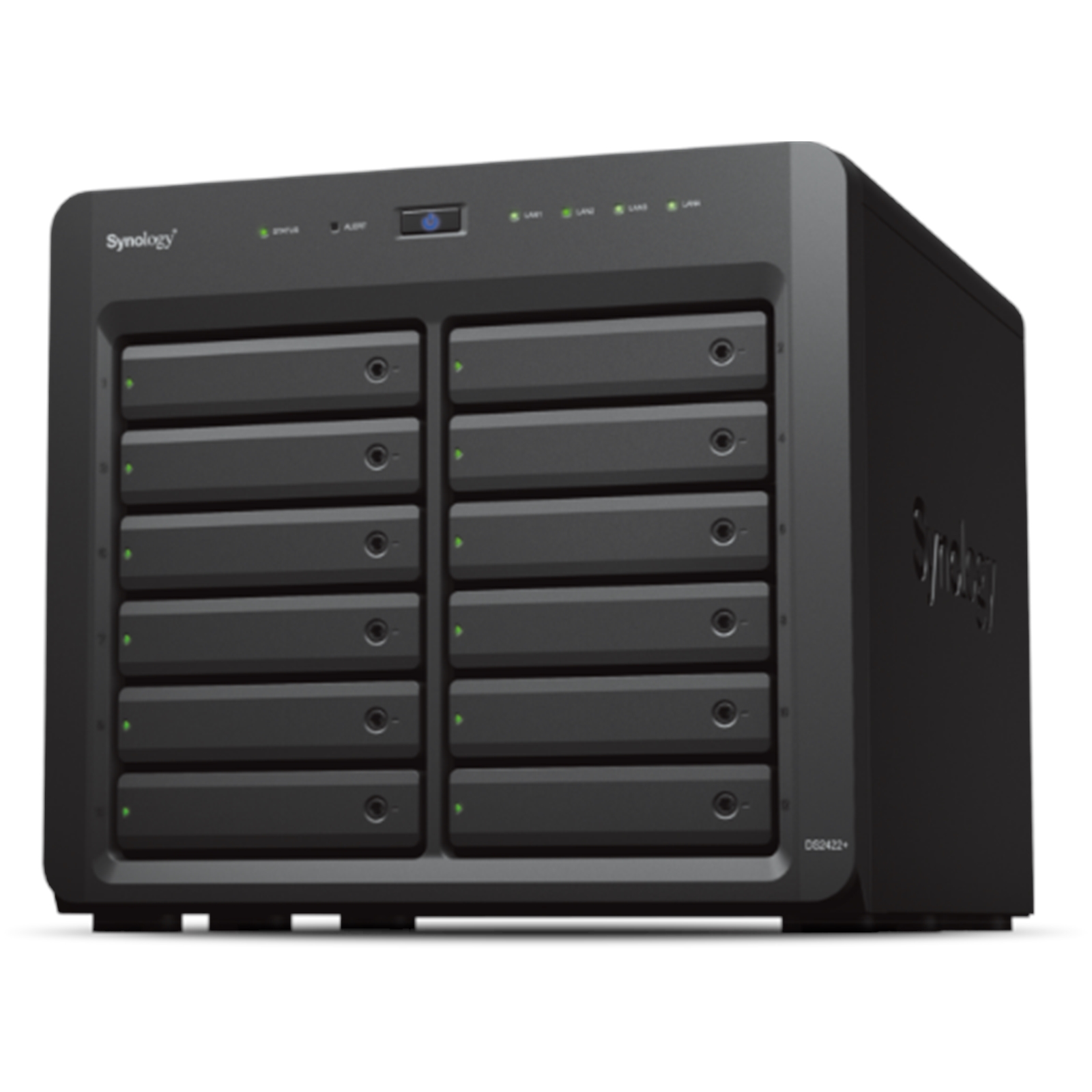

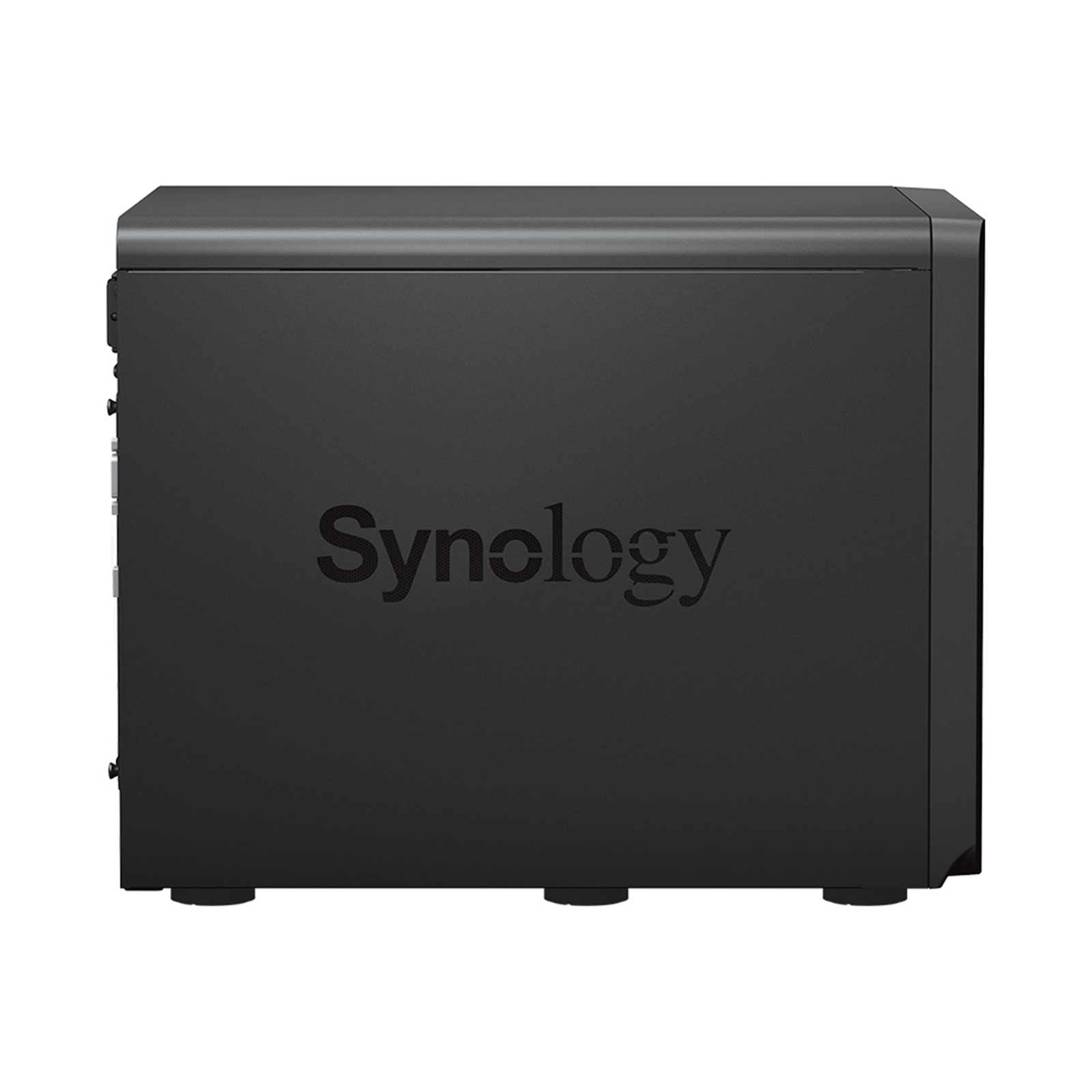

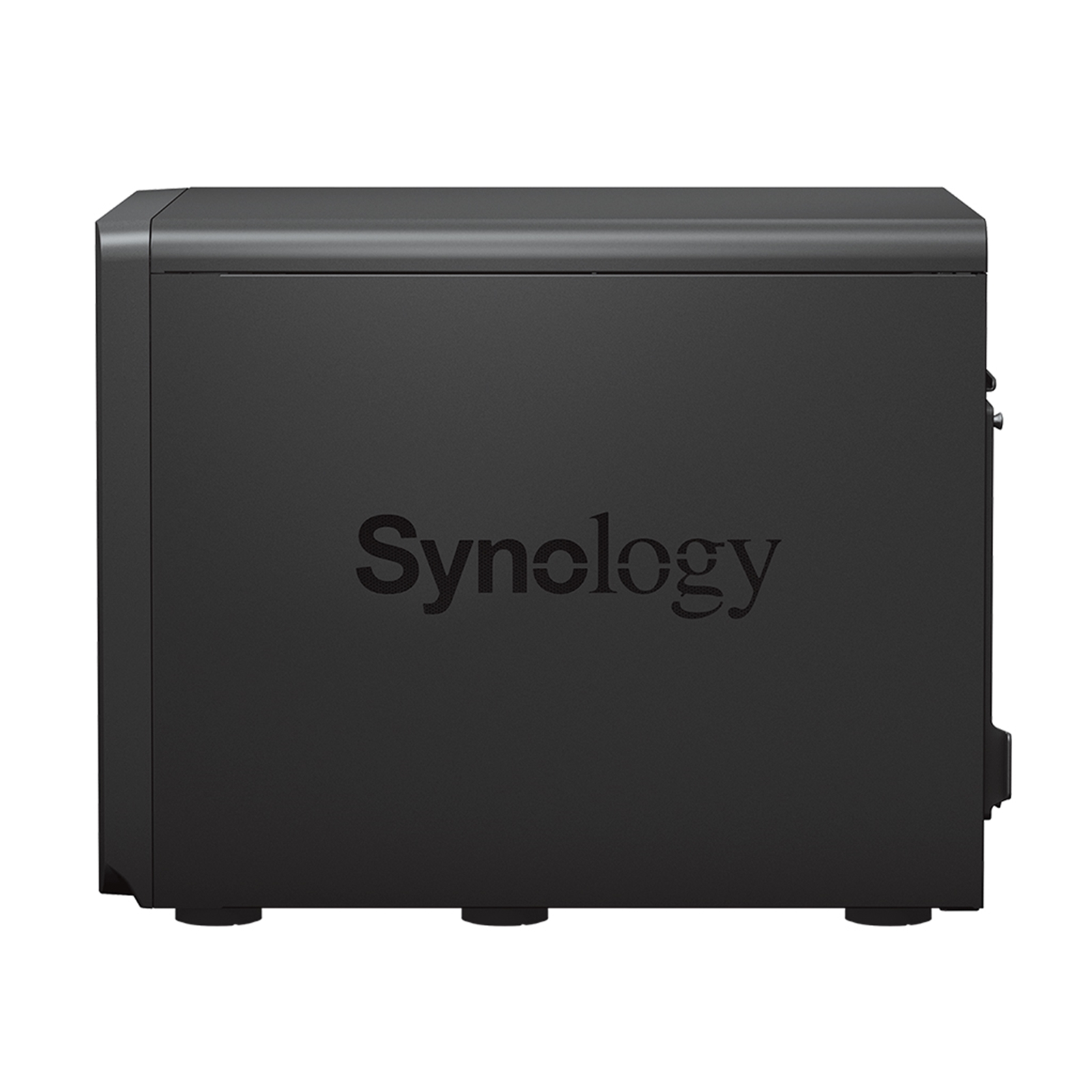

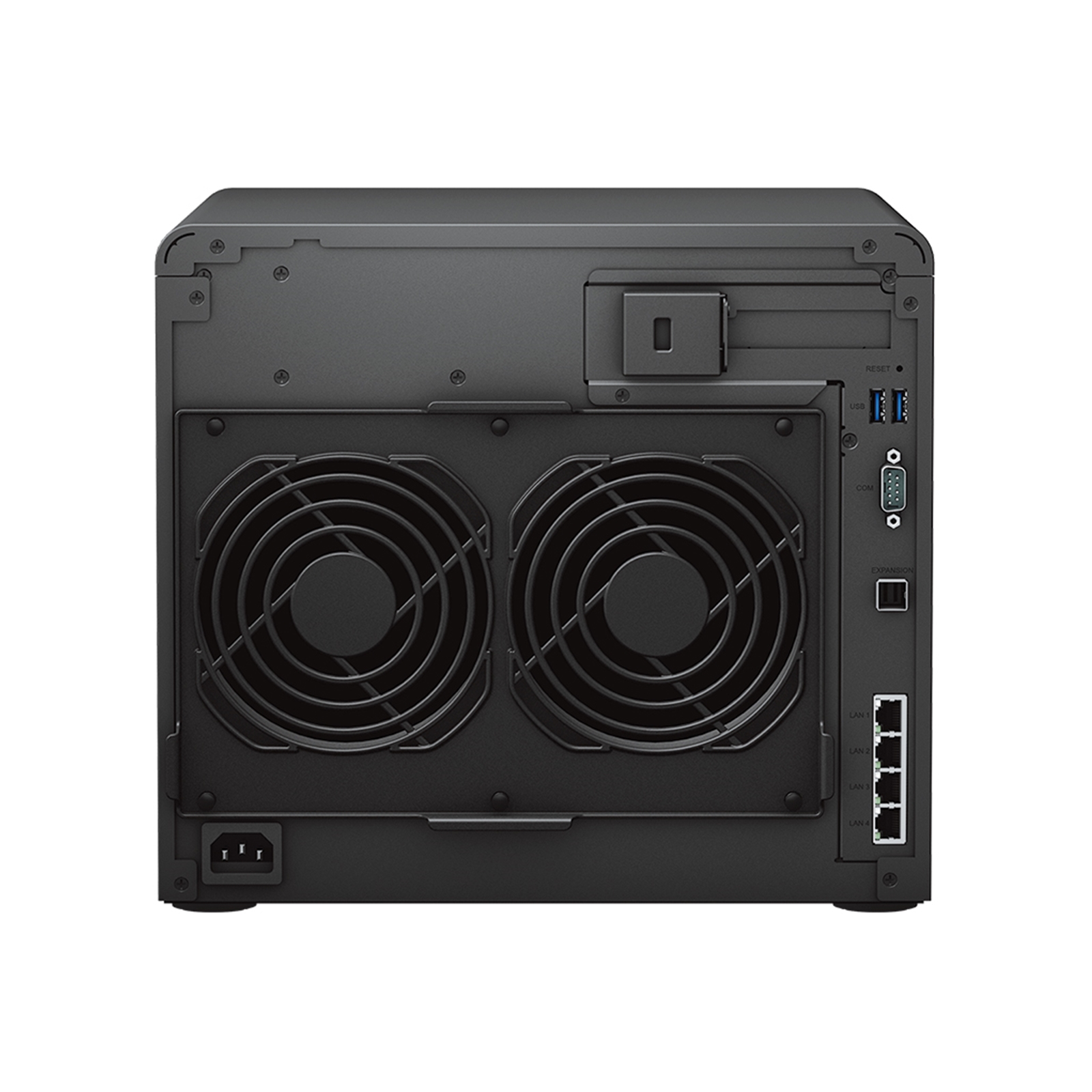

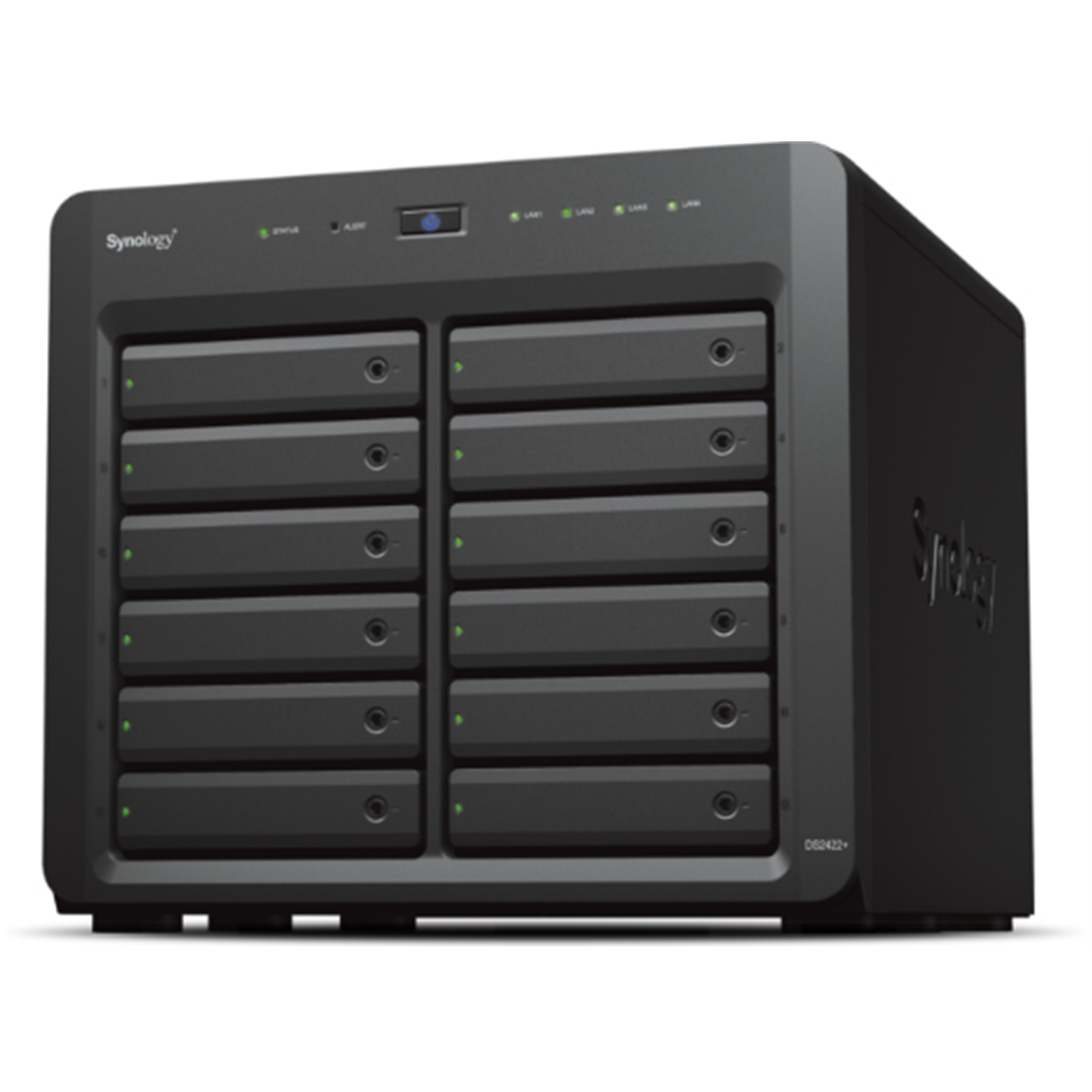

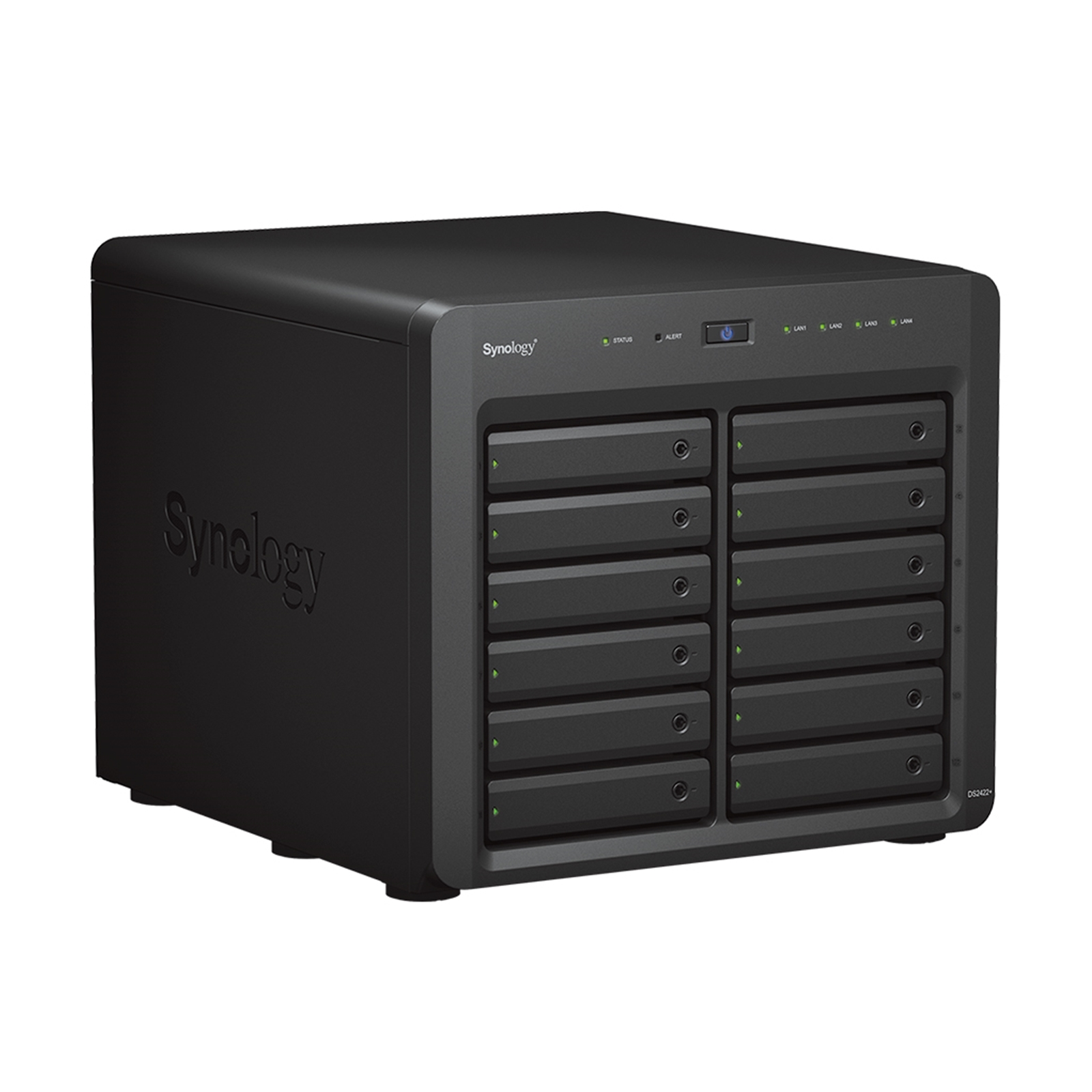

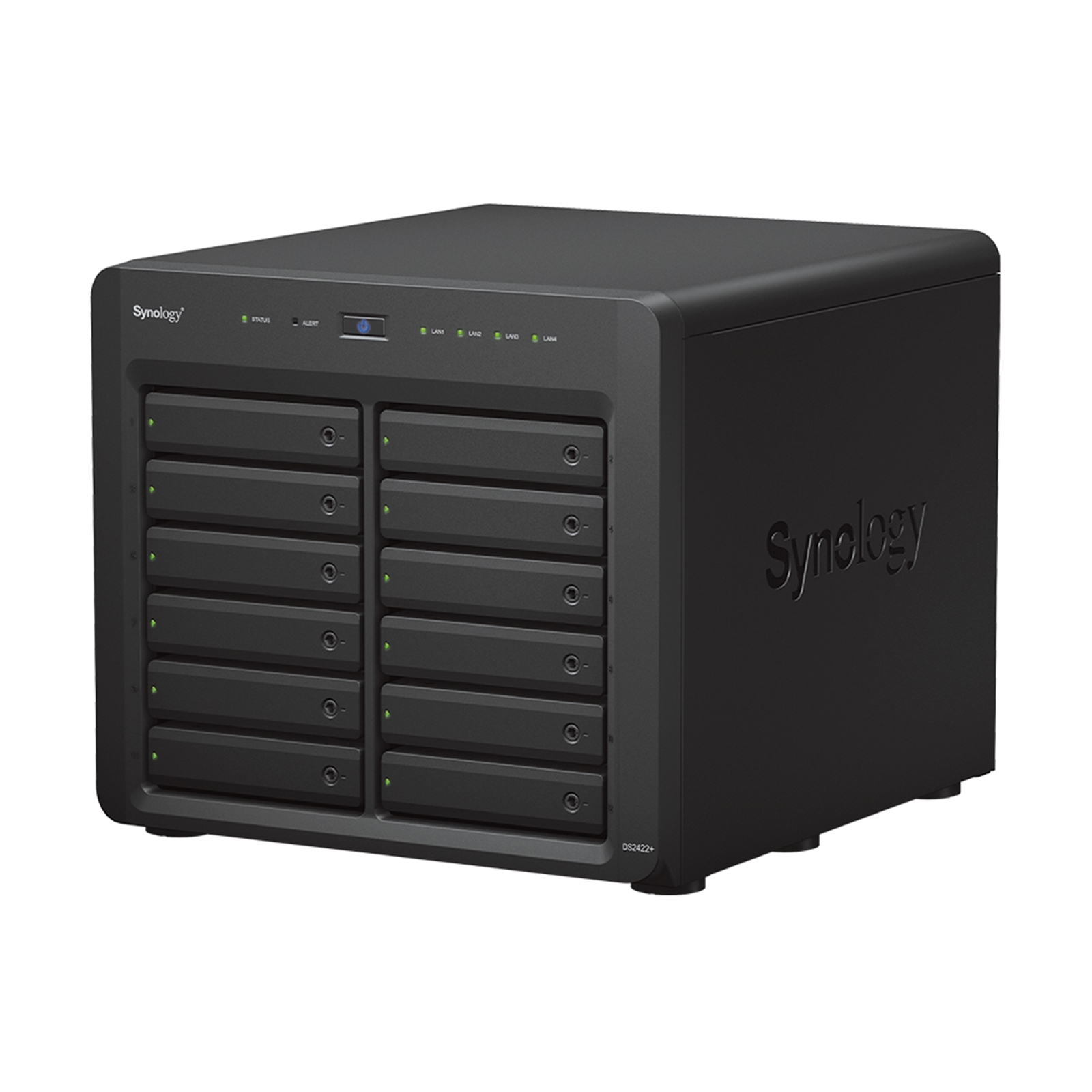

SYNOLOGY DS2422+ 12-Bay Desktop NAS Enclosure (Diskless)

SYNOLOGY Logo here

Manufacturer Part Code: DS2422+

Order Code: NSSYN-DS2422P

Category: Synology NAS Storage

Synology Disk Station DS2422+ - NAS server - 12 bays - SATA 3Gb/s - RAID 0 1 5 6 10 JBOD - RAM 4 GB - Gigabit Ethernet - iSCSI support

Built for high-performance mass storage
The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage.

Faster performance
Comfortably run demanding applications and processes with multiple users on the DS2422+ while still enjoying a smooth and fast experience. See the improvements that help make your business productive.

Rise to the challenge
Prepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.

Ready for remote work
Empower your workforce to collaborate, share files, and communicate from anywhere.

Certified virtual machine storage
DSM streamlines provisioning for and management of virtual machines with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack virtualization environments.

Synology Storage Console for VMware® or Windows platforms lets you manage storage directly from your hypervisor. VMware® VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Certification
FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
Chassis type
Tower
Product colour
Black
Chassis type
BTRFS, Fat, HFS+, NTFS, ext3, ext4
Country of origin
Taiwan
Number of fans
2 fan(s)
Cooling type
Active
Fan diameter
12 cm
Drive bay locking
Yes
Fan diameter 2
12 cm
Power consumption (typical)
73.11 W
Number of power supply units
1
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power supply location
Built-in
Power supply unit (PSU) capacity
550 W
Power consumption (HDD standby)
32.12 W
Harmonized System (HS) code
84714100
Internal memory type
DDR4
Memory slots
2
ECC
Yes
Memory form factor
SO-DIMM
Maximum RAM supported
32 GB
Internal memory
4 GB
Supported network protocols
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Ethernet LAN
Yes
Wake-on-LAN ready
Yes
Link aggregation
Yes
Ethernet LAN data rates
1000 Mbit/s
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 95%
Cables included
AC, LAN (RJ-45)
Type
NAS
Browser supported
Chrome, Firefox, Edge, Internet Explorer, Safari
Noise level
25 dB
Web-based management
Yes
Access Control List (ACL)
Yes
Multilingual support
Yes
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud, iSCSI LUN
Ethernet LAN (RJ-45) ports
4
PCI Express x8 (Gen 3.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB port
Yes
Processor model
V1500B
Processor manufacturer
AMD
Processor family
AMD Ryzen
Processor cores
4
Number of processors supported
1
Processor frequency
2.2 GHz
Operating system installed
DiskStation Manager
RAID levels
0, 5, 6, 10, JBOD
Supported file systems
BTRFS, Fat, HFS+, NTFS, ext3, ext4
RAID support
Yes
Number of storage drives supported
12
Storage drive sizes supported
2.5,3.5"
Storage drives installed
No
Maximum supported storage capacity
108 TB
Installed storage drive type
No
Supported storage drive types
HDD & SSD
Hot-swap drive bays
Yes
Supported storage drive interfaces
Serial ATA, Serial ATA II, Serial ATA III
Chassis type
BTRFS, Fat, HFS+, NTFS, ext3, ext4
Harmonized System (HS) code
84714100
Sustainability certificates
RoHS
Compliance certificates
RoHS
Weight
9.5 kg
Package weight
12.6 kg
Height
270 mm
Width
300 mm
Depth
340 mm
