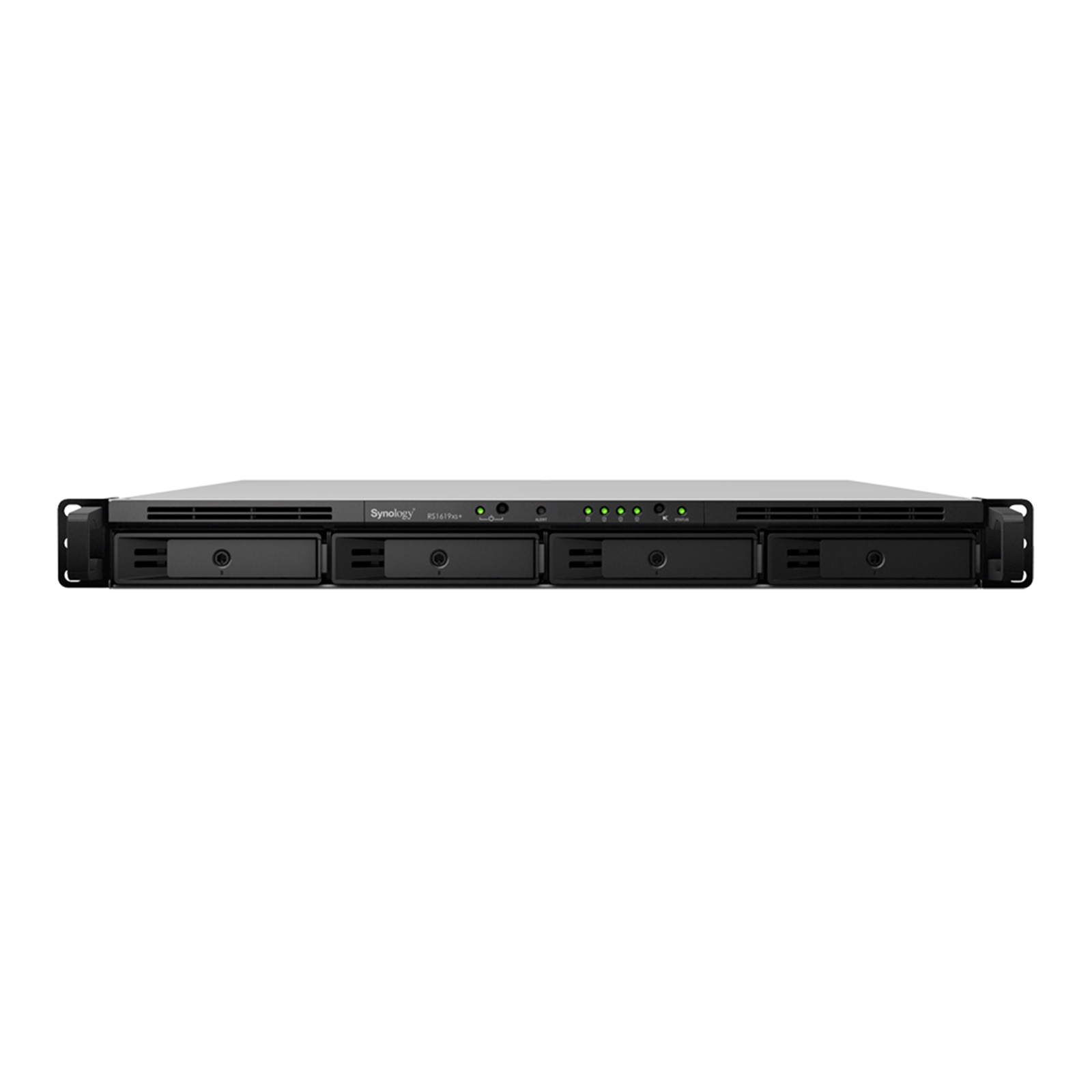

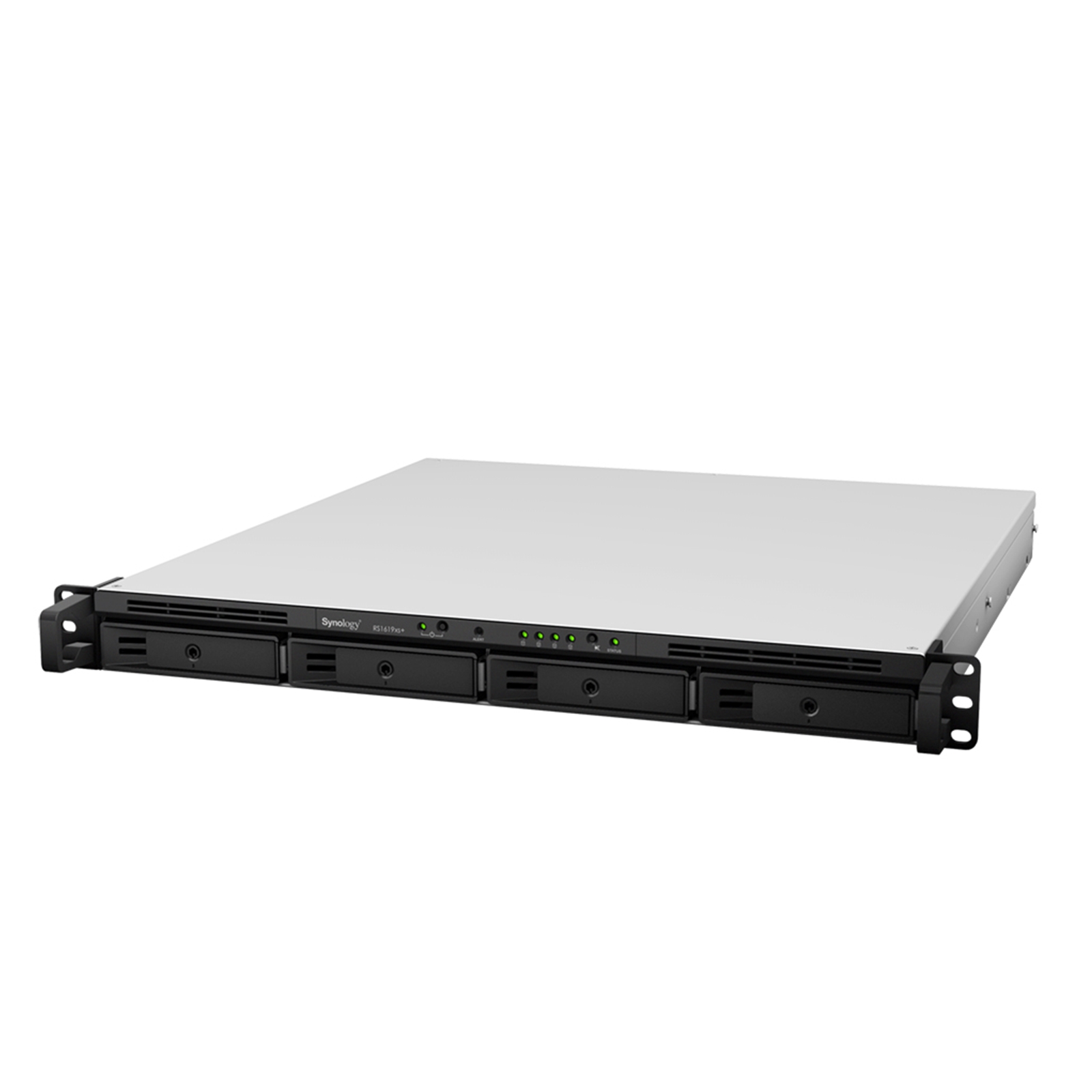

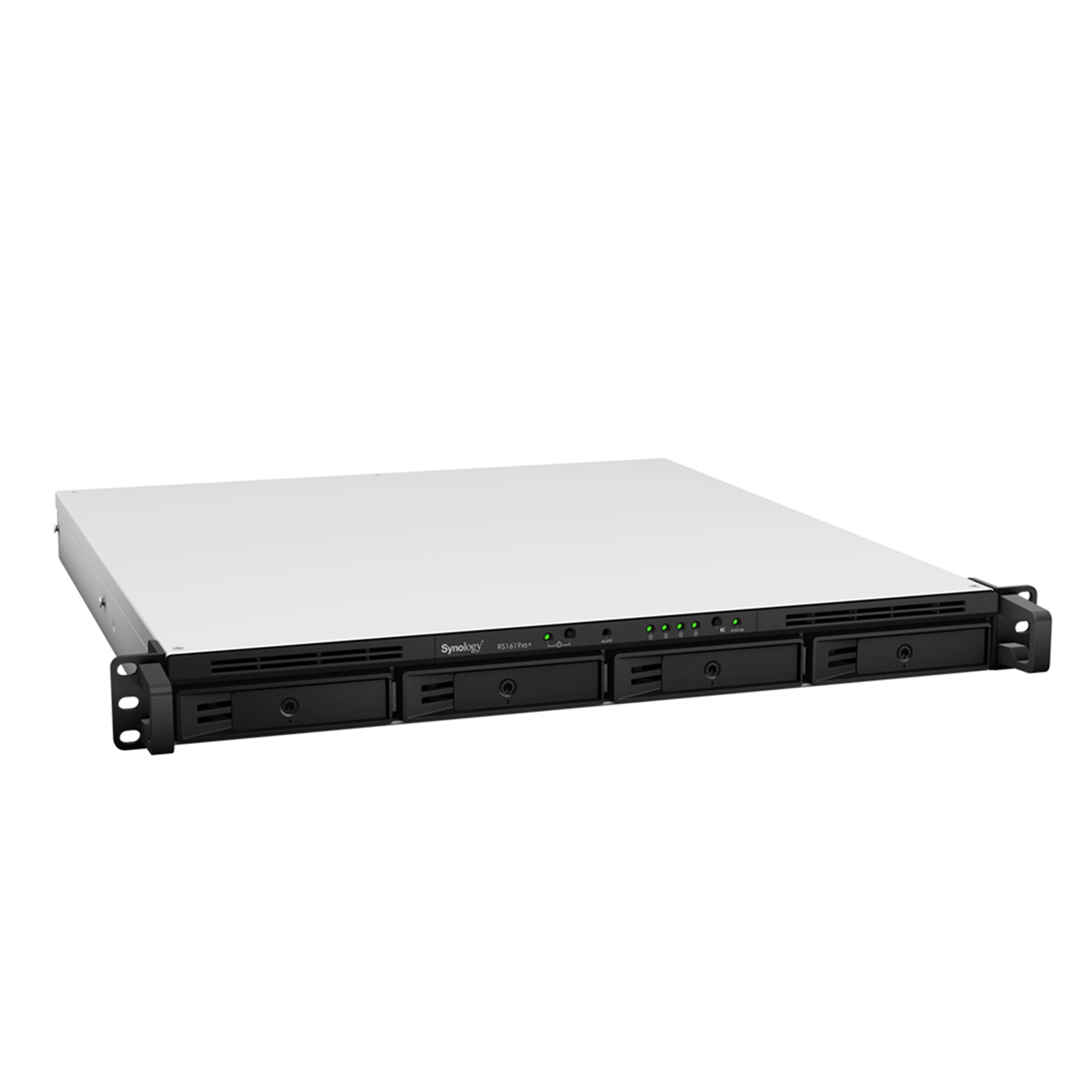

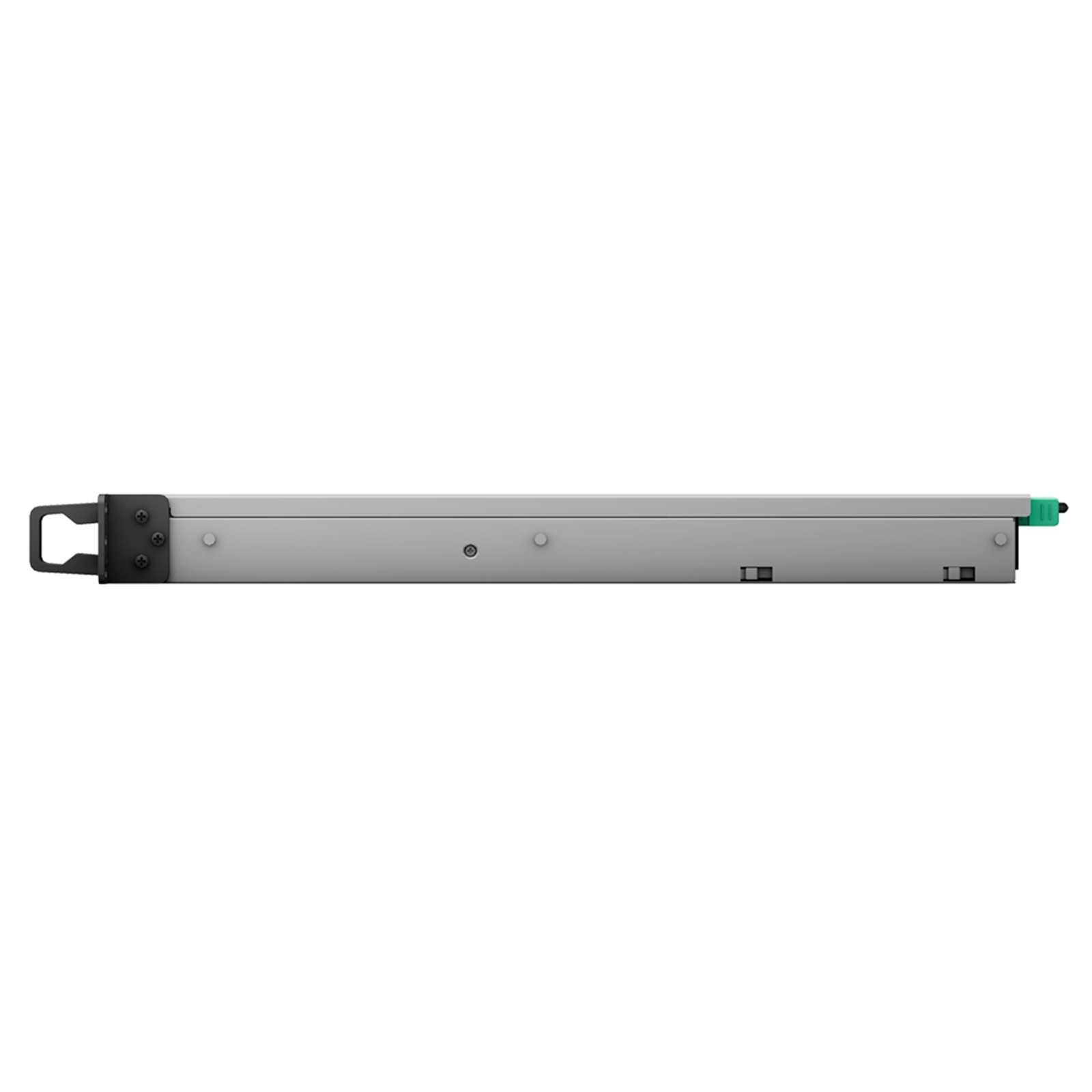

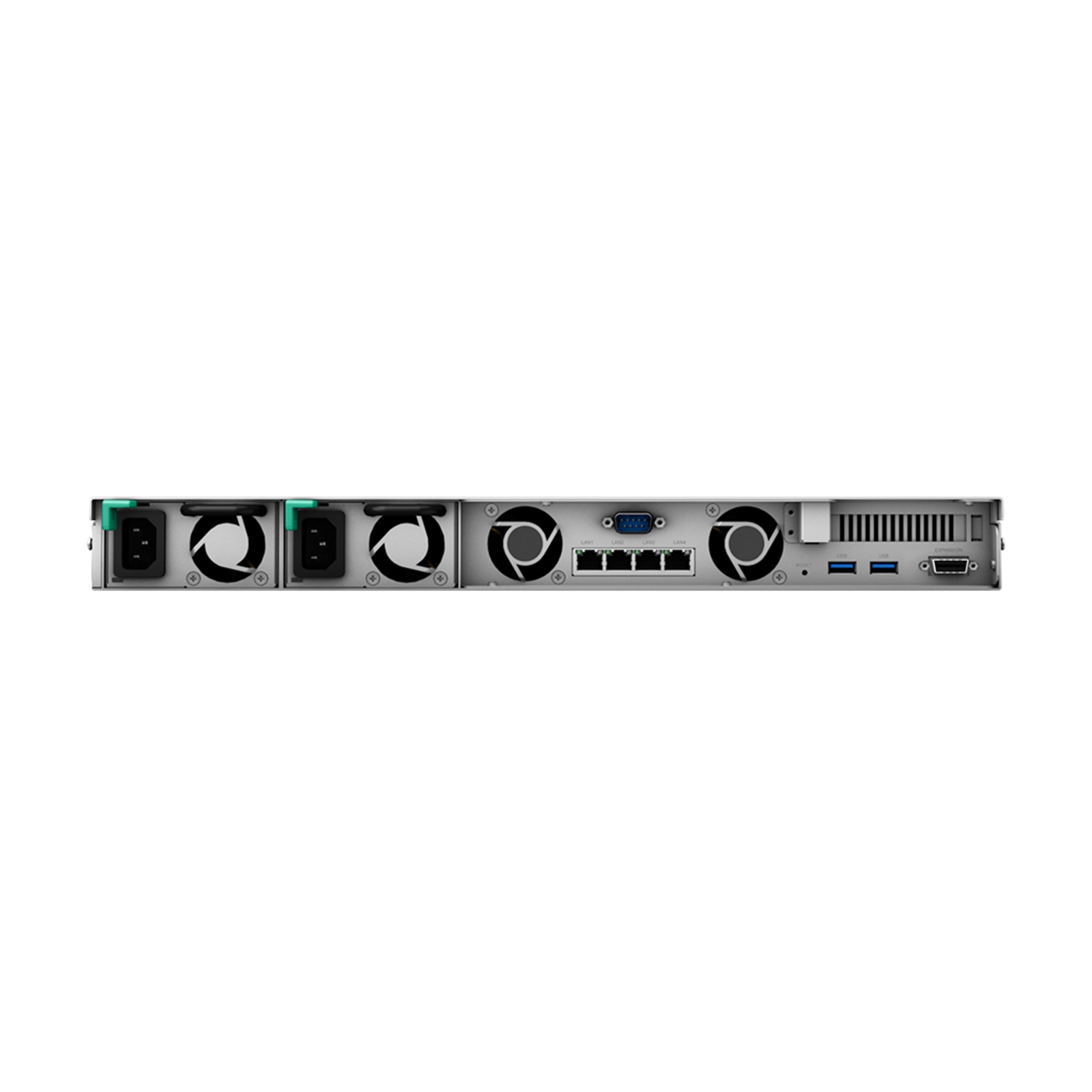

SYNOLOGY RackStation RS1619xs+ 4 Bay Performance NAS Enclosure
Manufacturer Part Code: RS1619XS+
Order Code: NSSYN-RS1619XSP
Category: Synology NAS Storage
RackStation RS1619xs+ - NAS server - 4 bays - rack-mountable - SATA 6Gb/s - RAID 0 1 5 6 10 JBOD RAID F1 - RAM 8 GB - Gigabit Ethernet - iSCSI - 1U
Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology's 5-year limited warranty.
Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration.
RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit. Storage capacity can be expanded according to your business needs with minimal effort.
- Powerful 1U NAS for growing businesses, featuring a quad-core CPU with AES-NI and 8 GB (up to 64 GB) DDR4 ECC UDIMM
- Built-in M.2 NVMe/SATA SSD slots for system cache support
- Excellent performance of over 1,523 MB/s sequential reading and 162,097 iSCSI random read IOPS1
- Optional 10GbE NIC support
- Scalable up to 16 drives with Synology RX1217/RX1217RP
- Complete virtualization solution with Synology Virtual Machine Manager
- Backed by Synology's 5-year limited warranty & Synology Replacement Service (SRS)3
Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.
Technical Information
Certification
EAC
VCCI
RCM
FCC
CE
BSMI
Certification
EAC\nVCCI\nRCM\nFCC\nCE\nBSMI
RoHS compliance
Y
Colour of product
Black
Number of fans
2 fan(s)
Cooling type
Active
Fan diameter
4 cm
Chassis type
Rack (1U)
LED indicators
Alarm, HDD, Power, Status
Product colour
Black
Chassis type
BTRFS, Fat, HFS+, NTFS, ext3, ext4
Country of origin
Taiwan
Number of fans
2 fan(s)
LED indicators
Alarm, HDD, Power, Status
Colour of product
Black
Cooling type
Active
Fan diameter
4 cm
Number of fans
2 fan(s)
Cooling type
Active
Fan diameter
4 cm
Power consumption (typical)
68.68 W
Number of power supply units
2
Power consumption (typical)
68.68 W
Number of power supplies
2
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power supply location
Built-in
Power supply unit (PSU) capacity
150 W
Power consumption (HDD standby)
34.78 W
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power supply location
Built-in
Power supply unit (PSU) capacity
150 W
Power consumption (HDD standby)
34.78 W
RAID levels
0,1,5,6,10,JBOD
Supported file systems
BTRFS,FAT,HFS+,NTFS,ext3,ext4
RAID support
Y
LED indicators
Alarm, HDD, Power, Status
Harmonized System (HS) code
84714100
Web-based management
Y
Reset button
Y
On/off switch
Y
Internal memory type
DDR4
Memory slots
4
Internal memory type
DDR4
Memory slots
4
Maximum RAM supported
64 GB
Internal memory
8 GB
Maximum RAM supported
64 GB
Internal memory
8 GB
Supported network protocols
CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
Ethernet LAN
Yes
Wake-on-LAN ready
Yes
Supported network protocols
CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
Wi-Fi
No
Link aggregation
Yes
DHCP client
5 - 35 °C
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN connection
Y
iSCSI support
Yes
Wake-on-LAN ready
Y
Wireless LAN connection
N
Link aggregation
Y
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
iSCSI support
Y
Operating system provided
DiskStation Manager
Operating altitude
0 - 5000 m
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
5 - 35 °C
Operating altitude
0 - 5000 m
Operating relative humidity range
5 - 95%
Storage temperature range (T-T)
-20 - 60 °C
Operating temperature range (T-T)
5 - 35 °C
Certification
EAC
VCCI
RCM
FCC
CE
BSMI
Processor ARK ID
91195
Compliance certificates
RoHS
Processor ARK ID
91195
Cables included
AC
Quick installation guide
Yes
Cables included
AC
Quick installation guide
Y
Cables included
AC
Type
NAS
Security algorithms
HTTPS, SSH, SSL/TLS
Browser supported
Chrome, Firefox, Internet Explorer 10+, Safari 10+
Type
NAS
Noise level
39.3 dB
Security algorithms
HTTPS,SSH,SSL/TLS
Browser supported
Chrome, Firefox, Internet Explorer 10+, Safari 10+
Web-based management
Yes
Access Control List (ACL)
Yes
Reset button
Yes
Noise level
39.3 dB
Multilingual support
Yes
On/off switch
Yes
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud, iSCSI LUN
Operating system installed
DiskStation Manager
Web-based management
Y
Access Control List (ACL)
Y
Reset button
Y
Multilingual support
Y
On/off switch
Y
S.M.A.R.T. support
Y
Windows operating systems supported
Windows 10,Windows 7
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Server operating systems supported
Windows Server 2016
Device class
Small & Medium Business
Backup function
Y
Backup features
Cloud, iSCSI LUN
Ethernet LAN (RJ-45) ports
4
Cables included
AC
PCI Express x8 (Gen 3.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB port
Yes
Expansion ports quantity
1
PCI Express x8 (Gen 3.x) slots
1
USB 3.0 (3.1 Gen 1) Type-A ports quantity
2
USB port
Y
Expansion ports quantity
1
Processor model
D-1527
Processor manufacturer
Intel
Processor model
D-1527
Processor lithography
14 nm
Processor family
Intel® Xeon® D
Processor socket
BGA 1667
Stepping
V2
Processor manufacturer
Intel
Processor lithography
14 nm
Processor cores
4
Processor code
SR2DK
Processor threads
8
PCI Express slots version
2.0, 3.0
Processor operating modes
64-bit
Processor boost frequency
2.7 GHz
On-board graphics card model
Not available
Processor cache
6 MB
Scalability
1S
CPU configuration (max)
1
PCI Express configurations
1x16, 1x4, 1x8
Processor family
Intel® Xeon® D
Processor frequency
2.2 GHz
Thermal Design Power (TDP)
35 W
Processor socket
BGA 1667
Processor codename
Broadwell
Processor cache type
L3
Processor series
Intel Xeon D-1500
Maximum internal memory supported by processor
128 GB
ECC supported by processor
Yes
Processor package size
37.5 x 37.5 mm
Conflict-Free processor
Yes
Stepping
V2
Processor number of cores
4
Processor code
SR2DK
Processor threads
8
PCI Express slots version
2.0,3.0
Processor operating modes
64-bit
Processor boost frequency
2.7 GHz
Processor cache
6 MB
Scalability
1S
CPU configuration (max)
1
PCI Express configurations
1x16,1x4,1x8
Processor clock speed
2.2 GHz
Thermal Design Power (TDP)
35 W
Processor codename
Broadwell
Processor cache type
L3
Processor series
Intel Xeon D-1500
Maximum internal memory supported by processor
128 GB
ECC supported by processor
Y
Processor package size
37.5 x 37.5 mm
Conflict Free processor
Y
Processor ARK ID
91195
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Turbo Boost Technology
2.0
Intel® AES New Instructions (Intel® AES-NI)
Yes
Enhanced Intel SpeedStep Technology
Yes
Execute Disable Bit
Yes
Idle States
Yes
Thermal Monitoring Technologies
Yes
Intel Trusted Execution Technology
Yes
Intel Enhanced Halt State
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Embedded options available
Yes
Intel TSX-NI
Yes
Intel® Secure Key
Yes
Intel 64
Yes
Intel® OS Guard
Yes
UART
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Maximum number of PCI Express lanes
32
Intel Secure Key Technology version
1.00
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
1.00
Memory types supported by processor
DDR3-SDRAM, DDR4-SDRAM
Memory channels supported by processor
Dual
Intel® Hyper Threading Technology (Intel® HT Technology)
Y
Intel® Turbo Boost Technology
2.0
Intel® AES New Instructions (Intel® AES-NI)
Y
Enhanced Intel SpeedStep Technology
Y
Execute Disable Bit
Y
Idle States
Y
Thermal Monitoring Technologies
Y
Intel Trusted Execution Technology
Y
Intel Enhanced Halt State
Y
Intel VT-x with Extended Page Tables (EPT)
Y
Embedded options available
Y
Intel TSX-NI
Y
Intel® Secure Key
Y
Intel 64
Y
Intel® OS Guard
Y
UART
Y
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Maximum number of PCI Express lanes
32
Intel Secure Key Technology version
1.00
Intel Virtualization Technology (VT-x)
Y
Intel TSX-NI version
1.00
Memory types supported by processor
DDR3-SDRAM,DDR4-SDRAM
Memory channels supported by processor
Dual
Security algorithms supported
HTTPS,SSH,SSL/TLS
Access Control List (ACL)
Y
Operating system installed
DiskStation Manager
Windows operating systems supported
Windows 10, Windows 7
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Server operating systems supported
Windows Server 2016
Operating system installed
DiskStation Manager
Windows operating systems supported
Windows 10,Windows 7
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Server operating systems supported
Windows Server 2016
Noise level
39.3 dB
RAID levels
0, 1, 5, 6, 10, JBOD
Supported file systems
BTRFS, Fat, HFS+, NTFS, ext3, ext4
RAID levels
0,1,5,6,10,JBOD
RAID support
Yes
Storage drive interface
Serial ATA, Serial ATA II, Serial ATA III
Number of storage drives supported
4
Storage drive sizes supported
2.5,3.5"
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD & SSD
Hot-swap drive bays
Yes
Supported file systems
BTRFS,FAT,HFS+,NTFS,ext3,ext4
Number of M.2 (M & B) slots
2
RAID support
Y
Storage drive interface
Serial ATA, Serial ATA II, Serial ATA III
Number of storage drives supported
4
Storage drive sizes supported
2.5,3.5"
Storage drives installed
N
Installed storage drive type
N
Supported storage drive types
HDD & SSD
Hot-swap drive bays
Y
Number of M.2 (M & B) slots
2
Sustainability certificates
RoHS
Windows operating systems supported
Windows 10,Windows 7
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Server operating systems supported
Windows Server 2016
Type
NAS
Memory slots
4
Chassis type
BTRFS, Fat, HFS+, NTFS, ext3, ext4
LED indicators
Alarm, HDD, Power, Status
Colour of product
Black
Noise level
39.3 dB
Harmonized System (HS) code
84714100
Sustainability certificates
RoHS
Compliance certificates
RoHS
Number of fans
2 fan(s)
Multilingual support
Y
Processor number of cores
4
Device class
Small & Medium Business
Backup function
Y
Backup features
Cloud, iSCSI LUN
Weight
8.16 kg
Package weight
11.7 kg
Height
44 mm
Weight
8.16 kg
Width
480 mm
Depth
518.6 mm
Height
44 mm
Width
480 mm
Depth
518.6 mm
Customers Also Viewed:
Servers Plus is a subsidiary of Target Components Ltd. registered in England No. 3113281.
Stay up to date with the latest news + promotions:
