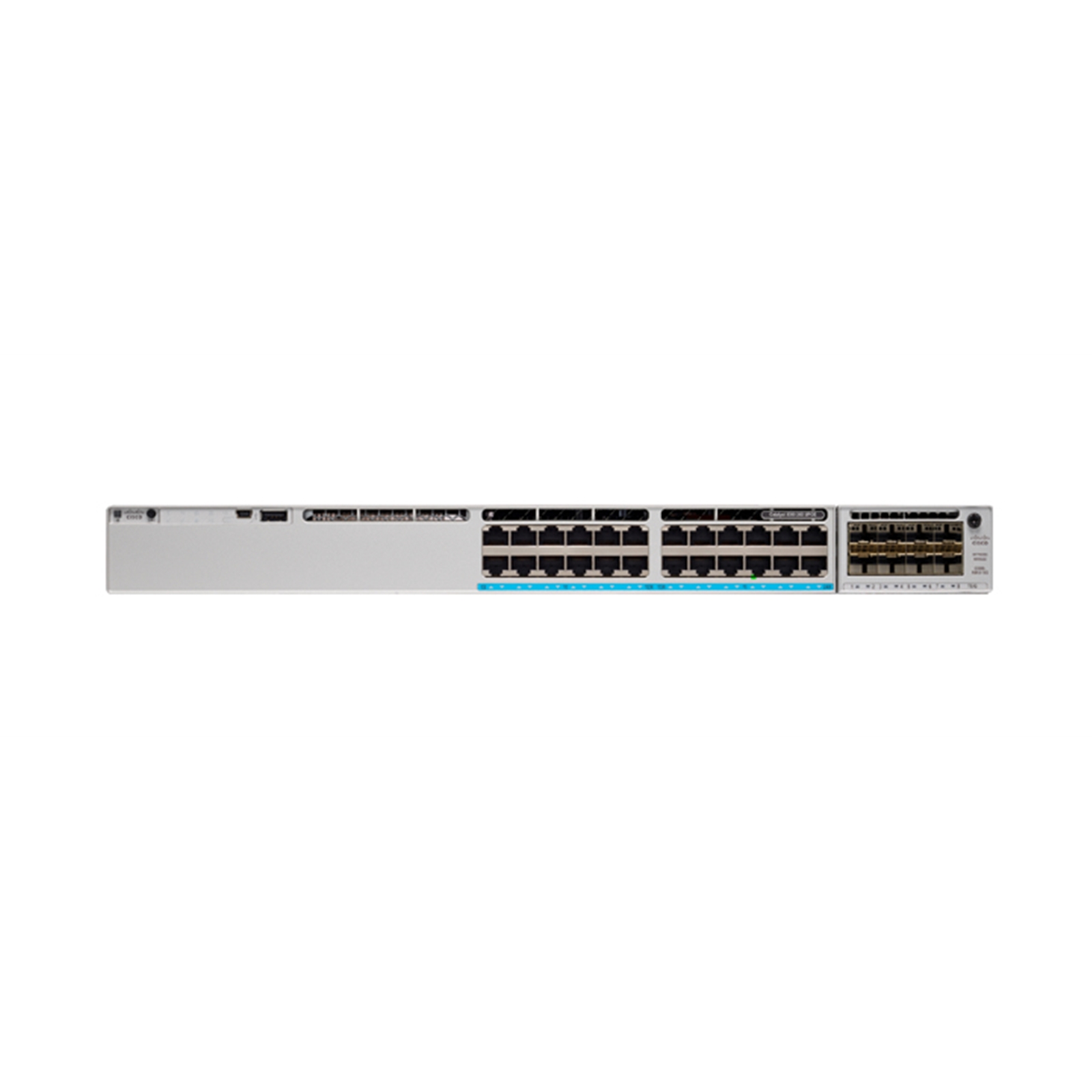

CISCO Catalyst Network Essentials C9300L-24P-4G-E

CISCO Logo here

Manufacturer Part Code: C9300L-24P-4G-E

Order Code: NPCIS-C9300L24PE

Category: Managed Network Switches

Cisco Catalyst 9300L - Network Essentials - switch - L3 - Managed - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - rack-mountable - PoE+ (505 W)

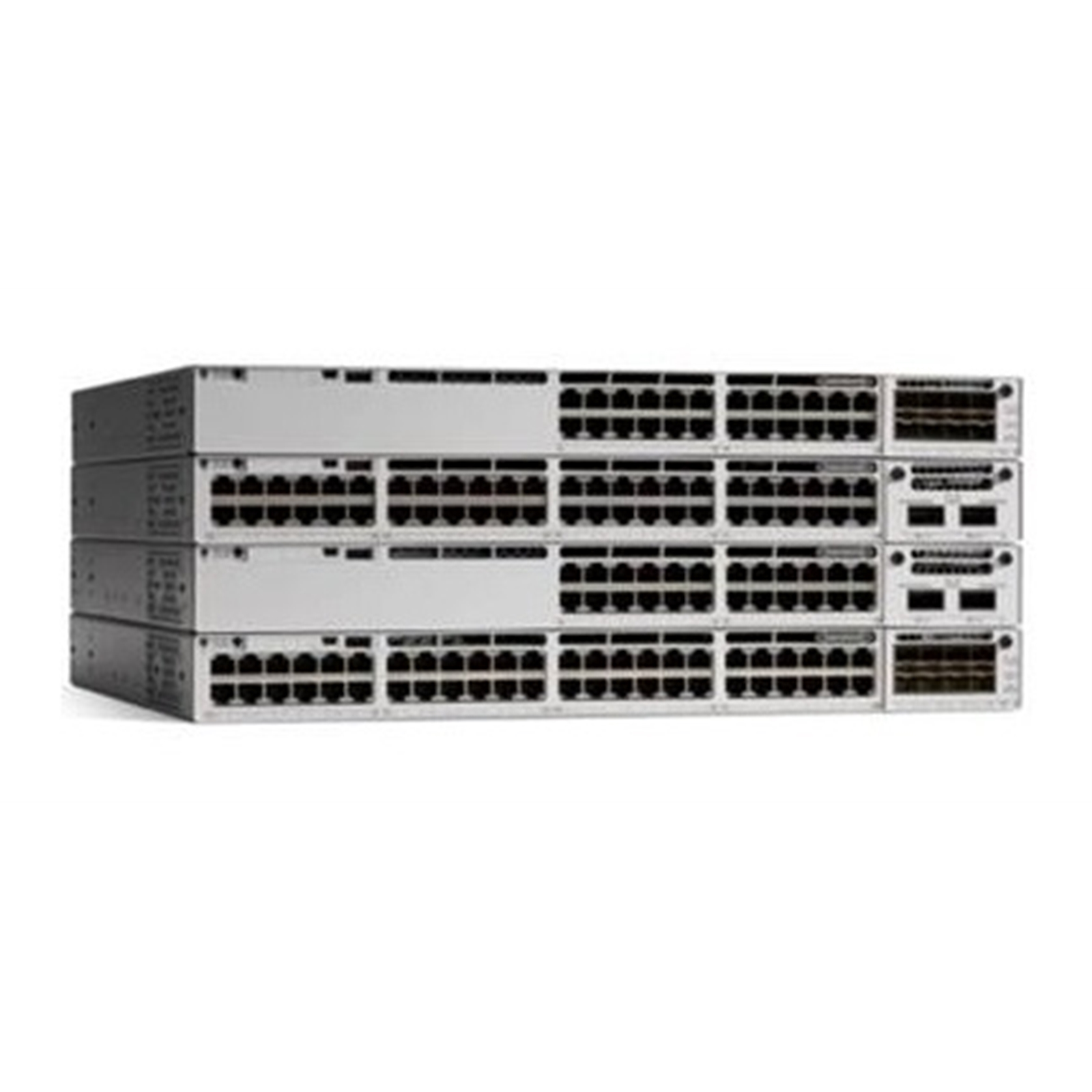

The Cisco® Catalyst® 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
32000 entries
Jumbo frames support
Yes
Jumbo frames
9198
Rack mounting
Yes
LED indicators
Yes
Product colour
Grey
MIB support
Y
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Switch type
Managed
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
Multicast support
Yes
Full duplex
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
Ethernet LAN data rates
10,100,1000 Mbit/s
Number of VLANs
4094
Spanning tree protocol
Yes
VLAN support
Yes
IPv6 routes
16000
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-5 - 40 °C
Internal memory
8000 MB
Flash memory
16000 MB
USB 2.0 ports quantity
1
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Security algorithms
IPSEC, SNMPv2, SNMPv3
Access Control List (ACL)
Yes
Access Control List (ACL) rules
5120
DHCP features
DHCP snooping
