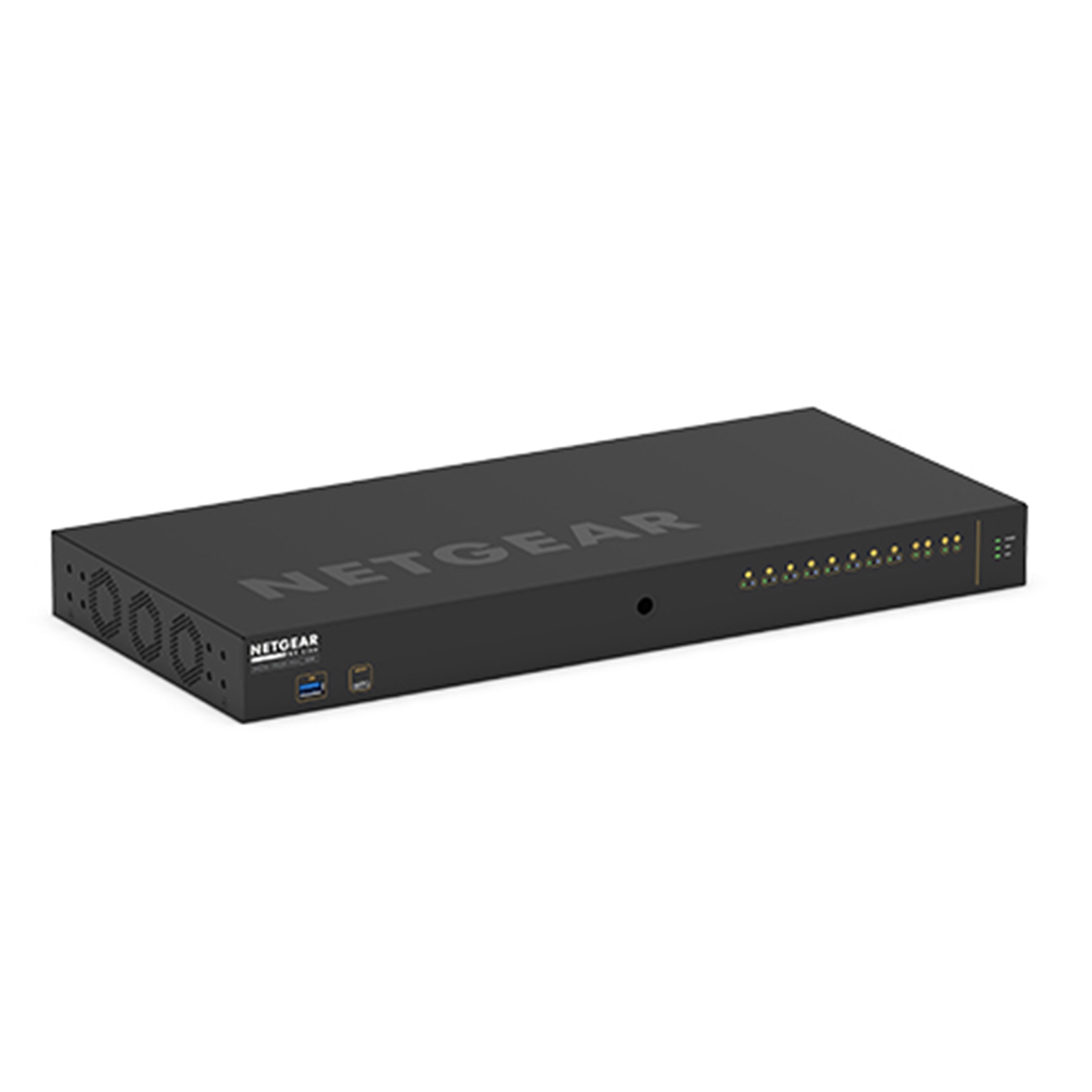

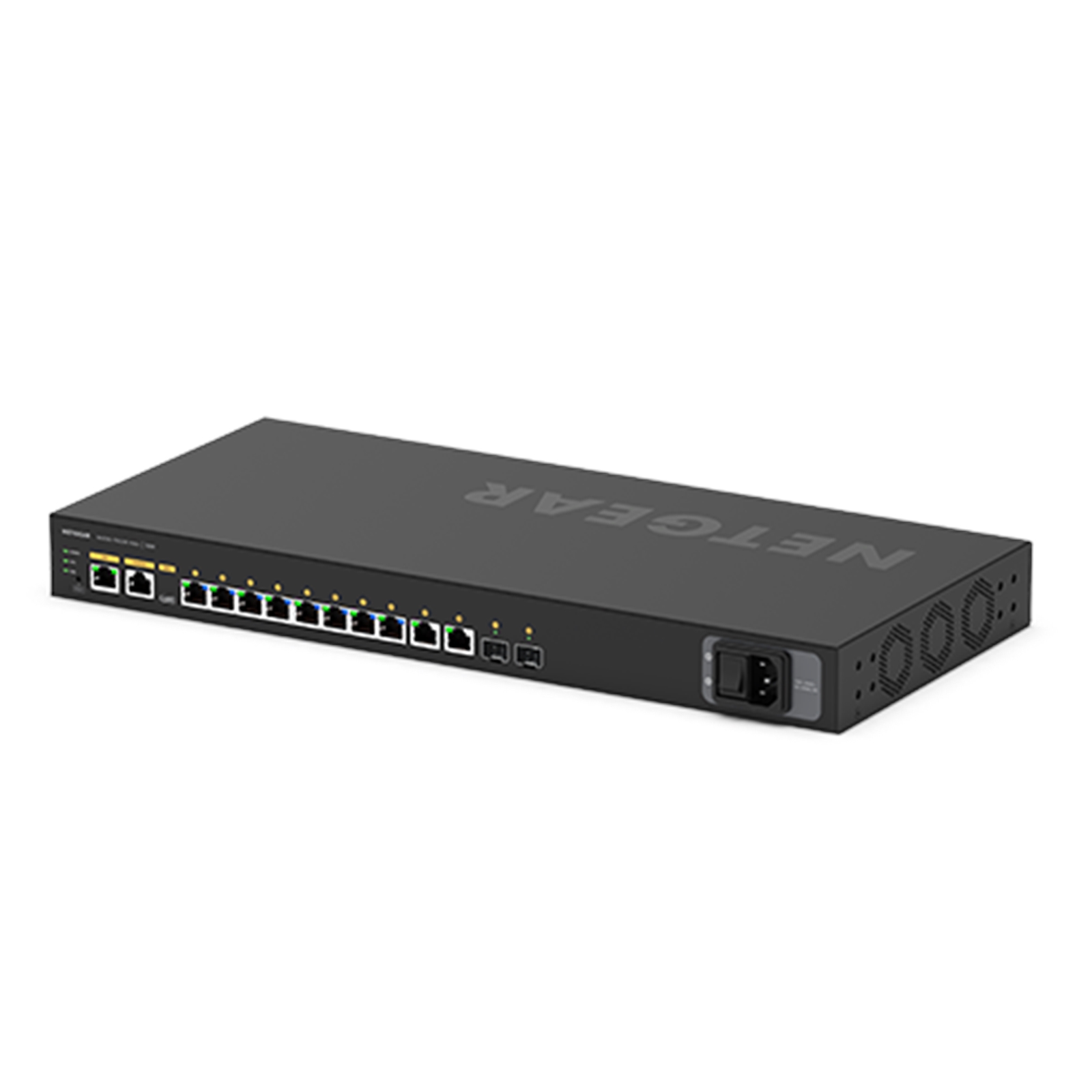

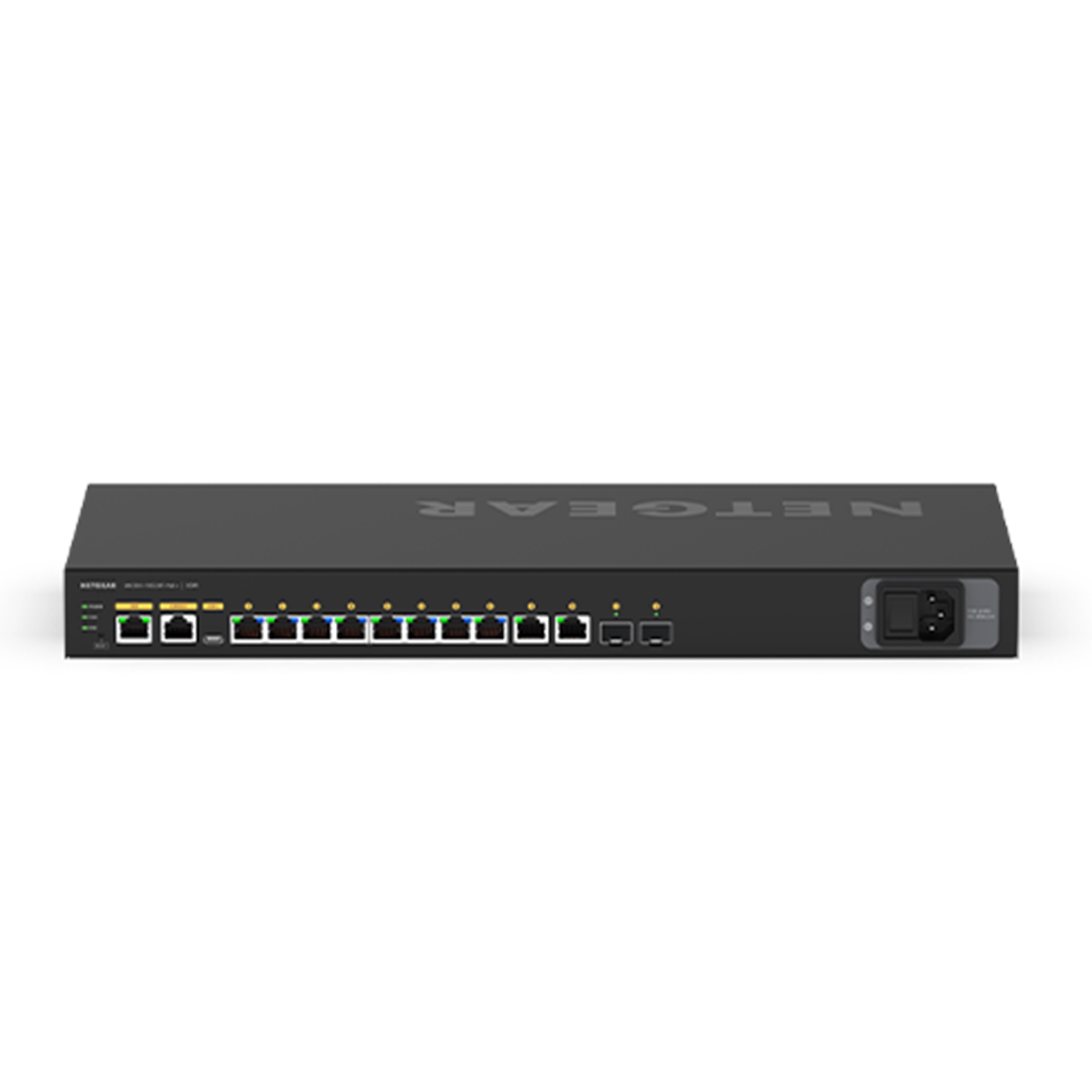

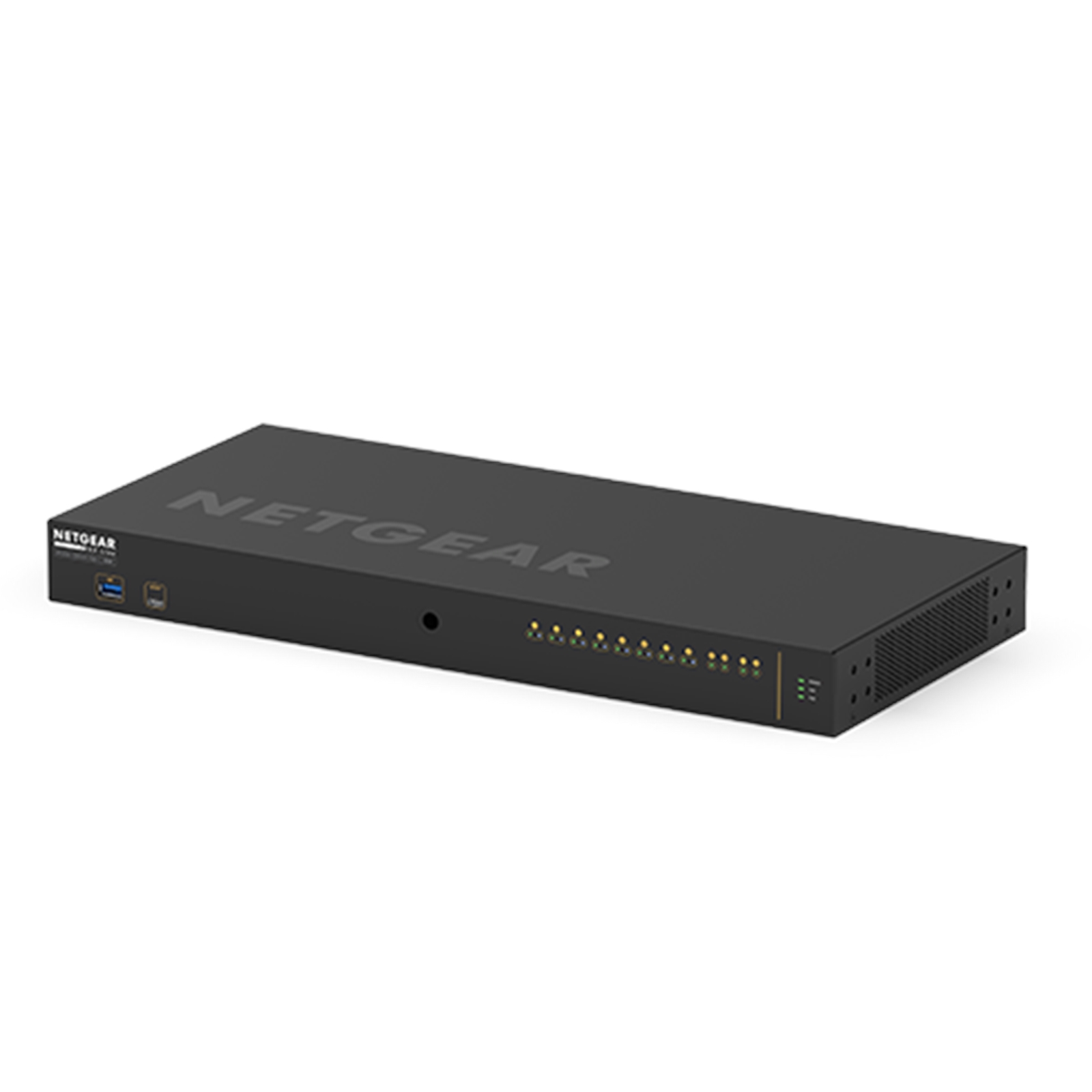

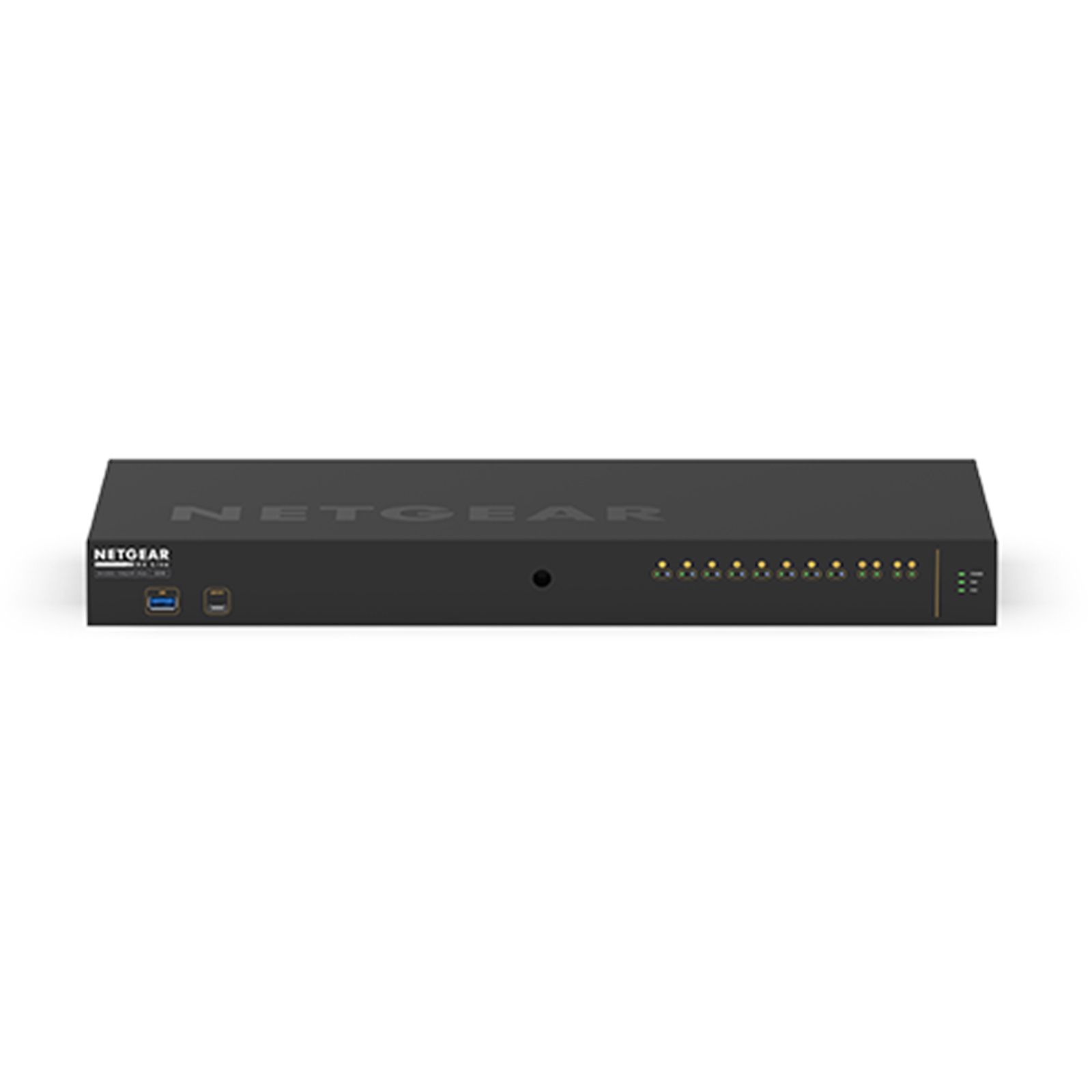

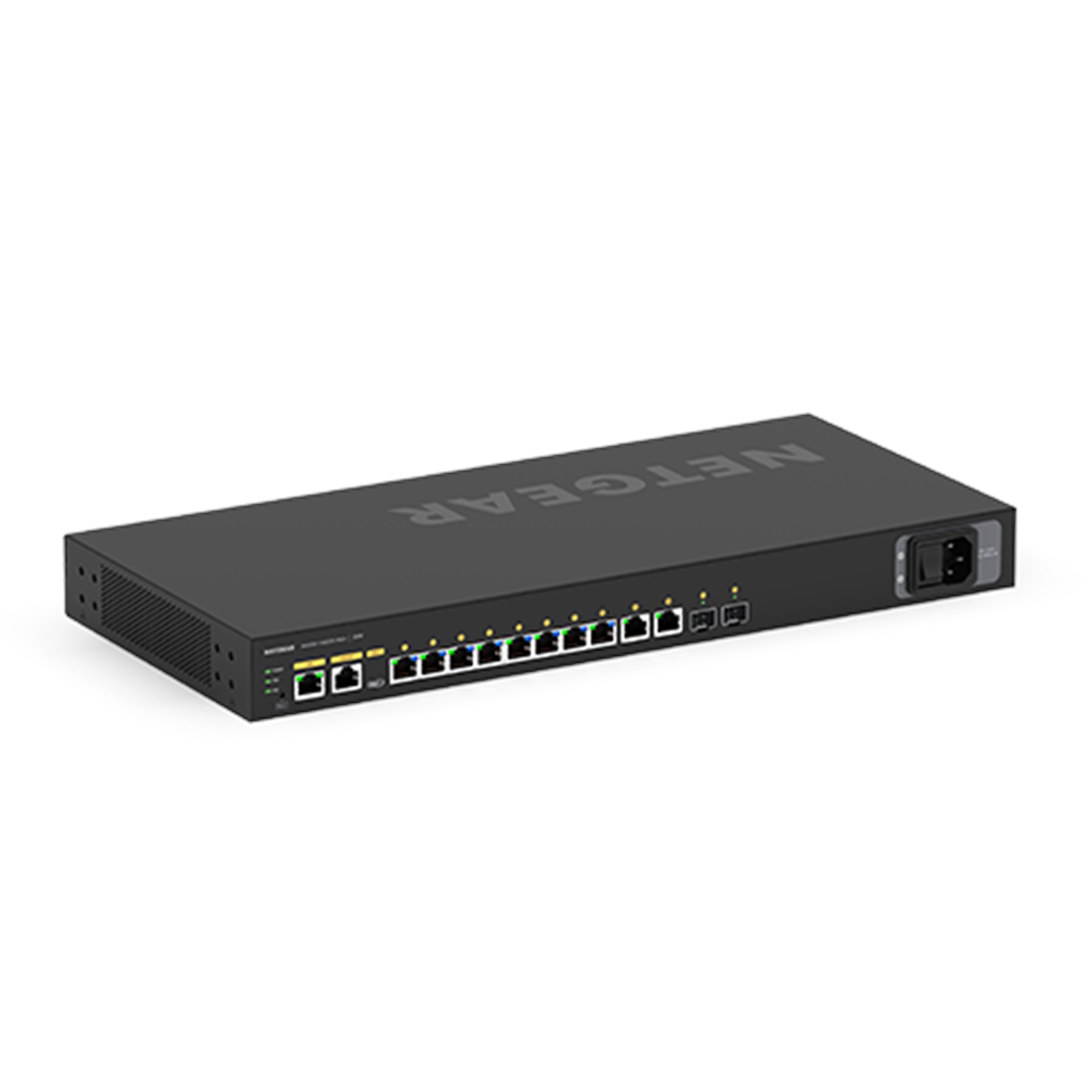

Illustration purposes only

NETGEAR 10-Port L3 Managed Gigabit PoE+ Switch - M4250-10G2XF-PoE+

NETGEAR Logo here

Manufacturer Part Code: GSM4212PX-100EUS

Order Code: NPNET-GSM4212PX

Category: Managed Network Switches

NETGEAR AV Line M4250-10G2XF-PoE+ - Switch - L3 - Managed - 10 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+ - side to side airflow - rack-mountable - PoE+ (240 W)

Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.

M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
16000 entries
Switching capacity
60 Gbit/s
Jumbo frames support
Yes
Number of queues
8
Store-and-forward
Yes
Packet buffer memory
16 MB
Latency (1 Gbps)
2.14 µs
Throughput
44.64 Mpps
Jumbo frames
12000
Rack mounting
Yes
Form factor
1U
LED indicators
PoE, Power, Status
Product colour
Black
Power consumption (typical)
306.4 W
Harmonized System (HS) code
85176990
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Switch type
Managed
Multicast support
Yes
IPv4 multicast entries
2000
IPv6 multicast entries
2000
Full duplex
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Number of VLANs
4093
Spanning tree protocol
Yes
VLAN support
Yes
10G support
No
Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 3000 m
Heat dissipation
1046.05 BTU/h
Processor frequency
1250 MHz
Internal memory
2048 MB
Processor model
ARM Cortex-A9
Mean time between failures (MTBF)
947871 h
Noise level
39.22 dB
Built-in processor
Yes
Harmonized System (HS) code
85176990
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
10
SFP+ module slots quantity
2
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
240 W
Power over Ethernet (PoE) power per port
30 W
Access Control List (ACL)
Yes
SSH/SSL support
Yes
IGMP snooping
Yes
Authentication type
RADIUS
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication
DHCP features
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Weight
2.96 kg
Height
43.2 mm
Width
440 mm
Depth
200 mm
