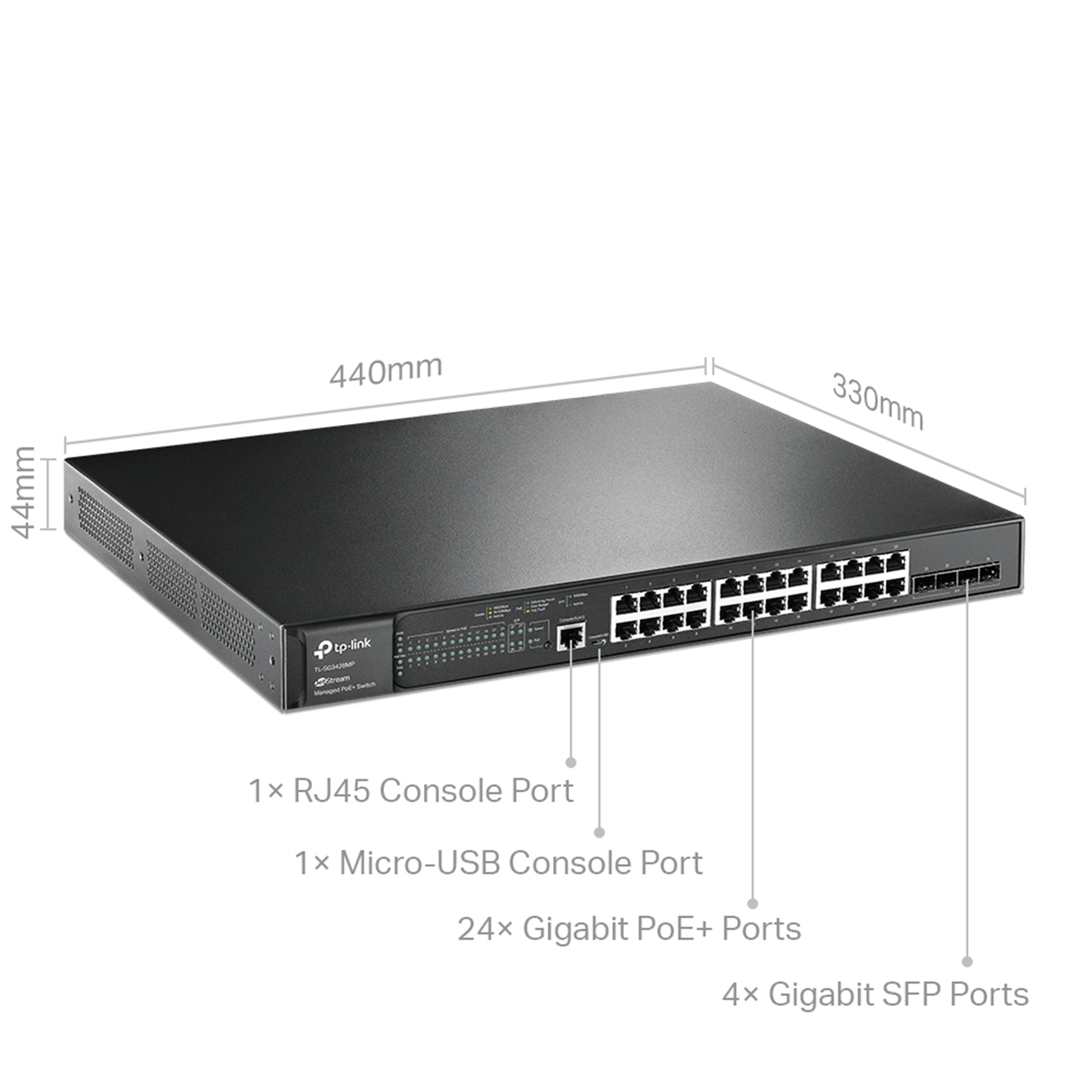

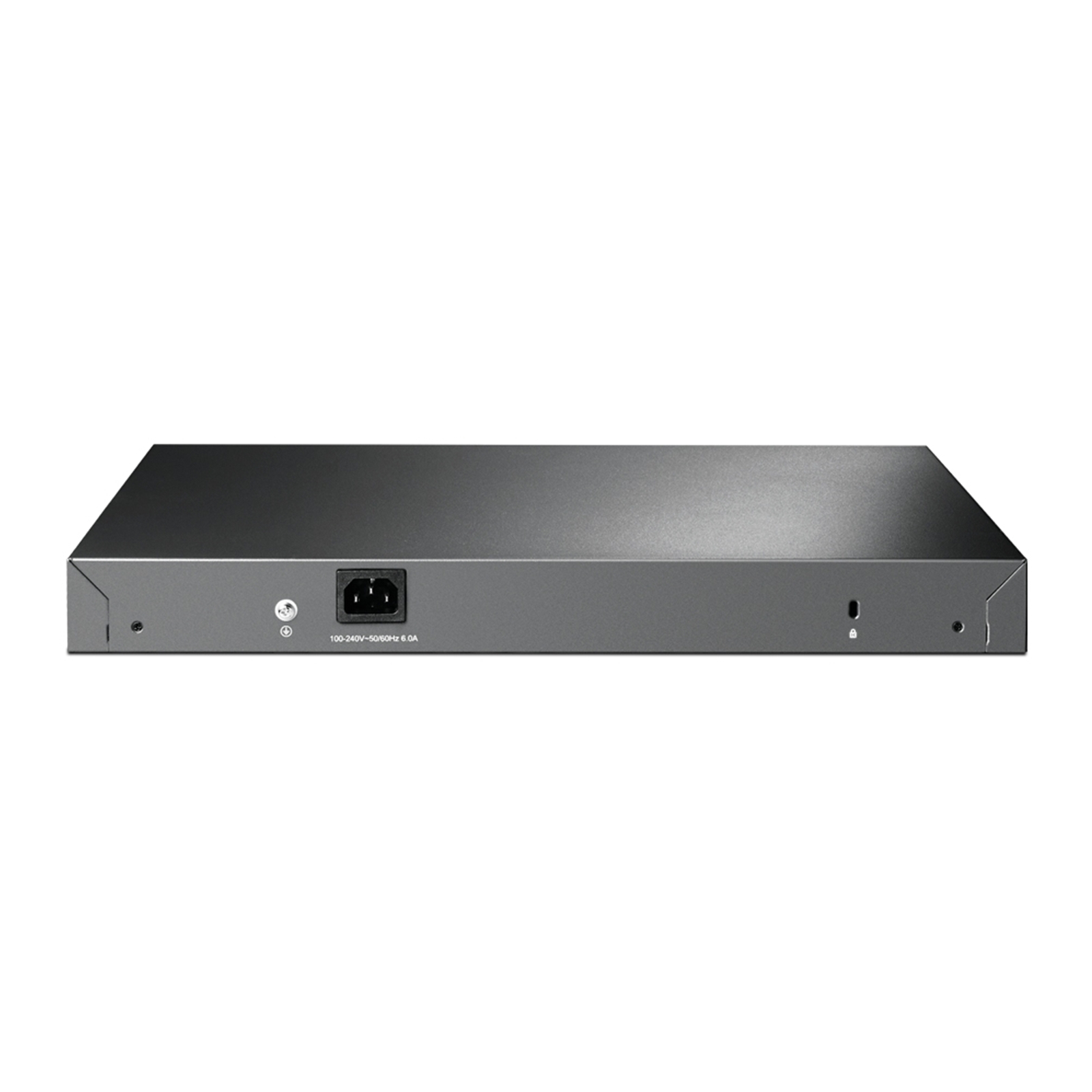

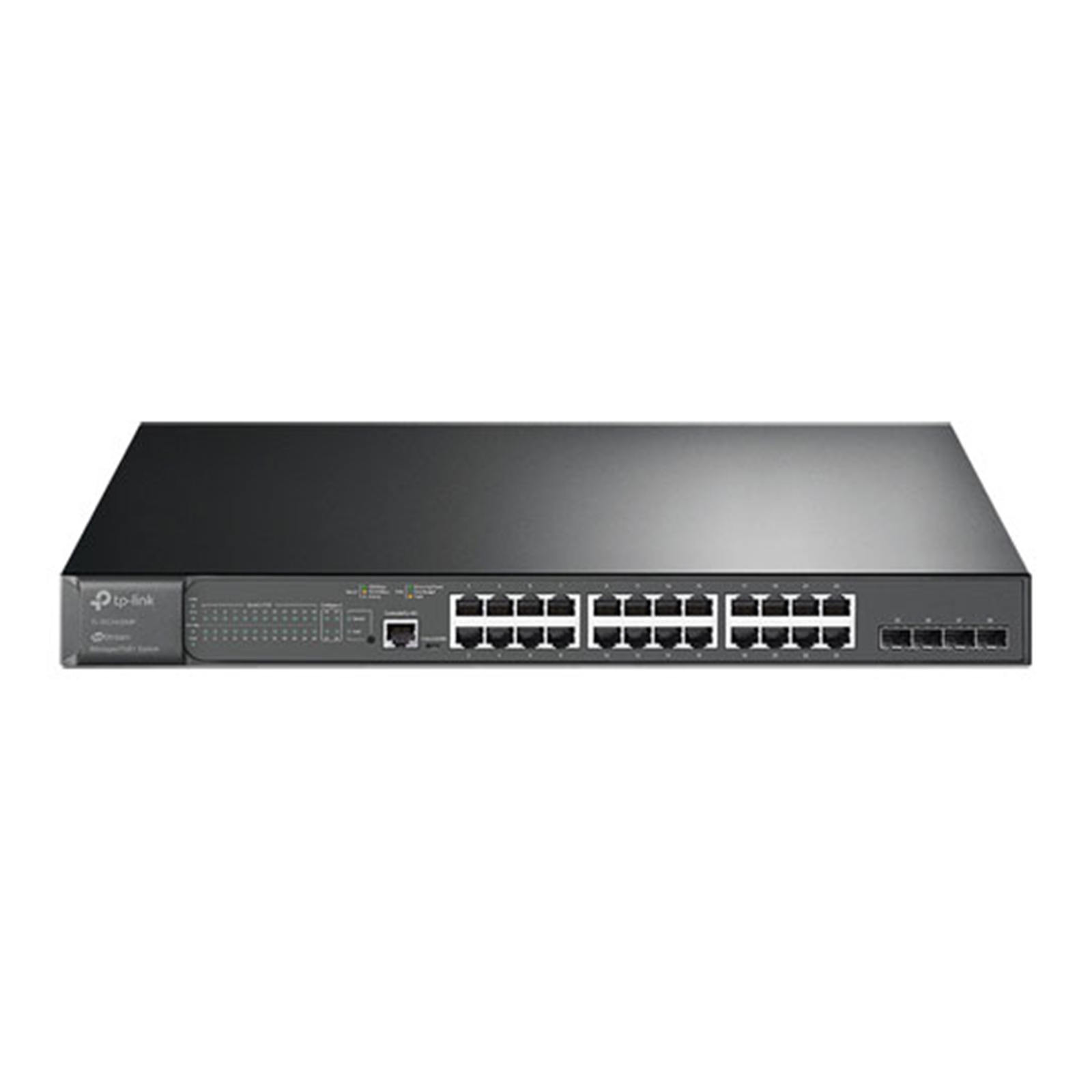

TP-LINK TL-SG3428MP JetStream 24-Port Gigabit L2 Managed PoE+ Switch With 4 SFP Slots

TP-LINK Logo here

Manufacturer Part Code: TL-SG3428MP

Order Code: NPTPL-TLSG3428MP

Category: Managed Network Switches

TP-Link Omada TL-SG3428MP JetStream 24-Port Gigabit L2 Managed PoE+ Switch With 4 SFP Slots

JetStream 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+

Key Features
384 W PoE Budget: 24 x 802.3at/af-compliant PoE+ ports with a total power supply of 384 W.
Full Gigabit Ports: 24 x gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Convenient Gigabit Switch with 24-Port PoE+ for a Complete Omada Network
JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+

Dedicated 24 PoE+ Ports (384 W Budget) for Numerous Applications
Features 24x 802.3af/at compliant PoE+ ports, the switch supports up to 384 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Software Defined Networking (SDN) with Cloud Access
Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network— all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

Abundant L2 and L2+ Features
A complete lineup of L2 features are supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Enterprise Level Management Features
Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and to send traps on abnormal events.

Specifications

Edition
JetStream

Form Factor
Rackmount

Total Network Ports
24 x 10/100/1000 (Gigabit) RJ-45
4 x SFP

PoE Support Type
PoE+

No. of Ports Providing PoE
24 x 10/100/1000 (Gigabit) RJ-45

Other Non-Network Ports
1 x Micro-USB Console
1 x RJ45 Console

Switching Capacity
56 Gbps

Network Protocols
802.3af PoE
802.3at PoE
IEEE 802.1ab
IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3ad (LACP)
IEEE 802.3x
IPv4
IPv6

Dimensions (WxHxD)
440 x 44 x 180 mm


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Certification
CE, FCC, RoHS
MAC address table
16000 entries
Switching capacity
56 Gbit/s
Jumbo frames support
Yes
Store-and-forward
Yes
Forwarding rate
41.66 Mpps
Packet buffer memory
12 MB
Jumbo frames
9000
Certification
CE, FCC, RoHS
Rack mounting
Yes
Form factor
1U
LED indicators
Yes
Product colour
Black
Number of fans
2 fan(s)
Power source
AC
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
463.8 W
Power supply included
Yes
Harmonized System (HS) code
85176990
Switch layer
L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
Switch type
Managed
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Multicast support
Yes
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Flow control support
Yes
Port mirroring
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
IP routing
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Number of VLANs
4000
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
10G support
No
Copper ethernet cabling technology
10BASE-T, 1000BASE-T
Active link detection
Yes
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 45 °C
Storage relative humidity (H-H)
5 - 90%
User guide
Yes
Package weight
6.08 kg
Package depth
528 mm
Package height
100 mm
Package width
440 mm
Quick start guide
Yes
User guide
Yes
Harmonized System (HS) code
85176990
USB 2.0 ports quantity
1
Gigabit Ethernet (copper) ports quantity
24
Console port
RJ-45/Micro-USB
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
SFP module slots quantity
4
Power connector
AC-in jack
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
384 W
Power over Ethernet (PoE) power per port
30 W
Management protocols
SNMPv1/v2c/v3, LLDP/LLDP-MED
GARP VLAN Registration Protocol (GVRP)
Yes
Security algorithms
SSH, SSL/TLS
MAC address filtering
Yes
Static port security
Yes
Access Control List (ACL)
Yes
SSH/SSL support
Yes
IGMP snooping
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes
Authentication
MAC-based authentication, Port-based authentication
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Height
44 mm
Width
440 mm
Depth
330 mm
