Managed Network Switches | TP-LINK  JetStream Omada TL-SG3452X 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch | TL-SG3452X | ServersPlus
L R
TP-LINK TL-SG3452X | serversplus.comTP-LINK TL-SG3452X | serversplus.comTP-LINK TL-SG3452X | serversplus.comTP-LINK TL-SG3452X | serversplus.com

Illustration purposes only

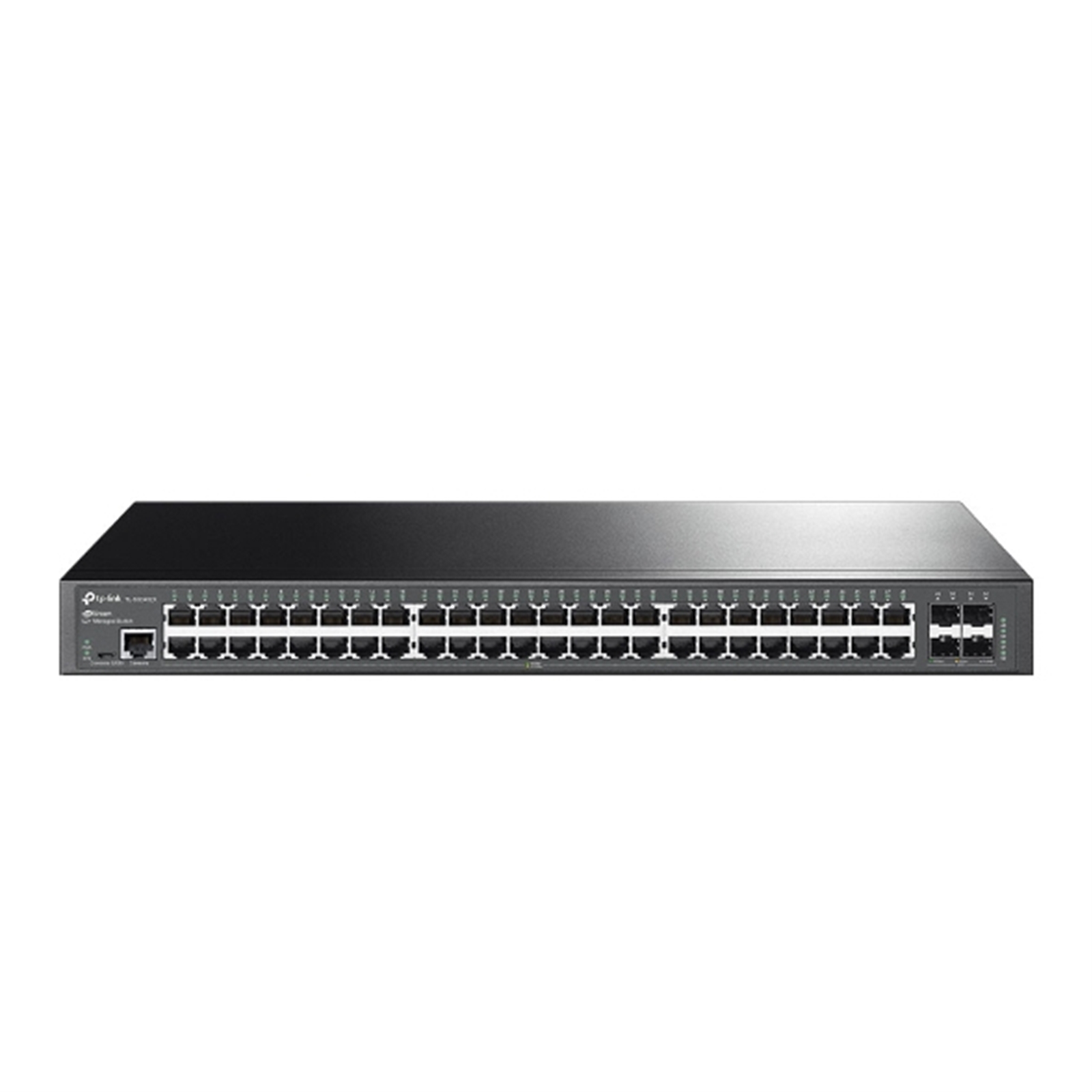

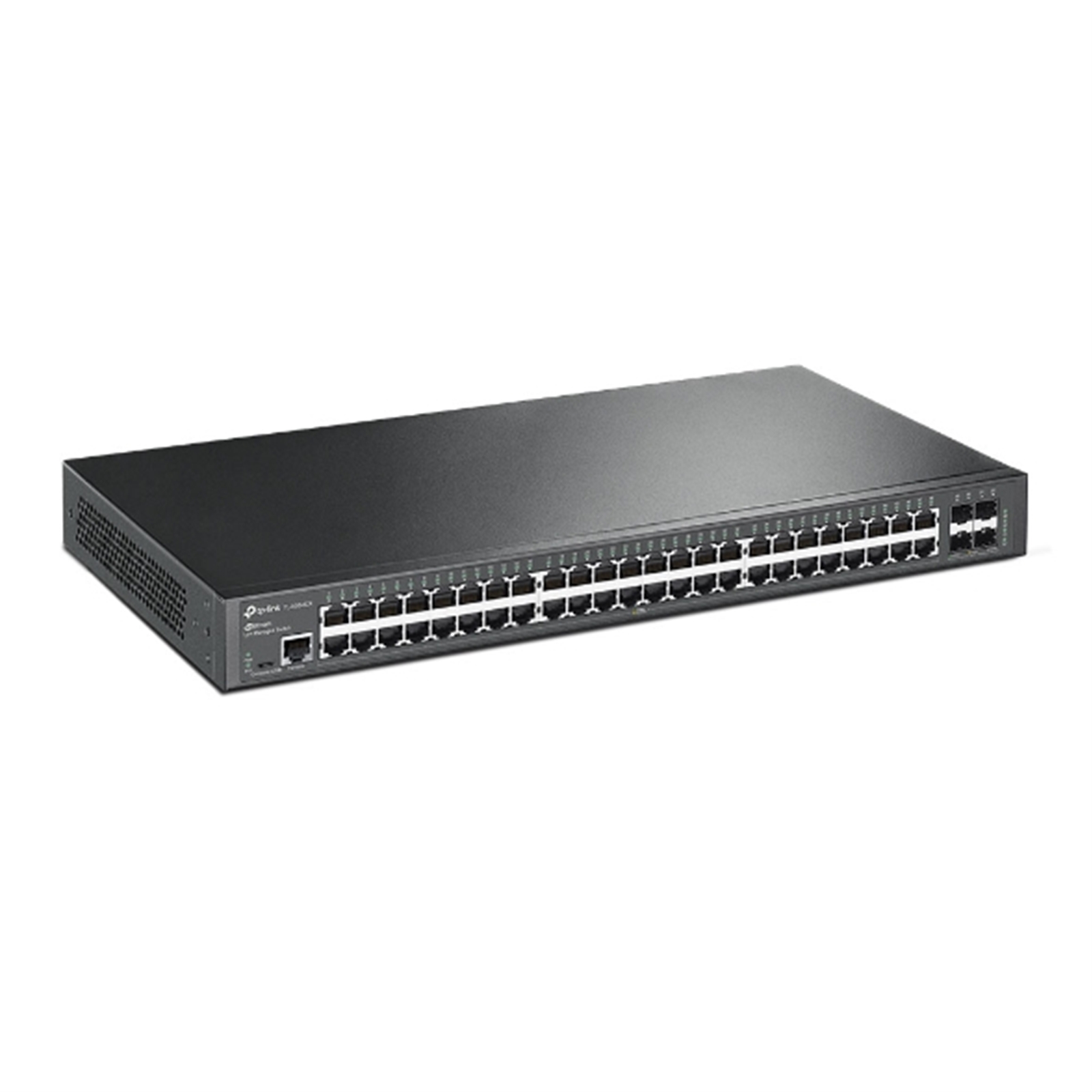

TP-LINK JetStream Omada TL-SG3452X 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch

TP-LINK Logo here

Manufacturer Part Code: TL-SG3452X

Order Code: NPTPL-TLSG3452X

Category: Managed Network Switches

TP-Link JetStream Omada TL-SG3452X 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch

10G Uplink Managed Switch for a Complete Omada Network

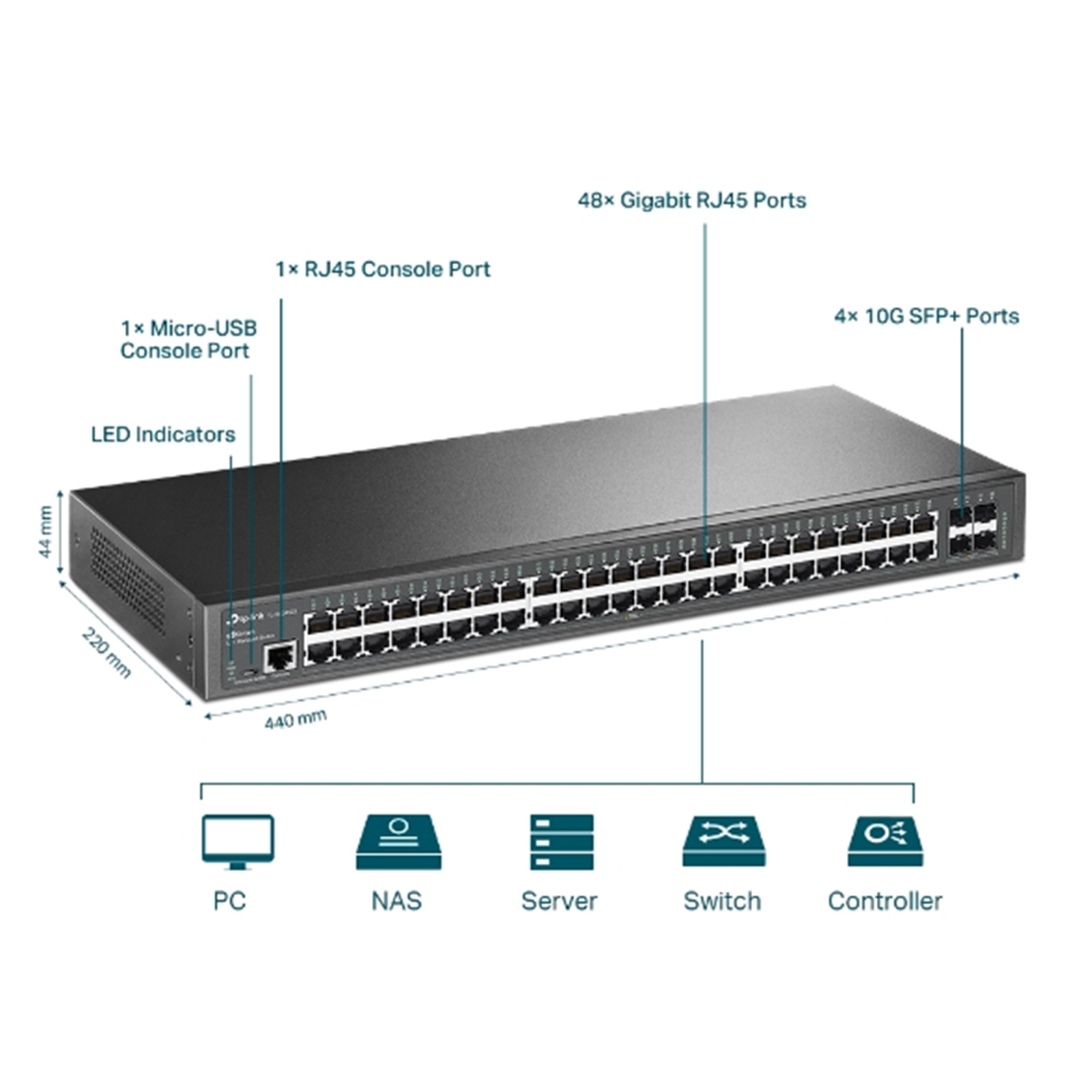

- 10G Lightning-Fast Uplink Connection
4× 10Gbps SFP+ Slots for High-Bandwidth Connectivity

- Gigabit Connections
48× Gigabit Ethernet Ports Offer Reliable Connections

- Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network

- Advanced L2+ Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More

Enterprise Switch
with 10G Uplink

4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.

Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features**
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to the appropriate subscribers, cutting unnecessary traffic. IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features**
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to www.tp-link.com/en/omada-cloud-based-controller/product-list/ to find all the models supported by Omada Cloud-Based Controller.

**L3 and ISP features can only be configured in standalone mode.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
16000 entries
Switching capacity
176 Gbit/s
Jumbo frames support
Yes
Forwarding rate
130.9 Mpps
Packet buffer memory
12 MB
Number of static routes
48
Jumbo frames
9000
Static route
Yes
Certification
CE, FCC, RoHS
Rack mounting
Yes
Form factor
1U
LED indicators
Yes
Product colour
Black
Power source
AC
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
32.72 W
Power supply included
Yes
Harmonized System (HS) code
85176990
MIB support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Switch layer
L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
Switch type
Managed
ARP inspection
Yes
Public MIB
Y
Huawei-proprietary MIB
Y
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Y
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Flow control support
Yes
Port mirroring
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Number of VLANs
4000
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
10G support
Yes
Virtual LAN features
Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
IPv4 routes
48
IPv6 routes
48
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 45 °C
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
111.65 BTU/h
Package weight
4 kg
Cables included
AC
Package depth
336 mm
Package height
100 mm
Package width
528 mm
Quick start guide
Yes
Rack rails
Yes
Harmonized System (HS) code
85176990
Console port
RJ-45/Micro-USB
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48
SFP+ module slots quantity
4
Power connector
AC-in jack
Power over Ethernet (PoE)
No
Management protocols
SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
MAC address filtering
Yes
Static port security
Yes
Access Control List (ACL)
Yes
SSH/SSL support
Yes
IGMP snooping
Yes
Authentication type
AAA, RADIUS, TACACS+
Password protection
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes
Authentication
Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
IGMP proxy
Yes
DHCP features
DHCP client, DHCP relay, DHCP server
Height
44 mm
Width
440 mm
Depth
220 mm
