DRAYTEK VSP2100-K VigorSwitch P2100 8 Port Gigabit POE Layer 2+ Managed Switch with 2 SFP Uplink Por

DRAYTEK Logo here

Manufacturer Part Code: VSP2100-K

Order Code: NPDRA-VSP2100

Category: Managed Network Switches

DrayTek VSP2100-K VigorSwitch P2100 8 Port Gigabit POE Layer 2+ Managed Switch with 2 SFP Uplink Ports

Please note: For next business day delivery, this item must be ordered before 2:00pm

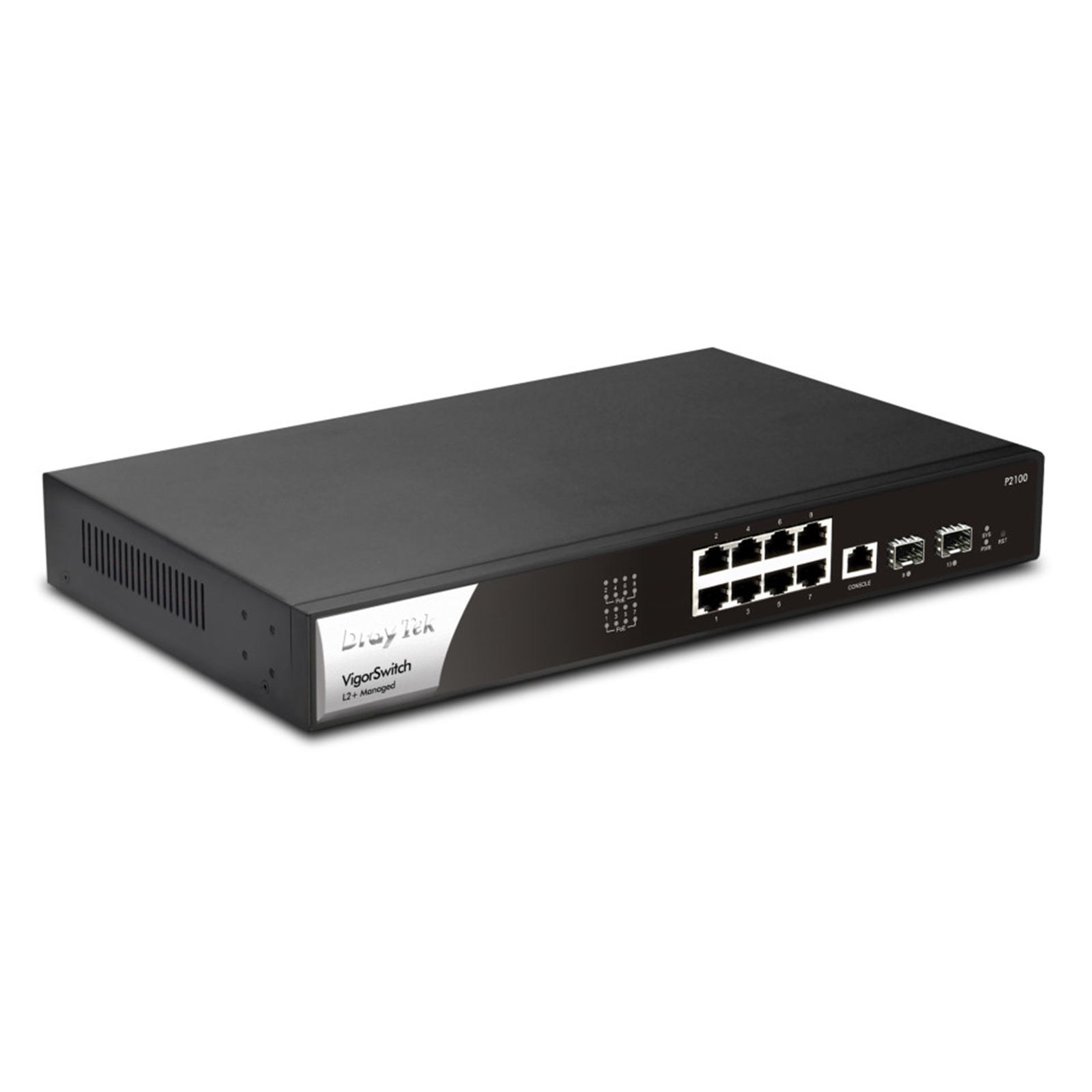

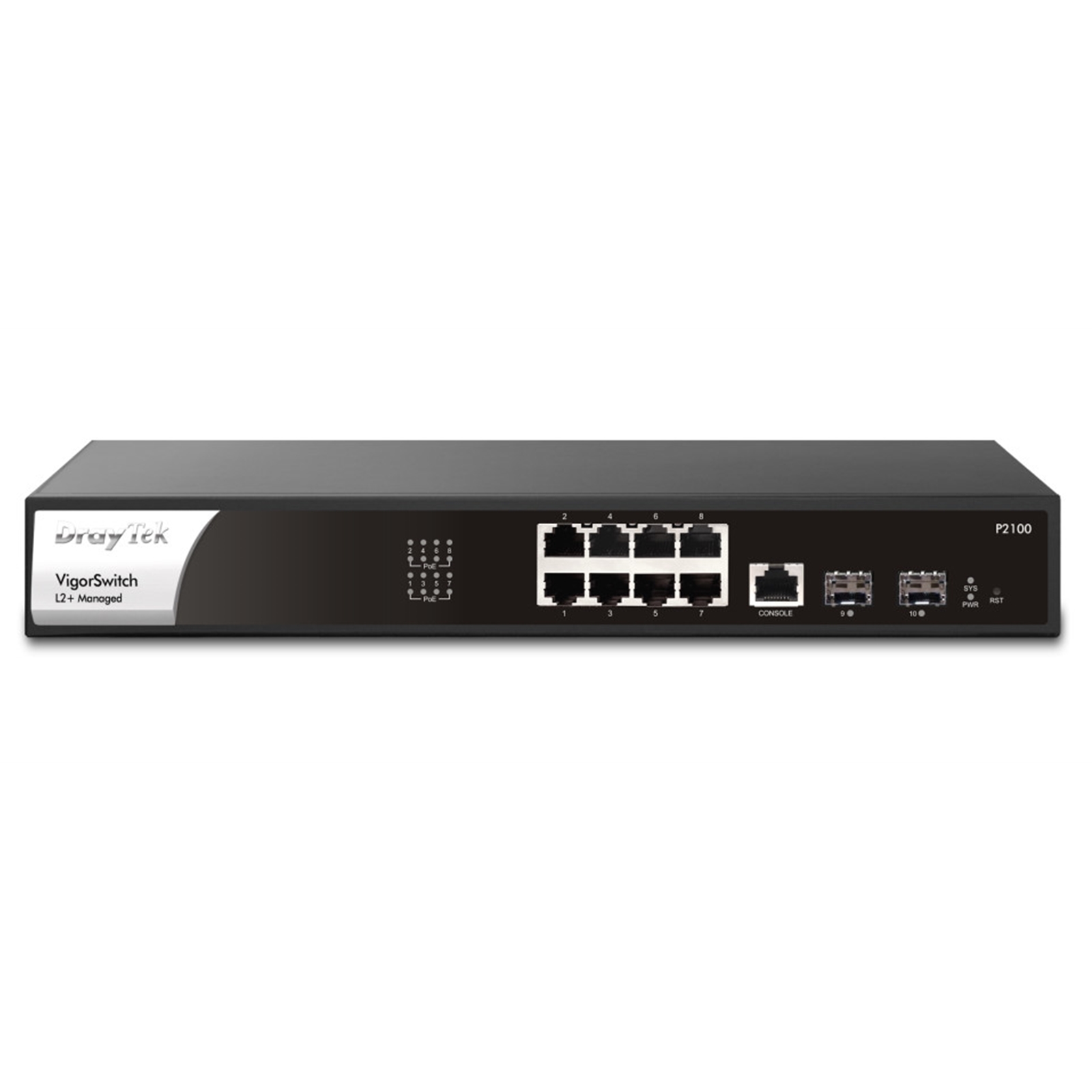

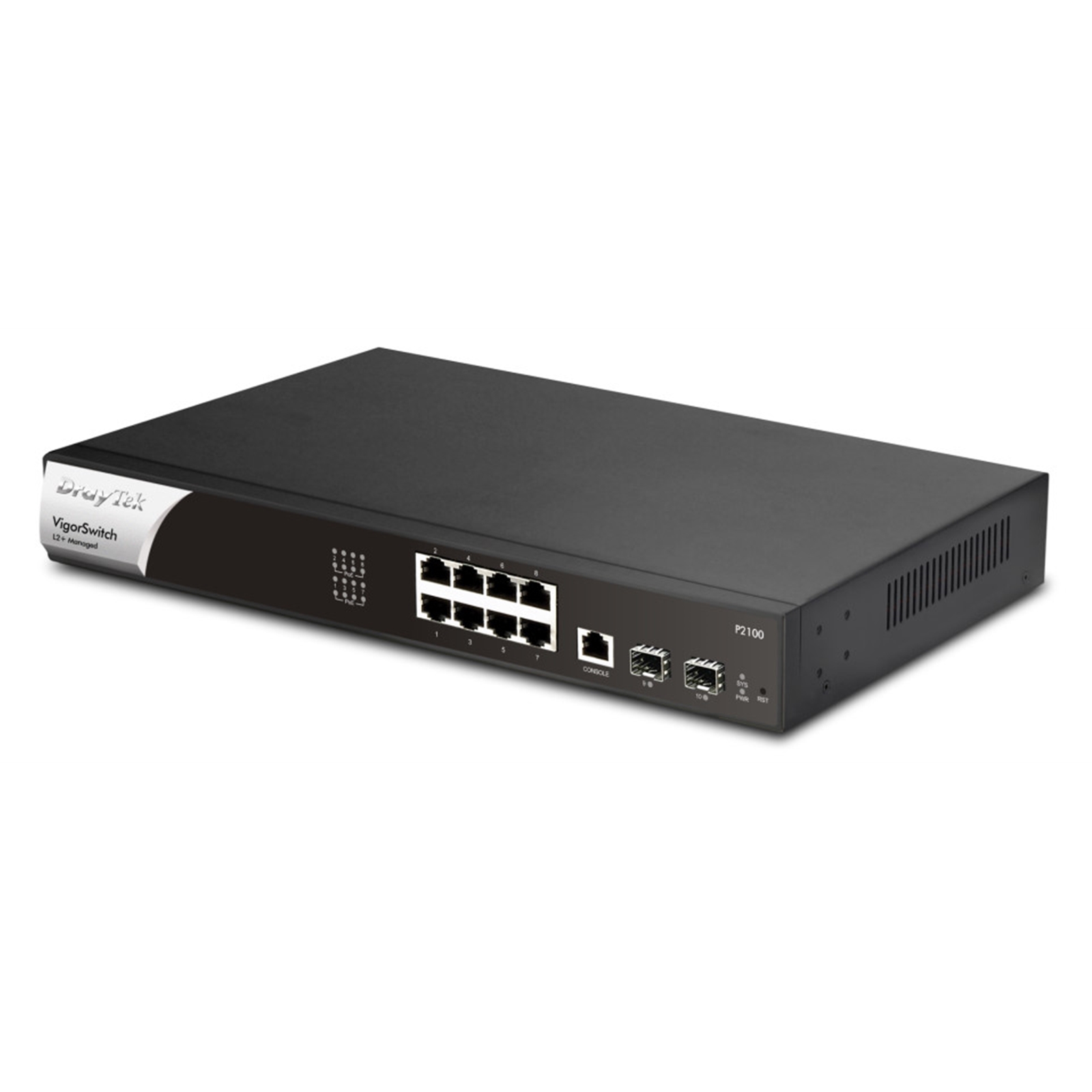

VigorSwitch P2100
8-Port Gigabit Layer 2+ Managed PoE+ Switch with 2 SFP Uplink Ports
The VigorSwitch P2100 is a high-performance, Layer 2+ Managed Ethernet switch. With 8 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router. The enterprise-level features allow your business to improve network stability and security.

The VigorSwitch P2100 is able to power your network devices via Power over Ethernet, with a generous 140 watt power budget to provide power to each of its 8 PoE / PoE+ enabled Gigabit LAN ports.

The VigorSwitch P2100 works superbly in standalone mode, but designed for centralised management, it can be provisioned and monitored by one of DrayTek's central management platforms. These include the VigorACS management platform, VigorConnect on-site management and DrayTek's router-based switch management. These platforms allow you to drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.

Great Security Features
Secure & control access to your network.
Protect your network against unauthorised access and network problems with DrayTek's IP Conflict Prevention, 802.1X port authentication, DHCP Snooping, and Access Control Lists. Check the features sections for more information.

Smart Power over Ethernet
Power & manage IP cameras, phones and Wireless APs.
Provides ample power through Ethernet to each of the 8 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & Device Check features ensure your PoE devices are powered and working.

Advanced Layer 2+ Routing Features
Provides a fast and secure bridge between networks.
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.

ONVIF IP Camera Surveillance Management
Easily configure, deploy & manage IP Cameras.
Make IP camera management easier with detection and management of ONVIF cameras. View a topology of all cameras connected. PoE Device Check and Email Alerts with Camera Snapshot help to rapidly detect & troubleshoot problems.

Rack Mountable & Silent
Flexible installation. Quiet in operation.
Fit the VigorSwitch P2100 with the included rack mounting kit into any standard 19? rack. Fanless and silent, these switches are ideal for use in a quiet office or home environment.

Manage Centrally or Stand-Alone
Save time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Switching capacity
20 Gbit/s
Jumbo frames support
Yes
Forwarding rate
14.88 Mpps
Jumbo frames
9000
Rack mounting
Yes
Form factor
1U
LED indicators
PoE
Product colour
Black, Silver
Reset button
Yes
AC input voltage
100 - 240 V
Power consumption (max)
164.3 W
Power supply included
Yes
Harmonized System (HS) code
85176990
Switch layer
L2+/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Switch type
Managed
Multicast support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Port mirroring
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Yes
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
Operating relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Quick start guide
Yes
Rack mount kit
Yes
Harmonized System (HS) code
85176990
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
8
SFP module slots quantity
2
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Total Power over Ethernet (PoE) budget
140 W
Power over Ethernet (PoE) power per port
30 W
Management protocols
VigorACS, VigorConnect, Vigor Router Switch Management, IPv4 & IPv6 Dual-Stack, (CLI) via SSH/Telnet, OpenVPN Client, SNMP, SNTP, LLDP
Access Control List (ACL)
Yes
DHCP features
DHCP client, DHCP server, DHCPv6 snooping
Weight
2.61 kg
Height
44 mm
Width
319 mm
Depth
208 mm
