DRAYTEK VSP2540XS-K VigorSwitch P2540XS 48 Port POE Fully Managed Layer 2+ Switch with 6x 10GbE SFP

DRAYTEK Logo here

Manufacturer Part Code: VSP2540XS-K

Order Code: NPDRA-VSP2540XS

Category: Managed Network Switches

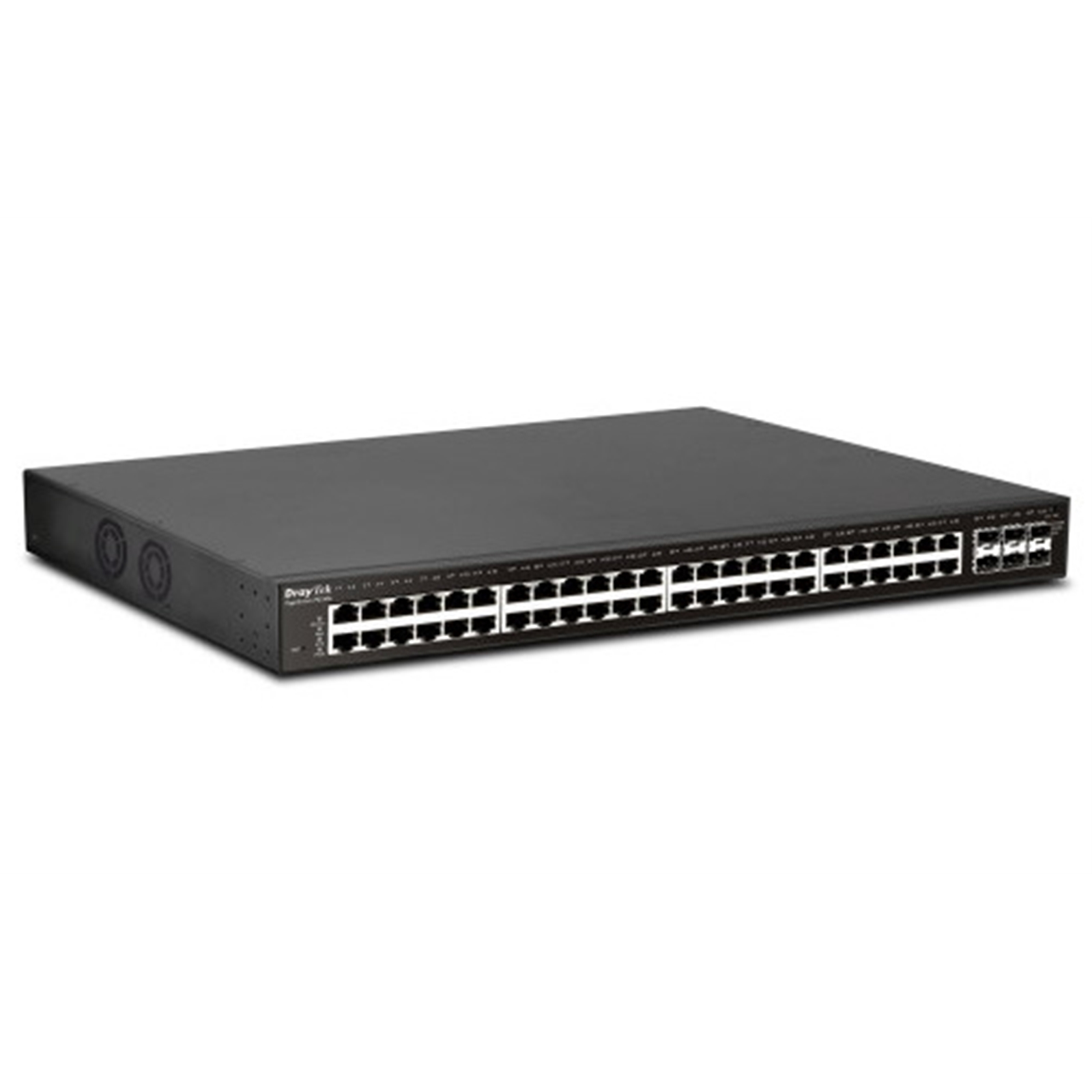

DrayTek VSP2540XS-K VigorSwitch P2540XS 48 Port POE Fully Managed Layer 2+ Switch with 6x 10GbE SFP Ports

Please note: For next business day delivery, this item must be ordered before 2:00pm

10GbE Gigabit Switch with 48 Gigabit PoE+ Ports & 6 10GbE SFP+ Uplink Ports
VigorSwitch P2540xs is a 54 port PoE+ Gigabit L2+ Managed switch with a plethora of management options and enterprise-level features to improve network stability and security for businesses.

It has 48 PoE+ (Power over Ethernet) RJ-45 LAN ports and 6 10-Gigabit Ethernet SFP+ ports for high bandwidth uplinks to Servers, Network Attached Storage and Switches.

Designed for centralised management, the VigorSwitch P2540xs can be provisioned and monitored through both the VigorACS management platform and/or, a DrayTek Vigor router's Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.

High Speed 10 Gigabit SFP+ Uplinks
6 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.

Benefits: Easily increase network throughput and meet demanding bandwidth requirements.

Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.

Benefits: Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

Great Security Features
Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information.

Benefits: Secure & control access to your network.

Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.

Benefits: Provides a fast and secure bridge between networks.

400W PoE Power Budget
Provides power through Ethernet to each of the 48 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & monitoring features ensure your PoE devices are powered and working.

Benefits: Power a large number of IP cameras, IP phones, wireless APs and other PoE devices.

IP Camera Management
Manage IP Cameras easily with detection and management of ONVIF cameras. Use PoE Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.

Benefits: Easily configure, deploy & manage connected IP Cameras.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
32 entries
Switching capacity
216 Gbit/s
Jumbo frames support
Y
Number of queues
8
Forwarding rate
160.7 Mpps
Jumbo frames
12
Static route
Y
Rack mounting
Y
Form factor
1U
LED indicators
Error, PoE
Wall mountable
Y
Product colour
Black
Reset button
Y
Number of fans
1 fan(s)
Power source
AC
Input current
5.5 A
AC input voltage
100 - 240 V
Power consumption (max)
478 W
Power supply included
Y
Switch layer
L2+/L3
Quality of Service (QoS) support
Y
Web-based management
Y
Switch type
Managed
Traffic classification
Y
ARP inspection
Y
Configuring Location Settings (CLI)
Y
Cloud-managed
Y
Multicast support
Y
Full duplex
Y
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
Number of VLANs
256
Spanning tree protocol
Y
VLAN support
Y
10G support
Y
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Auto-negotiation
Y
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
1631.18 BTU/h
Fiber ethernet cabling technology
10GBASE-LR, 10GBASE-LRM, 1000BASE-LX
Cables included
AC, LAN (RJ-45)
Quick start guide
Y
Rack mount kit
Y
Firmware upgradeable
Y
Fanless
N
Fiber ports quantity
6
Console port
RJ-45
Fiber optic connector
LC
Installed SFP+ modules quantity
6
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) ports quantity
48
Total Power over Ethernet (PoE) budget
400 W
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet (PoE) type supported
Active PoE
Management protocols
VigorACS, VigorConnect, Vigor Router Switch Management, IPv4 & IPv6 Dual-Stack, (CLI) via SSH/Telnet, OpenVPN Client, SNMP, SNTP, LLDP
Routing protocols
VRRP
Security algorithms
HTTPS, SNMPv2, SNMPv3, SSH, SSH-1.5, SSH-2
MAC address filtering
Y
Static port security
Y
Access Control List (ACL)
Y
SSH/SSL support
Y
IGMP snooping
Y
Authentication type
AAA, RADIUS, TACACS+
Password protection
Y
Loop protection
Y
IP-MAC-Port binding
Y
DHCP features
DHCP client, DHCP relay, DHCP server
Weight
5.66 kg
Height
45 mm
Width
441 mm
Depth
330 mm
