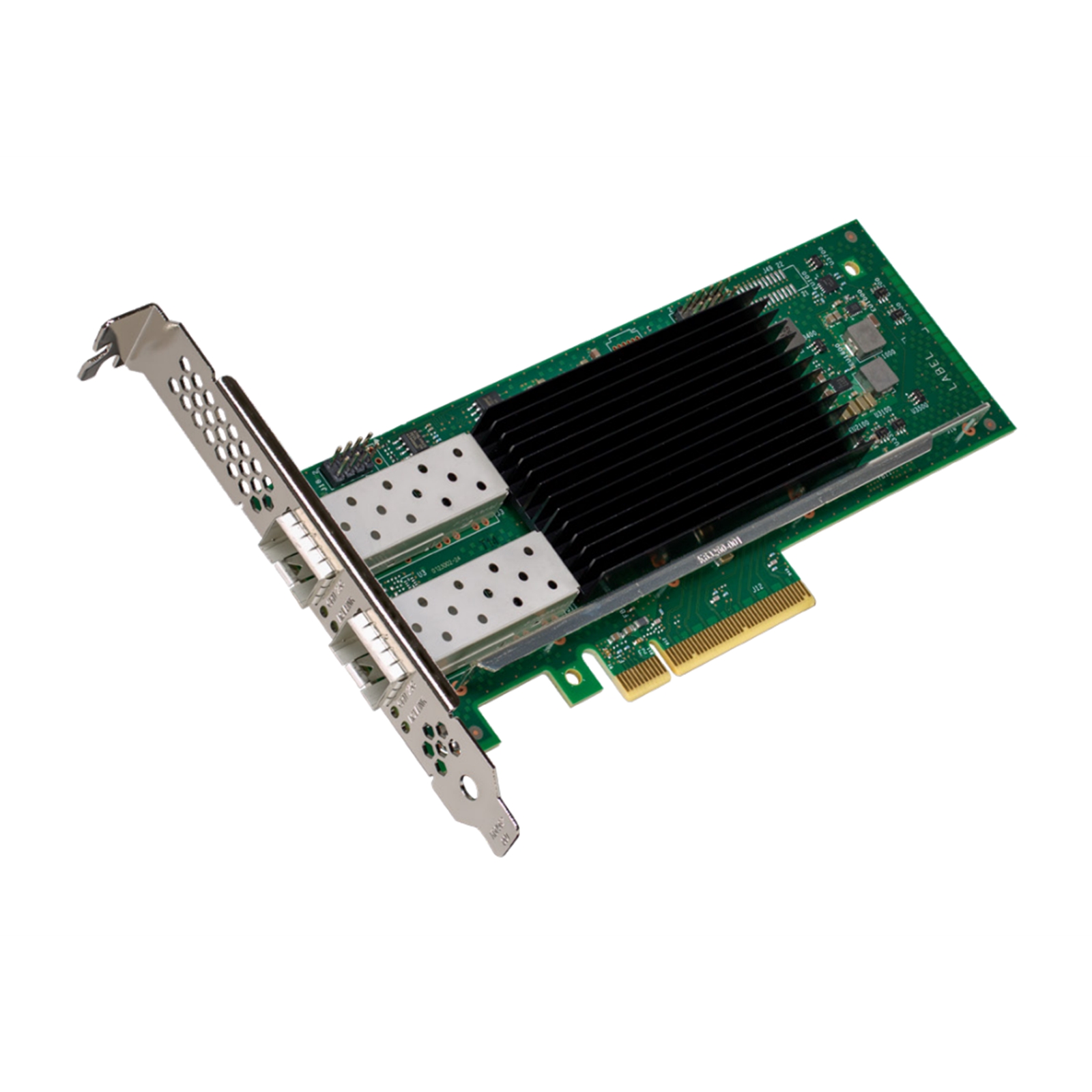

INTEL Ethernet Network Adapter E810-XXVDA2

INTEL Logo here

Manufacturer Part Code: E810XXVDA2BLK

Order Code: NPINT-E810XXVDA2

Category: Network Cards

Intel Ethernet Network Adapter E810-XXVDA2 - Network adapter - PCIe 4.0 x8 low profile - 25 Gigabit SFP28 x 2

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Internal
Yes
Certification
FCC B, UL, CE, VCCI, BSMI, RCM, KCC
LED indicators
Activity, Link
Product colour
Black, Green, Silver
Component for
Server
Harmonized System (HS) code
85176990
Networking standards
IEEE 1588, IEEE 1588v2, IEEE 802.1p
LAN controller
Intel E810
Quality of Service (QoS) support
Yes
Ethernet LAN data rates
1000,10000,25000 Mbit/s
Ethernet interface type
10 Gigabit Ethernet, 25 Gigabit Ethernet, Gigabit Ethernet
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 55 °C
Cable type
SFP28 ports - DAC, Optics, and AOC''s
Processor family
800 Network Adapters (up to 100GbE)-800 Network Adapters (up to 100GbE)
Intel Virtual Machine Device Queues (VMDq)
Yes
PCI-SIG* SR-IOV Capable
Yes
On-chip QoS and Traffic Management
Yes
Intel Flexible Port Partitioning
Yes
Speed & slot width
16.0 GT/s, x8 Lane
Intelligent Offloads
Yes
iWARP/RDMA
Yes
Intel Data Direct I/O Technology
Yes
Intel Virtualization Technology for Connectivity (VT-c)
Yes
Storage Over Ethernet
iSCSI, NFS
Status
Launched
Launch date
Q3''20
Network interface card type
Server
Network interface card cable medium
Copper, Fiber
Harmonized System (HS) code
85176990
Product series
800 Series Network Adapters (up to 100GbE)
Ethernet adapter ARK ID
189760
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Bracket height
Low-Profile (LP) / Full-Height (FH)
Interface
Fiber
Connectivity technology
Wired
Host interface
PCI Express
Fiber ports quantity
2
Fiber optic connector
SFP28
PCI version
4.0
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/ethernet-products.html
Width
167 mm
Depth
68 mm
