Network Cards | INTEL I210T1 | I210T1 | ServersPlus
INTEL I210T1 | serversplus.com

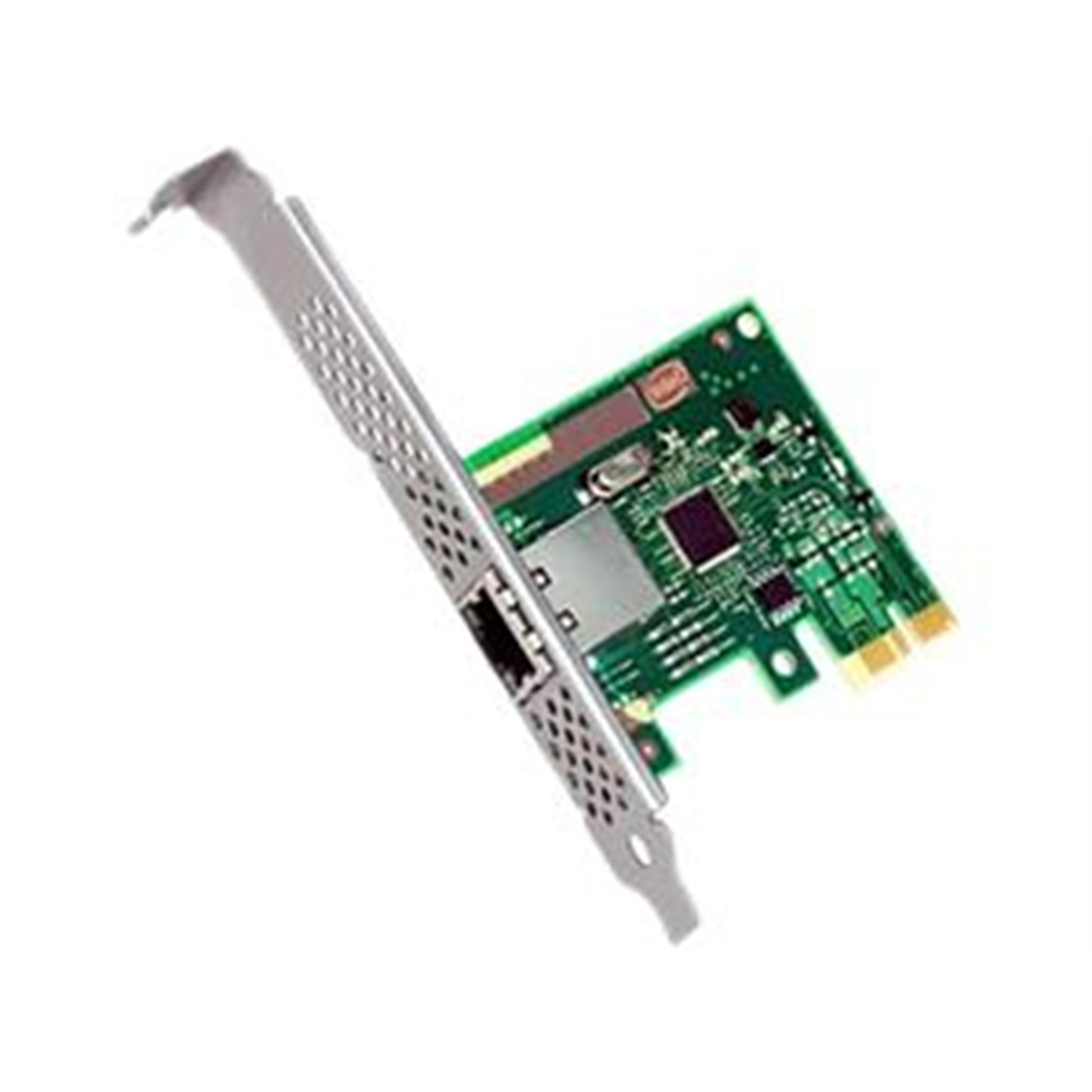

Illustration purposes only

INTEL I210T1

INTEL Logo here

Manufacturer Part Code: I210T1

Order Code: NPINT-I210T1

Category: Network Cards

Intel Ethernet Server Adapter I210-T1 - Network adapter - PCIe 2.1 low profile - Gigabit Ethernet

Single-Port Gigabit Ethernet server adapter designed for entry-level servers and Audio-Video applications

- Low-halogen1 single-port PCI-Express* 10/100/1000 Ethernet adapter
- Innovative power management features including Energy Effcient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased effciency and reduced power consumption
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream syn-chronization, buffering, and reservation
- High-performing design supporting PCI Express* Gen 2.1 2.5GT/s
- Reliable and proven Gigabit Ethernet technology from Intel Corporation


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Internal
Yes
Internal
Y
Compatible products
Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC , P4308IP4LHJCL
Compatible products
Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC , P4308IP4LHJCL
Product family
Intel Gigabit server adapter
Product series
Intel I210
Harmonized System (HS) code
85176990
Cabling technology
10/100/1000BaseT(X)
Ethernet LAN
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Maximum operating distance
100 m
Cabling technology
10/100/1000BaseT(X)
LAN controller
Intel I210
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN connection
Y
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Maximum operating distance
100 m
LAN controller
Intel I210
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Interface type
PCIe v2.1 (2.5 GT/s)
Cable type
RJ45 Category 5, up to 100 m
Processor family
Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Controller type
Intel I210
Thermal power
1 W
Interface type
PCIe v2.1 (2.5 GT/s)
Cable type
RJ45 Category 5, up to 100 m
Cabling type
RJ45 Category 5, up to 100 m
Intel Virtual Machine Device Queues (VMDq)
No
PCI-SIG* SR-IOV Capable
No
On-chip QoS and Traffic Management
No
Intel Flexible Port Partitioning
No
Speed & slot width
2.5 GT/s, x1 Lane
Low halogen options available
No
Intelligent Offloads
Yes
iWARP/RDMA
No
Fiber Channel over Ethernet
No
Intel Ethernet Power Management
Yes
Intel Data Direct I/O Technology
No
Number of QPI links
Single
Processor family
Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Thermal Design Power (TDP)
1 W
Product type
Network Interface Card
Conflict-Free
Yes
Status
Launched
Launch date
Q1''13
Product name
Intel Ethernet Server Adapter I210-T1
Product brief URL
http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html
Born on date
Q1''13
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Last change
63903513
Harmonized System (HS) code
85176990
Product family
Intel Gigabit server adapter
Product series
Intel I210
Controller type
Intel I210
Ethernet adapter ARK ID
68668
Thermal power
1 W
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Bracket height
Low-Profile (LP) / Full-Height (FH)
Cabling type
RJ45 Category 5, up to 100 m
Intel Virtual Machine Device Queues (VMDq)
N
PCI-SIG* SR-IOV Capable
N
On-chip QoS and Traffic Management
N
Intel Flexible Port Partitioning
N
Speed & slot width
2.5 GT/s, x1 Lane
Low halogen options available
N
Intelligent Offloads
Y
iWARP/RDMA
N
Fiber Channel over Ethernet
N
Intel Ethernet Power Management
Y
Intel Data Direct I/O Technology
N
Number of QPI links
Single
Halogen free
N
Thermal Design Power (TDP)
1 W
Product type
Network Interface Card
Conflict Free
Y
Status
Launched
Bracket height
Low Profile and Full Height
Launch date
Q1''13
Product name
Intel Ethernet Server Adapter I210-T1
Product brief URL
http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html
Born on date
Q1''13
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Last change
63903513
Harmonized System (HS) code
8517620090
Product family
Intel Gigabit server adapter
Product series
Intel I210
Ethernet adapter ARK ID
68668
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Bracket height
Low-Profile (LP) / Full-Height (FH)
Compatible products
Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC , P4308IP4LHJCL
Thermal power
1 W
Intel Virtual Machine Device Queues (VMDq)
N
PCI-SIG* SR-IOV Capable
N
On-chip QoS and Traffic Management
N
Intel Flexible Port Partitioning
N
Speed & slot width
2.5 GT/s, x1 Lane
Intelligent Offloads
Y
iWARP/RDMA
N
Fiber Channel over Ethernet
N
Intel Ethernet Power Management
Y
Intel Data Direct I/O Technology
N
Ethernet adapter ARK ID
68668
Interface
Ethernet
Interface
Ethernet
Internal
Y
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Host interface
PCI Express
Connectivity technology
Wired
PCI version
2.1
Ethernet LAN (RJ-45) ports quantity
1
Host interface
PCI Express
PCI version
2.1
Compatible products
Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC , P4308IP4LHJCL
Thermal power
1 W
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Intel Virtual Machine Device Queues (VMDq)
N
PCI-SIG* SR-IOV Capable
N
On-chip QoS and Traffic Management
N
Intel Flexible Port Partitioning
N
Intelligent Offloads
Y
iWARP/RDMA
N
Intel Ethernet Power Management
Y
Number of QPI links
Single
Halogen free
N
Thermal Design Power (TDP)
1 W
Product type
Network Interface Card
Status
Launched
Bracket height
Low Profile and Full Height
Launch date
Q1''13
Product name
Intel Ethernet Server Adapter I210-T1
Product brief URL
http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html
Born on date
Q1''13
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Last change
63903513
Harmonized System (HS) code
8517620090
Height
55 mm
Width
65 mm
Depth
20 mm
Height
55 mm
Width
65 mm
Depth
20 mm
