Network Cards | INTEL I350-T4V2 Bulk | I350T4V2BLK | ServersPlus
INTEL I350T4V2BLK | serversplus.com

Illustration purposes only

INTEL I350-T4V2 Bulk

INTEL Logo here

Manufacturer Part Code: I350T4V2BLK

Order Code: NPINT-I350T4V2BL

Category: Network Cards

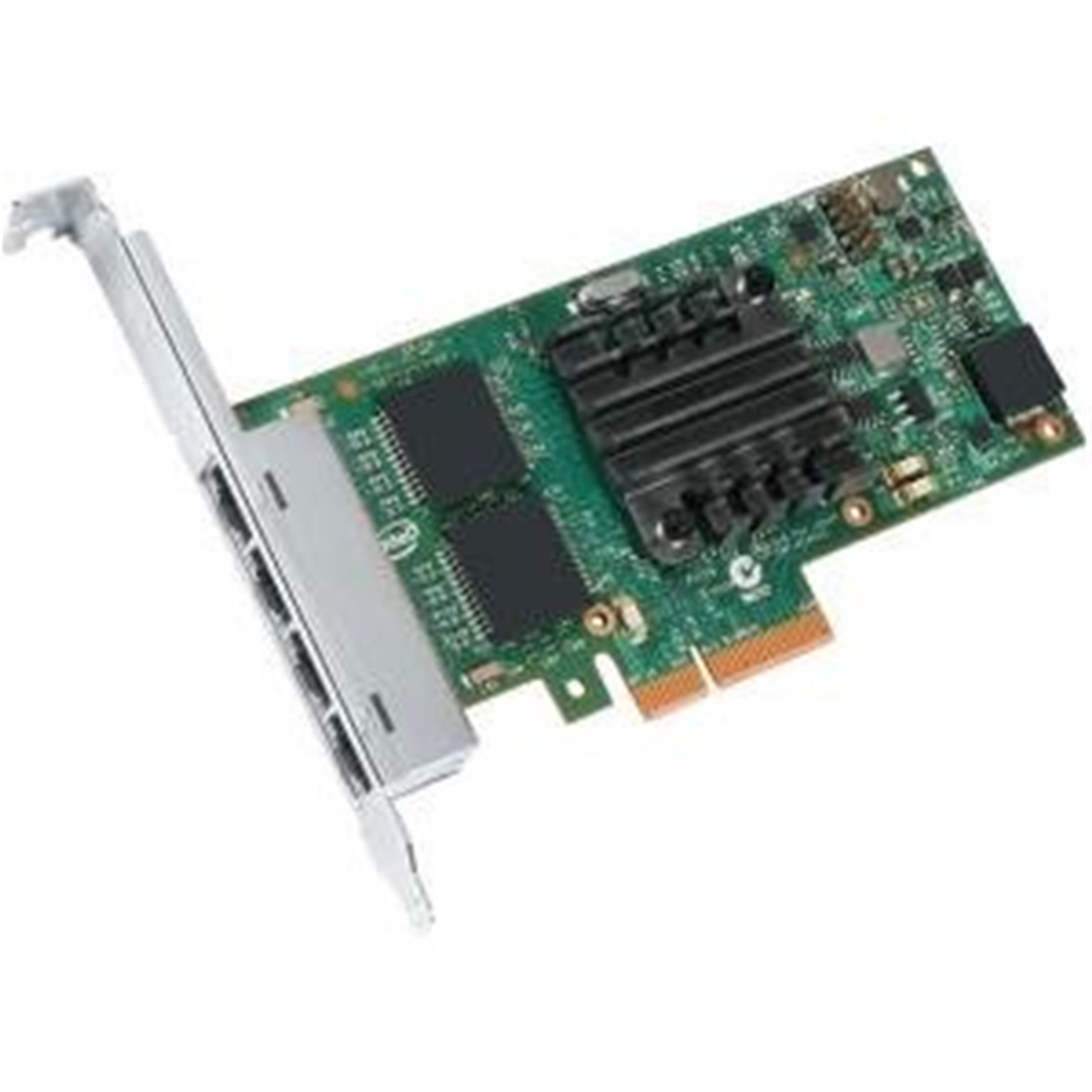

Intel Ethernet Server Adapter I350-T4 - Network adapter - PCIe 2.1 x4 low profile - 1000Base-T x 4

Based on the new Intel® Ethernet Controller I350 series, the Intel® Ethernet Server Adapter I350 represents the next step in the GbE networking evolution for the enterprise and data center. It introduces new levels of performance through industry-leading enhancements for both virtualized and Internet small computer system interface (iSCSI) unified networking environments. This new family of adapters also includes new power management technologies such as Energy-Efficient Ethernet (EEE) and direct memory access coalescing (DMAC).


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Internal
Yes
Chipset
Intel® I350
Component for
Server
Power consumption (typical)
5 W
Harmonized System (HS) code
85176990
Full duplex
Yes
Supported network protocols
TCP, UDP, IP
Cabling technology
10/100/1000BaseT(X)
Maximum data transfer rate
1000 Mbit/s
Ethernet LAN
Yes
Networking standards
IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Maximum operating distance
100 m
LAN controller
Intel® I350
Ethernet LAN data rates
10,100,1000 Mbit/s
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 55 °C
Storage relative humidity (H-H)
35 - 90%
Interface type
PCIe v2.1 (5.0 GT/s)
Cable type
Cat 5 up to 100m
Processor family
Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Controller type
Intel I350
Cabling type
Cat 5 up to 100m
Intel Virtual Machine Device Queues (VMDq)
Yes
PCI-SIG* SR-IOV Capable
Yes
On-chip QoS and Traffic Management
Yes
Intel Flexible Port Partitioning
Yes
Storage-over-ethernet
Yes
Speed & slot width
5.0 GT/s, x4 Lane
Low halogen options available
No
Intelligent Offloads
Yes
iWARP/RDMA
No
Intel Ethernet Power Management
Yes
Intel Virtualization Technology for Connectivity (VT-c)
Yes
Thermal Design Power (TDP)
5 W
Storage Over Ethernet
iSCSI, NFS
Product type
Network Interface Card
Status
Launched
Launch date
Q3''14
Product brief URL
http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Last change
63903513
Harmonized System (HS) code
85176990
Product family
Intel Gigabit server adapter
Product series
Intel® I350
Product codename
Powerville
Ethernet adapter ARK ID
84805
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Bracket height
Low-Profile (LP) / Full-Height (FH)
Interface
Ethernet
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
4
Host interface
PCI Express
PCI Card form factor
Full-height (low-profile)
PCI version
2.1
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Width
68.9 mm
Depth
135.4 mm
