Network Cards | INTEL X550T2 | X550T2 | ServersPlus
INTEL X550T2 | serversplus.com

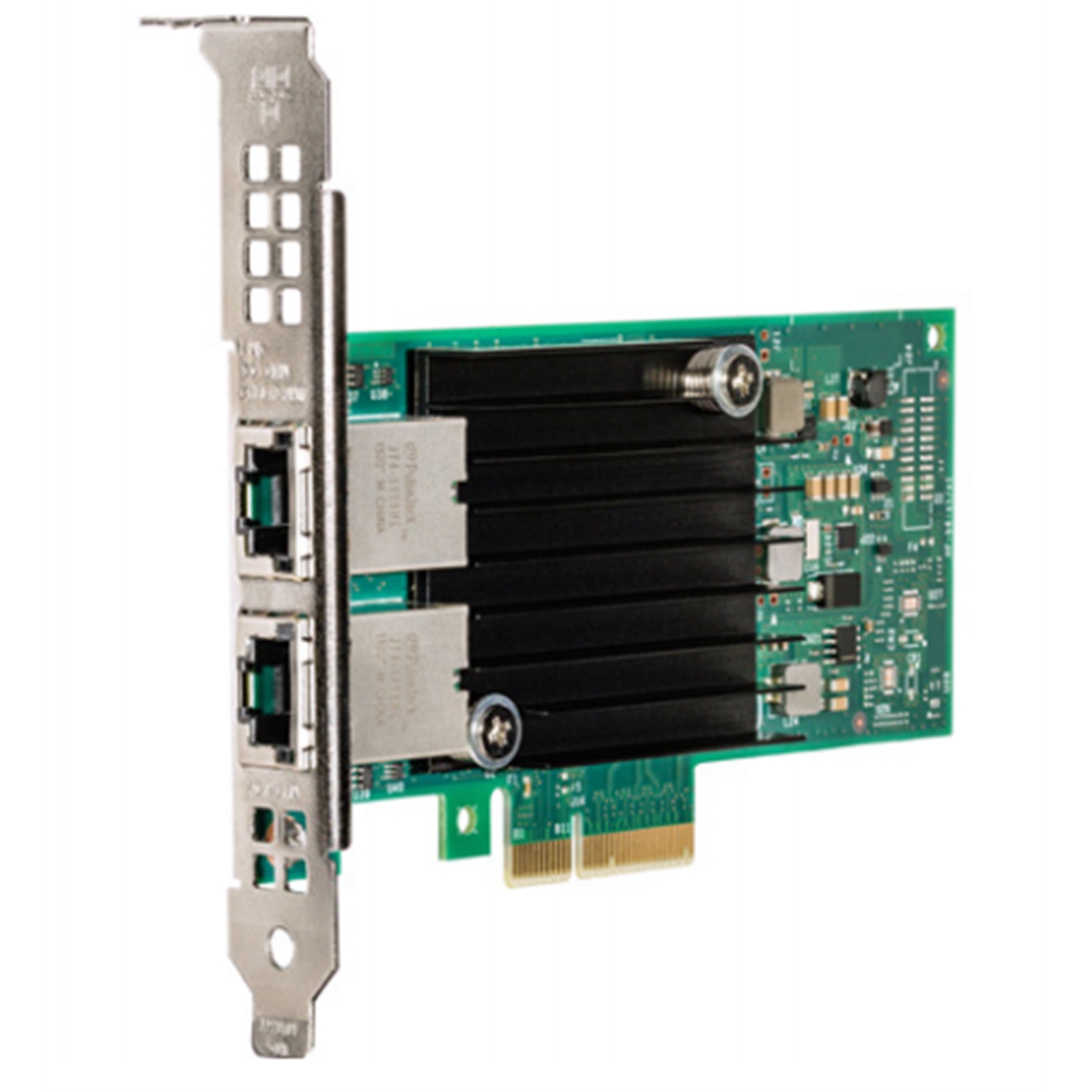

Illustration purposes only

INTEL X550T2

INTEL Logo here

Manufacturer Part Code: X550T2

Order Code: NPINT-X550T2

Category: Network Cards

X550T2

Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Data transfer rate (max)
10000 Mbit/s
Data transfer rate
8 GT/s
Internal
Yes
Internal
Y
Product colour
Green, Silver
Colour of product
Green, Silver
PCI Card form factor
Half-height (low-profile)
Product family
Intel 10 Gigabit server adapter
Product series
500 Series Network Adapters (up to 10GbE)
Harmonized System (HS) code
85176990
Cabling technology
10GBase-T
Maximum data transfer rate
10000 Mbit/s
Ethernet LAN
Yes
Networking standards
IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad
Maximum operating distance
100 m
Cabling technology
10GBase-T
LAN controller
Intel® X550
Ethernet LAN data rates
100,1000,2500,5000,10000 Mbit/s
Maximum data transfer rate
10000 Mbit/s
Ethernet LAN connection
Y
Networking standards
IEEE 802.1Q,IEEE 802.1as,IEEE 802.1p,IEEE 802.3,IEEE 802.3ad
iSCSI support
Yes
Maximum operating distance
100 m
Ethernet interface type
5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
VLAN tagging
Yes
LAN controller
Intel® X550
Ethernet LAN data transfer rates
100,1000,2500,5000,10000 Mbit/s
iSCSI support
Y
Ethernet interface type
5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
VLAN tagging
Y
Data transfer rate
8 GT/s
Windows operating systems supported
Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Linux operating systems supported
Red Hat Enterprise Linux WS 5.0,Red Hat Enterprise Linux WS 6.0,SUSE Linux Enterprise Desktop 10,SUSE Linux Enterprise Desktop 11
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 55 °C
Storage relative humidity (H-H)
0 - 90%
Storage temperature range (T-T)
-40 - 70 °C
Operating temperature range (T-T)
0 - 55 °C
Storage relative humidity range
0 - 90%
Interface type
PCIe v3.0 (8.0 GT/s)
Cable type
RJ45 Category 6 up to 55m; Category 6A up to 100m
Processor family
500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE)
Controller type
Intel® Ethernet Controller X550
Interface type
PCIe v3.0 (8.0 GT/s)
Cable type
RJ45 Category 6 up to 55m; Category 6A up to 100m
Number of VLANs
4096
Cabling type
RJ45 Category 6 up to 55m; Category 6A up to 100m
Intel Virtual Machine Device Queues (VMDq)
Yes
PCI-SIG* SR-IOV Capable
Yes
On-chip QoS and Traffic Management
Yes
Intel Flexible Port Partitioning
Yes
Speed & slot width
8.0 GT/s, x4 Lane
Low halogen options available
No
Intelligent Offloads
Yes
iWARP/RDMA
No
Fiber Channel over Ethernet
Yes
Intel Data Direct I/O Technology
Yes
Intel Virtualization Technology for Connectivity (VT-c)
Yes
Processor family
500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE)
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Storage Over Ethernet
iSCSI, FCoE, NFS
Product type
Network Interface Card
Conflict-Free
Yes
Status
Launched
Launch date
Q1''16
Product brief URL
http://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x550-brief.html
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Data transfer rate
8 GT/s
Desktop Management Interface (DMI) version
2.0
Last change
64826838
Harmonized System (HS) code
85176990
Product family
Intel 10 Gigabit server adapter
Product series
500 Series Network Adapters (up to 10GbE)
Controller type
Intel® Ethernet Controller X550
Ethernet adapter ARK ID
88209
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G135872
Bracket height
Low-Profile (LP) / Full-Height (FH)
Number of VLANs
4096
Cabling type
RJ45 Category 6 up to 55m; Category 6A up to 100m
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
On-chip QoS and Traffic Management
Y
Intel Flexible Port Partitioning
Y
Speed & slot width
8.0 GT/s, x4 Lane
Low halogen options available
N
Intelligent Offloads
Y
iWARP/RDMA
N
Fiber Channel over Ethernet
Y
Intel Data Direct I/O Technology
Y
Intel Virtualization Technology for Connectivity (VT-c)
Y
Halogen free
N
Storage Over Ethernet
iSCSI, FCoE, NFS
Product type
Network Interface Card
Conflict Free
Y
Status
Launched
Bracket height
Low Profile and Full Height
Launch date
Q1''16
Product brief URL
http://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x550-brief.html
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Data transfer rate
8 GT/s
Desktop Management Interface (DMI) version
2.0
Last change
64826838
Harmonized System (HS) code
8517620090
Product family
Intel 10 Gigabit server adapter
Product series
500 Series Network Adapters (up to 10GbE)
Ethernet adapter ARK ID
88209
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G135872
Bracket height
Low-Profile (LP) / Full-Height (FH)
Number of VLANs
4096
Windows operating systems supported
Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Linux operating systems supported
Red Hat Enterprise Linux WS 5.0,Red Hat Enterprise Linux WS 6.0,SUSE Linux Enterprise Desktop 10,SUSE Linux Enterprise Desktop 11
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2008 R2 x64,Windows Server 2008 x64,Windows Server 2012 R2,Windows Server 2012 R2 x64
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
On-chip QoS and Traffic Management
Y
Intel Flexible Port Partitioning
Y
Speed & slot width
8.0 GT/s, x4 Lane
Intelligent Offloads
Y
iWARP/RDMA
N
Fiber Channel over Ethernet
Y
Intel Data Direct I/O Technology
Y
Desktop Management Interface (DMI) version
2.0
Ethernet adapter ARK ID
88209
Interface
Ethernet
Interface
Ethernet
Internal
Y
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
2
Host interface
PCI Express
Connectivity technology
Wired
PCI Card form factor
Half-height (low-profile)
PCI version
3.0
Ethernet LAN (RJ-45) ports quantity
2
Host interface
PCI Express
PCI Card form factor
Half-height (low-profile)
PCI version
3.0
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Windows operating systems supported
Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported
Red Hat Enterprise Linux WS 5.0, Red Hat Enterprise Linux WS 6.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise Desktop 11
Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Windows operating systems supported
Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Linux operating systems supported
Red Hat Enterprise Linux WS 5.0,Red Hat Enterprise Linux WS 6.0,SUSE Linux Enterprise Desktop 10,SUSE Linux Enterprise Desktop 11
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2008 R2 x64,Windows Server 2008 x64,Windows Server 2012 R2,Windows Server 2012 R2 x64
Colour of product
Green, Silver
Ethernet LAN data transfer rates
100,1000,2500,5000,10000 Mbit/s
Number of VLANs
4096
PCI Card form factor
Half-height (low-profile)
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
On-chip QoS and Traffic Management
Y
Intel Flexible Port Partitioning
Y
Intelligent Offloads
Y
iWARP/RDMA
N
Halogen free
N
Product type
Network Interface Card
Status
Launched
Bracket height
Low Profile and Full Height
Launch date
Q1''16
Product brief URL
http://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x550-brief.html
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Last change
64826838
Harmonized System (HS) code
8517620090
