Network Cards | INTEL X710-DA2 Bulk | X710DA4FHBLK | ServersPlus
INTEL X710DA4FHBLK | serversplus.com

Illustration purposes only

INTEL X710-DA2 Bulk

INTEL Logo here

Manufacturer Part Code: X710DA4FHBLK

Order Code: NPINT-X710DA4FHB

Category: Network Cards

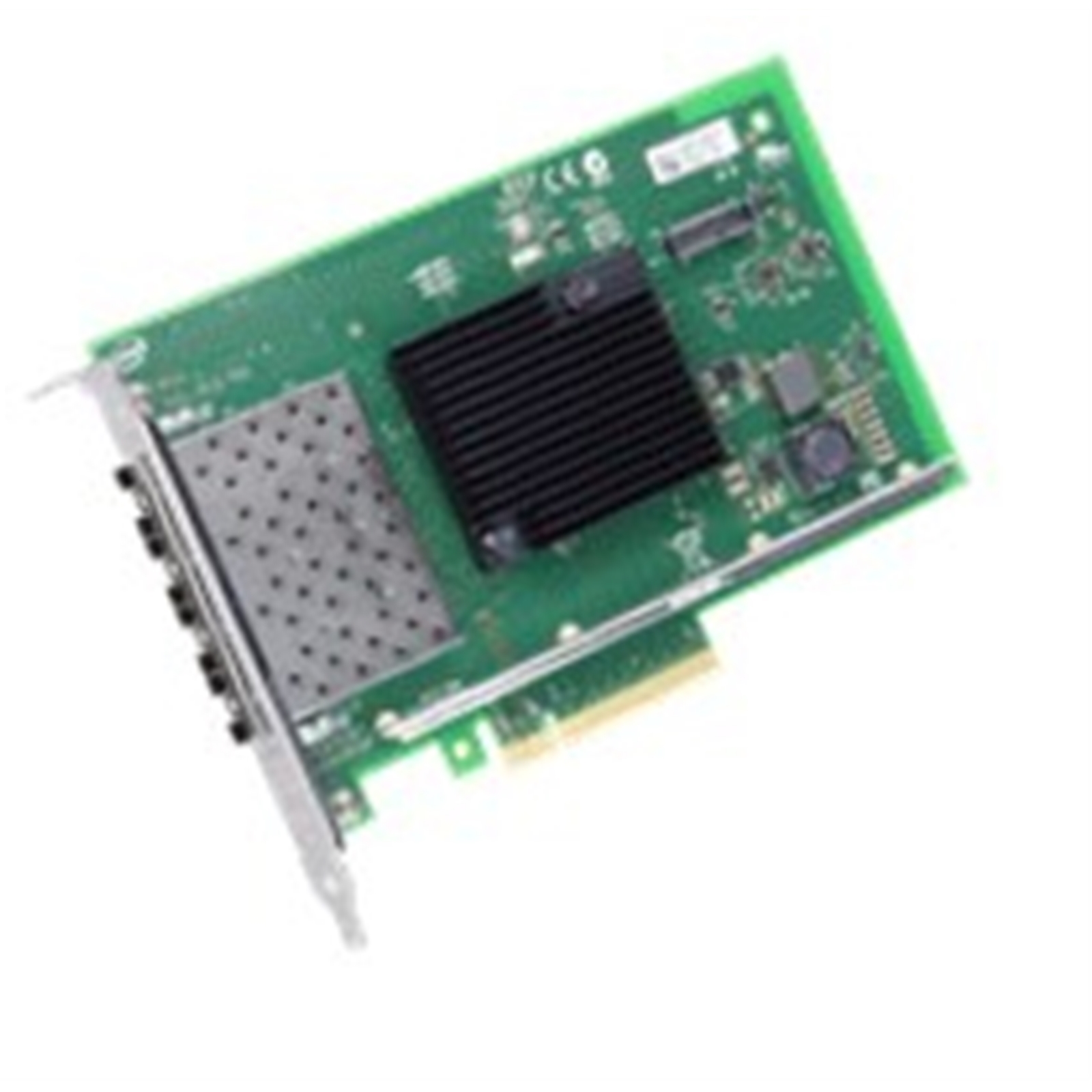

Intel Ethernet Converged Network Adapter X710-DA4 - Network adapter - PCIe 3.0 x8 - 10 Gigabit SFP+ x 4

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Quality of Service (QoS) support
Y
Data transfer rate (max)
10000 Mbit/s
Data transfer rate
8 GT/s
Certification
FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
Internal
Yes
Certification
FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
Internal
Y
LED indicators
Yes
Product colour
Black, Green, Stainless steel
Certification
FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
LED indicators
Y
Colour of product
Black, Green, Stainless steel
Product family
Intel 10 Gigabit server adapter
Product series
700 Series Network Adapters (up to 40GbE)
Product codename
Fortville
LED indicators
Y
Harmonized System (HS) code
85176990
Maximum data transfer rate
10000 Mbit/s
Maximum operating distance
10 m
Cabling technology
10/100/1000BaseT(X)
LAN controller
Intel® XL710-BM1
Quality of Service (QoS) support
Yes
Ethernet LAN data rates
10,1000 Mbit/s
Maximum data transfer rate
10000 Mbit/s
Ethernet LAN connection
Y
Maximum operating distance
10 m
Fiber ethernet cabling technology
10GBASE-LR, 10GBASE-SR
LAN controller
Intel® X710
Quality of Service (QoS) support
Y
Ethernet LAN data transfer rates
10,1000 Mbit/s
Fiber ethernet cabling technology
10GBASE-LR,10GBASE-SR
Data transfer rate
8 GT/s
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 55 °C
Operating relative humidity range
0 - 90%
Storage temperature range (T-T)
-40 - 70 °C
Operating temperature range (T-T)
0 - 55 °C
Interface type
PCIe v3.0 (8.0 GT/s)
Cable type
SFP+ Direct Attached Twin Axial Cabling up to 10m
Processor family
700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Controller type
Intel® Ethernet Controller X710
Interface type
PCIe v3.0 (8.0 GT/s)
Cable type
SFP+ Direct Attached Twin Axial Cabling up to 10m
Cabling type
SFP+ Direct Attached Twin Axial Cabling up to 10m
Intel Virtual Machine Device Queues (VMDq)
Yes
PCI-SIG* SR-IOV Capable
Yes
On-chip QoS and Traffic Management
Yes
Intel Flexible Port Partitioning
Yes
Storage-over-ethernet
Yes
Speed & slot width
8.0 GT/s, x8 Lane
Low halogen options available
No
Intelligent Offloads
Yes
iWARP/RDMA
No
Fiber Channel over Ethernet
No
Intel Ethernet Power Management
Yes
Intel Data Direct I/O Technology
Yes
Intel Virtualization Technology for Connectivity (VT-c)
Yes
Processor family
700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Storage Over Ethernet
iSCSI NFS
Product type
Network Interface Card
Conflict-Free
Yes
Quantity per pack
1 pc(s)
Status
Launched
Launch date
Q4''14
Product brief URL
https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x710-brief.html
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Data transfer rate
8 GT/s
Last change
64826826
Harmonized System (HS) code
85176990
Product family
Intel 10 Gigabit server adapter
Product series
700 Series Network Adapters (up to 40GbE)
Product codename
Fortville
Target market
Artificial Intelligence, High Performance Computing
Controller type
Intel® Ethernet Controller X710
Ethernet adapter ARK ID
83965
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Bracket height
Full-Height (FH)
Cabling type
SFP+ Direct Attached Twin Axial Cabling up to 10m
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
On-chip QoS and Traffic Management
Y
Intel Flexible Port Partitioning
Y
Storage-over-ethernet
Y
Speed & slot width
8.0 GT/s, x8 Lane
Low halogen options available
N
Intelligent Offloads
Y
iWARP/RDMA
N
Fiber Channel over Ethernet
N
Intel Ethernet Power Management
Y
Intel Data Direct I/O Technology
Y
Intel Virtualization Technology for Connectivity (VT-c)
Y
Halogen free
N
Storage Over Ethernet
iSCSI NFS
Product type
Network Interface Card
Conflict Free
Y
Status
Launched
Bracket height
Full Height
Launch date
Q4''14
Product brief URL
https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x710-brief.html
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Data transfer rate
8 GT/s
Last change
64826826
Harmonized System (HS) code
8517620090
Product family
Intel 10 Gigabit server adapter
Product series
700 Series Network Adapters (up to 40GbE)
Product codename
Fortville
Target market
Artificial Intelligence, High Performance Computing
Ethernet adapter ARK ID
83965
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Bracket height
Full-Height (FH)
Quantity
1
Number of products included
1 pc(s)
Quantity
1
Quantity
1
Quantity per pack
1 pc(s)
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
On-chip QoS and Traffic Management
Y
Intel Flexible Port Partitioning
Y
Storage-over-ethernet
Y
Speed & slot width
8.0 GT/s, x8 Lane
Intelligent Offloads
Y
iWARP/RDMA
N
Fiber Channel over Ethernet
N
Intel Ethernet Power Management
Y
Intel Data Direct I/O Technology
Y
Ethernet adapter ARK ID
83965
Interface
Fiber
Interface
Fiber
Internal
Y
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
4
Host interface
PCI Express
Connectivity technology
Wired
Fiber ports quantity
4
Fiber optic connector
SFP+
PCI version
3.0
Ethernet LAN (RJ-45) ports quantity
4
Host interface
PCI Express
Fiber ports quantity
4
Fiber optic connector
SFP+
PCI version
3.0
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Colour of product
Black, Green, Stainless steel
Ethernet LAN data transfer rates
10,1000 Mbit/s
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
On-chip QoS and Traffic Management
Y
Intel Flexible Port Partitioning
Y
Intelligent Offloads
Y
iWARP/RDMA
N
Intel Ethernet Power Management
Y
Halogen free
N
Product type
Network Interface Card
Status
Launched
Bracket height
Full Height
Launch date
Q4''14
Product brief URL
https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x710-brief.html
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Last change
64826826
Harmonized System (HS) code
8517620090
Width
167 mm
Depth
111 mm
Width
167 mm
Depth
111 mm
