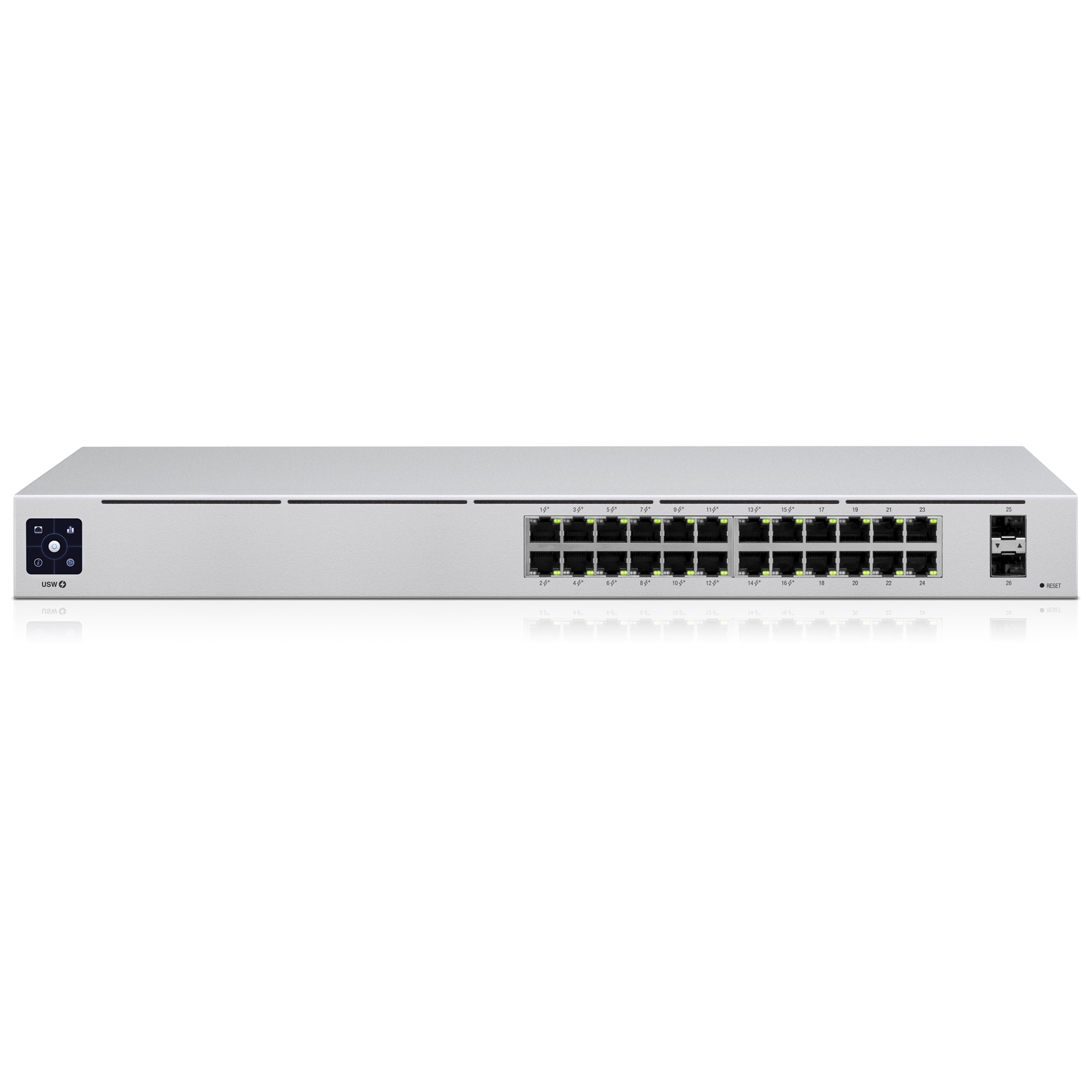

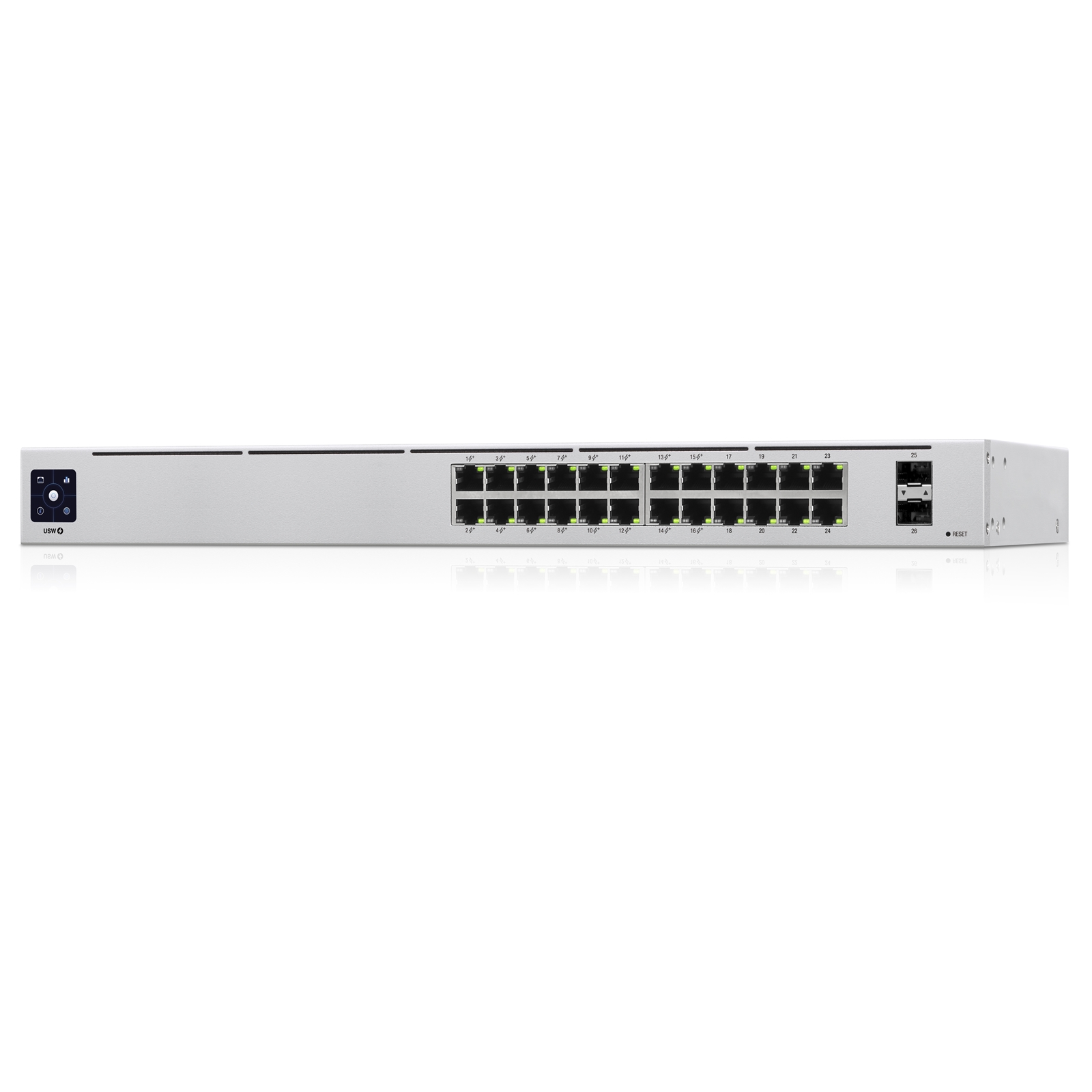

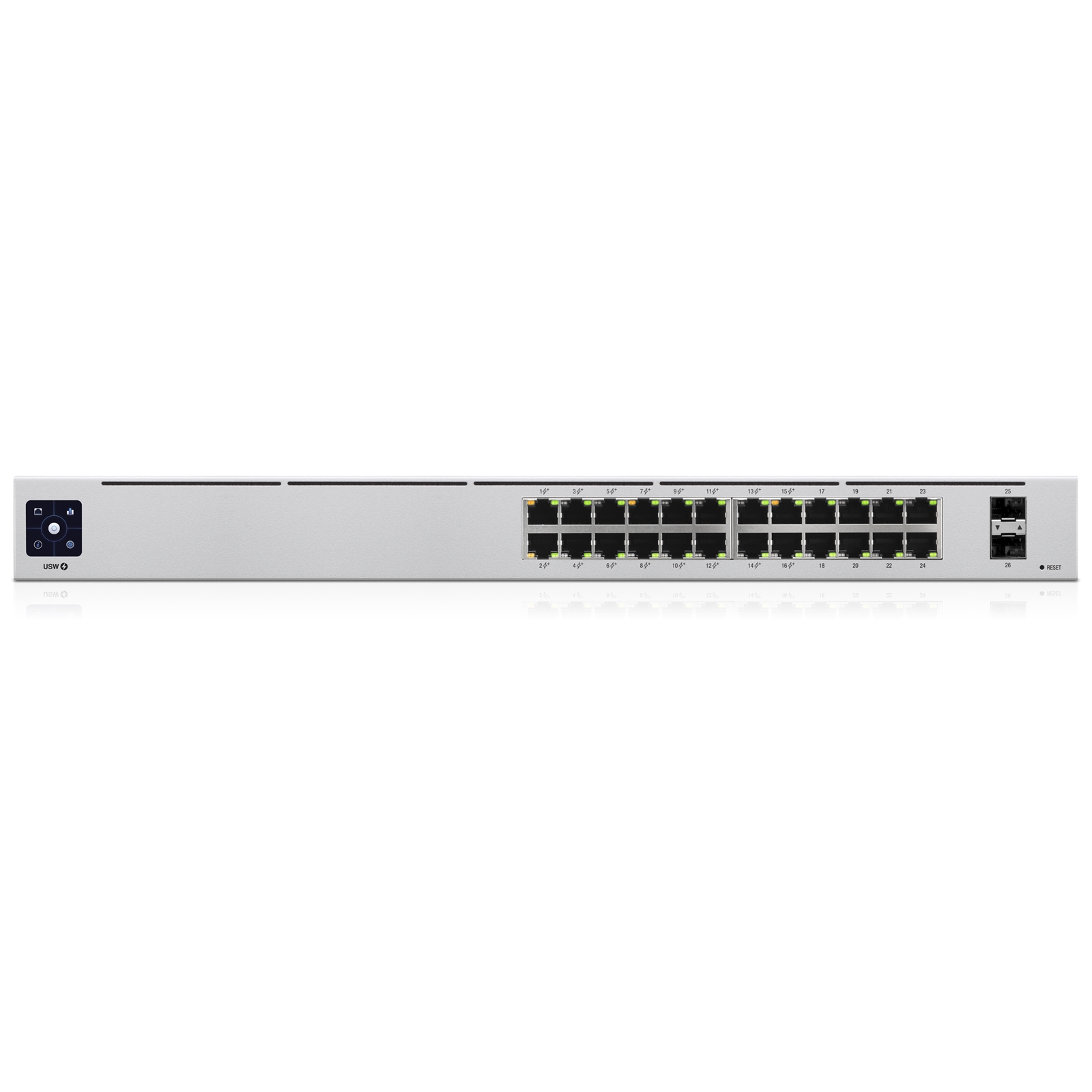

Ubiquiti USW-24-POE UniFi Gen2 24 Port Gigabit Network Switch with 16 PoE+ Ports

Ubiquiti Logo here

Manufacturer Part Code: USW-24-POE

Order Code: NPUBI-USW24POE

Category: Switch Finder

Ubiquiti USW-24-POE UniFi Gen2 24 Port Gigabit Network Switch with 16 PoE+ Ports

Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3 switching capabilities.


Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

Synchronized LCM Displays
Touch one to wake up all the screens and view a rich set of information.
System Information
Errors
Warnings
Port Statistics
PoE Power
Throughput
And a lot more..

Specifications

Power Budget
95W PoE

RJ45 Ports
(24) 10/100/1000 RJ45 Ports

PoE+ Ports
(1-16) IEEE 802.3af/at

PoE++
No

SFP
(2) 1G SFP Ethernet Ports

SFP+
No

LCM
Yes

USP-RPS Power Redundancy
No

Dimensions
442.4 x 200 x 43.7 mm


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Essential Extras and Accessories

Technical Information

Switching capacity
52 Gbit/s
Jumbo frames support
Y
Forwarding rate
38.69 Mpps
Throughput
26000 Mpps
Static route
Y
Certification
CE, FCC, IC
Rack mounting
Y
Form factor
1U
LED indicators
Activity, Link, PoE, Speed, System
Product colour
Silver
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
DC input voltage
44 - 57 V
Power supply included
Y
Harmonized System (HS) code
85176990
Switch layer
L2/L3
Switch type
Managed
Full duplex
Y
Networking standards
IEEE 802.3af, IEEE 802.3at
Flow control support
Y
Port mirroring
Y
Auto MDI/MDI-X
Y
Spanning tree protocol
Y
VLAN support
Y
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-5 - 40 °C
Harmonized System (HS) code
85176990
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
SFP module slots quantity
2
Power over Ethernet (PoE)
Y
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
92 W
Power over Ethernet (PoE) power per port
32 W
Authentication type
IEEE 802.1x, RADIUS
Weight
3 kg
Height
43.7 mm
Width
442.4 mm
Depth
200 mm
