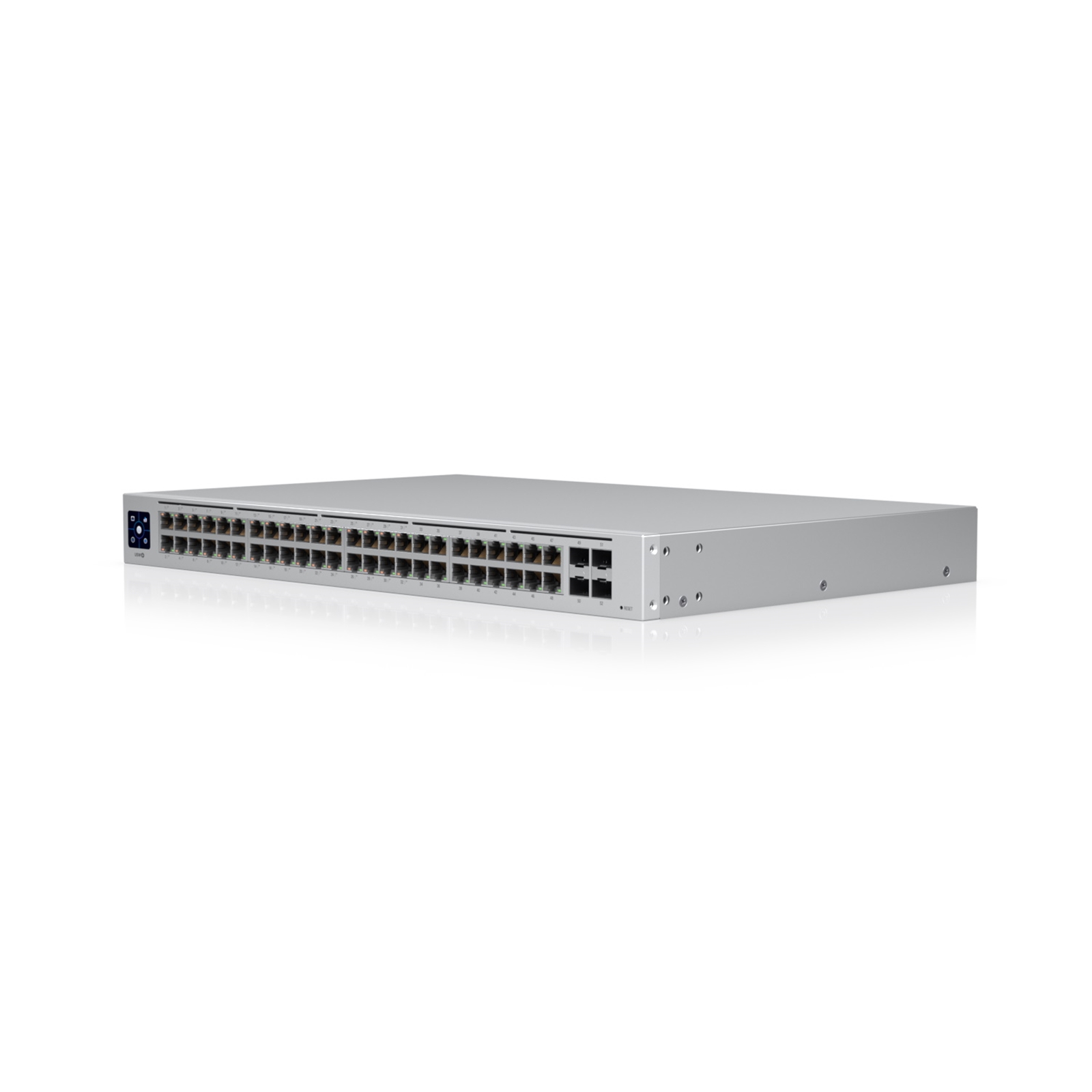

Ubiquiti USW-48-POE UniFi Gen2 48 Port PoE Gigabit Network Switch

Ubiquiti Logo here

Manufacturer Part Code: USW-48-POE

Order Code: NPUBI-USW48POE

Category: Switch Finder

Ubiquiti USW-48-POE UniFi Gen2 48 Port PoE Gigabit Network Switch

Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
* Available in a future software release

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

Synchronized LCM Displays
Touch one to wake up all the screens and view a rich set of information.
System Information
Errors
Warnings
Port Statistics
PoE Power
Throughput
And a lot more..

Specifications

Power Budget
195W PoE

RJ45 Ports
(48) 10/100/1000 RJ45 Ports

PoE+ Ports
(1-32) IEEE 802.3af/at

PoE++
No

SFP
(4) 1G SFP Ethernet Ports

SFP+
No

LCM
Yes

USP-RPS Power Redundancy
No

Dimensions
442.4 x 285 x 43.7 mm


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Essential Extras and Accessories

Technical Information

Switching capacity
104 Gbit/s
Jumbo frames support
Yes
Forwarding rate
77.38 Mpps
Throughput
52 Gbit/s
Certification
CE, FCC, IC
Rack mounting
Yes
Form factor
1U
LED indicators
Activity, Link, Speed
Product colour
Stainless steel
Power source
AC/DC
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
45 W
Power supply included
Yes
Switch layer
L2
Switch type
Managed
Networking standards
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Flow control support
Yes
Port mirroring
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
VLAN support
Yes
10G support
No
Auto-sensing
Yes
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-5 - 40 °C
Manual
Yes
Fanless
Yes
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48
SFP module slots quantity
4
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
32
Total Power over Ethernet (PoE) budget
195 W
Power over Ethernet (PoE) power per port
32 W
Authentication type
RADIUS
Weight
4.52 kg
Height
43.7 mm
Width
442.4 mm
Depth
285 mm
