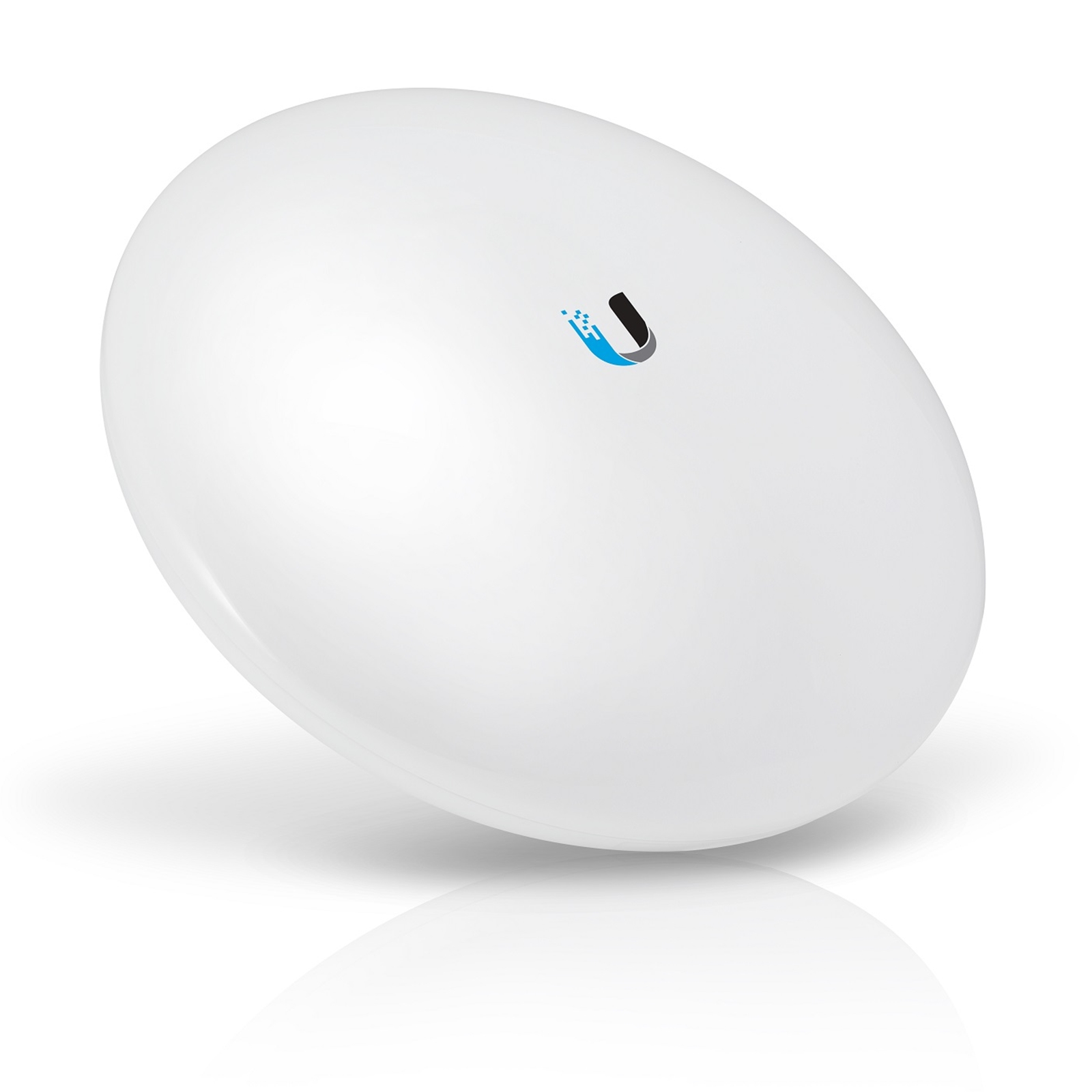

Ubiquiti NanoBeam 2AC

Ubiquiti Logo here

Manufacturer Part Code: NBE-2AC-13

Order Code: NPUBI-NBE2AC13

Category: Ubiquiti AirMax

Ubiquiti NanoBeam 2AC WLAN access point Power over Ethernet (PoE) White

Ubiquiti launches the latest generation of airMAX CPE (Customer Premises Equipment), the NanoBeam® 2AC with dedicated Wi-Fi management.

Improved Noise Immunity
The NanoBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This
feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design
The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 2AC gets maximum gain out of the smallest footprint.

Providing high performance and an innovative form factor, the NanoBeam 2AC is versatile and cost-effective to deploy.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna gain level (max)
13 dBi
Certification
RoHS, CE, FCC, IC
Internal
N
Certification
RoHS, CE, FCC, IC
LED indicators
LAN, Power, Signal strength
Product colour
White
Housing material
Plastic
Placement
Pole
Output voltage
24 V
Power over Ethernet (PoE)
Y
Output current
0.5 A
Power consumption (max)
7.5 W
Frequency band
2.412 - 2.472 GHz
Ethernet LAN data rates
10,100,1000 Mbit/s
2.4 GHz
Y
5 GHz
N
Harmonized System (HS) code
85176990
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 70 °C
Mounting kit
Y
PoE adapter included
Y
Mounting kit
Y
PoE adapter included
Y
Internal memory
64 MB
Operating system installed
AirOS
Built-in processor
Y
WAN connection
Wi-Fi
Ethernet LAN (RJ-45) ports
1
Harmonized System (HS) code
85176990
Weight
530 g
Height
189 mm
Width
189 mm
Depth
125 mm
