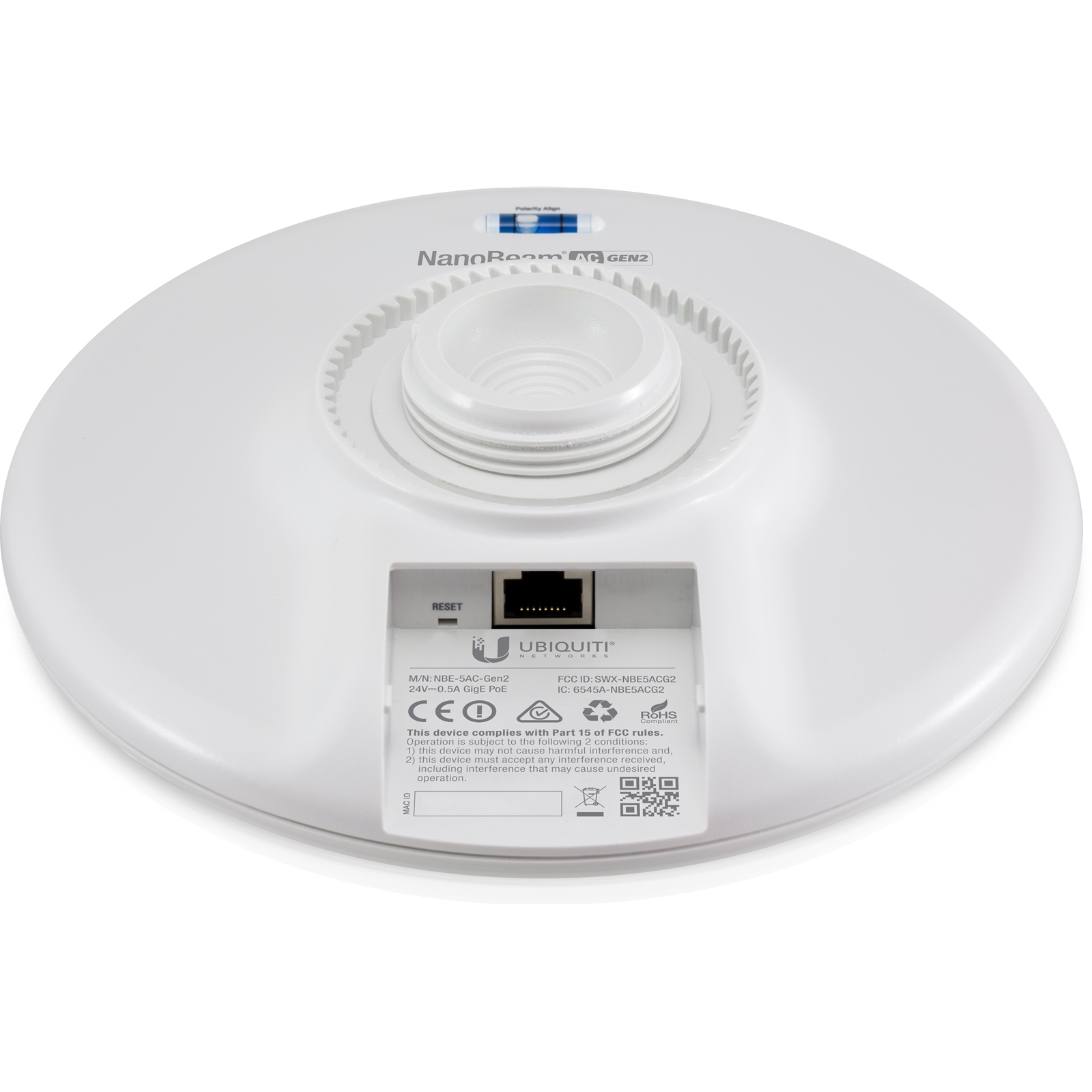

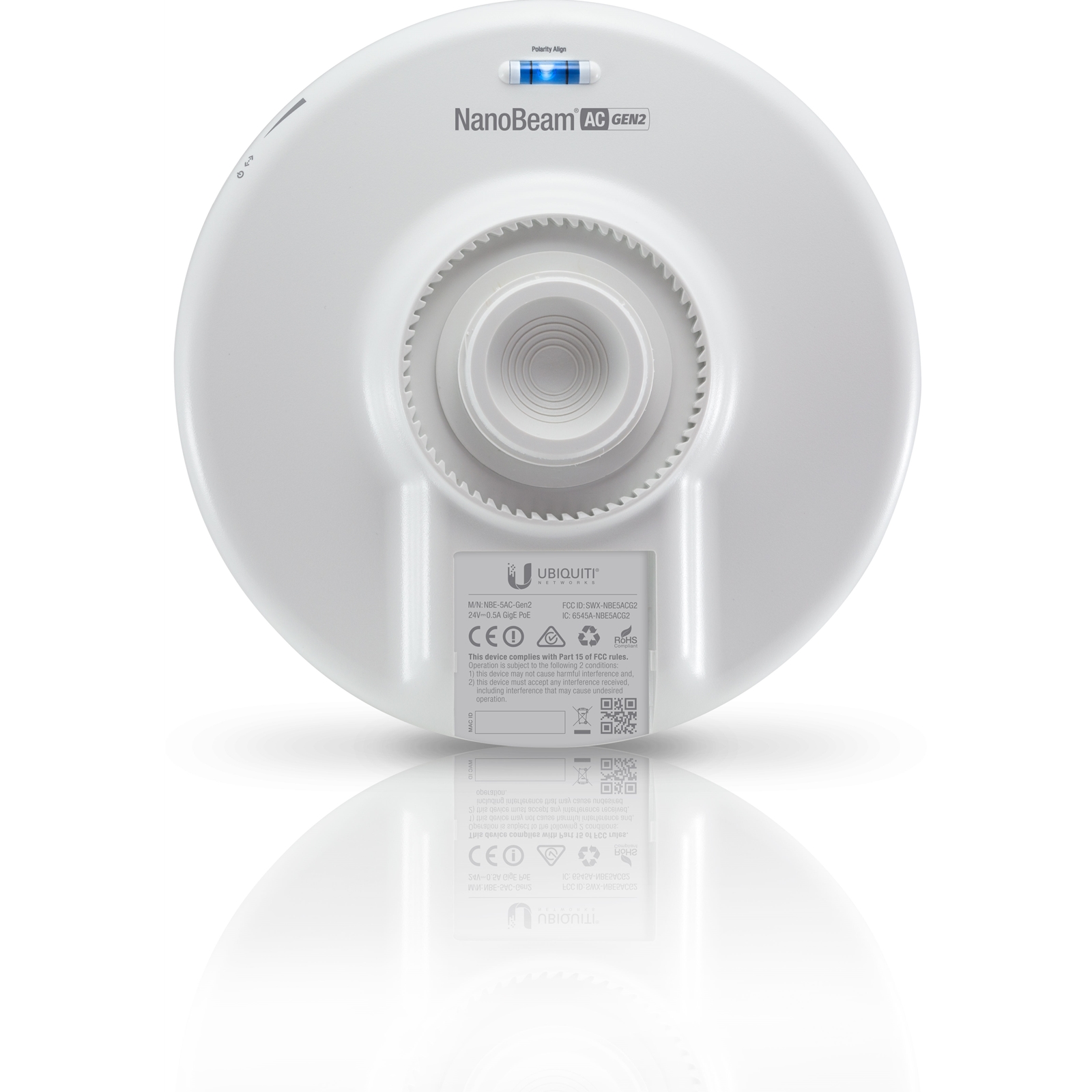

Ubiquiti NBE-5AC-GEN2 NanoBeam 5AC Gen 2 High Performance airMAX Outdoor Wireless AC CPE Bridge

Ubiquiti Logo here

Manufacturer Part Code: NBE-5AC-GEN2

Order Code: NPUBI-NBE5ACGEN2

Category: Ubiquiti AirMax

Ubiquiti NBE-5AC-GEN2 NanoBeam 5AC Gen 2 High Performance airMAX Outdoor Wireless AC CPE Bridge

Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

Management Wi-Fi Radio
The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoBeam® AC features enhanced protection against ESD events.

Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna ?Beam? Performance
The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC's excellent beam directivity provides the best performance in high-noise environments.

Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Advanced Software Technology
Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Installation

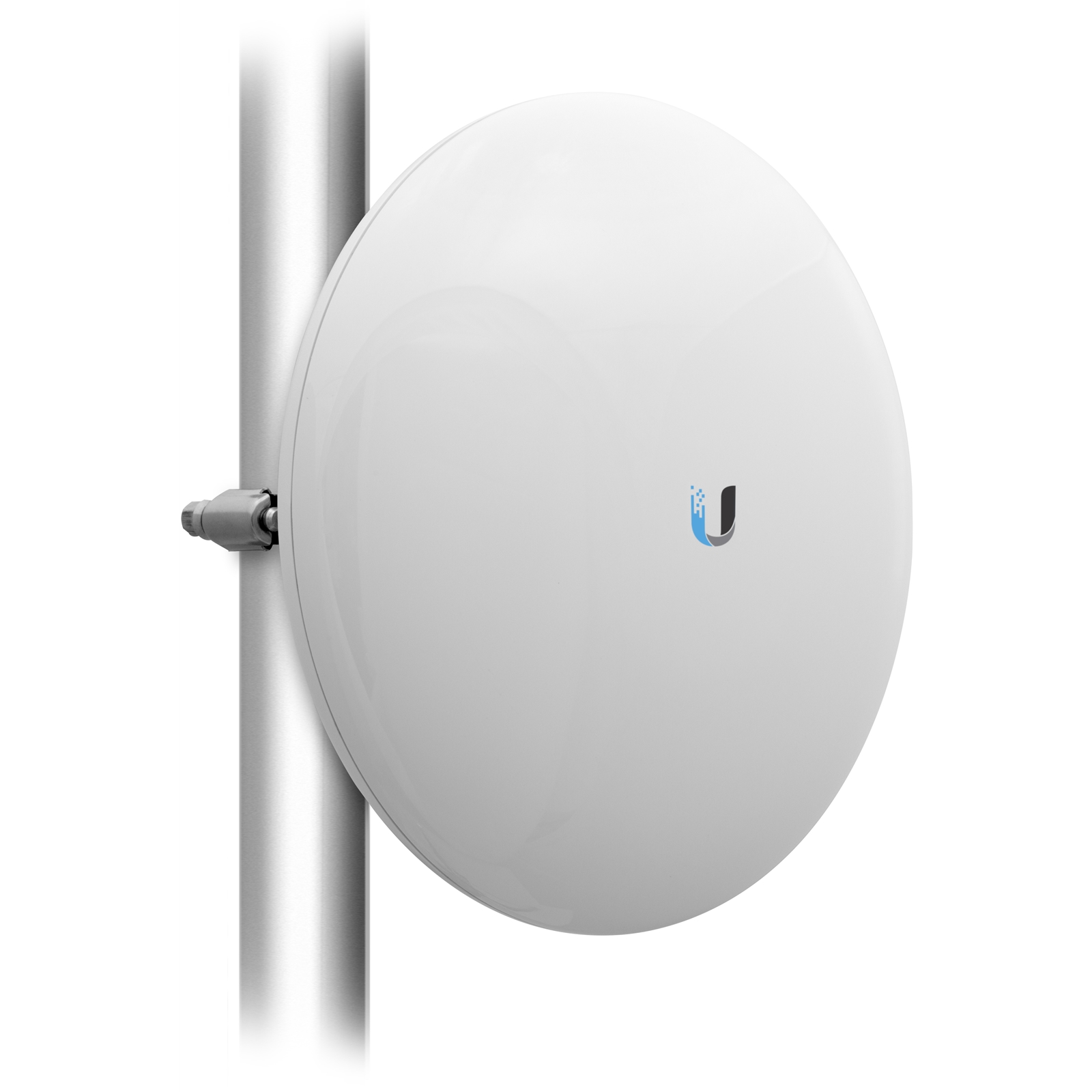

The NanoBeam® AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna gain level (max)
19 dBi
Certification
CE, FCC, IC, RoHS
Compliance certificates
CE, RoHS
Maximum data transfer rate
450 Mbit/s
Maximum transfer distance
15000 m
Power over Ethernet (PoE)
Yes
DC output current
0.5 A
Power source type
PoE
Power consumption (max)
8.5 W
DC output voltage
24 V
Processor frequency
720 MHz
Internal memory
128 MB
Processor model
MIPS 74Kc
Material
Plastic
LED indicators
LAN, Power, Signal strength
Product colour
White
Processor family
Atheros
Reset button
Yes
Mounting type
Pole/Wall
Surge protection
Yes
RAM type
DDR2
Product type
Network bridge
Harmonized System (HS) code
85176990
Web-based management
Yes
Flash memory
8 MB
RAM capacity
128 MB
RAM type
DDR2
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN interface type
Gigabit Ethernet
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 80 °C
Operating temperature (T-T)
-40 - 176 °F
Cables included
AC
Mounting bracket(s) included
Yes
PoE+ Injector(s)
Yes
Quantity per pack
1 pc(s)
Ethernet LAN (RJ-45) ports
2
Processor frequency
720 MHz
Processor model
MIPS 74Kc
Processor family
Atheros
Security algorithms
WPA2
Harmonized System (HS) code
85176990
Sustainability certificates
CE, RoHS
Compliance certificates
CE, RoHS
Weight
530 g
Height
125 mm
Width
189 mm
Depth
189 mm
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Frequency band
5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz
Wi-Fi
Yes
