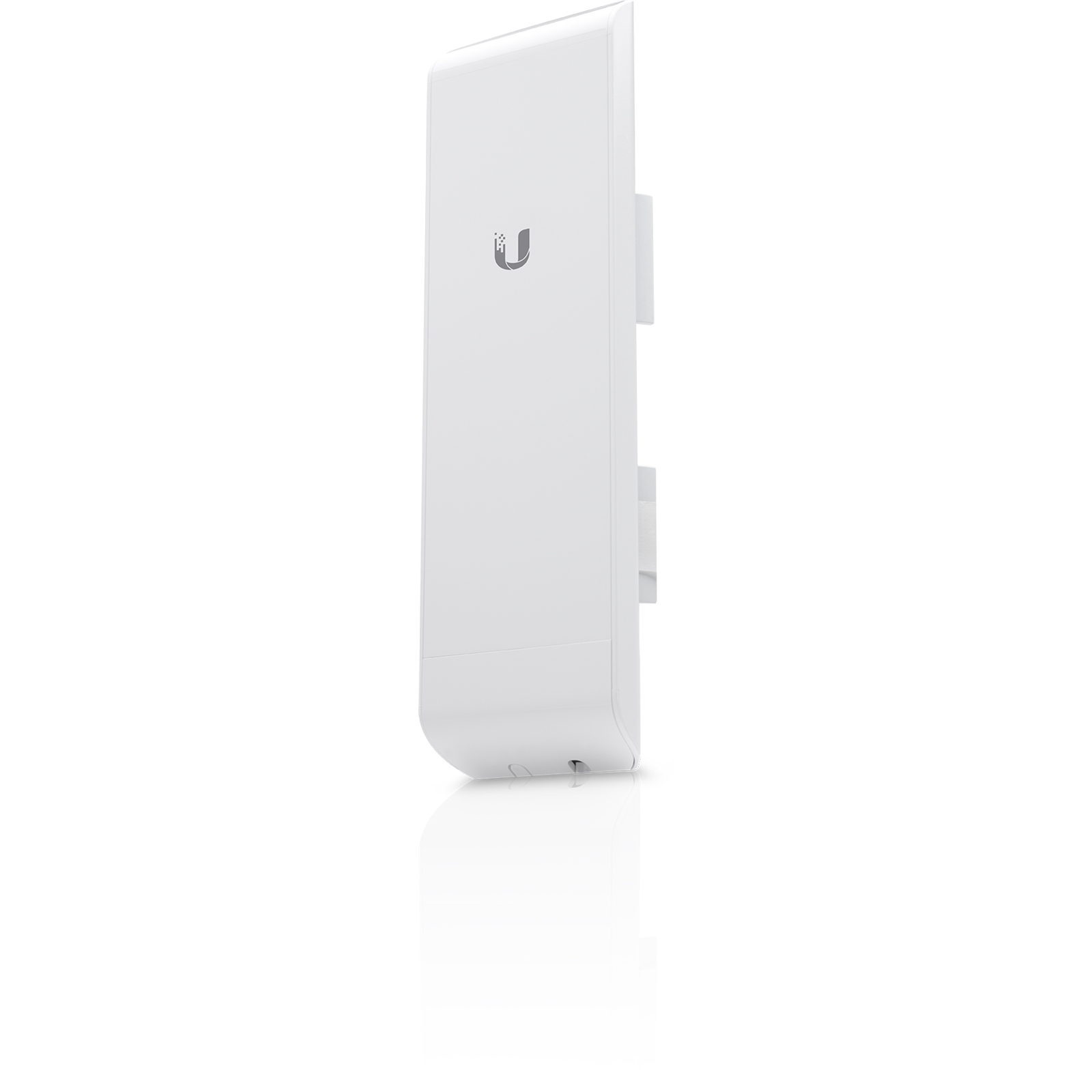

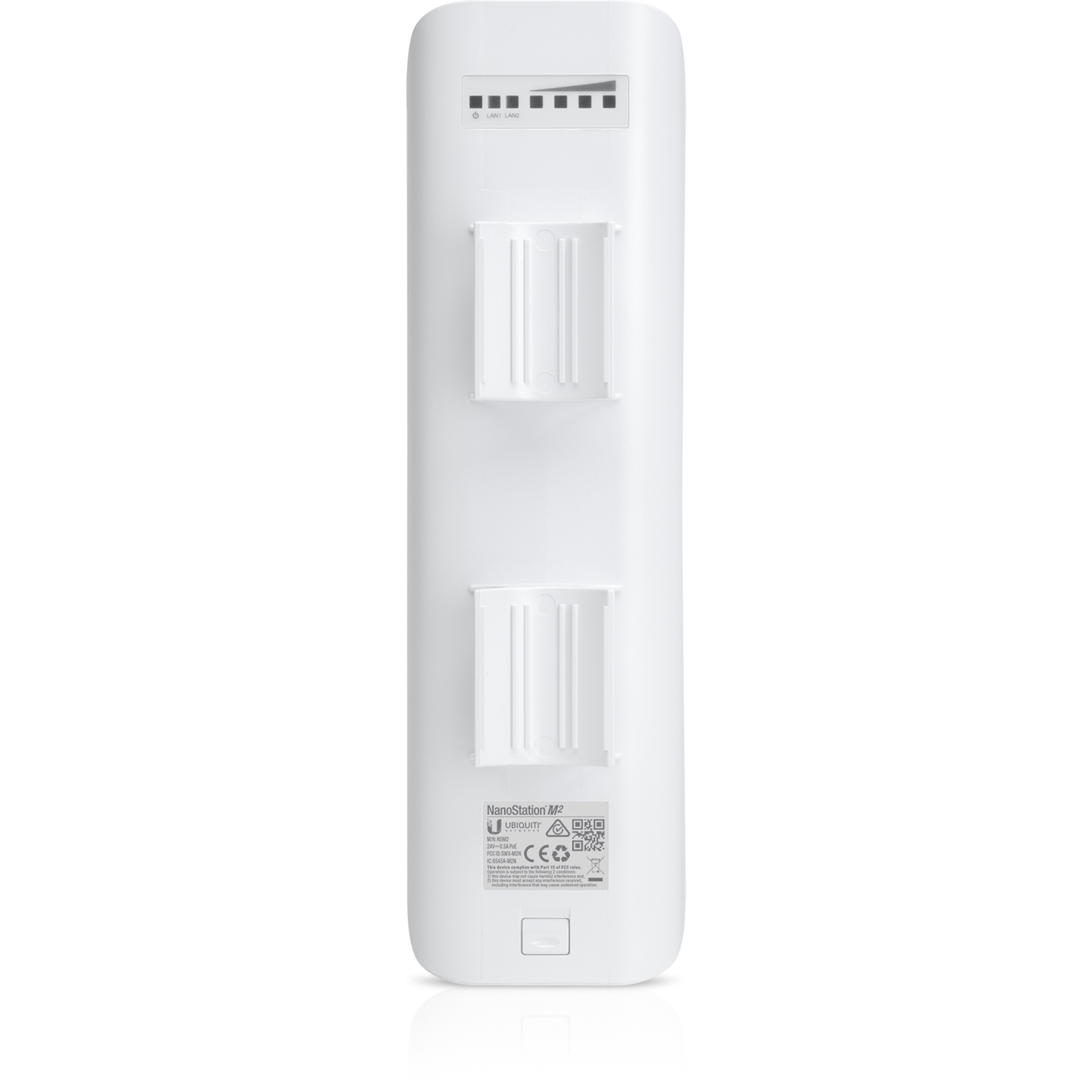

UBIQUITI NSM5 NanoStation M5 5GHz 16dBi airMAX Outdoor Wireless AC CPE Bridge

UBIQUITI Logo here

Manufacturer Part Code: NSM5

Order Code: NPUBI-NSM5

Category: Ubiquiti AirMax

Ubiquiti NSM5 NanoStation M5 5GHz 16dBi airMAX Outdoor Wireless AC CPE Bridge

Indoor/Outdoor airMAX� CPE

Featuring a panel antenna and dual-polarity performance, the NanoStation�M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

Compact CPE Design
The NanoStation�M features the CPE design that expanded the global Wireless ISP industry.

Plug and Play Installation
The NanoStation�M requires no tools for assembly; only a single wrench is required for pole-mounting.

Versatile Application Use
The NanoStation�M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX� CPE.

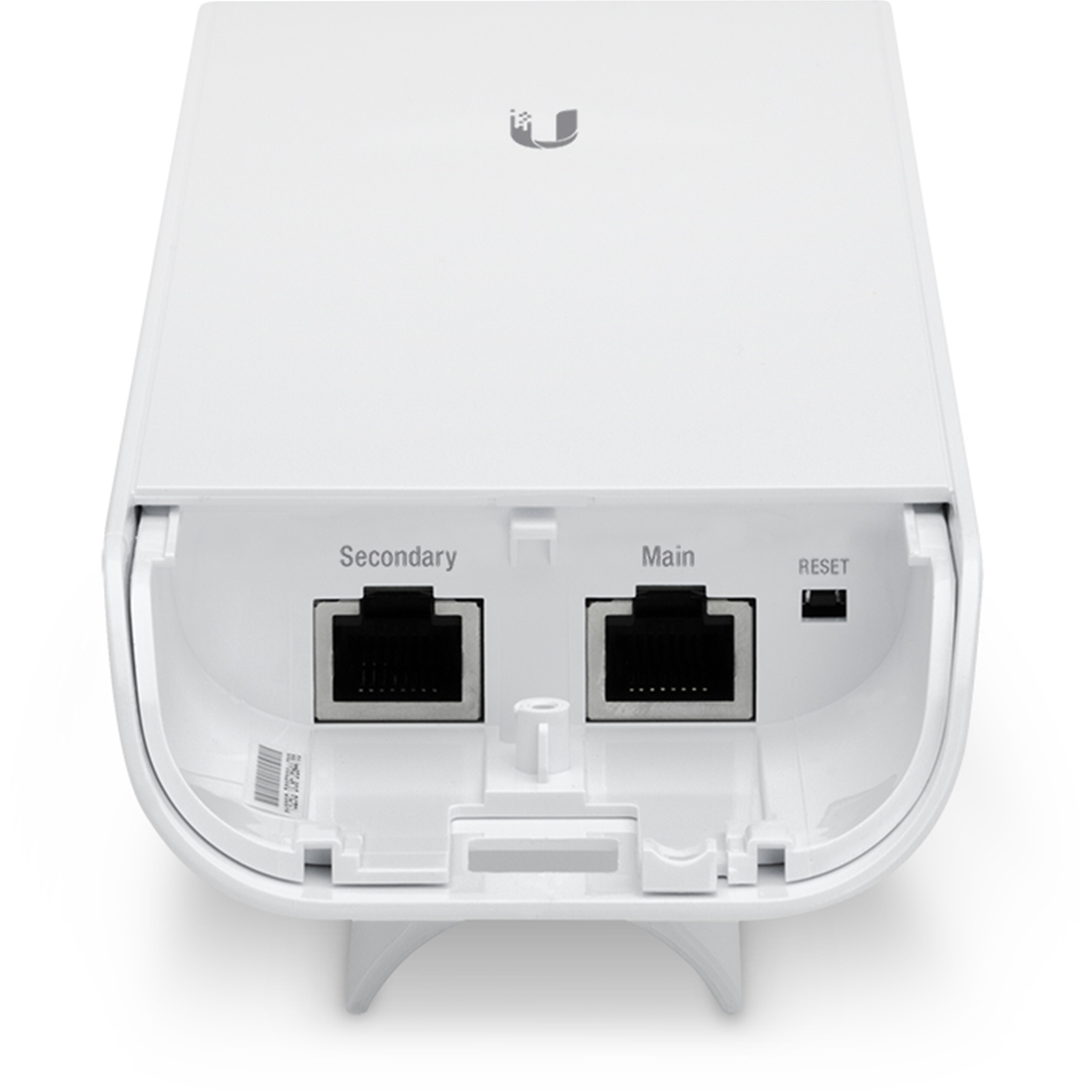

Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

Powerful airOS� Features
Ubiquiti�s versatile airOS� firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.

Advanced Software Technology
Ubiquiti�s airMAX� technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Window/Wall Mounting Kit
Use the optional NanoStation� Mount to quickly mount the NanoStationM on a window or wall. 180� vertical or horizontal adjustment allows for custom positioning.

Wall/Pole Mounting Kit
The optional Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation�M. 90� tilt adjustment allows for easy positioning.

Specifications

Model: NSM5
Frequency: 5 GHz
Throughput: 150+ Mbps
Range 15+ KM


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna gain level (max)
16 dBi
Certification
FCC, CE, RoHS
Data transfer rate (max)
150 Mbit/s
Ethernet LAN data transfer rates
10,100 Mbit/s
Internal
N
Certification
FCC, CE, RoHS
LED indicators
Y
Colour of product
White
Power consumption (typical)
8 W
Input voltage
24
Power over Ethernet (PoE) Support
Y
Input current
1
Internal memory
64 MB
Flash memory
8 MB
Maximum data transfer rate
150 Mbit/s
Frequency band
4.9 - 5.9
Networking standards
IEEE 802.3u
Ethernet LAN data rates
10,100 Mbit/s
Built-in processor
Atheros MIPS 24KC
5 GHz
Y
LED indicators
Y
Internal memory
64 MB
Flash memory
8 MB
Internal
N
Networking standards
IEEE 802.3u
Operating relative humidity range
5 - 95%
Operating temperature range (T-T)
-30 - 80 °C
Maximum operating distance
15000 m
Internal memory
64 MB
Certification
FCC, CE, RoHS
Flash memory
8 MB
Data transfer rate (max)
150 Mbit/s
Frequency band
4.9 - 5.9
Networking standards
IEEE 802.3u
Ethernet LAN data rates
10,100 Mbit/s
Built-in processor
Atheros MIPS 24KC
5 GHz
Y
Ethernet LAN (RJ-45) ports quantity
2
Height
29.4 cm
Height
294 mm
Input voltage
24
Input current
1
Weight
400 g
Height
29.4 cm
Height
294 mm
Width
80 mm
Depth
3.1 cm
Depth
31 mm
Frequency band
4.9 - 5.9
Antenna gain level (max)
16 dBi
Maximum operating distance
15000 m
