Illustration purposes only

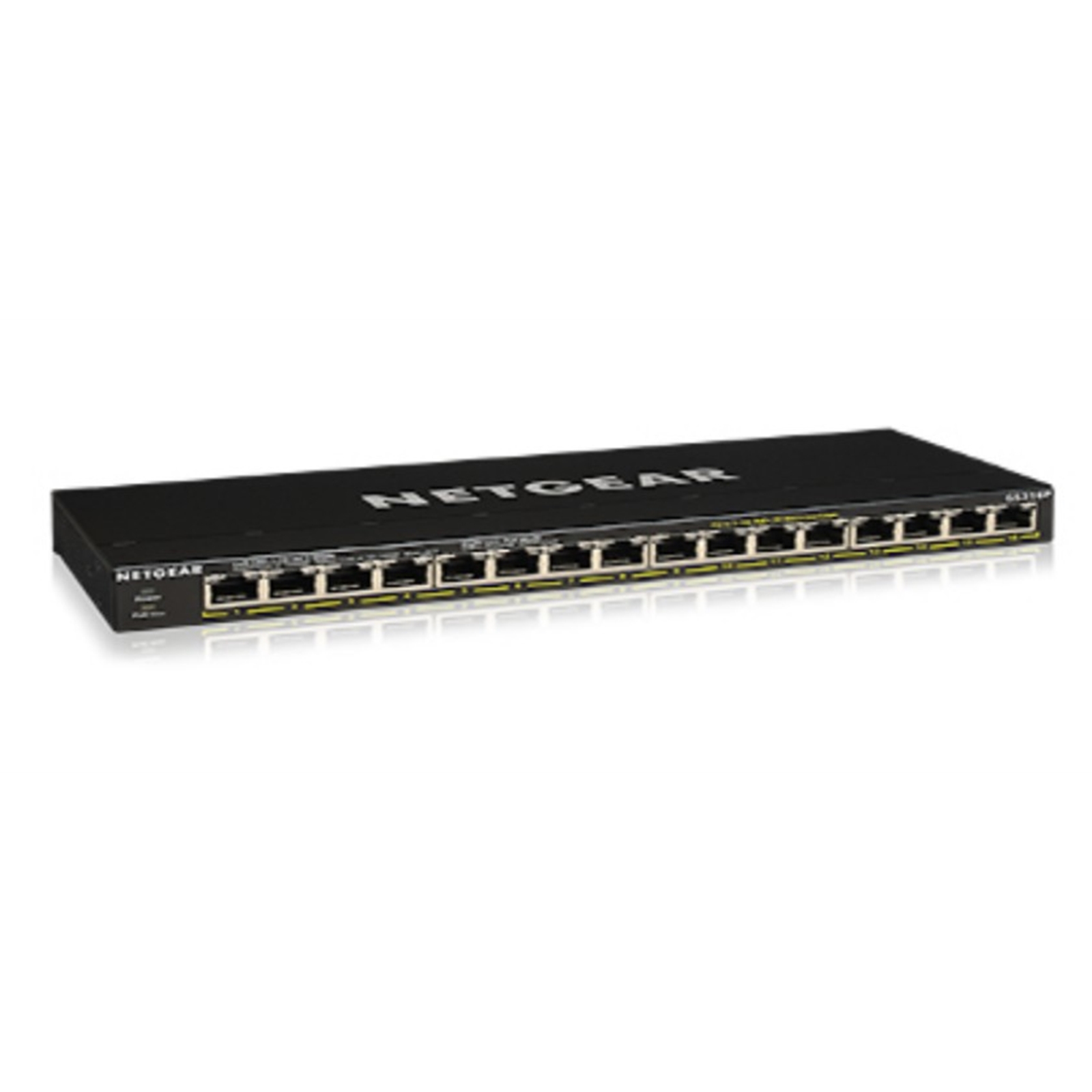

NETGEAR GS316P Unmanaged PoE+ Switch

NETGEAR Logo here

Manufacturer Part Code: GS316P-100EUS

Order Code: NPNET-GS316P100E

Category: Unmanaged Switches

NETGEAR GS316P - Switch - unmanaged - 16 x 10/100/1000 (PoE+) - desktop wall-mountable - PoE+ (115 W)

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR's unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
4000 entries
Switching capacity
32 Gbit/s
Jumbo frames support
Yes
Packet buffer memory
1 MB
Latency (1 Gbps)
3.7 µs
Packet forwarding rate (1 Gbps)
1448000 pps
Jumbo frames
9216
Rack mounting
No
LED indicators
Yes
Wall mountable
Yes
Product colour
Black
Housing material
Metal
Input current
2.4 A
DC input voltage
54 V
Power consumption (max)
127.9 W
Harmonized System (HS) code
85176990
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Full duplex
Yes
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Heat dissipation
437.42 BTU/h
Mean time between failures (MTBF)
2362192 h
Harmonized System (HS) code
85176990
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
16
Power connector
DC-in jack
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Weight
880 g
Height
27 mm
Width
286 mm
Depth
102 mm
