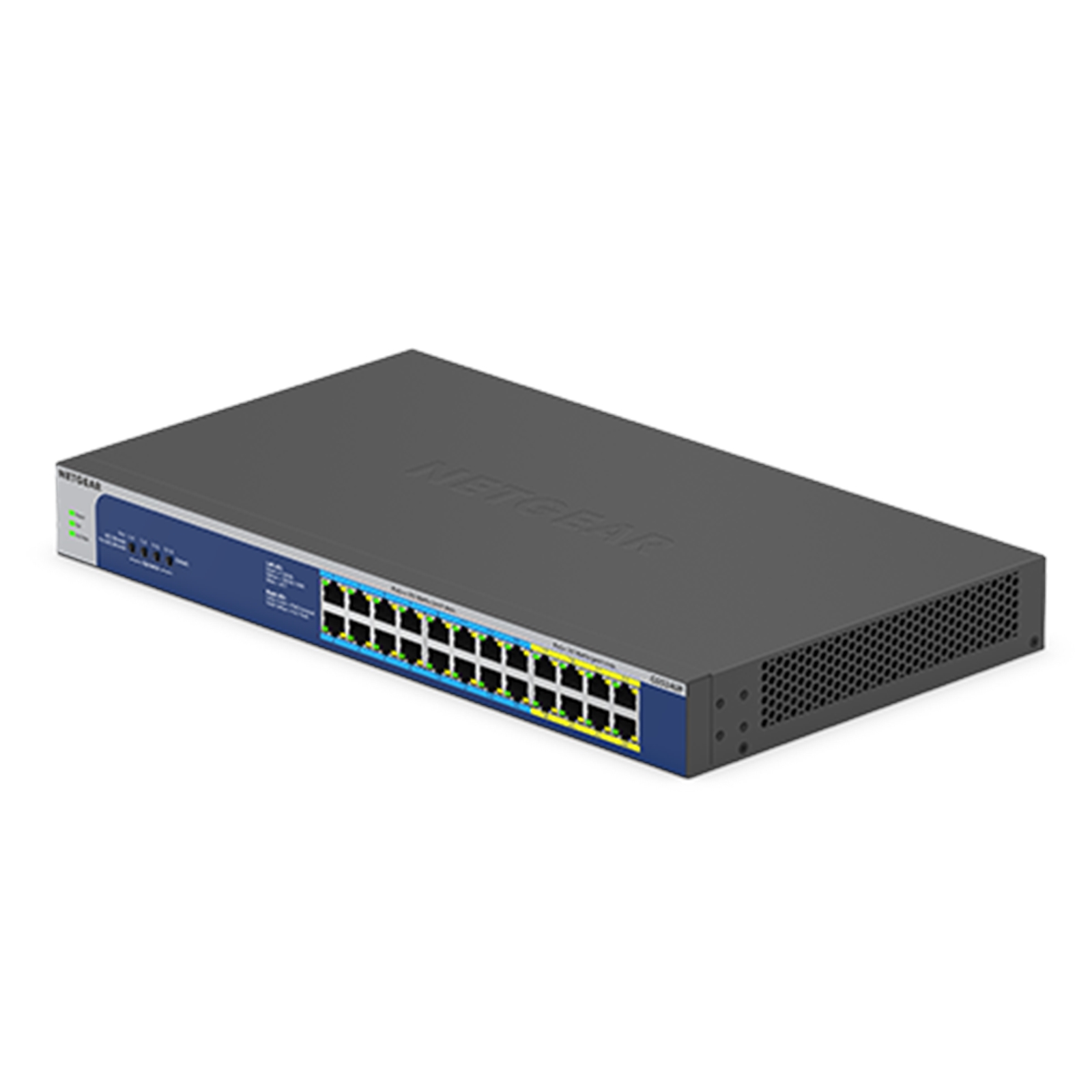

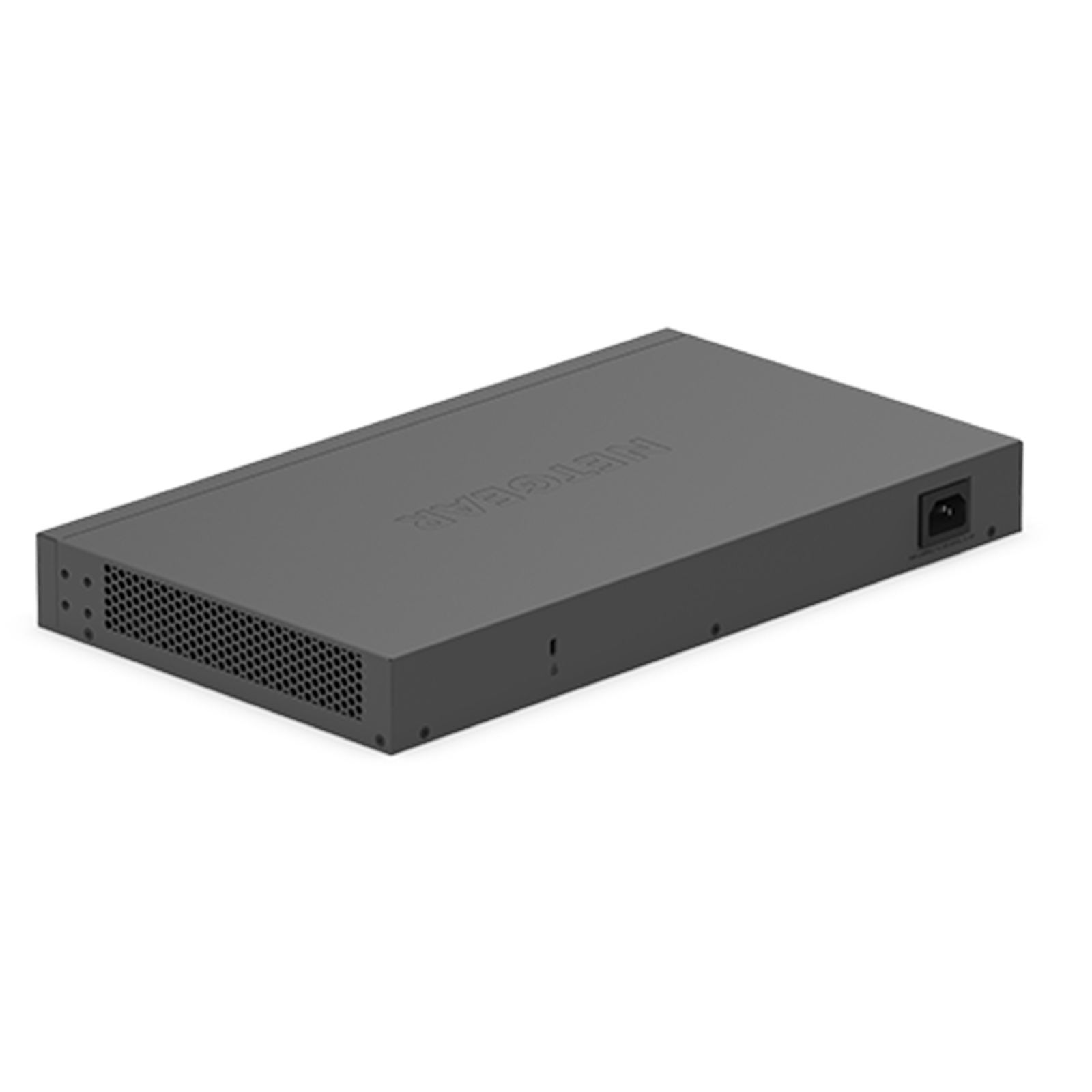

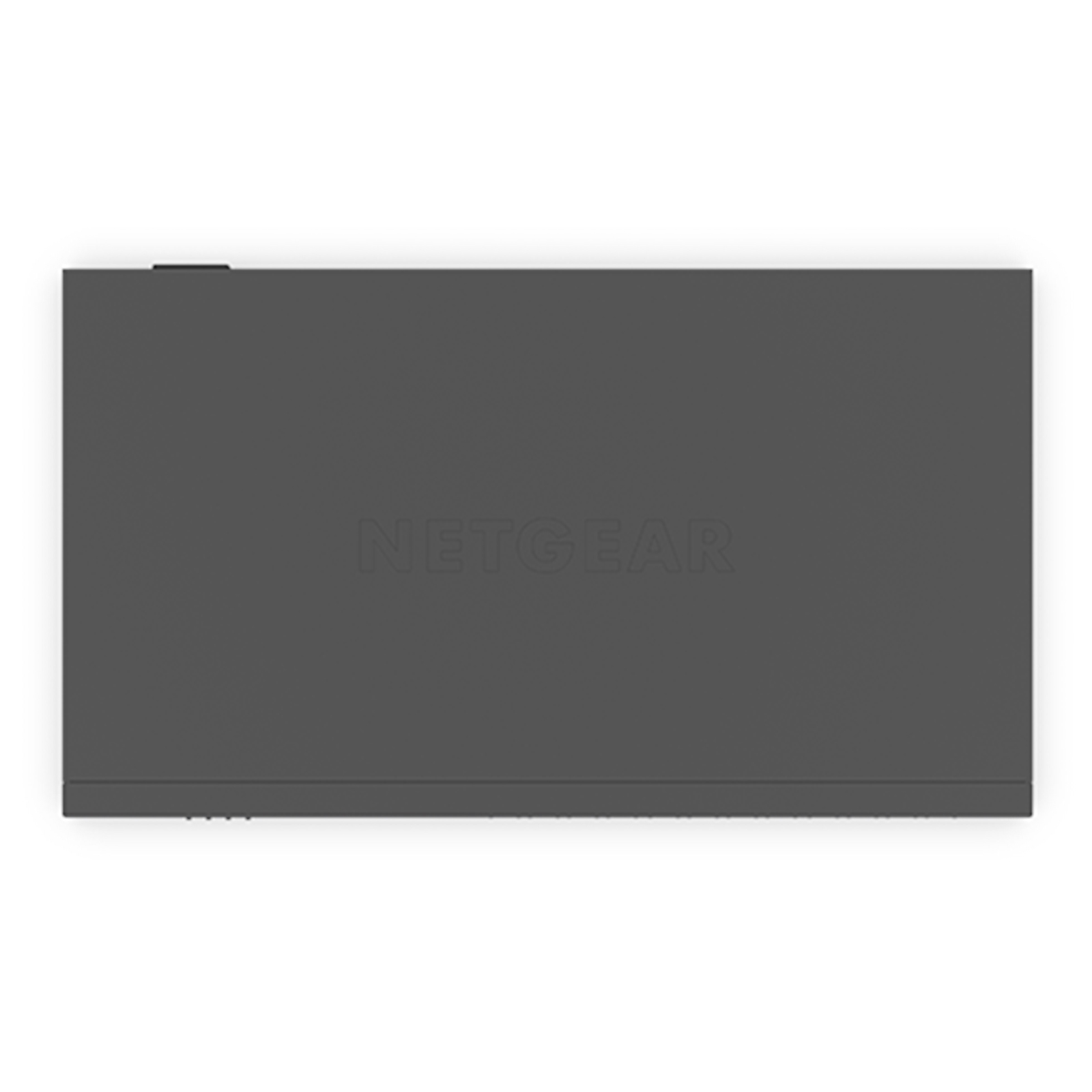

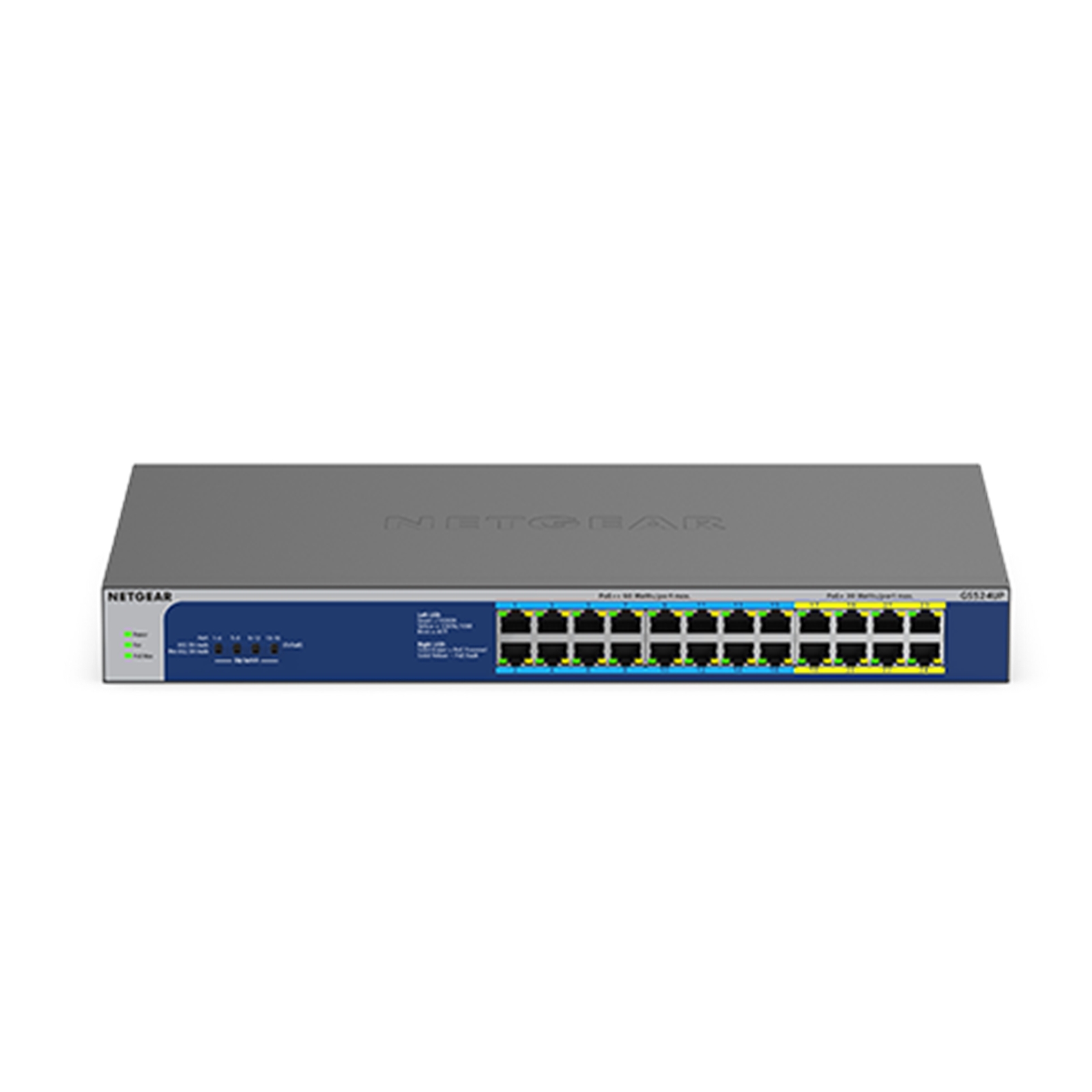

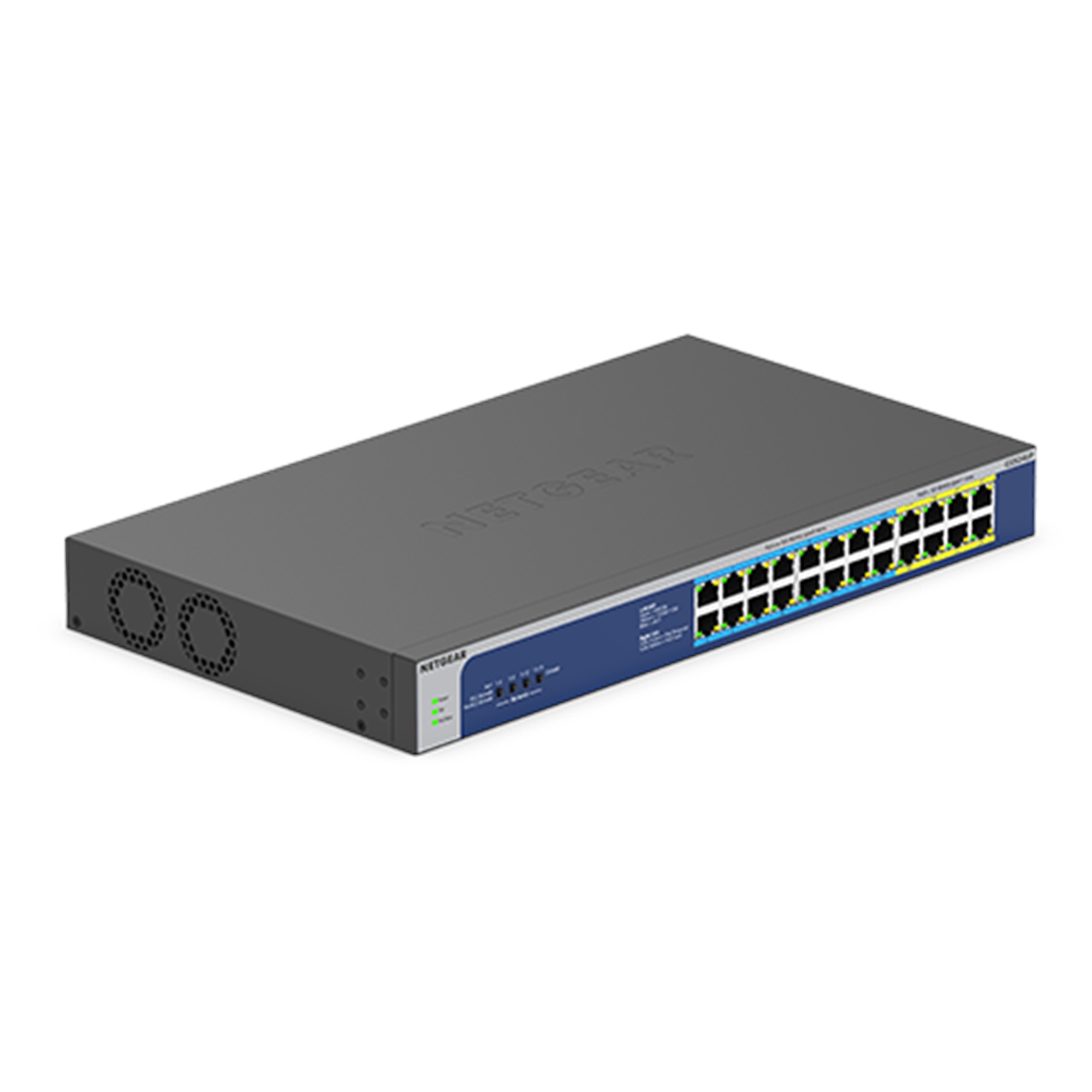

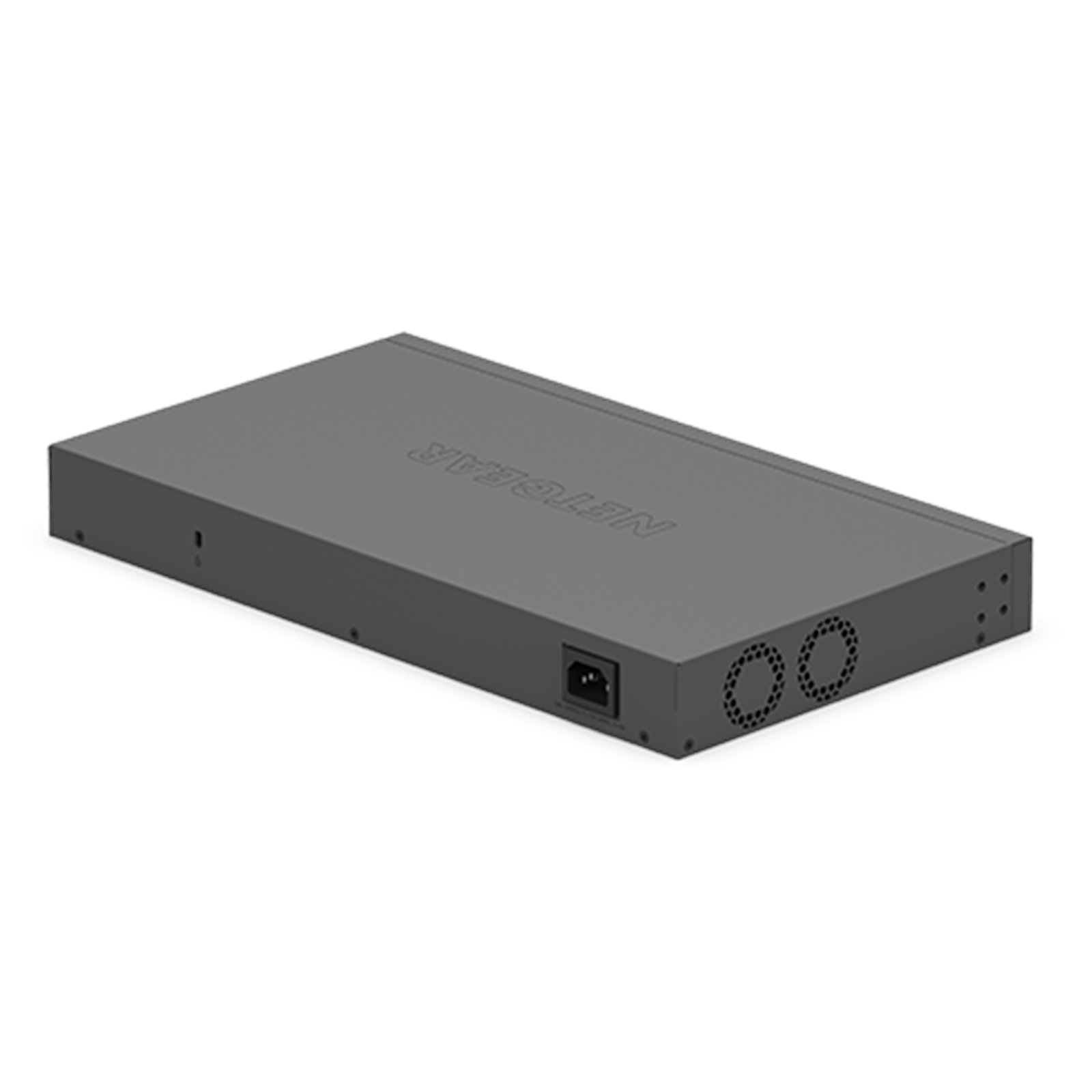

NETGEAR 24 Port Gigabit (8 POE) Switch - SGS524UP

NETGEAR Logo here

Manufacturer Part Code: GS524UP-100EUS

Order Code: NPNET-GS524UP100

Category: Unmanaged Switches

NETGEAR GS524UP - Switch - unmanaged - 8 x 10/100/1000 (PoE+) + 16 x 10/100/1000 (PoE++) - desktop rack-mountable - PoE++ (480 W) - AC 100 - 230 V

Instant Connectivity and Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS524UP joins the series and offers 16 Ultra60 PoE++ ports and 8 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 480W, deploy denser PoE+ and PoE++ devices to a single switch rather than multiple.
The GS524UP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

Powerful Ultra60 PoE++
Ideal for powering and connecting 802.11AX wireless access points, 4K/8K IP surveillance cameras, PoE lighting, and high power audio speakers, the GS524UP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.
NETGEAR Ultra60 PoE++ Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3bt) standard, powerful enough to support devices that require greater power. The GS524UP includes 16 PoE++ ports that can deliver up to 60W of power per port.

PoE Mode
Your business is always changing and growing, but not all your devices may be 802.3bt standard compatible. PoE mode on the GS524UP solves this problem by providing power to both pre-bt and bt standard devices.
- GS524UP by default uses 802.3bt standard, only compatible for bt standard devices
- 802.3bt Standard Devices: to power bt standard devices, select 802.3bt mode to receive 60W of power
- Pre-802.3bt Standard Devices: to power up pre-802.3bt standard products, select the pre-802.3bt mode to receive more than 30W of power
- If the GS524UP is set to pre-802.3bt mode but the device is standard 802.3bt, then PoE++ power will not be delivered to the device. The switch will only deliver 802.3af (<15W)

Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
8000 entries
Switching capacity
48 Gbit/s
Packet buffer memory
0.192 MB
Latency (1 Gbps)
12 µs
Packet forwarding rate (1 Gbps)
1448000 pps
Rack mounting
LED indicators
Activity, Link, PoE, Power, Speed
Product colour
Number of fans
2 fan(s)
Housing material
Input current
8 - 4 A
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
578.8 W
Power supply included
Harmonized System (HS) code
Quality of Service (QoS) support
Switch type
Full duplex
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u
10G support
Half duplex
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Heat dissipation
1976.0232 BTU/h
Mean time between failures (MTBF)
809853.3 h
Harmonized System (HS) code
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
Total Power over Ethernet (PoE) budget
480 W
Power over Ethernet (PoE) power per port
60 W
Power over Ethernet (PoE) type supported
3.1 kg
43 mm
390 mm
220 mm
