Unmanaged Switches | D-LINK DES-105 5-Port Unmanaged Fast Ethernet Switch | DES-105/B | ServersPlus

Illustration purposes only

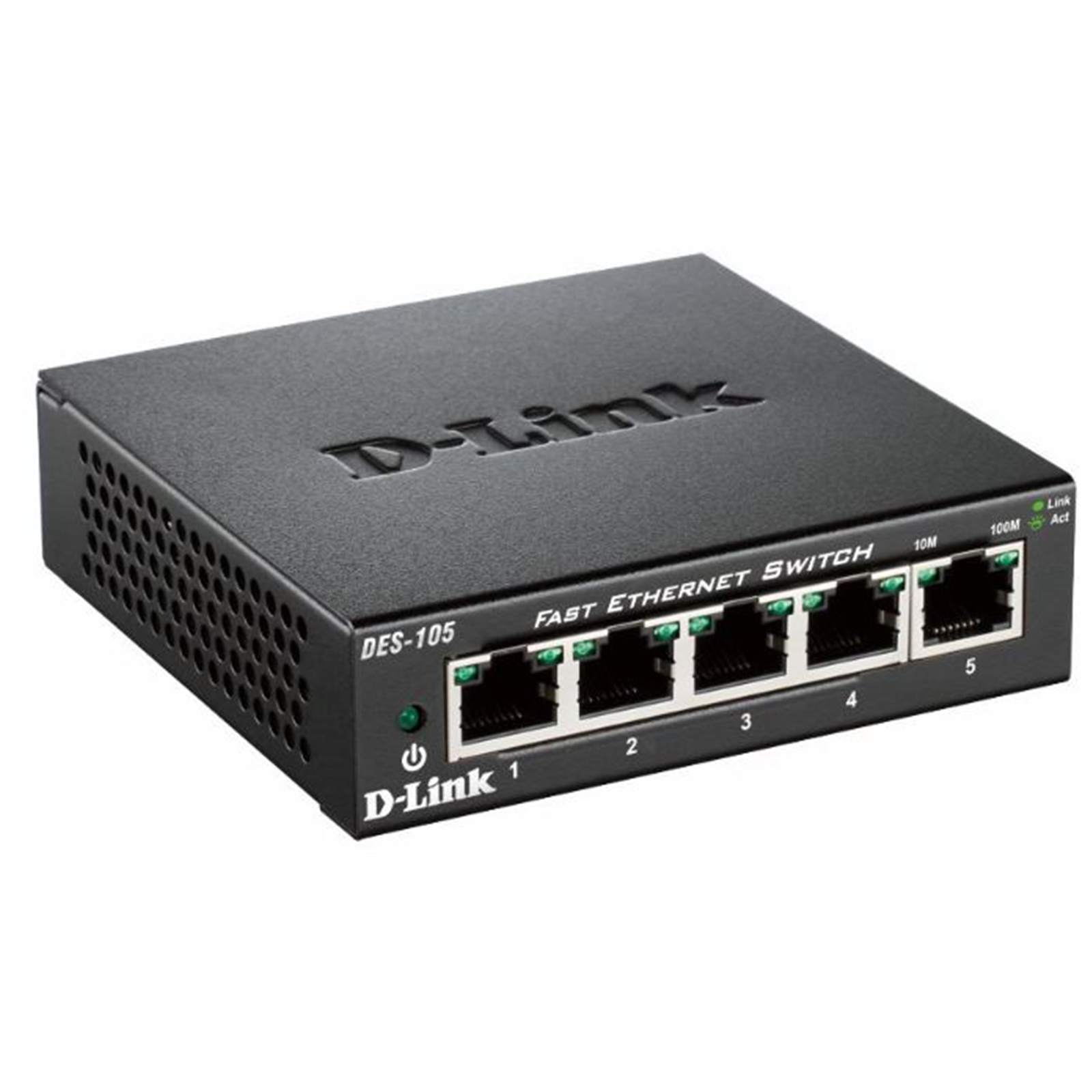

D-LINK DES-105 5-Port Unmanaged Fast Ethernet Switch

D-LINK Logo here

Manufacturer Part Code: DES-105/B

Order Code: NPDLI-DES105B

Category: Unmanaged Switches

D-Link 5-port 10/100 Metal Housing Desktop Switch

- Plug and Play operation
- 5 Fast Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- D-Link Green™ technology, saves energy and increases the product's lifespan

D-Link's DES-105 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes this switch completely silent, ideal for offices, libraries or meeting rooms.

Robust design

The DES-105 are designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.

QoS (Quality of Service)

Despite being an unmanaged, Plug and Play switch, the DES-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.

Power-saving technology

The DES-105 is part of D-Link Green™, D-Link's eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Certification
RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
MAC address table
2000 entries
Supported data transfer rates
10/100 Mbps
Switching capacity
1 Gbit/s
Jumbo frames support
Y
Store-and-forward
Y
Packet buffer memory
0.384 MB
Certification
RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Rack mounting
N
LED indicators
Link, Power
Product colour
Black
Housing material
Metal
Power consumption (typical)
1.9 W
Input voltage
5 V
Input current
1 A
Harmonized System (HS) code
85176990
Quality of Service (QoS) support
Y
Switch type
Unmanaged
Full duplex
Y
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Flow control support
Y
Auto MDI/MDI-X
Y
10G support
N
Copper ethernet cabling technology
100BASE-TX, 10BASE-T
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-10 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 90%
Dimensions (WxDxH)
100 x 98 x 28 mm
Input voltage
5 V
Connectivity technology
Wired
Data transfer rate
200 Mbit/s
Package weight
450 g
Package depth
220 mm
Package height
62 mm
Package width
170 mm
Mean time between failures (MTBF)
495709 h
Harmonized System (HS) code
85176990
Basic switching RJ-45 Ethernet ports quantity
5
Power connector
DC-in jack
Power over Ethernet (PoE)
N
MAC address filtering
Y
Pallet gross width
110 cm
Pallet gross length
120 cm
Shipping (inner) case width
23 cm
Shipping (inner) case length
33.5 cm
Shipping (inner) case height
36.6 cm
Shipping (inner) case gross weight
5.5 kg
Products per shipping (inner) case
10 pc(s)
Shipping (inner) case net weight
4.5 kg
Pallet gross weight (air)
434 kg
Master (outer) cases per pallet (air)
75 pc(s)
Products per pallet (air)
750 pc(s)
Pallet height (air)
2.04 m
Pallet gross weight (sea)
434 kg
Master (outer) cases per pallet (sea)
75 pc(s)
Products per pallet (sea)
750 pc(s)
Pallet height (sea)
2.04 m
Weight
265 g
