APC Rack UPS | APC Smart-UPS SC 450VA 230V - 1U Rackmount Tower SC450RMI1U | SC450RMI1U | ServersPlus
APC SC450RMI1U | serversplus.comAPC SC450RMI1U | serversplus.com

Illustration purposes only

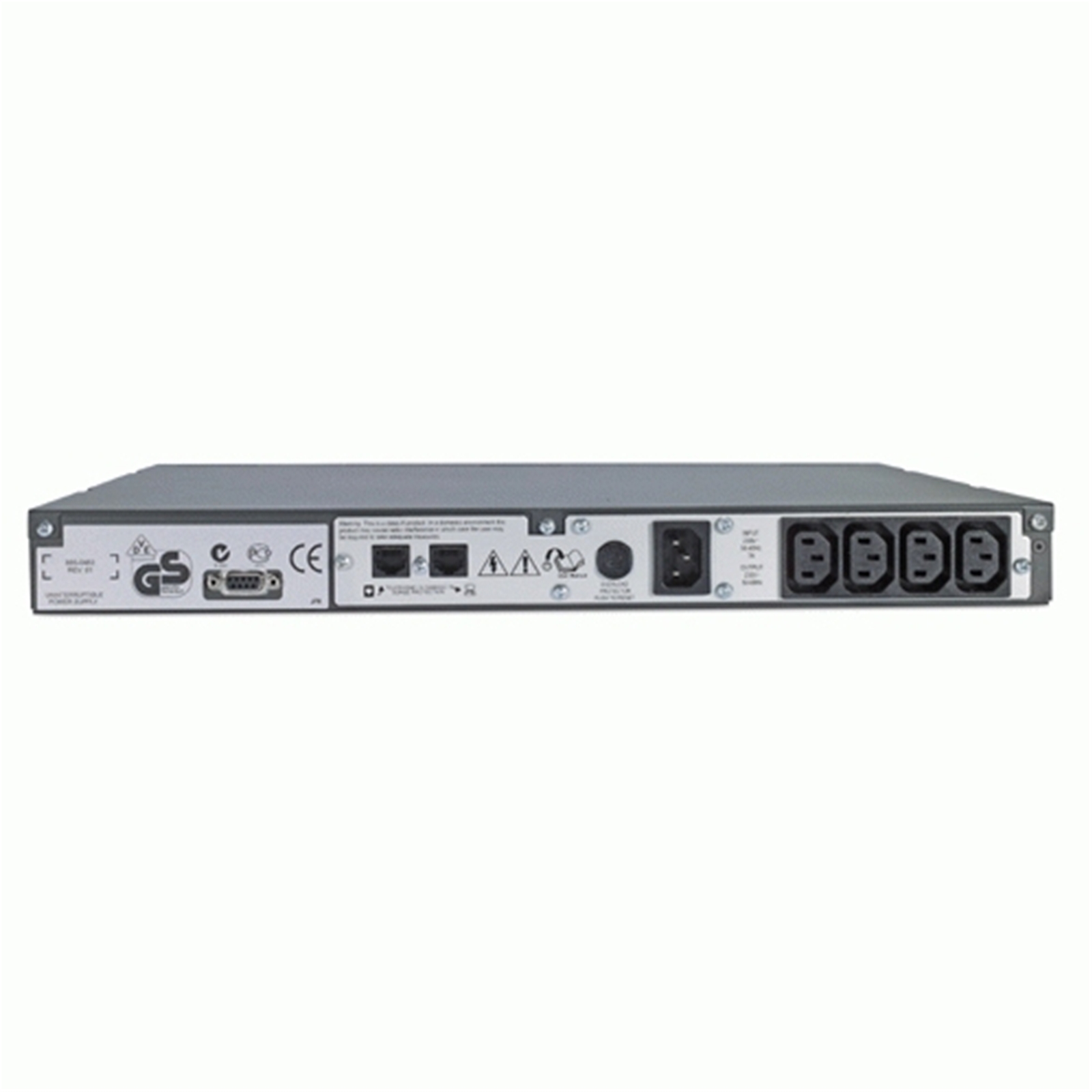

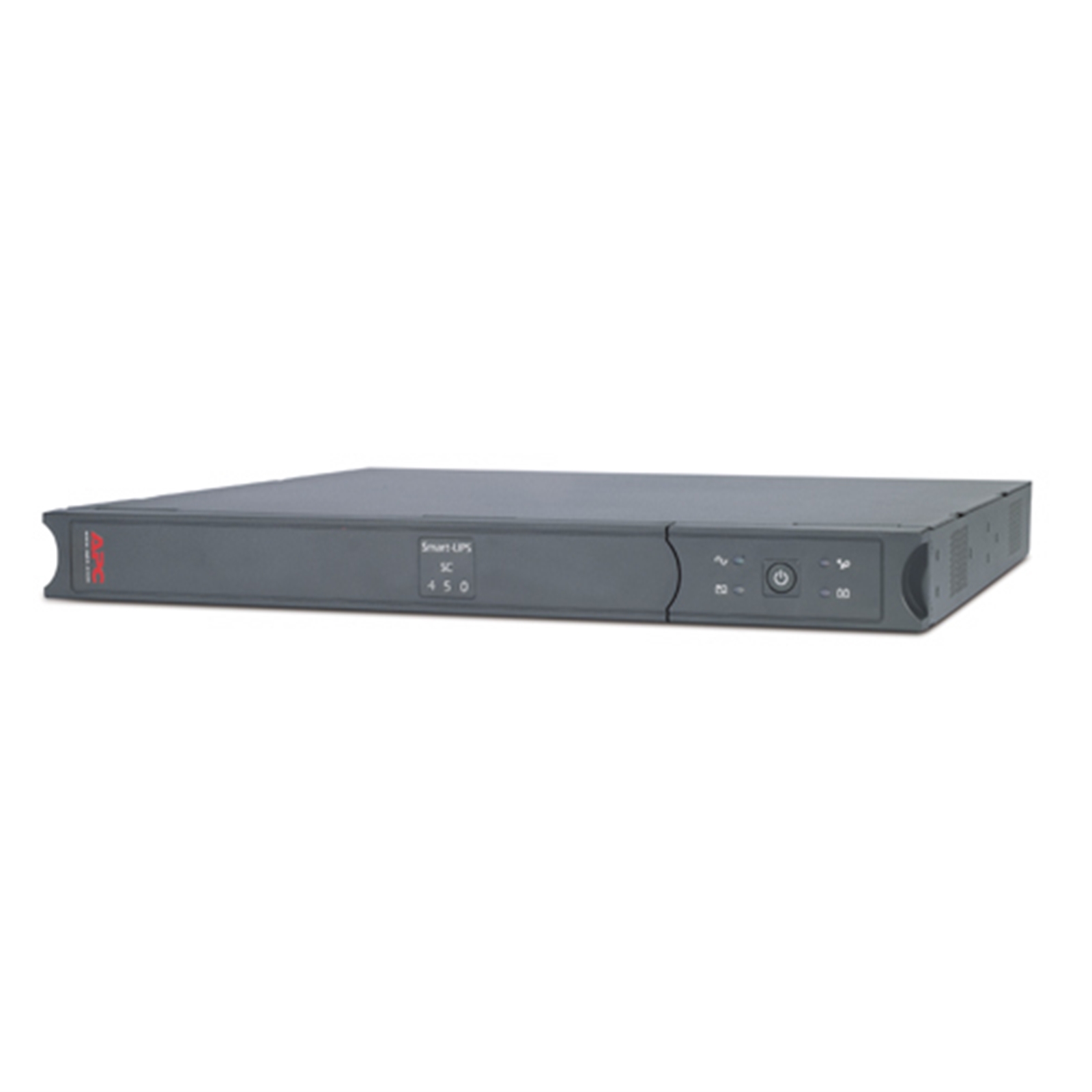

APC Smart-UPS SC 450VA 230V - 1U Rackmount Tower SC450RMI1U

APC Logo here

Manufacturer Part Code: SC450RMI1U

Order Code: PSAPC-286225

Category: APC Rack UPS

APC Smart-UPS SC 450VA 230V - 1U Rackmount Tower

The economical UPS to start your business\nAPC Smart-UPS SC is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. Included PowerChute Business Edition management software allows you to configure safe system shutdowns and take advantage of advanced UPS management features like automated risk assessments and runtime capacity calculations. (All major operating systems supported). Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS, the Smart-UPS SC is the UPS to start your business with.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
5 h
Typical backup time at half load
19.4 min
Typical backup time at full load
5.9 min
Replacement battery cartridge
RBC18
Hot-swap battery
Y
Automatic battery test
Y
Battery replacement alarms
LED
Battery capacity
108 VAh
Battery life (max)
5 year(s)
Certification
C-tick, CE, GOST, VDE, PEP, EOLI
RoHS compliance
Y
Colour of product
Grey
Rack mounting
1U
Form factor
Rackmount/Tower
Colour of product
Grey
Rack capacity
1U
Power supply input frequency
50/60 Hz
Emergency Power Off (EPO)
O
Output power capacity (VA)
450 VA
Surge energy rating
320 J
Output power
280 W
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
LED indicators
Y
Audible alarms
Y
Quantity per pallet
24 pc(s)
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Interface
DB-9, RS-232
Dimensions (WxDxH)
432 x 383 x 44 mm
Package dimensions (WxDxH)
476 x 589 x 164 mm
Quantity per pallet
24 pc(s)
Nominal output voltage
230 V
Output voltage note
5: 1
Output connections
(4) IEC 320 C13
Input connection type
IEC-320 C14
Filtering
0.7% IEEE/UL 1449
Cables included
RS-232
Manual
Y
Software CD
Y
Rack mount kit
Y
Resource CD
Yes
Package dimensions (WxDxH)
476 x 589 x 164 mm
Quantity per pallet
24 pc(s)
Package weight
11.7 kg
LED indicators
Y
Audible alarms
Y
Noise level
38 dB
Hold time
8 ms
Source data-sheet
ICEcat.biz
Surge protection
Y
Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Network
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (min)
4 ms
Hold time (max)
8 ms
Audible alarm modes
Low battery alarm, Overload alarm
Serial interface type
RS-232
Serial ports quantity
1
AC outlets quantity
4 AC outlet(s)
Number of output IEC jumpers
2
Power plug
C14 coupler
AC outlet types
C13 coupler
Serial interface
Y
Number of Schuko outputs
4
Noise level
38 dB
Rack mounting
1U
Form factor
Rackmount/Tower
Input connections
IEC-320 C14
Source data-sheet
ICEcat.biz
Surge protection
Y
Weight
10.2 kg
Package weight
11.7 kg
Height
44 mm
Width
432 mm
Depth
383 mm
Packaging depth
589 mm
Packaging height
164 mm
Packaging width
476 mm
