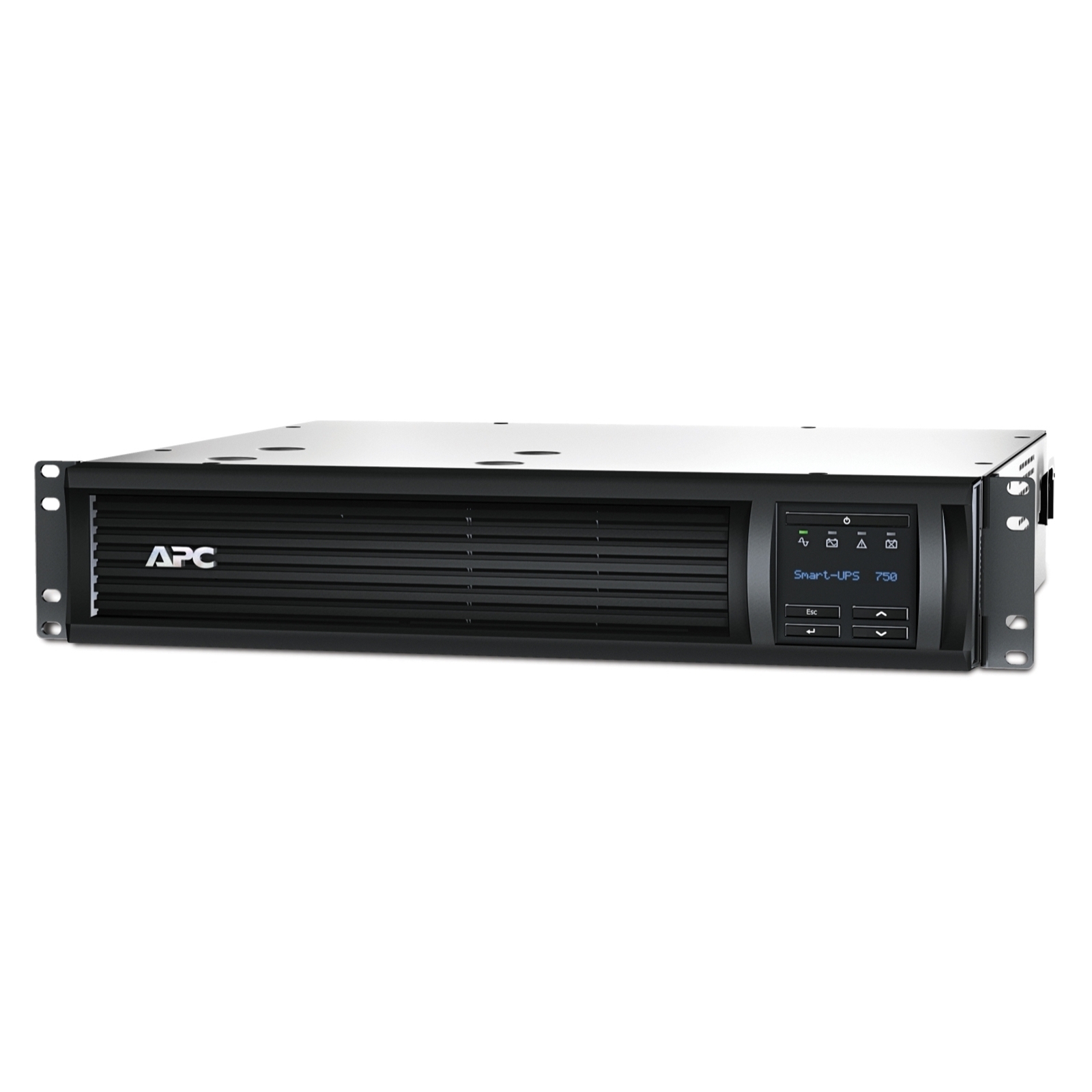

APC Smart-UPS 750VA - SMT750RMI2UC

APC Logo here

Manufacturer Part Code: SMT750RMI2UC

Order Code: PSAPC-SMT750RMIA

Category: APC Rack UPS

APC Smart-UPS 750VA LCD RM - UPS (rack-mountable) - AC 230 V - 500 Watt - 750 VA - Ethernet RS-232 USB - output connectors: 4 - 2U - black

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, USB cable

Cold-start capable
Provides temporary battery power when the utility power is out.

Energy meter
Provides actual kilowatt hours of usage for energy conscious users.

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency
Reduces utility costs, generates less heat.

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.

SmartSlot
Customize UPS capabilities with management cards.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generat

Resettable circuit breakers
Enables a quick recovery from overload events.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
16 min
Typical backup time at full load
5.5 min
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Battery capacity
168 VAh
Battery life (max)
5 year(s)
Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI
Form factor
Rackmount
LED indicators
Battery replacement
Product colour
Black
Rack capacity
2U
Audible alarm(s)
Yes
Output power capacity
0.75 kVA
Surge energy rating
459 J
Noise level
42 dB
Input frequency
50/60 Hz
Efficiency
97.7%
Output power
500 W
Surge protection
Yes
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Waveform
Pure sine
Automatic Voltage Regulation (AVR)
Yes
Auto-restart
Yes
UPS topology
Line-Interactive
Hold time (max)
2 ms
Products per pallet
16 pc(s)
Harmonized System (HS) code
85078000
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-15 - 45 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 15000 m
Package weight
21.2 kg
Cables included
RS-232, USB cable
Package depth
584 mm
Package height
241 mm
Package width
546 mm
Quick installation guide
Yes
Software CD
Yes
Rack mount kit
Yes
Serial interface type
RJ-45
AC outlets quantity
4 AC outlet(s)
Number of output IEC jumpers
2
Power plug
C14 coupler
AC outlet types
C13 coupler
Serial interface
Yes
USB port
Yes
SmartSlot
Yes
Harmonized System (HS) code
85078000
Sustainability certificates
Green Premium
Compliance certificates
RoHS
Weight
17.3 kg
Package weight
21.2 kg
Height
89 mm
Width
432 mm
Depth
406 mm
Package depth
584 mm
Package height
241 mm
Package width
546 mm
