APC Tower UPS | APC Back-UPS CS 350 USB/Serial | BK350EI | ServersPlus
APC BK350EI | serversplus.comAPC BK350EI | serversplus.comAPC BK350EI | serversplus.com

Illustration purposes only

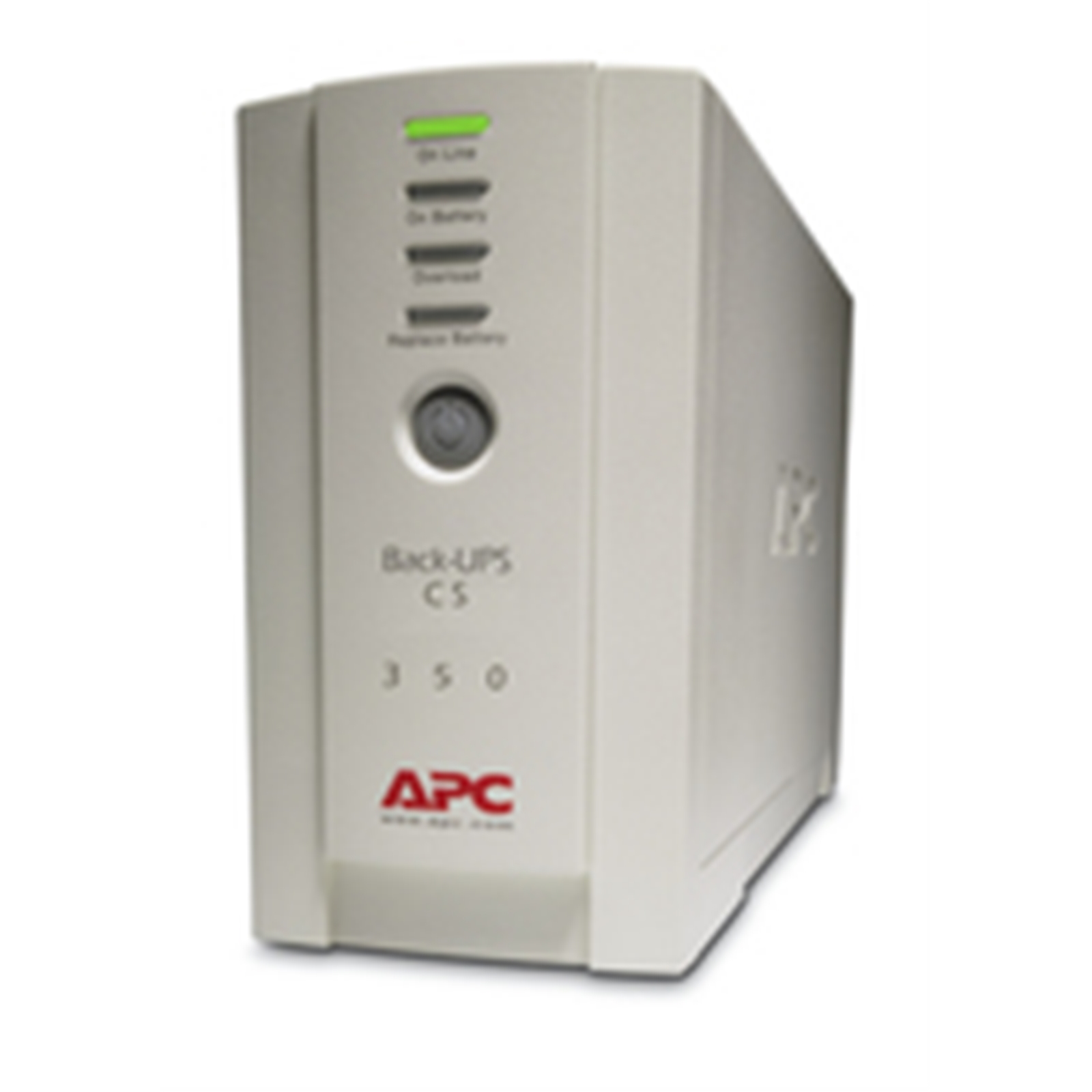

APC Back-UPS CS 350 USB/Serial

APC Logo here

Manufacturer Part Code: BK350EI

Order Code: PSAPC-BK350EI

Category: APC Tower UPS

Back-UPS CS, 350VA/210W, Input 230V/Output 230V, Interface Port DB-9 RS-232, USB

Key Features:

  • Output Power Capacity: 210 Watts / 350 VA

  • Max Configurable Power: 210 Watts / 350 VA

  • Nominal Output Voltage: 230V

  • Output Connections: (1) IEC 320 C13 (Surge Protection)

  • Output Connections:(3) IEC 320 C13 (Battery Backup)

  • Output Connections: (2) IEC Jumpers (Battery Backup)

  • Nominal Input Voltage: 230V

  • Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)

  • Input Connections: IEC-320-C14 inlet

  • Input voltage range for main operations: 196 - 280V

  • Warranty: 2 years repair or replace Manufacturers warranty


    • Specifications:

  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof


  • Typical recharge time: 6 hour(s)


  • Replacement battery cartridge: RBC2


  • RBC? Quantity: 1


  • Typical Backup Time at Half Load: 18.1 minutes (105 Watts)


  • Typical Backup Time at Full Load: 4.7 minutes (210 Watts)

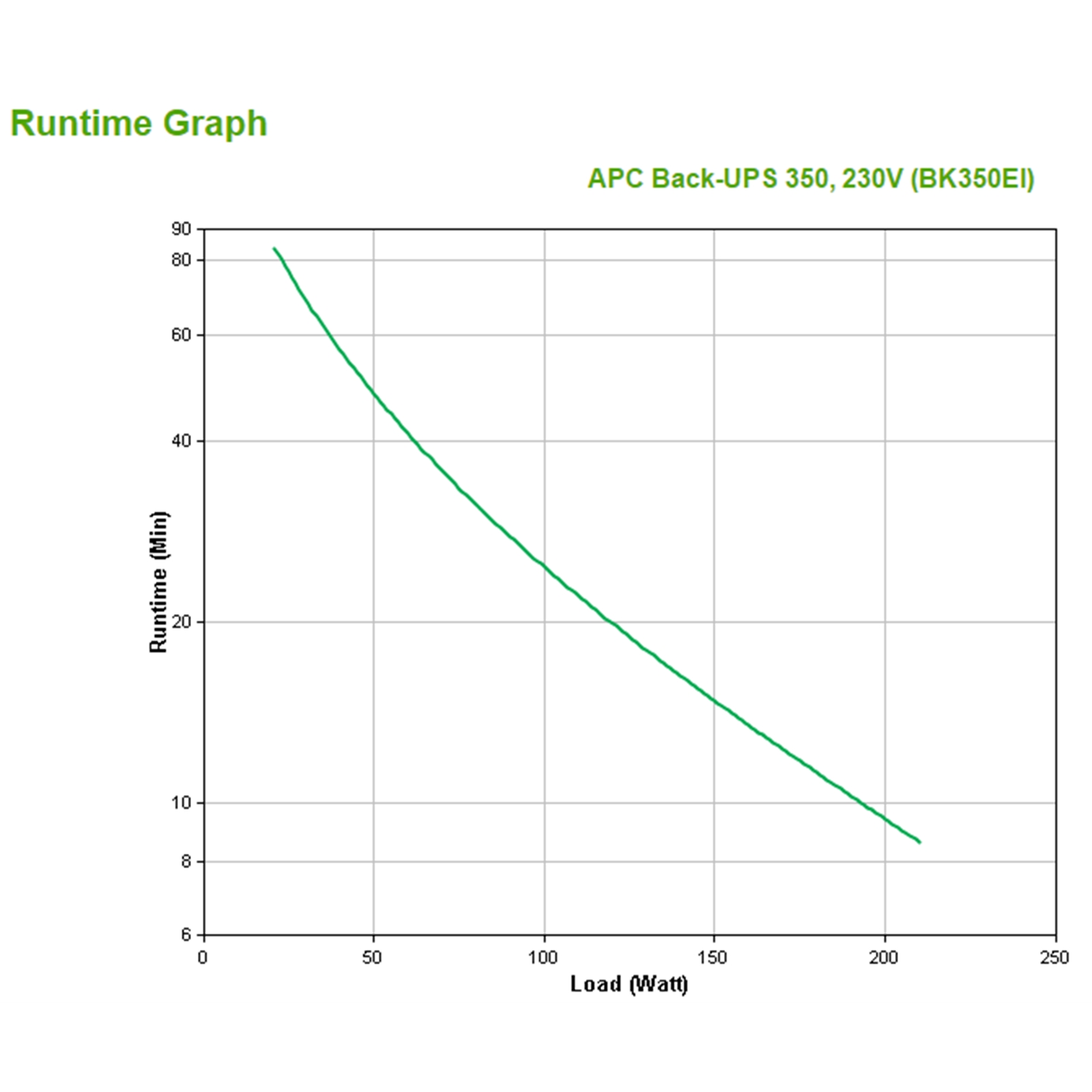

  • Runtime Chart: Back-UPS CS


  • Interface Port(s): DB-9 RS-232,USB


  • Surge energy rating: 300 Joules


  • Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449


  • Dataline protection: RJ-45 Modem/Fax protection (two wire single line)


  • Standard Warranty: 2 years repair or replace


    • General Features:

  • Audible alarms

  • Automatic restart of loads after UPS shutdown

  • Automatic self-test

  • Battery replacement without tools

  • Battery-protected and surge-only outlets

  • Dataline Surge Protection

  • Hot-swappable batteries

  • LED status indicators

  • Power conditioning

  • Resettable circuit breakers

  • Safety-agency approved

  • Serial Connectivity

  • Transformer-block spaced outlets

  • USB connectivity

  • User-replaceable batteries


    • Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

    Technical Information

    Battery technology
    Sealed Lead Acid (VRLA)
    Battery recharge time
    6 h
    Typical backup time at half load
    22.1 min
    Typical backup time at full load
    8.6 min
    Battery technology
    Sealed Lead Acid (VRLA)
    Battery recharge time
    6 h
    Battery voltage
    12 V
    Typical backup time at half load
    22.1 min
    Typical backup time at full load
    8.6 min
    Replacement battery cartridge
    RBC2
    Battery capacity
    7 Ah
    Automatic battery test
    Yes
    Battery capacity
    116 VAh
    Battery life (max)
    6 year(s)
    Battery voltage
    12 V
    Battery capacity
    7 Ah
    Automatic battery test
    Y
    Battery replacement alarms
    LED
    Battery capacity
    116 VAh
    Battery life (max)
    6 year(s)
    Certification
    C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI
    Energy Star certified
    Y
    RoHS compliance
    Y
    Colour of product
    Beige
    Certification
    C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI
    Form factor
    Tower
    Cable length
    1.83 m
    LED indicators
    Battery replacement
    Product colour
    Beige
    Certification
    C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI
    Form factor
    Tower
    Energy Star certified
    Y
    Cable length
    1.83 m
    LED indicators
    Battery replacement
    Colour of product
    Beige
    RoHS compliance
    Y
    Power supply input frequency
    50/60 Hz
    Output power capacity (VA)
    0.35 kVA
    Surge energy rating
    310 J
    Input frequency
    50/60 Hz
    Maximum current
    7 A
    Efficiency
    98.6%
    Output power
    210 W
    Output frequency regulation
    47 - 63 Hz
    Audible alarm(s)
    Yes
    Output power capacity
    0.35 kVA
    Surge energy rating
    310 J
    Input frequency
    50/60 Hz
    Maximum current
    7 A
    Audible alarm(s)
    Y
    Output power capacity
    0.35 kVA
    Surge energy rating
    310 J
    Efficiency
    98.6%
    Output power
    210 W
    Power protection features
    Overload
    Surge protection
    Yes
    Surge protection features
    Digital Subscriber Line (DSL), Fax, Modem, Telephone
    Input operation voltage (max)
    266 V
    Input operation voltage (min)
    180 V
    Output frequency regulation
    47 - 63 Hz
    UPS topology
    Standby (Offline)
    Input frequency
    50/60 Hz
    Hold time (min)
    6 ms
    Hold time (max)
    10 ms
    Audible alarm modes
    Low battery alarm, Overload alarm
    Maximum current
    7 A
    Efficiency
    98.6%
    Output power
    210 W
    Power protection features
    Overload
    Surge protection
    Y
    Surge protection features
    Digital Subscriber Line (DSL), Fax, Modem, Telephone
    Output frequency regulation
    47 - 63 Hz
    UPS topology
    Standby (Offline)
    Hold time (min)
    6 ms
    Hold time (max)
    10 ms
    Audible alarm modes
    Low battery alarm, Overload alarm
    LED indicators
    Battery replacement
    Audible alarms
    Y
    Products per pallet
    48 pc(s)
    Quantity per pallet
    48 pc(s)
    Harmonized System (HS) code
    85078000
    Bundled software
    PowerChute Personal Edition
    Operating altitude
    0 - 3000 m
    Operating relative humidity (H-H)
    0 - 95%
    Storage temperature (T-T)
    -15 - 45 °C
    Operating temperature (T-T)
    0 - 40 °C
    Storage relative humidity (H-H)
    0 - 95%
    Non-operating altitude
    0 - 15000 m
    Operating altitude
    0 - 3000 m
    Operating relative humidity range
    0 - 95%
    Storage temperature range (T-T)
    -15 - 45 °C
    Operating temperature range (T-T)
    0 - 40 °C
    Storage relative humidity range
    0 - 95%
    Non-operating altitude
    0 - 15000 m
    Interface
    USB
    Dimensions (WxDxH)
    91 x 284 x 165 mm
    Nominal output voltage
    230 V
    Nominal input voltage
    230 V
    I/O ports
    DB-9 RS-232\nUSB\n
    Package dimensions (WxDxH)
    241 x 368 x 178 mm
    Quantity per pallet
    48 pc(s)
    Nominal output voltage
    230 V
    Output connections
    (1) IEC 320 C13\n(3) IEC 320 C13\n(2) IEC Jumpers
    Input connection type
    IEC-320-C14
    Filtering
    Y
    Nominal input voltage
    230 V
    Filtering
    Yes
    Filtering
    Y
    Bundled software
    PowerChute Personal Edition
    Cables included
    Phone (RJ-11), USB cable
    Warranty card
    Y
    Quick installation guide
    Y
    Software CD
    Y
    Resource CD
    Yes
    Bundled software
    PowerChute Personal Edition
    Package weight
    7.05 kg
    Cables included
    Phone (RJ-11), USB cable
    Bundled software
    PowerChute Personal Edition
    Package dimensions (WxDxH)
    241 x 368 x 178 mm
    Quantity per pallet
    48 pc(s)
    Package weight
    7.05 kg
    Package depth
    368 mm
    Package height
    178 mm
    Package width
    241 mm
    Warranty card
    Yes
    Quick installation guide
    Yes
    Cables included
    Phone (RJ-11), USB cable
    Software CD
    Yes
    Package depth
    368 mm
    Package height
    178 mm
    Package width
    241 mm
    Warranty card
    Y
    Quick installation guide
    Y
    Software CD
    Y
    Resource CD
    Yes
    LED indicators
    Battery replacement
    Audible alarms
    Y
    Hold time
    10 ms
    Source data-sheet
    ICEcat.biz
    Power protection features
    Overload
    Surge protection
    Y
    Surge protection features
    Digital Subscriber Line (DSL), Fax, Modem, Telephone
    UPS topology
    Standby (Offline)
    Hold time (min)
    6 ms
    Hold time (max)
    10 ms
    Audible alarm modes
    Low battery alarm, Overload alarm
    I/O ports
    DB-9 RS-232\nUSB\n
    AC outlets quantity
    4 AC outlet(s)
    Number of output IEC jumpers
    2
    Cable length
    1.83 m
    Power plug
    C14 coupler
    AC outlet types
    C13 coupler
    AC outlets quantity
    4 AC outlet(s)
    USB port
    Yes
    Number of output IEC jumpers
    2
    Power plug
    C14 coupler
    AC outlet types
    C13 coupler
    Number of Schuko outputs
    4
    USB port
    Y
    Form factor
    Tower
    Energy Star certified
    Y
    Harmonized System (HS) code
    85078000
    Input connections
    IEC-320-C14
    Sustainability certificates
    ENERGY STAR, Green Premium
    Compliance certificates
    RoHS
    Source data-sheet
    ICEcat.biz
    Surge protection
    Y
    Sustainability certificates
    RoHS, ENERGY STAR
    Weight
    6.32 kg
    Package weight
    7.05 kg
    Height
    165 mm
    Weight
    6.32 kg
    Width
    91 mm
    Depth
    284 mm
    Package weight
    7.05 kg
    Package depth
    368 mm
    Package height
    178 mm
    Package width
    241 mm
    Height
    165 mm
    Width
    91 mm
    Depth
    284 mm
    Packaging depth
    368 mm
    Packaging height
    178 mm
    Packaging width
    241 mm
