APC Tower UPS | APC Smart UPS 5000VA 230V Rackmount/Tower SUA5000RMI5U | SUA5000RMI5U | ServersPlus
L R
APC SUA5000RMI5U | serversplus.comAPC SUA5000RMI5U | serversplus.comAPC SUA5000RMI5U | serversplus.comAPC SUA5000RMI5U | serversplus.com

Illustration purposes only

APC Smart UPS 5000VA 230V Rackmount/Tower SUA5000RMI5U

APC Logo here

Manufacturer Part Code: SUA5000RMI5U

Order Code: PSAPC-1312824

Category: APC Tower UPS

Smart-UPS 5000VA 230V Rackmount/Tower

APC Smart-UPS, 4000 Watts / 5000 VA,Input 230V / Output 230V, Rack Height 5 U \n\nIncludes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card \n\nStandard Lead Time: Usually Ships within 4 Weeks\n\n-Adjustable voltage-transfer points.\n-Audible alarms.\n-Automatic self-test.\n-Boost and Trim Automatic Voltage Regulation (AVR).\n-Cold-start capable.\n-Disconnected battery notification.\n-Hot-swappable batteries.\n-LED status indicators.\n-Network manageable.\n-Plug-and-Play installation.\n-Rack/Tower convertible.\n-Resettable circuit breakers. \n-Safety-agency approved\n-Serial Connectivity.\n-SmartSlot.\n-Temperature-compensated battery charging.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery type
VRLA
Battery recharge time
3 h
Typical backup time at half load
26.7 min
Typical backup time at full load
9.4 min
Replacement battery cartridge
RBC55
Hot-swap battery
Y
Cold start
Y
Automatic battery test
Y
Battery replacement alarms
LED
Battery capacity
1632 VAh
Battery life (max)
5 year(s)
Certification
C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI
RoHS compliance
Y
Colour of product
Black
Rack mounting
5U
Form factor
Rackmount/Tower
Colour of product
Black
Rack capacity
5U
Power supply input frequency
50/60 Hz
Output power capacity (VA)
5000 VA
Surge energy rating
480 J
Efficiency
96%
Output power
4000 W
Input operation voltage (max)
302 V
Input operation voltage (min)
151 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
47 - 53
Output frequency regulation
47 - 53 Hz
LED indicators
Y
Audible alarms
Y
Quantity per pallet
4 pc(s)
Quantity per master carton
1 pc(s)
Operating altitude
0 - 9000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Dimensions (WxDxH)
483 x 660 x 222 mm
Quantity per pallet
4 pc(s)
Nominal output voltage
230 V
Output voltage note
230-240 V

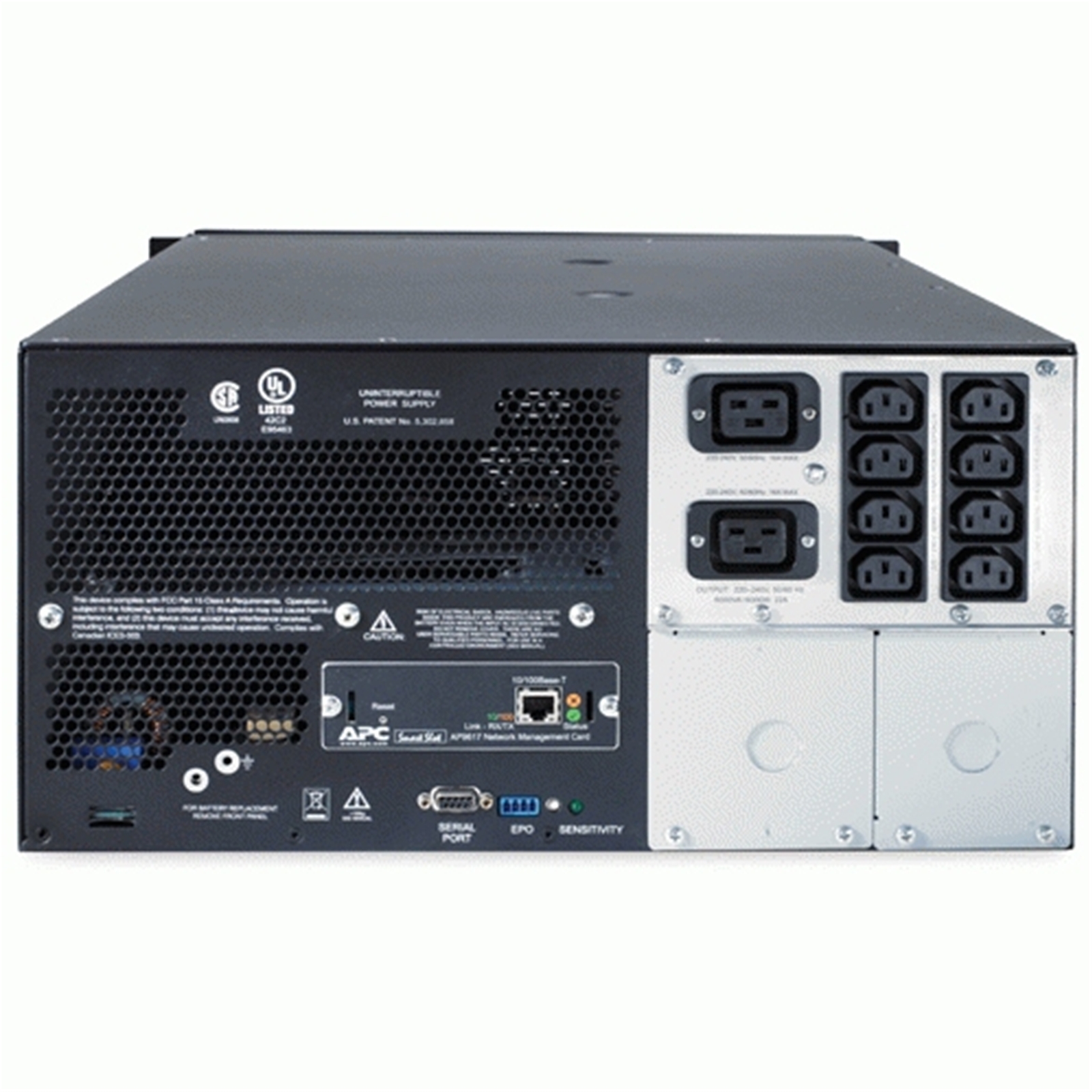

Output connections
(4) IEC Jumpers\n(2) IEC 320 C19 \n(8) IEC 320 C13
Input connection type
Hard Wire 3-wire
Nominal input voltage
230 V
Cables included
RS-232
Manual
Y
Quick installation guide
Y
Packaging content
Web/SNMP Management Card
Software CD
Y
Rack mount kit
Y
Resource CD
Yes
Quantity per pallet
4 pc(s)
Package weight
106.8 kg
LED indicators
Y
Audible alarms
Y
Noise level
53 dB
Hold time
4 ms
Source data-sheet
ICEcat.biz
Surge protection
Y
Number of output phases
1
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
Auto-restart
Y
UPS topology
Line-Interactive
Hold time (min)
2 ms
Hold time (max)
4 ms
Serial ports quantity
1
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
4
AC outlet types
C13 coupler, C19 coupler
Noise level
53 dB
Rack mounting
5U
Form factor
Rackmount/Tower
Input connections
Hard Wire 3-wire
Source data-sheet
ICEcat.biz
Surge protection
Y
Weight
97.7 kg
Package weight
106.8 kg
Height
222 mm
Width
483 mm
Depth
660 mm
Packaging depth
762 mm
Packaging height
635 mm
Packaging width
610 mm
