APC Smart-UPS On-Line

APC Logo here

Manufacturer Part Code: SRT3000XLI

Order Code: PSAPC-SRT3000XLI

Category: APC Rack UPS

Smart-UPS On-Line

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Battery recharge time
3 h

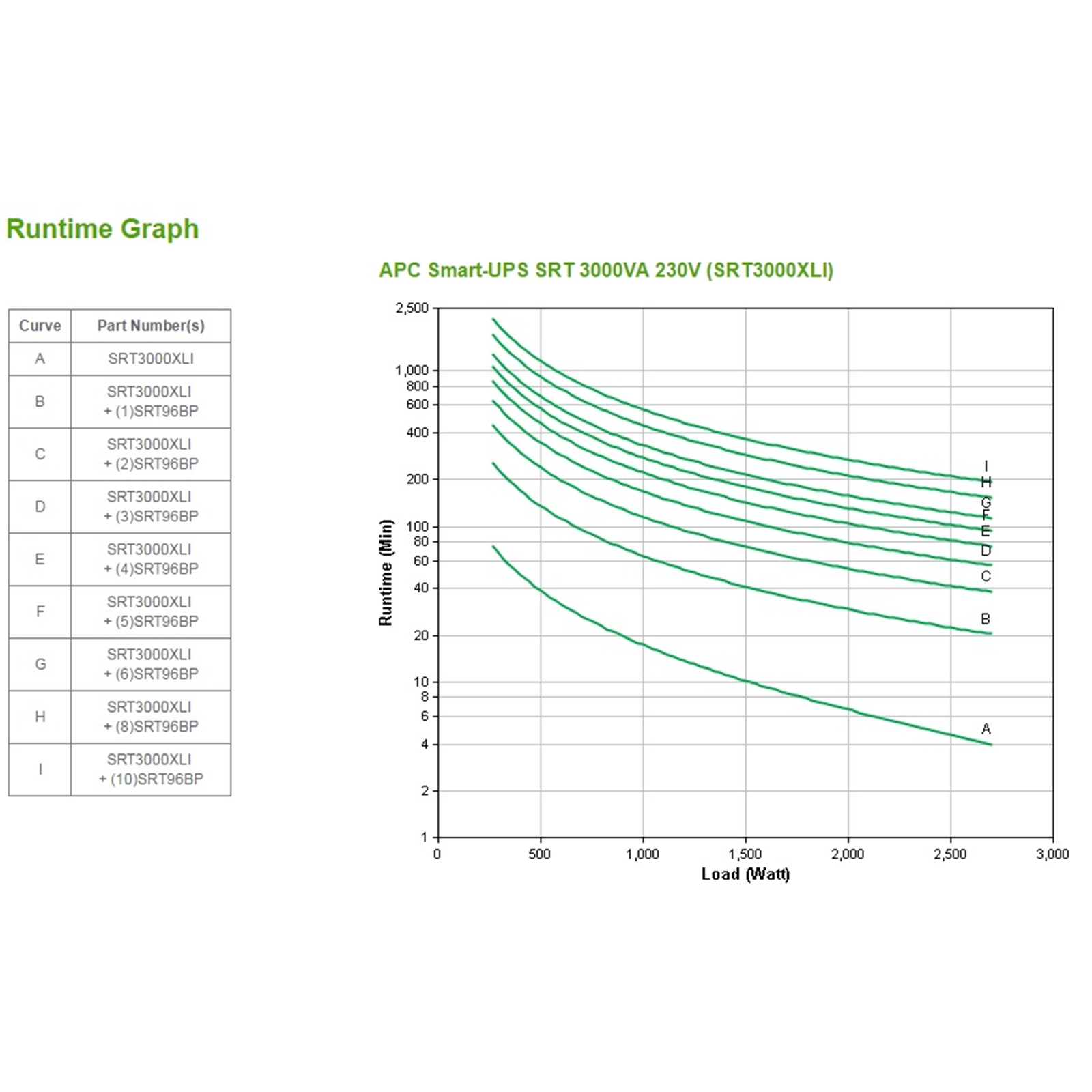

Typical backup time at half load
11.8 min
Typical backup time at full load
4 min
Hot-swap battery
Y
Cold start
Y
Automatic battery test
Y
Battery capacity
505 VAh
Battery life (max)
5 year(s)
Certification
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Energy Star certified
Y
RoHS compliance
Y
Colour of product
Black
Display
LCD
Form factor
Tower
Colour of product
Black
International Protection (IP) code
IP20
Display
LCD
Power supply input frequency
40/70
Emergency Power Off (EPO)
Y
Output power capacity (VA)
3000 VA
Surge energy rating
340 J
Efficiency
93.5%
Output power
2700 W
Crest factor
3:1
Input operation voltage (max)
275 V
Input operation voltage (min)
100 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
50/60
LED indicators
Y
Audible alarms
Y
Web-based management
Y
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Cables included
USB cable
Warranty card
Y
Quick installation guide
Y
Packaging content
Country-specific detachable power cord\nRemovable support feet
Software CD
Y
Rack mount kit
Y
Bracket
Y
Package weight
36.7 kg
LED indicators
Y
Audible alarms
Y
Noise level
55 dB
Surge protection
Y
Waveform
Sine
Auto-restart
Y
UPS topology
Double-conversion (Online)
Serial interface type
RJ-45
Cable length
2.44 m

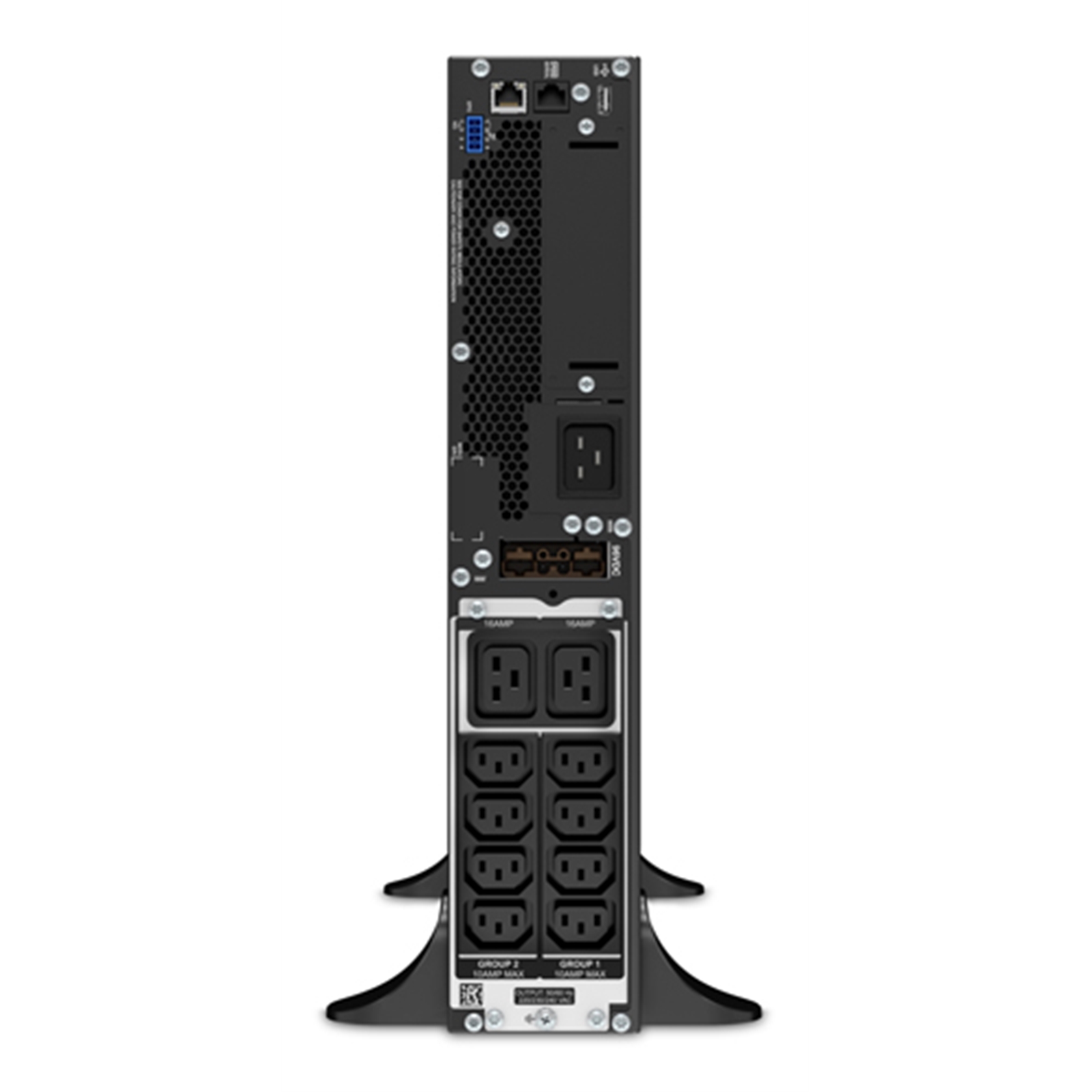

AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
2
AC outlet types
C13 coupler, C19 coupler
Serial interface
Y
USB port
Y
SmartSlot
Y
Noise level
55 dB
Form factor
Tower
Energy Star certified
Y
Output voltage
230
Input connections
British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Surge protection
Y
Output frequency
50/60 Hz
Weight
31.3 kg
Package weight
36.7 kg
Height
432 mm
Width
85 mm
Depth
635 mm
Packaging depth
871 mm
Packaging height
246 mm
Packaging width
599 mm
