APC Rack UPS | APC Smart-UPS RT 20kVA RM 230V | SURT20KRMXLI | ServersPlus

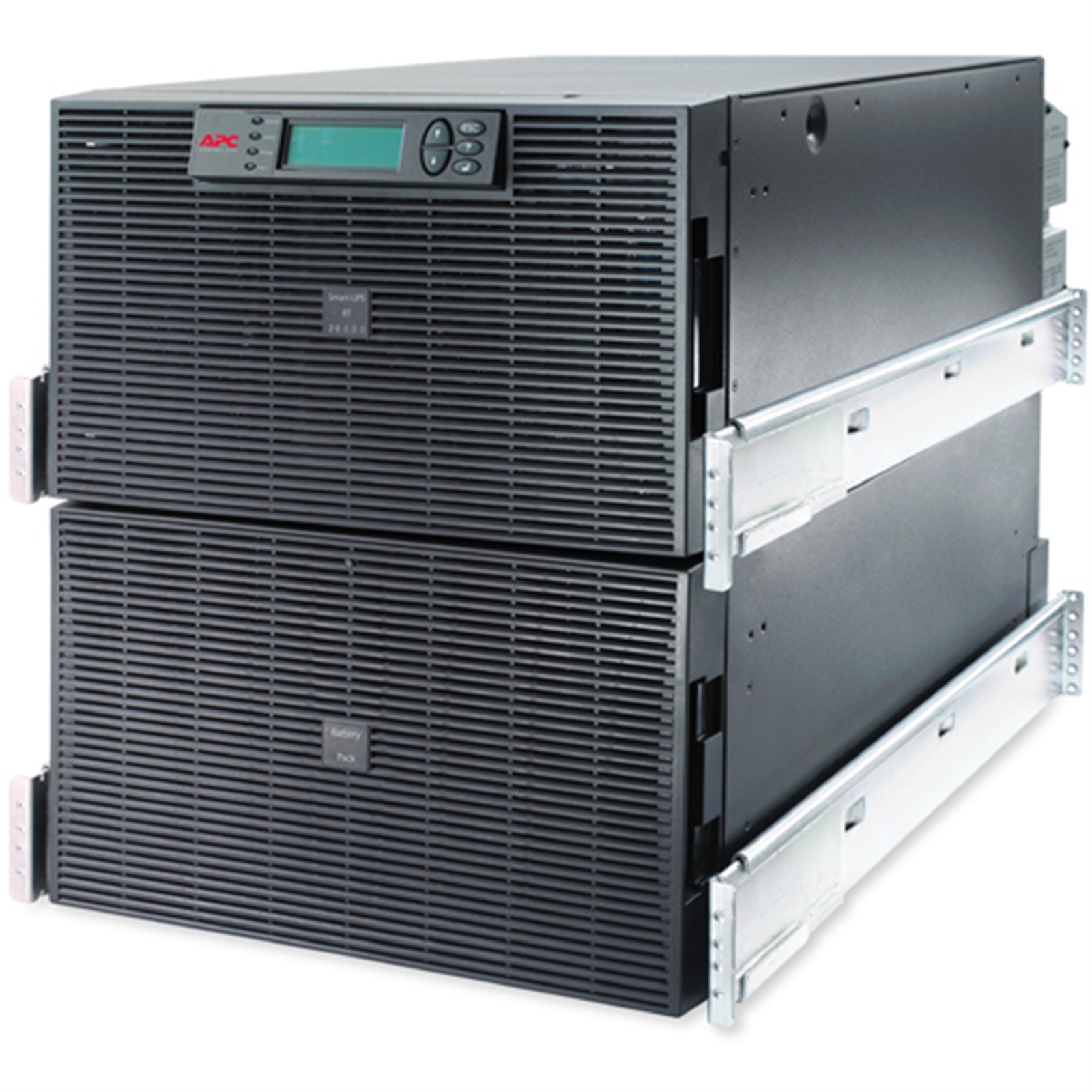

Illustration purposes only

APC Smart-UPS RT 20kVA RM 230V

APC Logo here

Manufacturer Part Code: SURT20KRMXLI

Order Code: PSAPC-SURT20KRMX

Category: APC Rack UPS

Smart-UPS RT 20kVA RM 230V

APC Smart-UPS RT, 16 kW / 20 kVA,Input 230V / Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot, Extended runtime model, Rack Height 12 U.

Includes: CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
2.5 h
Typical backup time at half load
15.2 min
Typical backup time at full load
4.9 min
Replacement battery cartridge
APCRBC140
Hot-swap battery
Y
Cold start
Y
Automatic battery test
Y
Battery capacity
3840 VAh
Battery life (max)
5 year(s)
Certification
BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
RoHS compliance
Y
Colour of product
Black
Display
LCD
Certification
BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Form factor
Rackmount/Tower
LED indicators
Y
Colour of product
Black
Rack capacity
12U
RoHS compliance
Y
Display
LCD
Power supply input frequency
40 - 70 Hz
Emergency Power Off (EPO)
Y
Output power capacity (VA)
20000 VA
Input frequency
40 - 70 Hz
Maximum current
115 A
Efficiency
93.7%
Output power
16000 W
Crest factor
3:1
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
50/60 Hz
Audible alarm(s)
Y
Emergency Power Off (EPO)
Y
Output power capacity
20000 VA
Noise level
59 dB
Input frequency
40 - 70 Hz
Maximum current
115 A
Efficiency
93.7%
Output power
16000 W
Surge protection
Y
Crest factor
3:1
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Number of output phases
1
Waveform
Sine
Output frequency regulation
50/60 Hz
Auto-restart
Y
UPS topology
Double-conversion (Online)
LED indicators
Y
Audible alarms
Y
Quantity per pallet
1 pc(s)
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Quantity per pallet
1 pc(s)
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Web/SNMP Management Card
Cables included
RS-232
Manual
Y
Packaging content
Web/SNMP Management Card
Software CD
Y
Rack mount kit
Y
Quantity per pallet
1 pc(s)
Package weight
314.1 kg
Cables included
RS-232
Package depth
1003 mm
Package height
990 mm
Package width
610 mm
Manual
Y
Software CD
Y
Rack mount kit
Y
LED indicators
Y
Audible alarms
Y
Noise level
59 dB
Surge protection
Y
Number of output phases
1
Waveform
Sine
Auto-restart
Y
UPS topology
Double-conversion (Online)
Cabling technology
10/100Base-T
Serial interface type
RS-232
Ethernet LAN (RJ-45) ports quantity
1
AC outlets quantity
8 AC outlet(s)
Number of output IEC jumpers
2
Power plug
Terminal
AC outlet types
C19 coupler
Serial interface
Y
SmartSlot
Y
Noise level
59 dB
Form factor
Rackmount/Tower
Input connections
Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Surge protection
Y
Weight
247.7 kg
Package weight
314.1 kg
Height
533 mm
Width
432 mm
Depth
773 mm
Packaging depth
1003 mm
Packaging height
990 mm
Packaging width
610 mm
