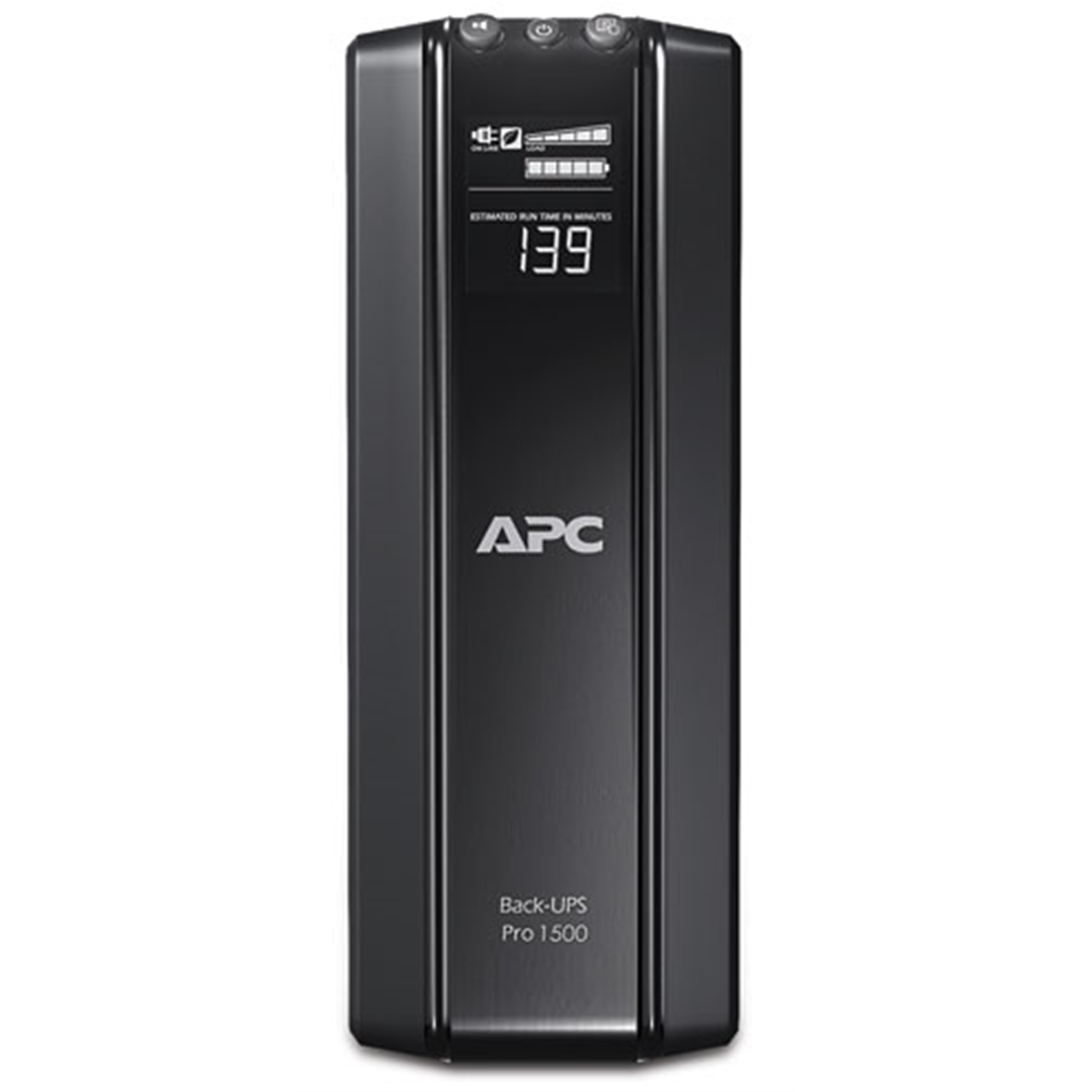

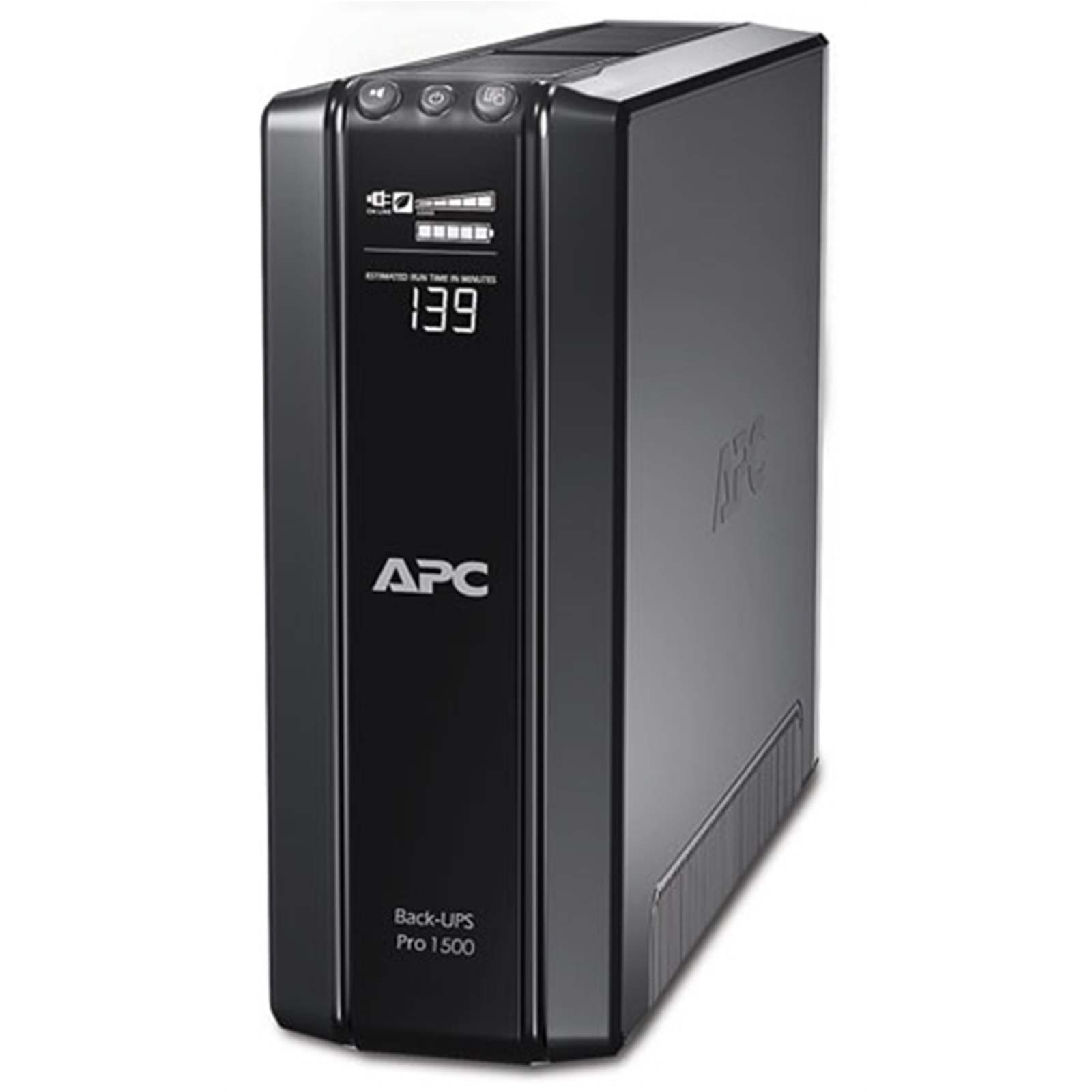

APC Back UPS Pro 1500 230V BR1500GI

APC Logo here

Manufacturer Part Code: BR1500GI

Order Code: PSAPC-BR1500GI

Category: APC Tower UPS

Power Saving Back-UPS Pro 1500, 230V

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Power-saving outlets
Automatically cuts power to idle equipment to conserve electricity.

Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.

Extendable Run Time
Additional batteries can be added to provide power to the load for an extended period of time in the event of utility supply failure.

Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment

Cold-start capable
Provides temporary battery power when the utility power is out.

Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Dataline Surge Protection
Provides protection of connected equipment from power surges on the data lines.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
8 h

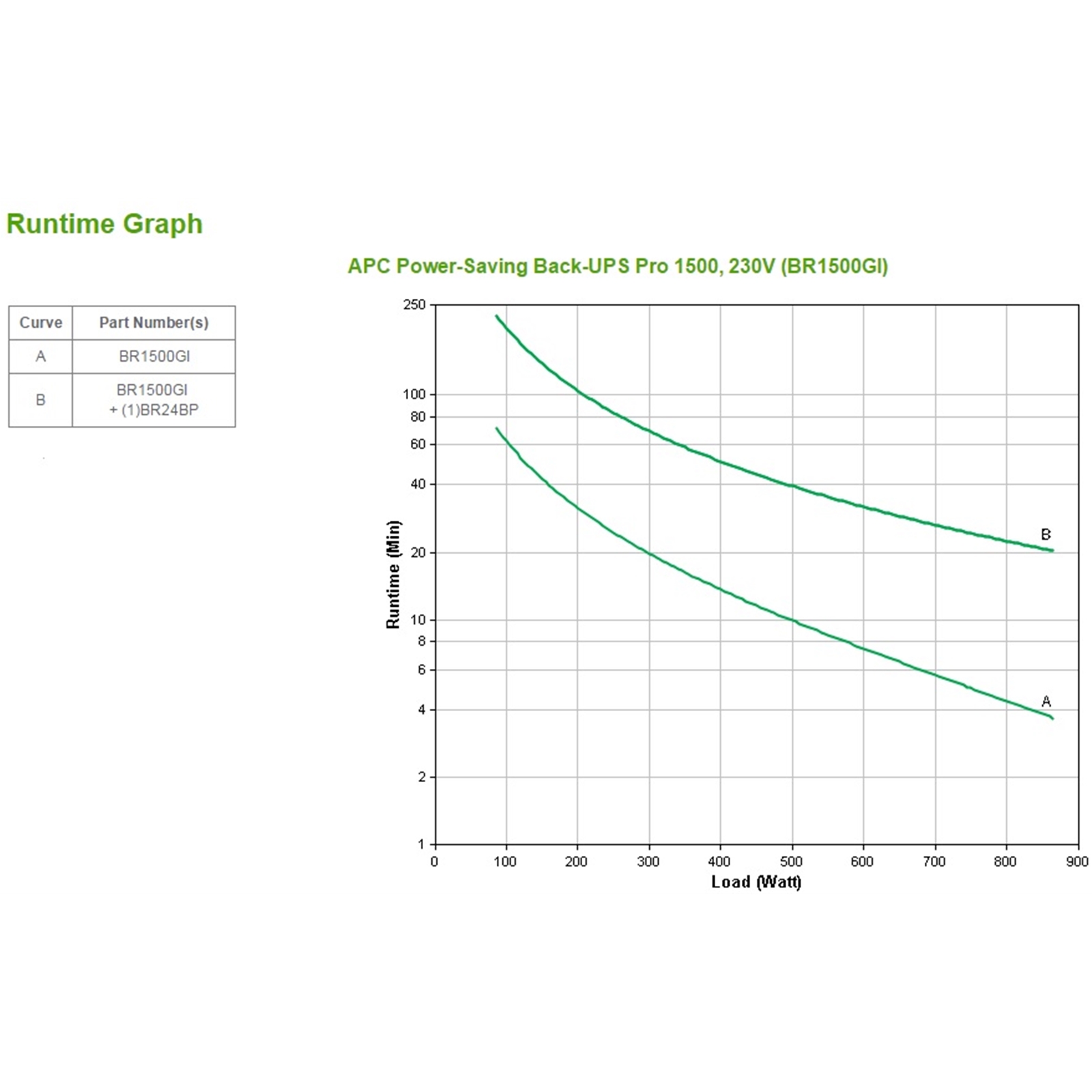

Typical backup time at half load
12.4 min
Typical backup time at full load
3.7 min
Replacement battery cartridge
APCRBC124
Battery technology
Sealed Lead Acid (VRLA)
Hot-swap battery
Yes
Battery recharge time
8 h
Typical backup time at half load
12.4 min
Typical backup time at full load
3.7 min
Replacement battery cartridge
APCRBC124
Cold start
Yes
Automatic battery test
Yes
Battery capacity
187 VAh
Battery life (max)
5 year(s)
Hot-swap battery
Y
Cold start
Y
Automatic battery test
Y
Battery capacity
187 VAh
Battery life (max)
5 year(s)
Certification
A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS
Energy Star certified
Y
RoHS compliance
Y
Colour of product
Black
Certification
A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS
Display
LCD
Product colour
Black
Certification
A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS
Energy Star certified
Y
Cable length
1.83 m
Colour of product
Black
Display type
LCD
RoHS compliance
Y
Display
LCD
Power supply input frequency
50/60 Hz
Output power capacity (VA)
1.5 kVA
Surge energy rating
441 J
Input frequency
50/60 Hz
Efficiency
98.9%
Output power
865 W
Crest factor
3:1
Input operation voltage (max)
300 V
Input operation voltage (min)
156 V
Output frequency regulation
50/60 Hz
Audible alarm(s)
Yes
Output power capacity
1.5 kVA
Surge energy rating
441 J
Noise level
45 dB
Input frequency
50/60 Hz
Audible alarm(s)
Y
Output power capacity
1.5 kVA
Surge energy rating
441 J
Noise level
45 dB
Efficiency
98.9%
Output power
865 W
Surge protection
Yes
Crest factor
3:1
Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Input operation voltage (max)
300 V
Input operation voltage (min)
156 V
Waveform
Sine
Output frequency regulation
50/60 Hz
Automatic Voltage Regulation (AVR)
Yes
UPS topology
Line-Interactive
Input frequency
50/60 Hz
Hold time (min)
10 ms
Hold time (max)
12 ms
Audible alarm modes
Low battery alarm, Overload alarm
Efficiency
98.9%
Output power
865 W
Surge protection
Y
Crest factor
3:1
Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Input operation voltage (max)
300 V
Input operation voltage (min)
156 V
Waveform
Sine
Output frequency regulation
50/60 Hz
Automatic Voltage Regulation (AVR)
Y
UPS topology
Line-Interactive
Hold time (min)
10 ms
Hold time (max)
12 ms
Audible alarm modes
Low battery alarm, Overload alarm
Audible alarms
Y
Products per pallet
20 pc(s)
Quantity per pallet
20 pc(s)
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
85078000
Quantity per master carton
1 pc(s)
Bundled software
PowerChute Personal Edition
Operating altitude
0 - 9000 m
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-15 - 40 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 15000 m
Operating altitude
0 - 9000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 40 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Nominal output voltage
230 V
Nominal input voltage
230 V
Quantity per pallet
20 pc(s)
Nominal output voltage
230 V

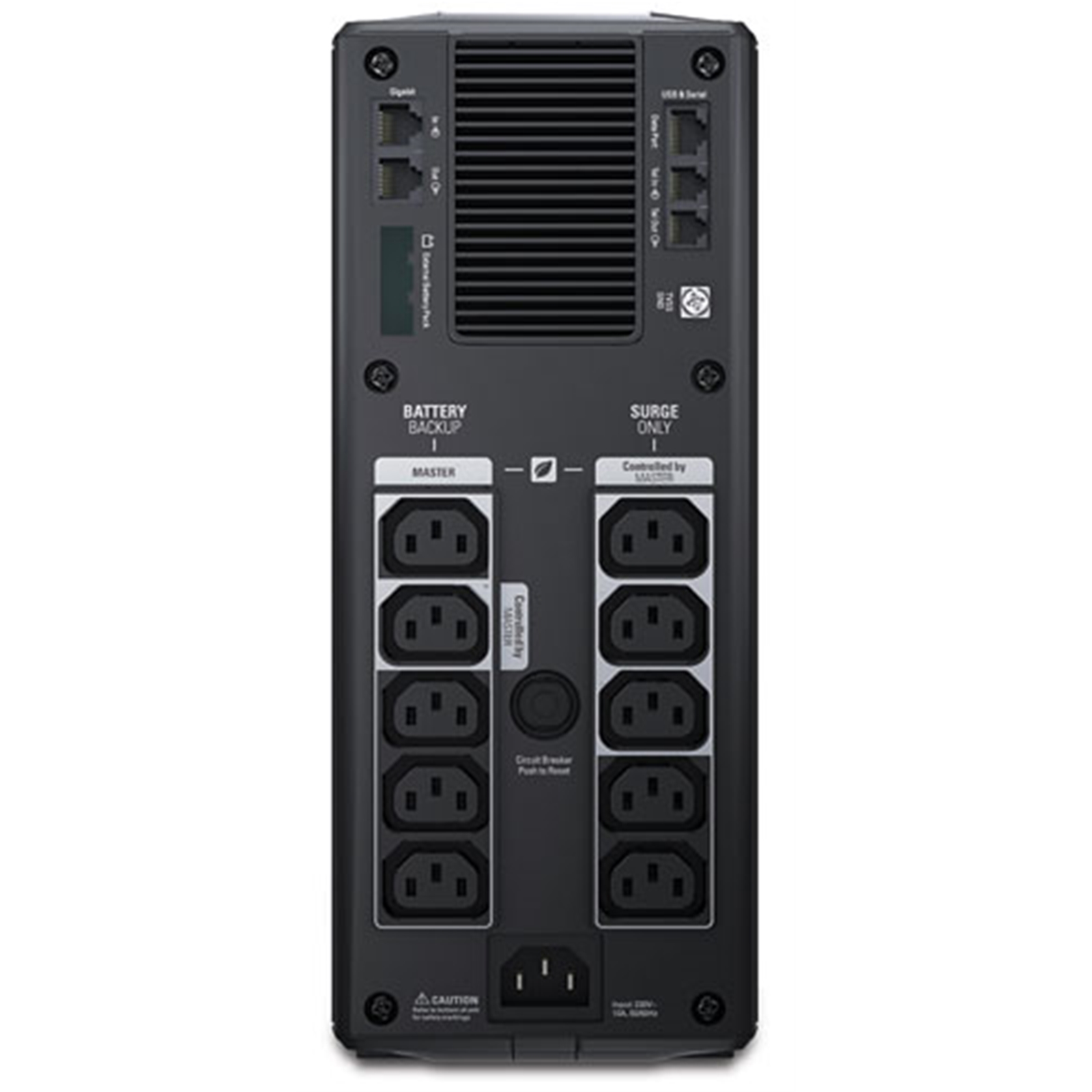

Output connections
5x IEC 320 C13 (Battery Backup) \n5x IEC 320 C13 (Surge Protection)
Input connection type
IEC-320 C14
Nominal input voltage
230 V
Packaging content
1x Detachable IEC Power Cord
Packaging content
1x Detachable IEC Power Cord
Bundled software
PowerChute Personal Edition
Cables included
Phone (RJ-11), USB cable
Manual
Y
Warranty card
Y
Packaging content
1x Detachable IEC Power Cord
Software CD
Y
Resource CD
Yes
Bundled software
PowerChute Personal Edition
Package weight
14.3 kg
Cables included
Phone (RJ-11), USB cable
Bundled software
PowerChute Personal Edition
Quantity per pallet
20 pc(s)
Package weight
14.3 kg
Package depth
488 mm
Package height
387 mm
Package width
238 mm
Manual
Yes
Warranty card
Yes
Cables included
Phone (RJ-11), USB cable
Software CD
Yes
Package depth
488 mm
Package height
387 mm
Package width
238 mm
Manual
Y
Warranty card
Y
Software CD
Y
Resource CD
Yes
Audible alarms
Y
Noise level
45 dB
Hold time
12 ms
Source data-sheet
ICEcat.biz
Surge protection
Y
Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
UPS topology
Line-Interactive
Hold time (min)
10 ms
Hold time (max)
12 ms
Audible alarm modes
Low battery alarm, Overload alarm
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
2
Cable length
1.83 m
Power plug
C14 coupler
AC outlet types
C13 coupler
AC outlets quantity
10 AC outlet(s)
USB port
Yes
Number of output IEC jumpers
2
Power plug
C14 coupler
AC outlet types
C13 coupler
USB port
Y
Noise level
45 dB
Energy Star certified
Y
Harmonized System (HS) code
85078000
Input connections
IEC-320 C14
Sustainability certificates
ENERGY STAR
Compliance certificates
RoHS
Source data-sheet
ICEcat.biz
Surge protection
Y
Sustainability certificates
RoHS, ENERGY STAR
Weight
12.7 kg
Package weight
14.3 kg
Height
301 mm
Weight
12.7 kg
Width
112 mm
Depth
380 mm
Package weight
14.3 kg
Package depth
488 mm
Package height
387 mm
Package width
238 mm
Height
301 mm
Width
112 mm
Depth
380 mm
Packaging depth
488 mm
Packaging height
387 mm
Packaging width
238 mm
