APC Tower UPS | APC Back UPS Pro  - BR1600MI | BR1600MI | ServersPlus
L R
APC BR1600MI | serversplus.comAPC BR1600MI | serversplus.comAPC BR1600MI | serversplus.comAPC BR1600MI | serversplus.comAPC BR1600MI | serversplus.comAPC BR1600MI | serversplus.comAPC BR1600MI | serversplus.com

Illustration purposes only

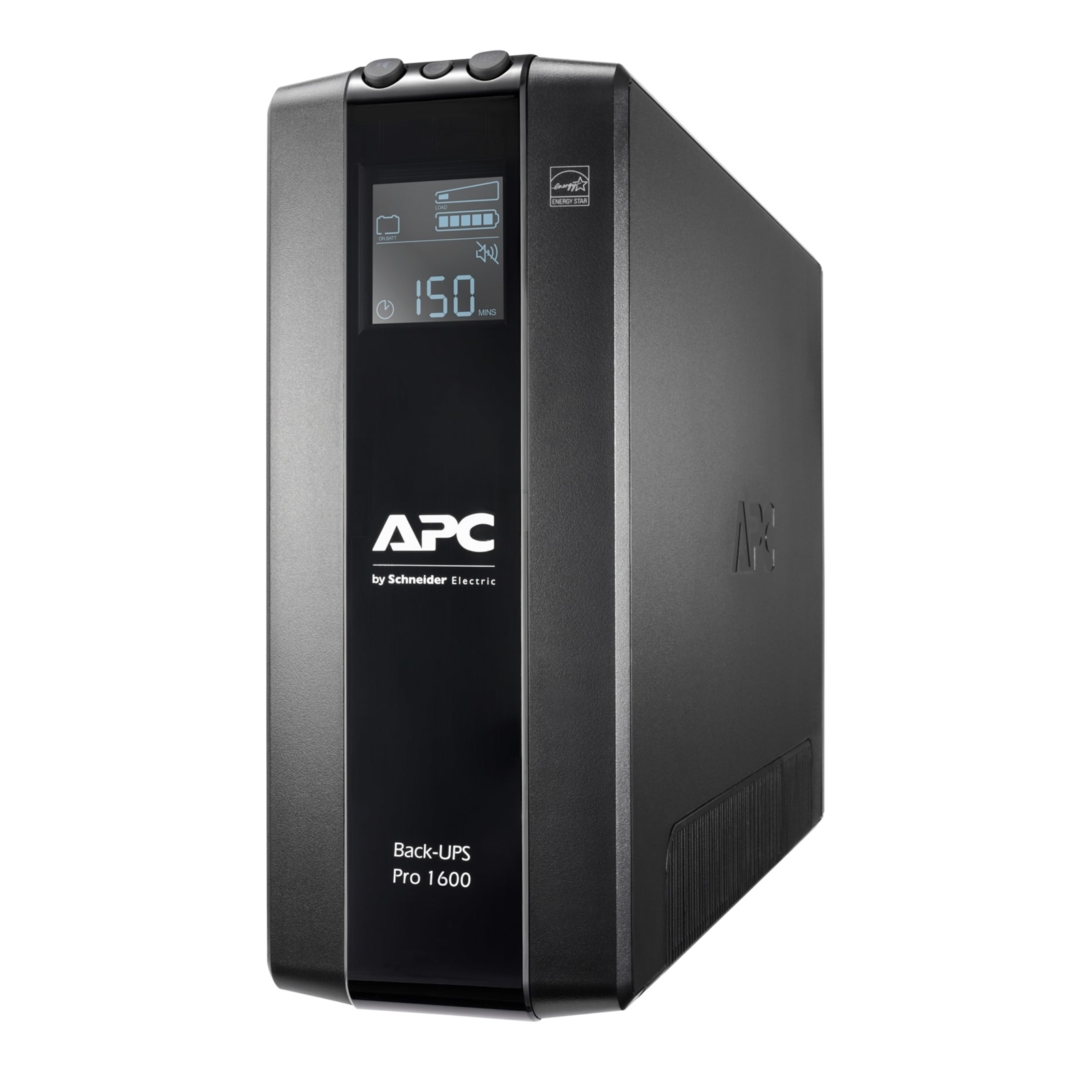

APC Back UPS Pro - BR1600MI

APC Logo here

Manufacturer Part Code: BR1600MI

Order Code: PSAPC-BR1600MI

Category: APC Tower UPS

Back UPS Pro BR 1600VA AVR LCD Interface


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
16 h
Hot-swap battery
Y
Cold start
Y
Automatic battery test
Y
Battery life (max)
5 year(s)
Certification
A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Colour of product
Black
Cooling type
Passive
Display
LCD
Certification
A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Form factor
Tower
Cable length
1.83 m
LED indicators
Y
Colour of product
Black
Cooling type
Passive
Display
LCD
Output power capacity (VA)
1600 VA
Surge energy rating
509 J
Input frequency
50/60 Hz
Maximum current
10 A
Output power
960 W
Input operation voltage (max)
294 V
Input operation voltage (min)
176 V
Output frequency
50/60 Hz
Audible alarm(s)
Y
Output power capacity
1600 VA
Surge energy rating
509 J
Noise level
45 dB
Input frequency
50/60 Hz
Maximum current
10 A
Output power
960 W
Surge protection
Y
Surge protection features
Network
Input operation voltage (max)
294 V
Input operation voltage (min)
176 V
Output frequency
50/60 Hz
ECO mode
Y
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
UPS topology
Line-Interactive
Audible alarm modes
Alarm when on battery,Low battery alarm,Overload alarm
LED indicators
Y
Audible alarms
Y
Operating altitude
0 - 3000 m
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-15 - 45 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
0 - 95%
Non-operating altitude
0 - 15000 m
Nominal output voltage
230 V
Nominal input voltage
230 V
Cables included
USB cable
Manual
Y
Package weight
11.7 kg
Cables included
USB cable
Package depth
225 mm
Package height
330 mm
Package width
485 mm
Manual
Y
LED indicators
Y
Audible alarms
Y
Noise level
45 dB
Cooling type
Passive
Surge protection
Y
Surge protection features
Network
Waveform
Sine
Automatic Voltage Regulation (AVR)
Y
UPS topology
Line-Interactive
Audible alarm modes
Alarm when on battery,Low battery alarm,Overload alarm
Cabling technology
10/100/1000Base-T(X)
Cable length
1.83 m
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports quantity
2
AC outlets quantity
8 AC outlet(s)
Power plug
C14 coupler
AC outlet types
C13 coupler
USB port
Y
Noise level
45 dB
Form factor
Tower
Surge protection
Y
Output frequency
50/60 Hz
Weight
10.9 kg
Package weight
11.7 kg
Height
100 mm
Width
250 mm
Depth
382 mm
Packaging depth
225 mm
Packaging height
330 mm
Packaging width
485 mm
